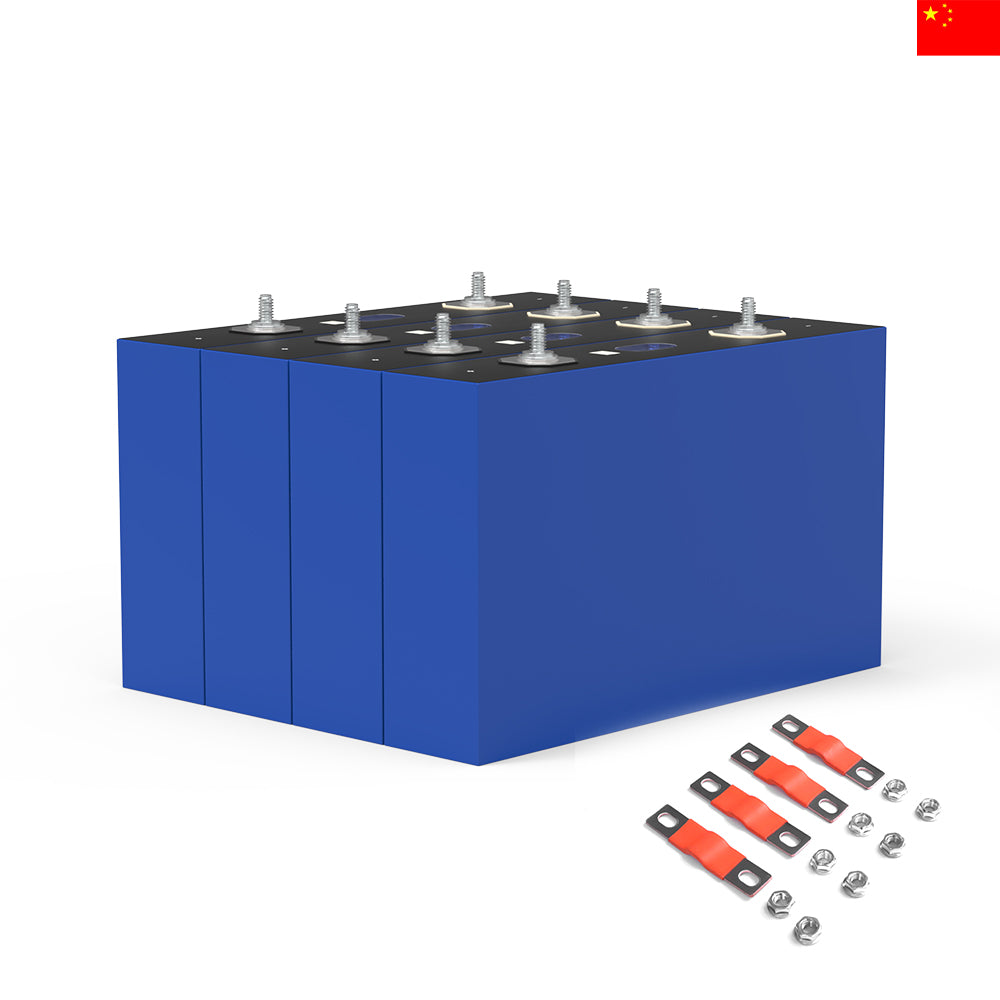

[Maximum Capacity] Nominal capacity 628Ah, actual capacity up to 680Ah, cost-effective battery cell.
[Extremely Low Internal Resistance] Compared to the EVE 314Ah internal resistance of 0.18±0.05mΩ, the 628Ah internal resistance is 0.10±0.05mΩ.
[Reduce Battery Pack Costs] The perfect choice for large-capacity systems, it can effectively reduce the cost of energy storage system accessories, labor costs and floor space.

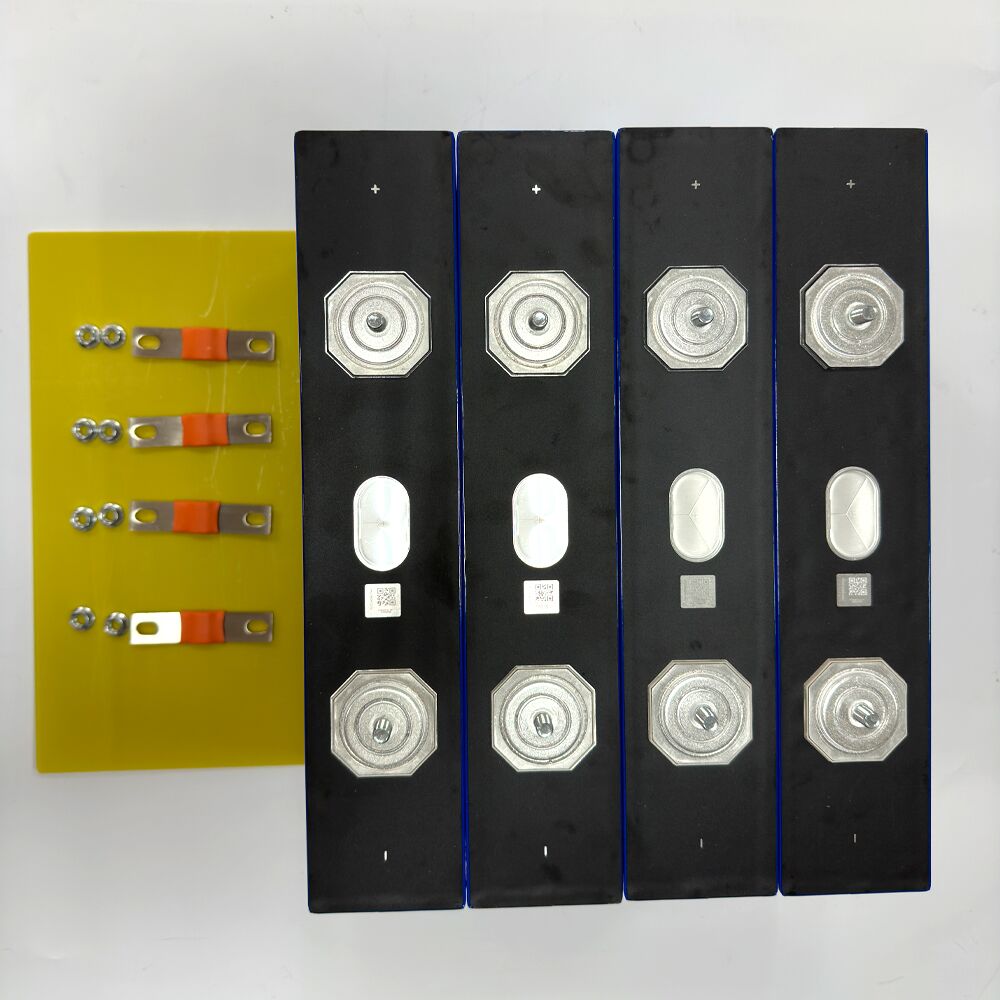

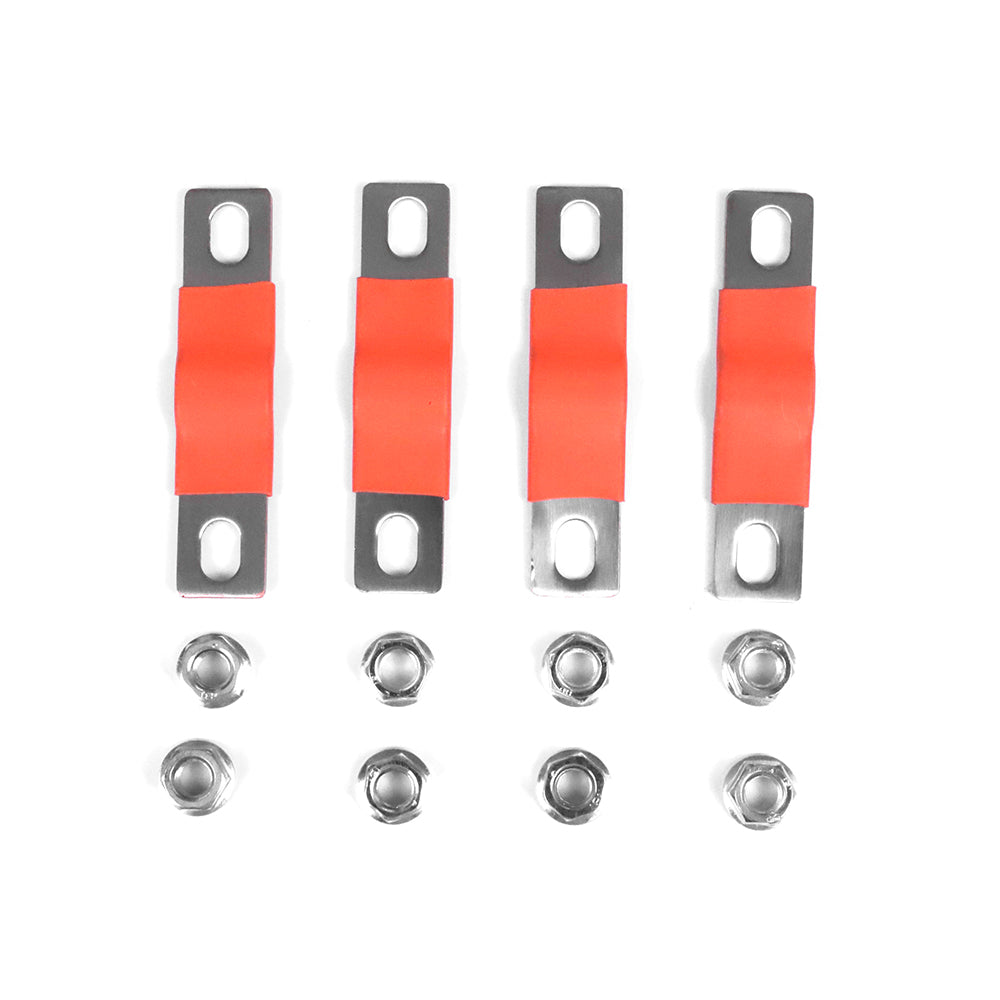

Free Accessories] Provides the necessary accessories for DIY battery, connectors, screws and epoxy plates, no need to buy other accessories.

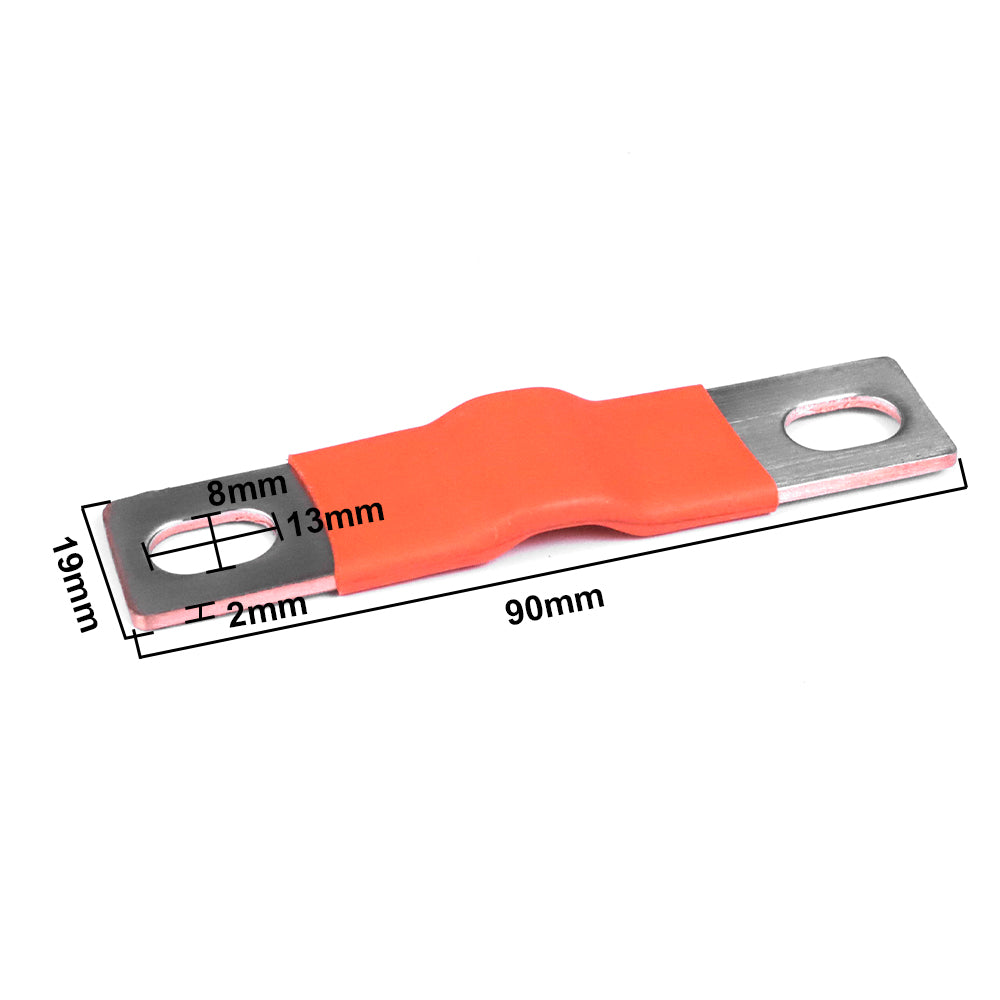

[Flexible Busbar] Provides flexible busbar, flexible installation, and high current bearing capacity.
[5-year Warranty] Wistek offers a five-year warranty on the Lifepo4 cells it sells. If there are any quality issues, we will provide a free replacement or refund.
SPEZIFIKATIONEN |
Modell |
EVE MB56 |
Nennkapazität |
628 Ah (2009,6 Wh) |
Nennspannung |
3,2 V |
Anzahl der Zyklen |
≥ 8000 (25 °C bei 0,5 P, 70 % SOH) |
Ladespannung |
3,65 V |
Maximale Ladeleistung |
0,5P |
Maximale Entladeleistung |
0,5P |
Anwendung |
Energiespeichersystem (ESS) |
Temperaturbereich (Entladung) |
-30°C bis 60°C |
Garantie |
5 Jahre |
Nettogewicht |
11,5 kg |
Abmessungen (B*T*H) |
352*72*208 mm |
Original-Werksprüfbericht |
Verfügbar |
Datenblatt |
