[Grade A, Brand New Quality] EVE original grade A, brand new MB31 cells, with intact QR, ready for assembly into high-voltage systems.
[Real Capacity 330Ah] Nomial capacity 314Ah, actual capacity 330Ah, higher energy density, compact size.

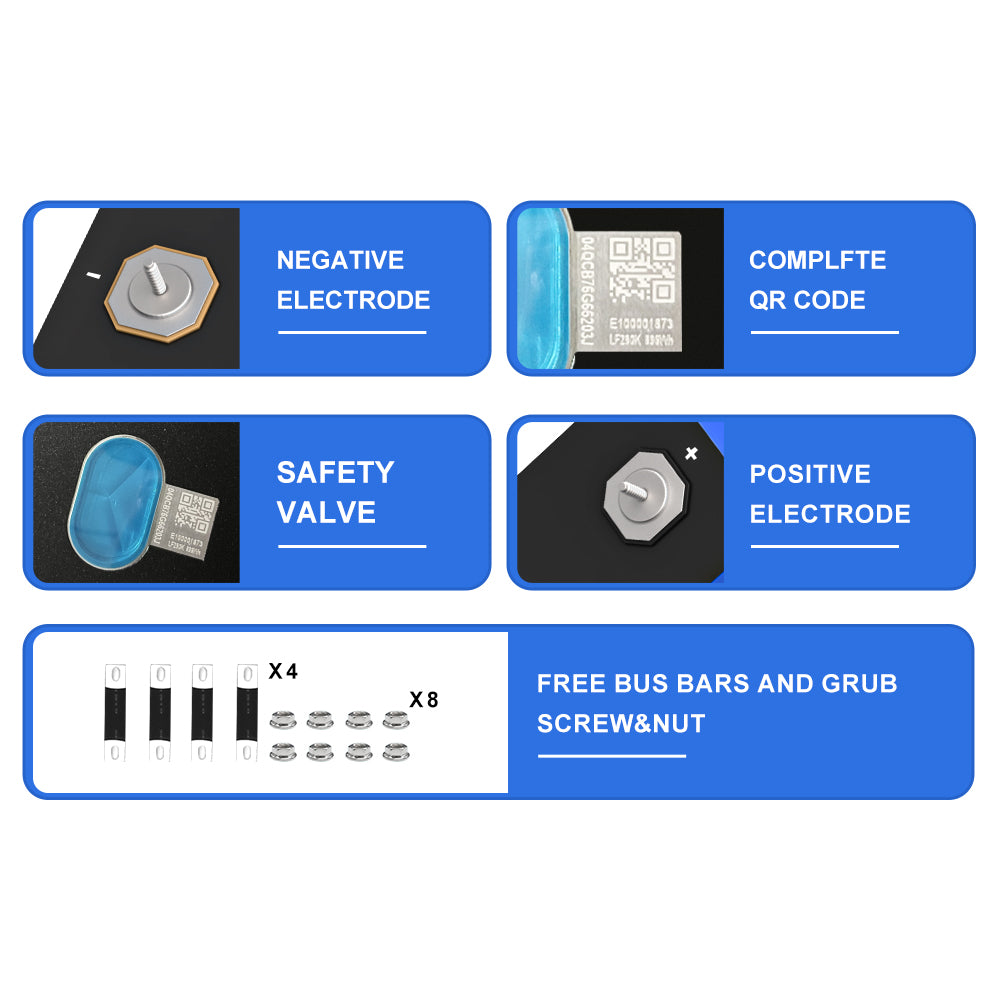

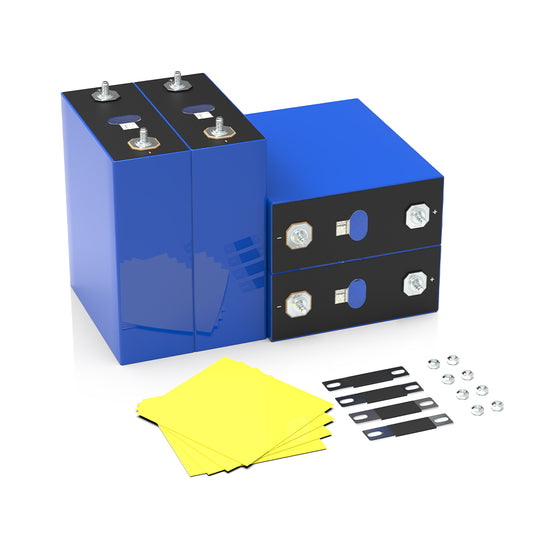

[Free Accessories] Provide all necessary accessories for DIY batteries, including screws, busbars, epoxy plates and other accessories.
[Already Matched] All cells have consistent voltage, internal resistance, and capacity, allowing for direct assembly without the need for balancing.
[Original Test Report] With the original test report, all battery cell test data is traceable, capacity range 330.0011-332.9999Ah, internal resistance range 0.1702–0.1836 mΩ, voltage range 3.2650-3.2678V
[8000 Cycles] At 25 ℃, 10%-90% humidity, the battery is subjected to a pressure of 300 kgf and a charge and discharge power of 0.5P. After 8000 cycles, the actual remaining capacity is greater than 70% (SOH ≥ 70%).
Diese Charge von Batteriezellen entspricht der Klasse A (HSEV) und kann von Benutzern zu Hochspannungs-Energiespeichersystemen zusammengebaut werden.
SPEZIFIKATIONEN |
Modell |
EVE MB31 |
Nennkapazität |
314 Ah (1004,8 Wh) |
Nennspannung |
3,2 V |
Anzahl der Zyklen |
≥ 8000 (25 °C bei 0,5 P, 70 % SOH) |
Ladespannung |
3,65 V |
Maximale Ladeleistung |
0,5P |
Maximaler Entladestrom |
0,5P |
Grad |
A |
Anwendung |
Energiespeichersystem (ESS) |
Temperaturbereich (Entladung) |
-30°C bis 60°C |
Garantie |
5 Jahre |
Nettogewicht |
5,6 kg |

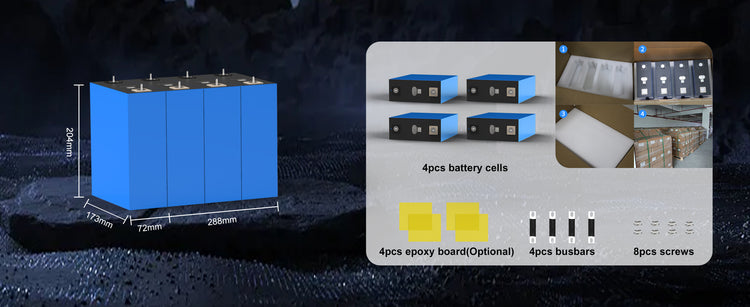

Abmessungen (B*T*H) |
174*72*208 mm |
Spezifikation |
Verfügbar |
Prüfbericht |
Verfügbar |
Produktionsdatum |
Juni 2025 |
Kapazität |
330 Ah–333 Ah |
IR |
0,1702–0,1836 mOhm |
