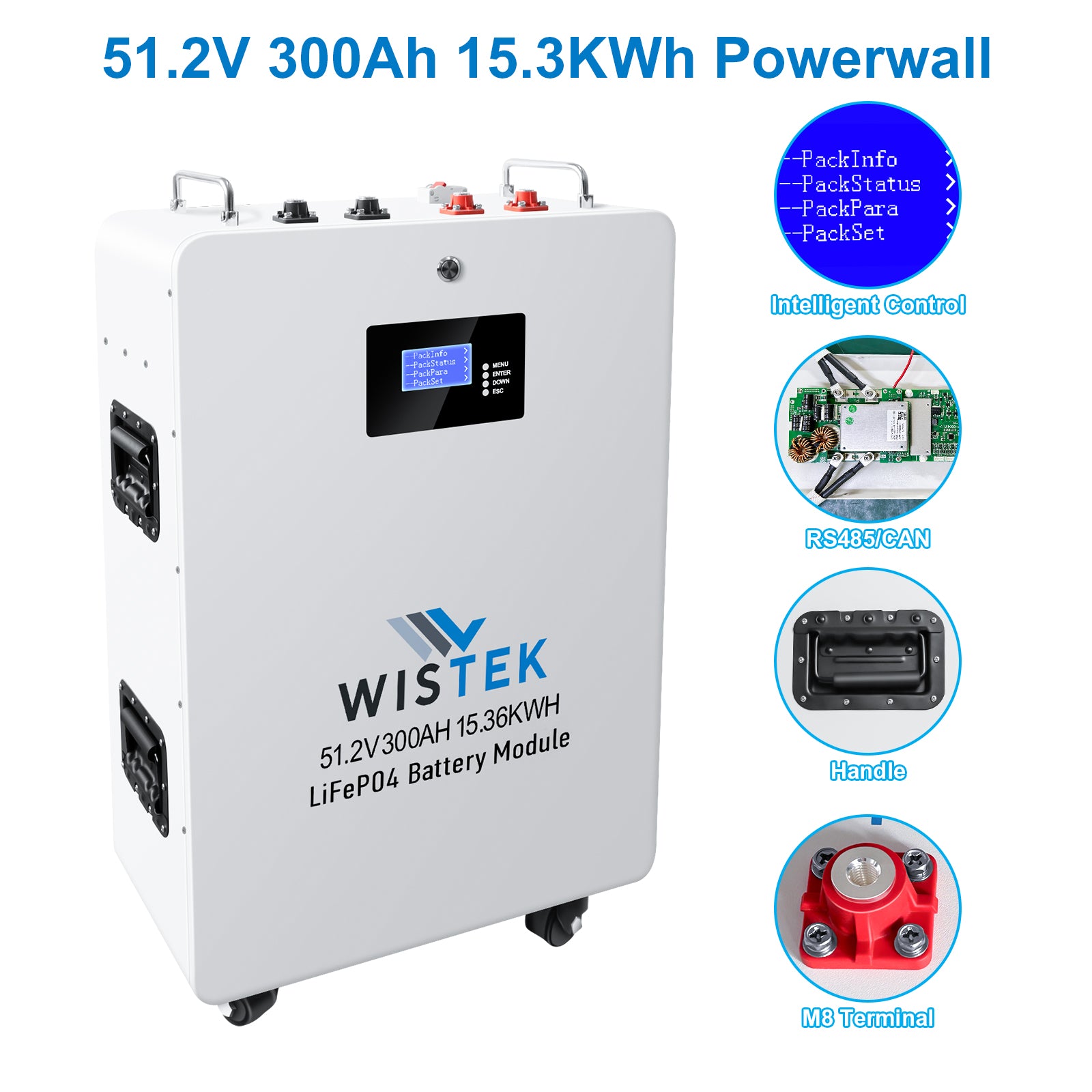

[Grade A, Brand New Battery Cells] The Wistek 51.2V 15KWh wall mounted battery is assembled from 16 EVE grade A, brand new cells, using high-quality battery cells as raw materials.
[Built-in Intelligent BMS] The 15KWh wall-mounted battery is equipped with a JBD 16S intelligent BMS, which provides overcharge protection, over-discharge protection, overcurrent protection, high and low temperature protection, and cell balancing.
[10KW Continuous Output] The 15KWh battery has a built-in 200A BMS, with a continuous 200A discharge current and 10KW continuous output power.
[Scalability] This 15KWh battery can support up to 16 battery modules in parallel, expanding to a 240KWh system.
[Compatible with Various Brands of Inverters] The Wistek 15kwh battery pack is compatible with most inverters on the market and perfectly implements communication functions.
[Two Installation Methods] Supports two installation methods, wall-mounted installation and wheels at the bottom for easy movement.
Couldn't load pickup availability
The package will be sent out within 24 hours and delivered to your door within 3-7 working days.
15KWh energy storage system, can meet the household electricity demand for 3 days, 8 battery packs connected in parallel, 120KWh system, worry-free electricity for 15 days.
The 15KWh battery has a built-in 16S 200A BMS, which has functions such as preventing battery overcharge, over-discharge, over-current, short-circuit protection, and cell balancing to extend the battery life. 200A continuous discharge current, 10KW continuous power, can drive most household appliances.

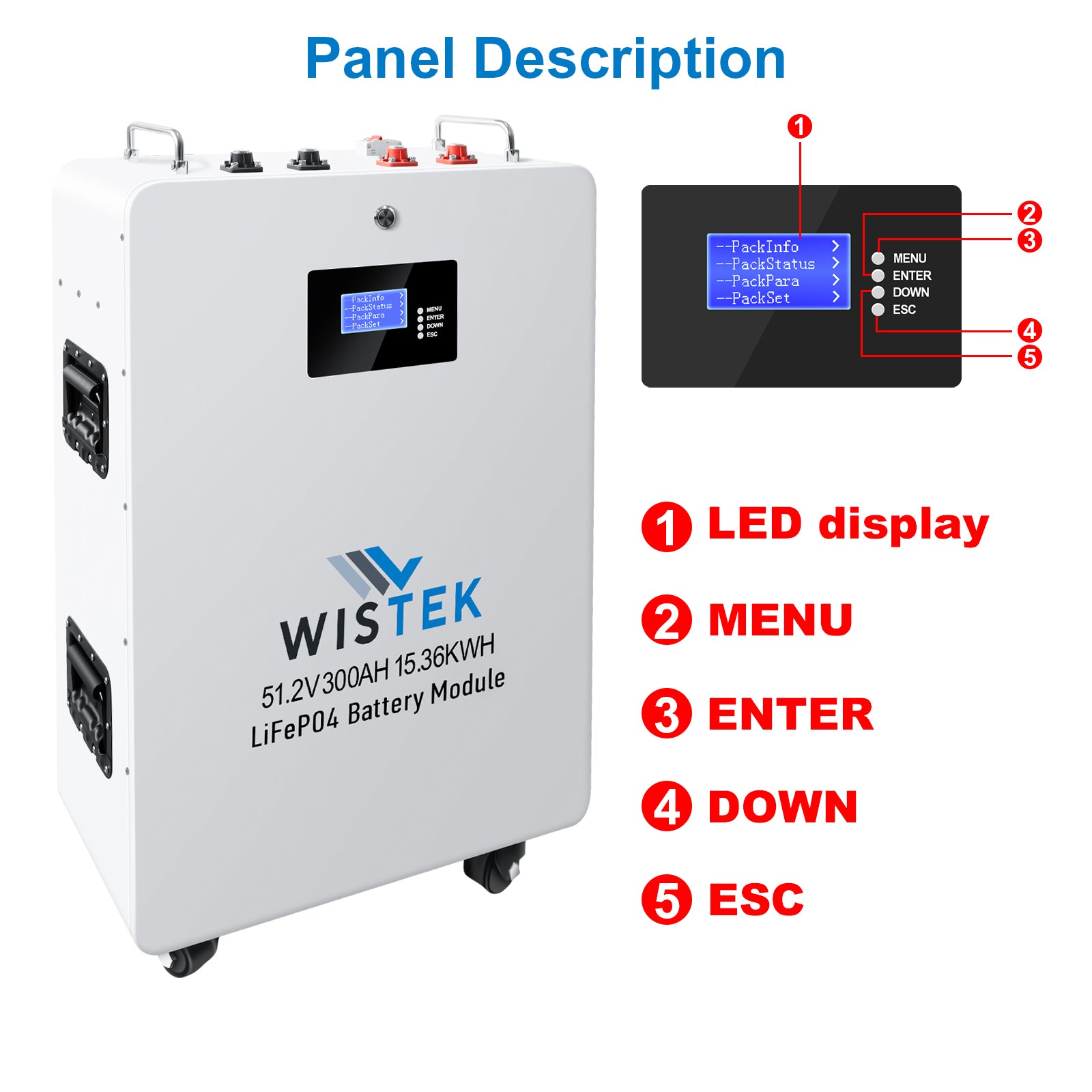

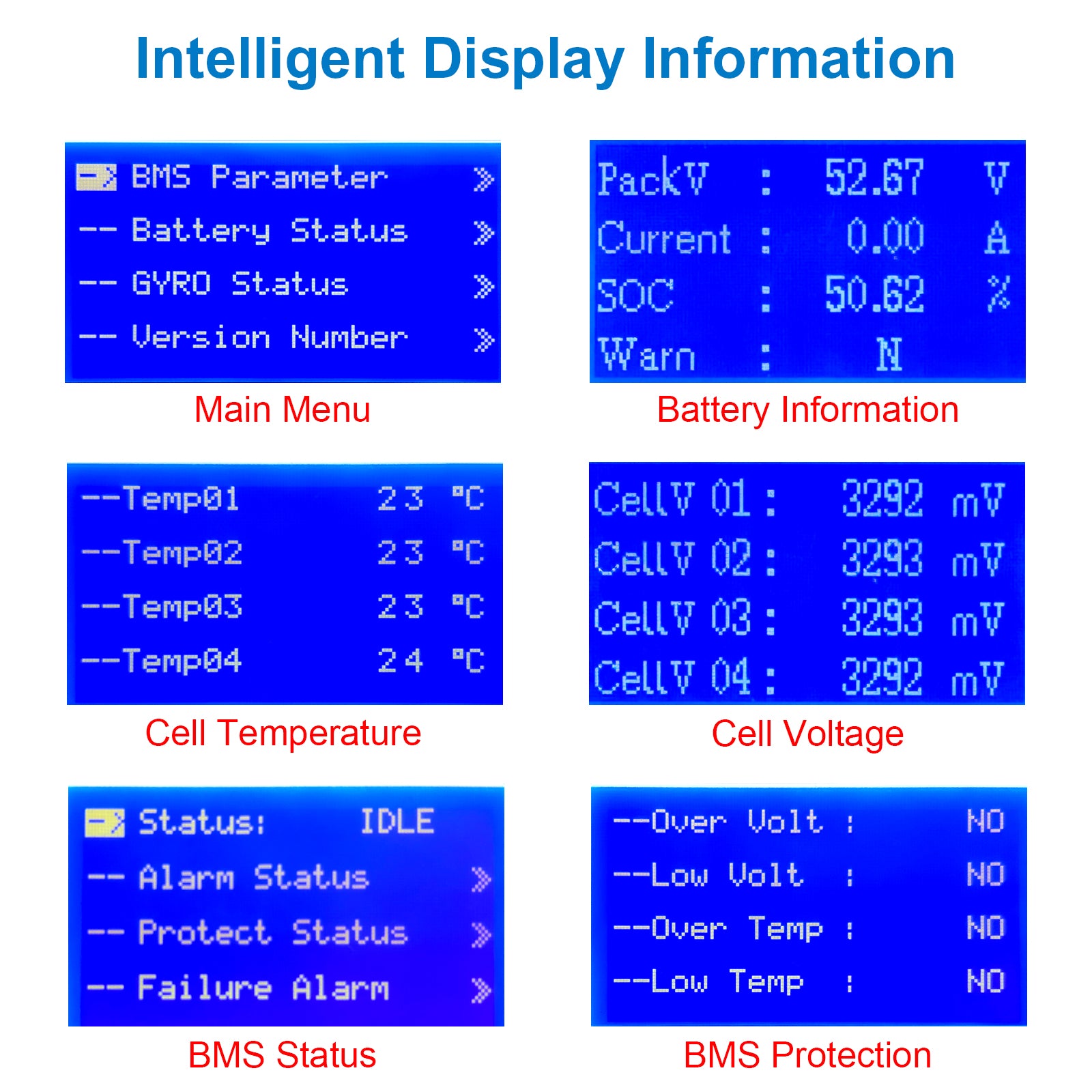

Real-time information on battery pack status, battery temperature, discharge current, SOC, cycle life, etc.

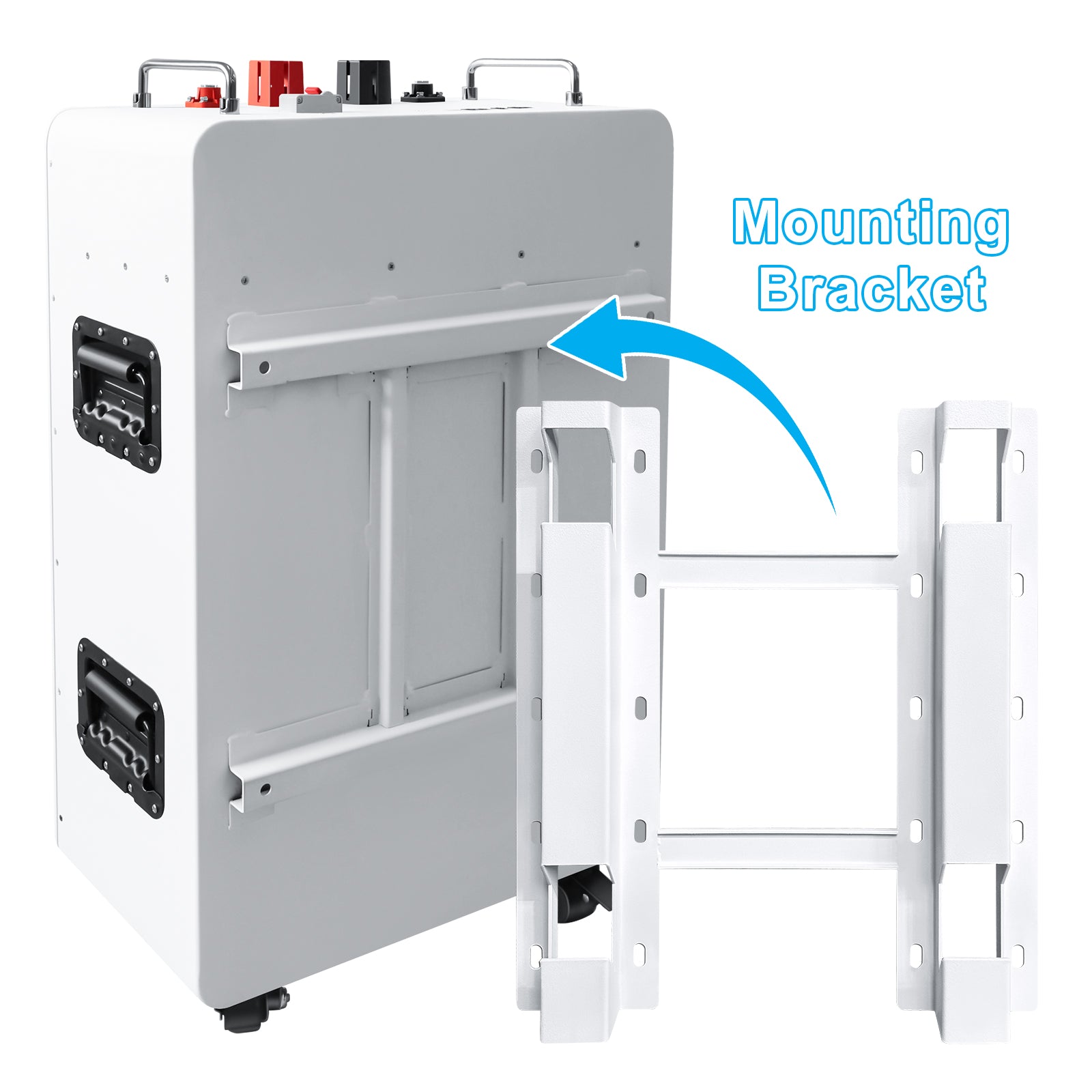

Two installation methods, you can choose freely, wall-mounted and mobile in one. The bottom of the battery has four wheels for easy movement, and the back has a mounting bracket to support wall-mounted installation.
Compact design, white stainless steel shell, arc-shaped appearance, friendly to children.

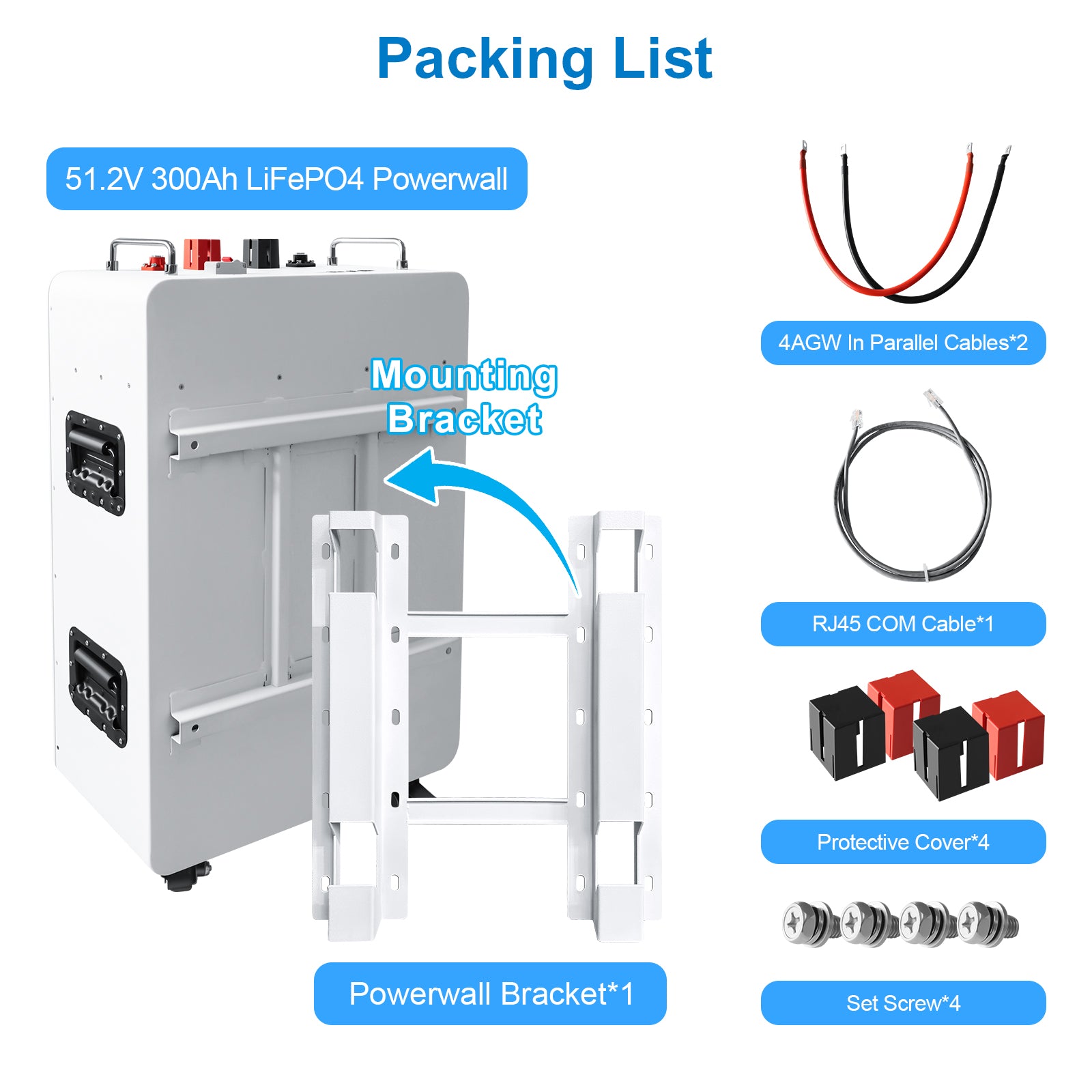

The battery pack contains the necessary installation components.

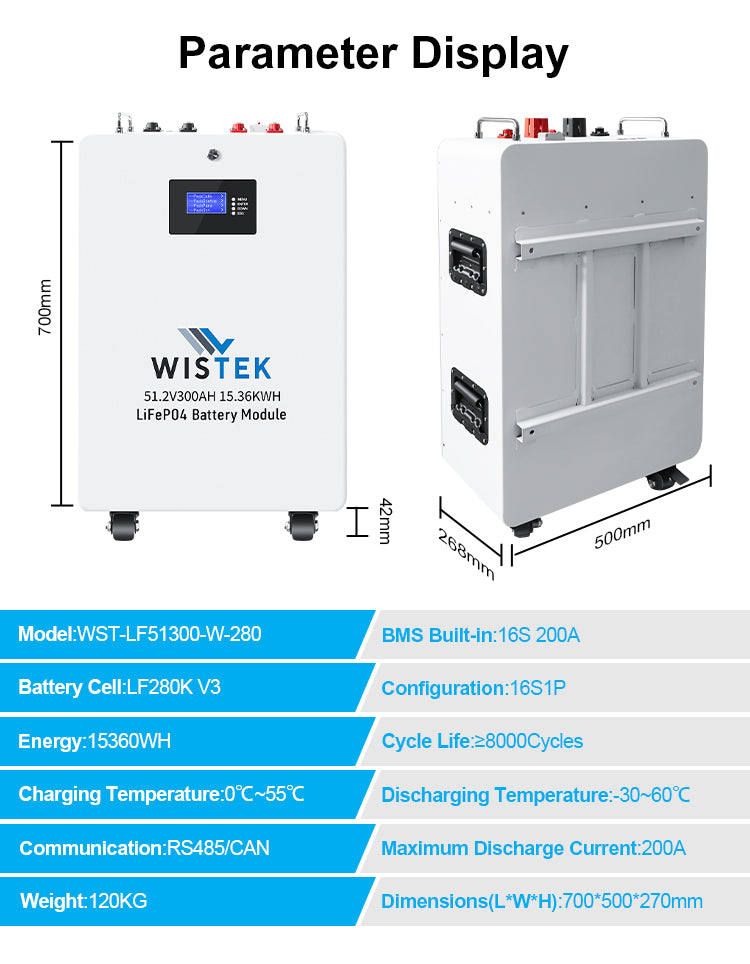

Model |
WST-LF51300-W |
Nominal Capacity |
300Ah(15.36KWh) |
Norminal Voltage |
51.2V |
Number of Cycles |
≥8000@0.5C,70%SOH |
Charging Voltage |
58.4V |
Maxinum Continuous Charge Current |
200A |
Maxinum Continuous Discharge Current |
200A |
BMS |
Intergrated |
Monitoring |
LCD display and communication protocol |
Waterproof Grade |
IP55 |
Temperature Range(discharge) |
-20°C~55°C |
Connection Screw |
M8 |
Warranty |
5 years |
Net Weight |
125KG |
Dimensions(H*W*T) |
700*500*270mm |
