[Pre-assembled Version] This 15KWh DIY battery box is pre-assembled. When assembling, you only need to arrange the battery cells in the correct order, and then tighten the screws to use it.

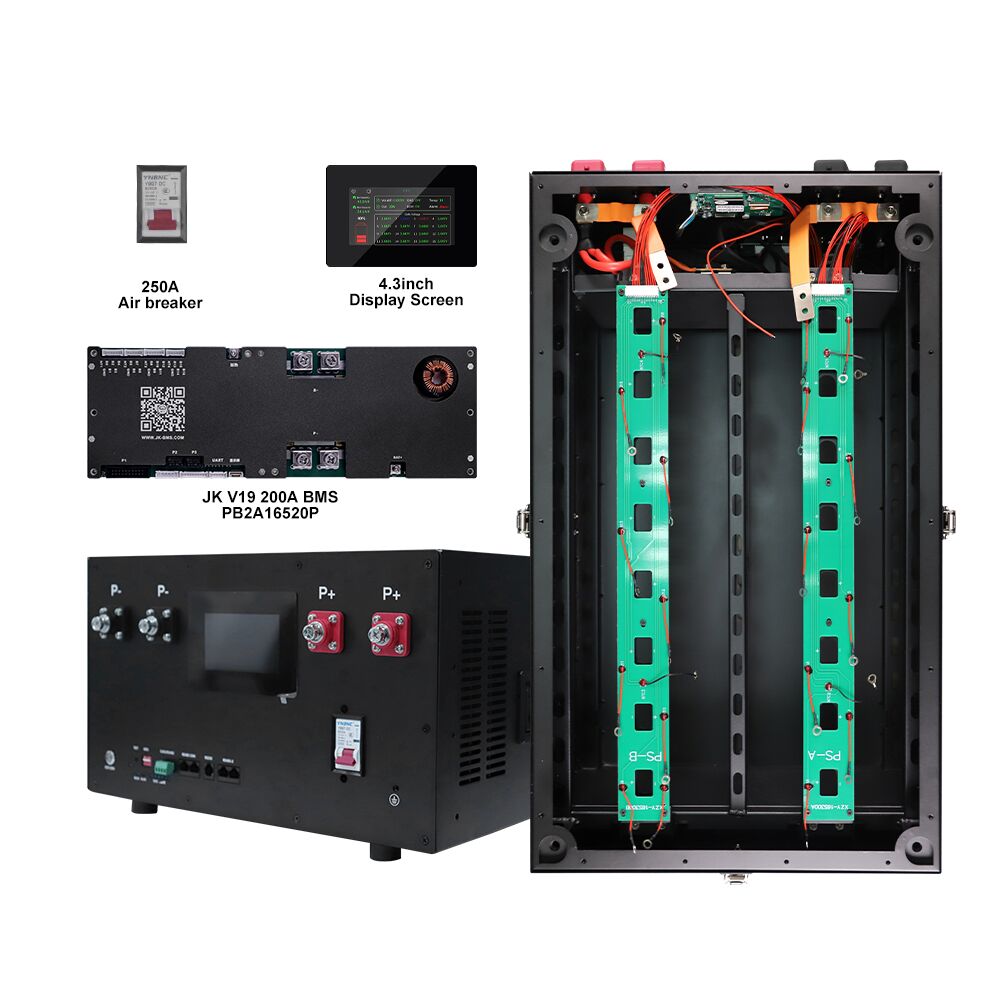

[Smart BMS] Equipped with V19 JK PB2A16S20P BMS, 2A active balancing, 200A continuous discharge current, wireless Bluetooth APP monitoring, 4.3-inch touch screen
[High-quality Materials] The 1.5mm thick stainless steel casing is designed to withstand drops and protect the battery cells from damage. Flexible connectors are included to handle high currents while also protecting the battery terminals.
[Matching Inverter] JK BMS can communicate with many brands of inverters on the market, enabling the inverter to understand the battery status in real time and provide double protection for the battery.
[Fire Extinguishing Equipment] The V2 15KWh battery box is equipped with a fire extinguishing device, allowing you to use the lifepo4 battery without worry.
[Heating Plate] Intelligent temperature control allows you to set the temperature and heating conditions, allowing you to use the battery without worrying about it.
15KWh Battery Box V1 VS V2 | ||
Items | V1 | V2 |
Applicable Battery Cell Configuration | 16S1P or 15S1P | 16S1P or 15S1P |
Applicable Battery Cell Models |
Cell(W*T*H):174*72*208mm |
Cell(W*T*H):174*72*208mm EVE:LF280K,MB30,MB31 CATL:280Ah |
BMS | JK V15 PB2A16S20P with 4.3 inch Display | JK V19 PB2A16S20P with 4.3 inch New Version Display |
Fire Extinguishing Equipment | No | Yes |
Heating Plate | No | Yes |
Shell Stainless Steel Thickness | 1.5mm | 1.5mm |
Dimension(L*W*H) | 750*450*220mm | 750*450*220mm |
Circuit Breaker Location on Panel | upper left corner | right side |
