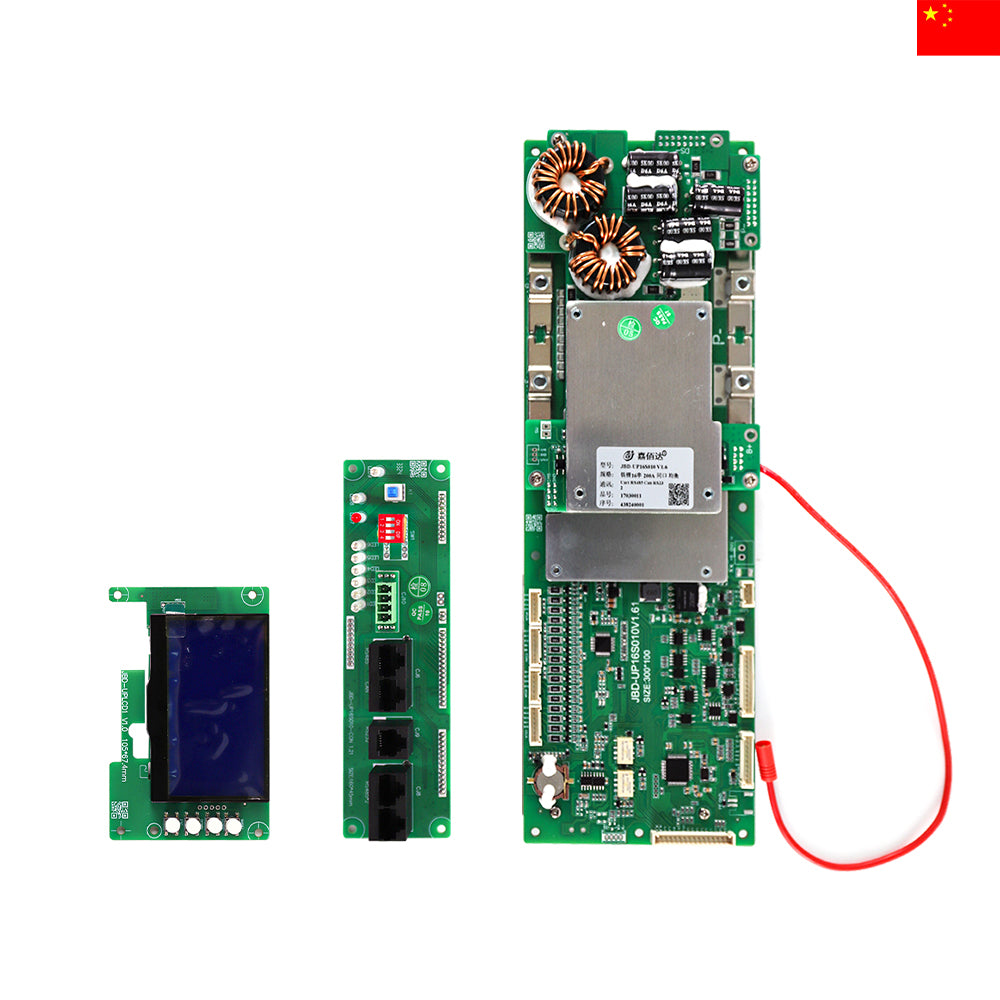

[200A Continuous Discharge Current] Suitable for 16S lifepo4 battery packs, providing a continuous 200A discharge current, and the 16S lifepo4 battery pack has an output power of 10KW.
[Button Screen Display] After the upgrade, the 4.3-inch display screen can further understand the status of a single battery cell.
[Battery Management System] Overcharge, over-discharge, overcurrent, short circuit protection, balancing battery cells, high and low temperature protection...
[Matching Inverter] Adapts to most mainstream inverter brands on the market.
[6 Temperature Monitoring] The BMS has 6 NTCs, which can fully monitor battery temperature changes and effectively and quickly protect the battery.
Specification
x| Product Model | JBD-UP16S010V1.61 |
| Applicable Cell Materials | LFP |
| Applicable number of strings | 16S |
| Balance Mode | Passive Balance |
| Balance Current | 20mA |
| Max Continuous Discharge Current | 200A |
| Max Continuous Discharge Current | 200A |
| NTC Quanitities | 6 |
| Overcurrent Protection | Yes |
| Overvoltage Protection | Yes |
| Temperture Protection | Yes |
| Short Circuit Protection | Yes |
| Blueooth Monitoring | Custom |
| Operate Temperture Range | -20~75℃ |
| Dimension(L*W*H) | 300*100*38mm |
FAQ
x ● Unterstützt diese BMS-Version in Reihe geschaltete Batteriemodule?
1.Nein
●Unterstützt diese BMS-Version die Parallelschaltung von Batteriemodulen?
Ja.
●Wie viele Batteriezellenmodulstränge unterstützt diese BMS-Version?
16S
●Welche Wechselrichtermarken sind kompatibel?
Pytron, GoodWe, Growatt, SMA, Victron Energy, MUST, SRNE, DEYE, Sofar
●Welche Batteriezellenmaterialien sind für diese BMS-Version geeignet?
16S Lithium-Ionen-Akkupack, 16S Lifepo4-Akkupack, 16S Polymer-Akkupack
