[Maximum Capacity] capacity is 628Ah, actual capacity is 680Ah, offering better value for money (lower USD per Ah), perfect for home energy storage systems.
[Extremely Low Internal Resistance] Compared to the EVE 314Ah internal resistance of 0.18±0.05mΩ, the 628Ah internal resistance is 0.10±0.05mΩ.
[Latest Production Date] This batch of MB56 (LF628K) cells was produced between November 17th and November 19th 2025, the latest batch production date.
[5Ah Capacity Difference] All cells have capacities between 680Ah and 685Ah, with a capacity difference of 5Ah. This allows for greater capacity release after assembling battery packs. (Original factory test report available)
[Good Consistency] All cells have been paired before shipment, ensuring good consistency in cell voltage, internal resistance, and capacity. They can be directly assembled without additional balancing.

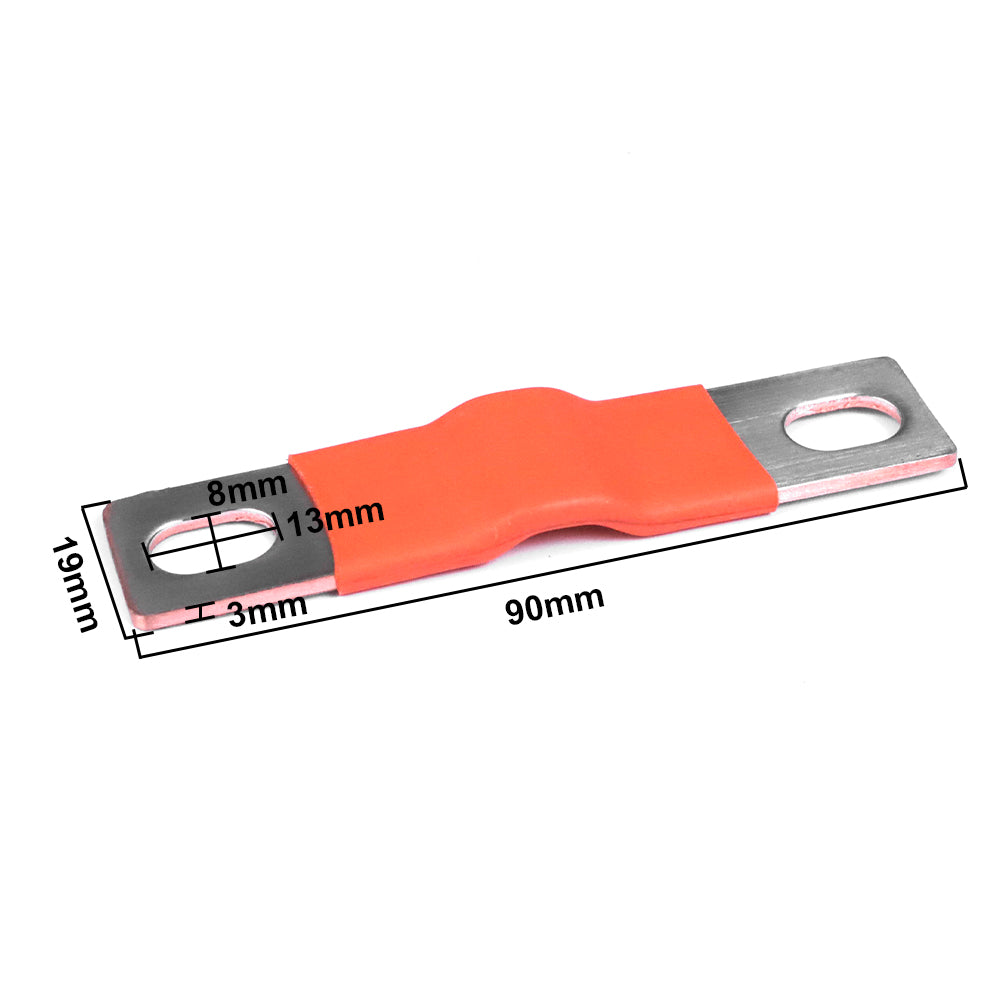

[Flexible Busbars] Equipped with a flexible busbar made of copper, 3mm thick, capable of handling 300A of current with minimal energy loss.
[Free Accessories] All battery cells, and free configuration of necessary accessories for battery pack assembly, including epoxy boards, flexible busbars, flange nuts, and M8 studs (already soldered to the electrodes).





SPEZIFIKATIONEN |
|
Modell |
EVE MB56 |
|
Nennkapazität |
628 Ah (2009,6 Wh) |
|
Nennspannung |
3,2 V |
|
Anzahl der Zyklen |
≥ 8000 (25 °C bei 0,5 P, 70 % SOH) |
|
Ladespannung |
3,65 V |
|
Maximale Ladeleistung |
0,5P |
|
Maximale Entladeleistung |
0,5P |
|
Anwendung |
Energiespeichersystem (ESS) |
|
Temperaturbereich (Entladung) |
-30°C bis 60°C |
|
Garantie |
5 Jahre |
|
Nettogewicht |
11,5 kg |
|
Abmessungen (B*T*H) |
352*72*208 mm |
|
Original-Werksprüfbericht |
Verfügbar |
|
Datenblatt |
