Batería LiFePO4 de gran capacidad EVE MB56 de 628 Ah y 3,2 V | Wistek

Vendor: Wistek
SKU: MB56-C-4
Availability: In Stock
Product Type: LiFePO4 Battery Cell

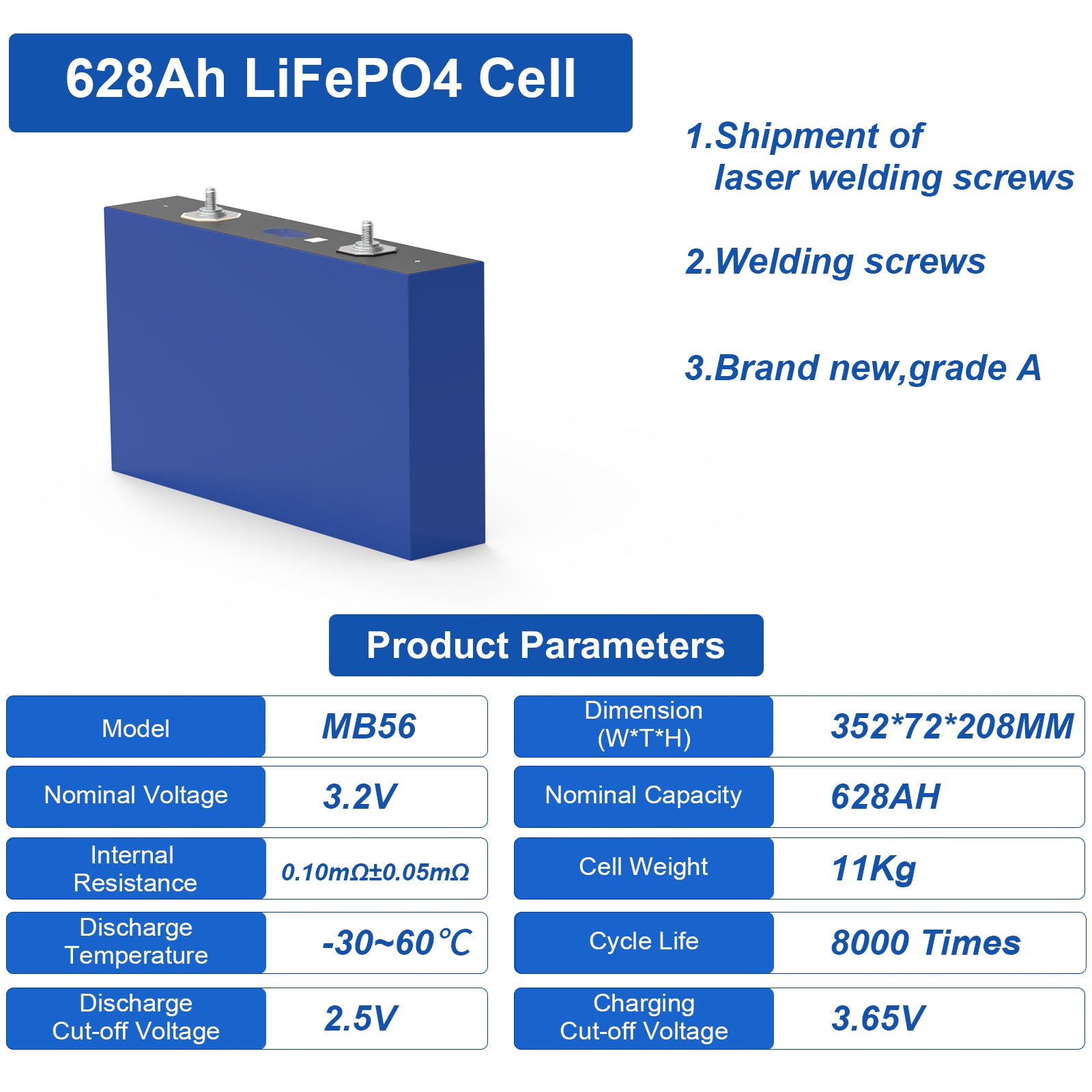

[Maximum Capacity] Nominal capacity 628Ah, actual capacity up to 680Ah, cost-effective battery cell.

[Extremely Low Internal Resistance] Compared to the EVE 314Ah internal resistance of 0.18±0.05mΩ, the 628Ah internal resistance is 0.10±0.05mΩ.

[Reduce Battery Pack Costs] The perfect choice for large-capacity systems, it can effectively reduce the cost of energy storage system accessories, labor costs and floor space.

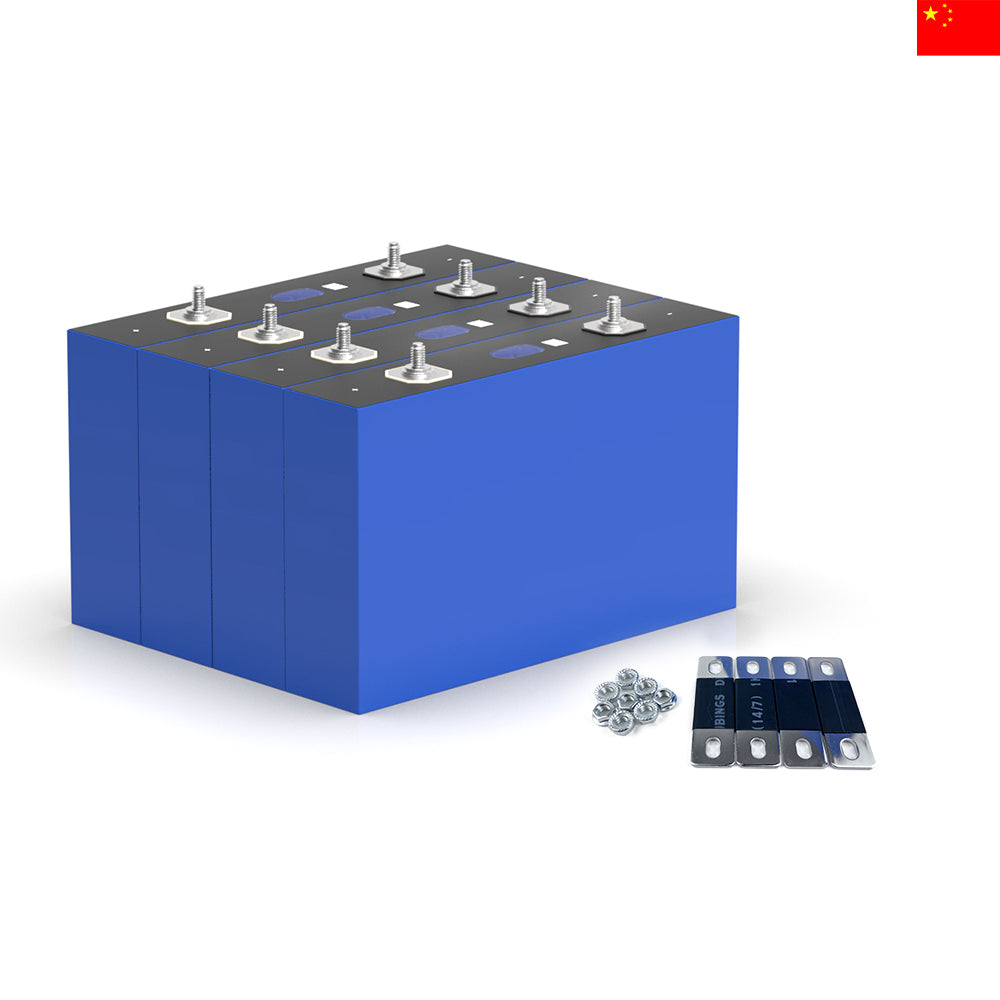

[Free Accessories] Provides the necessary accessories for DIY battery, bur bars, screws and epoxy plates, no need to buy other accessories.

[5-year Warranty] Wistek offers a five-year warranty on the Lifepo4 cells it sells. If there are any quality issues, we will provide a free replacement or refund.

[Grade A,Brand New Quality] The battery cell has an original QR code and the battery cell is tested and balanced before shipment.

Please hurry! Only 300 left in stock
Ofertas por tiempo limitado, terminan en: 151D 8H 23M 0S
Especificación : 4 piezas - US$115 cada una
Subtotal: $460.00
$460.00
$1,440.00
$460.00
10 customers are viewing this product

Envío gratis

Envío estándar gratuito en pedidos superiores a $99

Se estima que se entregará el 01/12/2022 - 15/10/2022.

Devoluciones gratis

Aprende más.

Aviso de retraso en el envío por Covid-19

24/7 technical support

Features
Features
x

PRESUPUESTO

Modelo

EVE MB56

Capacidad nominal

628 Ah (2009,6 Wh)

Voltaje nominal

3,2 V

Número de ciclos

 ≥ 8000 (25 °C a 0,5 P, 70 % de SO2)

Voltaje de carga

3,65 V

Potencia de carga máxima

0.5P

Potencia máxima de descarga

0.5P

Solicitud

Sistema de almacenamiento de energía (ESS)

Rango de temperatura (descarga)

-30°C~60°C

Garantía

5 años

Peso neto

11,5 kg

Dimensiones (Ancho*Alto*Profundidad)

352*72*208 mm

Informe de prueba de fábrica original

Disponible

Hoja de especificaciones

Disponible

Promoción MB56
Exhibición de productos 4 piezas mb56
Características del mb56
parámetros mb56
Pantalla detallada del mb56
La celda de la batería se soldará con un solo perno M6.
Pedido de bluk mb56
Accesorios MB56
Aplicaciones mb56

Specification
Specification
x

Model

 EVE MB56

Nominal Capacity

 628Ah(2009.6Wh)

Nominal Voltage

 3.2V

Number of Cycles

 ≥8000(25℃@0.5P,70% SOH)

Charging Voltage

 3.65V

Maxinum Charging Power

 0.5P

Maxinum Discharging Power

 0.5P

Application

 Energy Storage System(ESS)

Temperature Range(discharge)

 -30°C~60°C

Warranty

 5 Years

Net Weight

 11.5KG

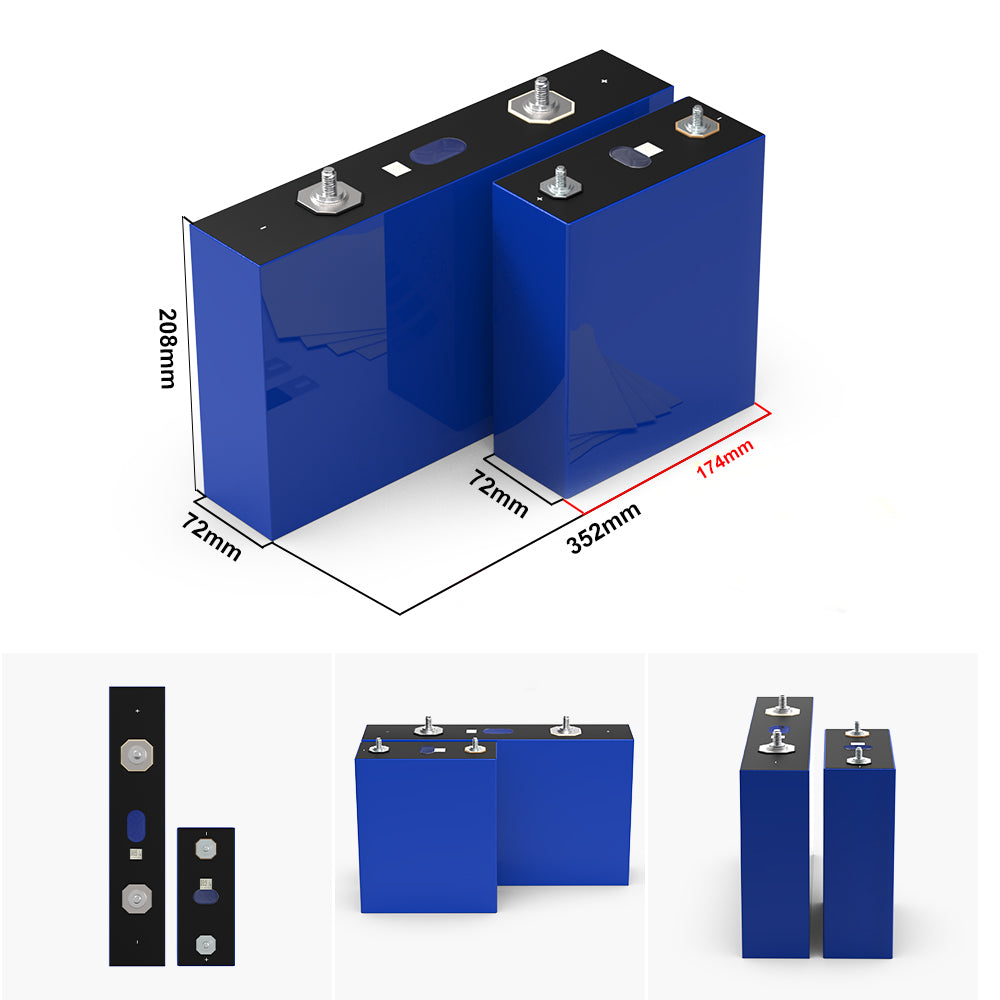

Dimensions(W*T*H)

352*72*208mm

Original Factory Test Report

Available

Specification Sheet

Available
MB56 628Ah 3.2V Cell Datasheet
Preguntas más frecuentes
Preguntas más frecuentes
x
FAQ Section Example
●What material are the bus bars made of?
Nickel-plated copper
●Bus bars type？
Not flexible bus bars, flexible bus bars are optional.
●Stud type?
single m6 stud,double hole terminal optional
