15kWh Pre-assembled Version DIY Battery with BMS|Wistek(USA Stock)
Free Shipping
Código:
BOX4815BHE-US
- $550.00
$650.00- $550.00
- Precio unitario
- por
Total parcial:
$550.00
Local Express Delivery
Dispatched in 1–2 days; delivered to your door in 3–7 days.
Free Returns
30-day free return
1 Year Warranty
Provide warranty service for all products.
Warehose Address
3000 N Sam Houston Pkwy West, STE 200,77038,Houston TX,USA
Description
xThe New & Improved Wistek 15kWh DIY Box
I. What’s New?
- Extra Safety: We’ve added a heavy-duty 250A T-type fuse for maximum peace of mind.
- Cleaner Operation: Our new dust-proof vent design features smaller, more frequent perforations—keeping your internal components clean without overheating.
II. Built to Perform
Our 15kWh DIY Box is more than just an enclosure; it’s a complete Triple-Layer Safety system. Combining a smart BMS, a circuit breaker, and our new T-type fuse, it’s built to protect your investment. With flexible busbars that handle 200A continuous current, you can easily push a 10kW load. Plus, with the JK Smart BMS, a 4.3-inch touchscreen, and built-in heating pads, your battery will stay safe and warm even in the coldest winters.

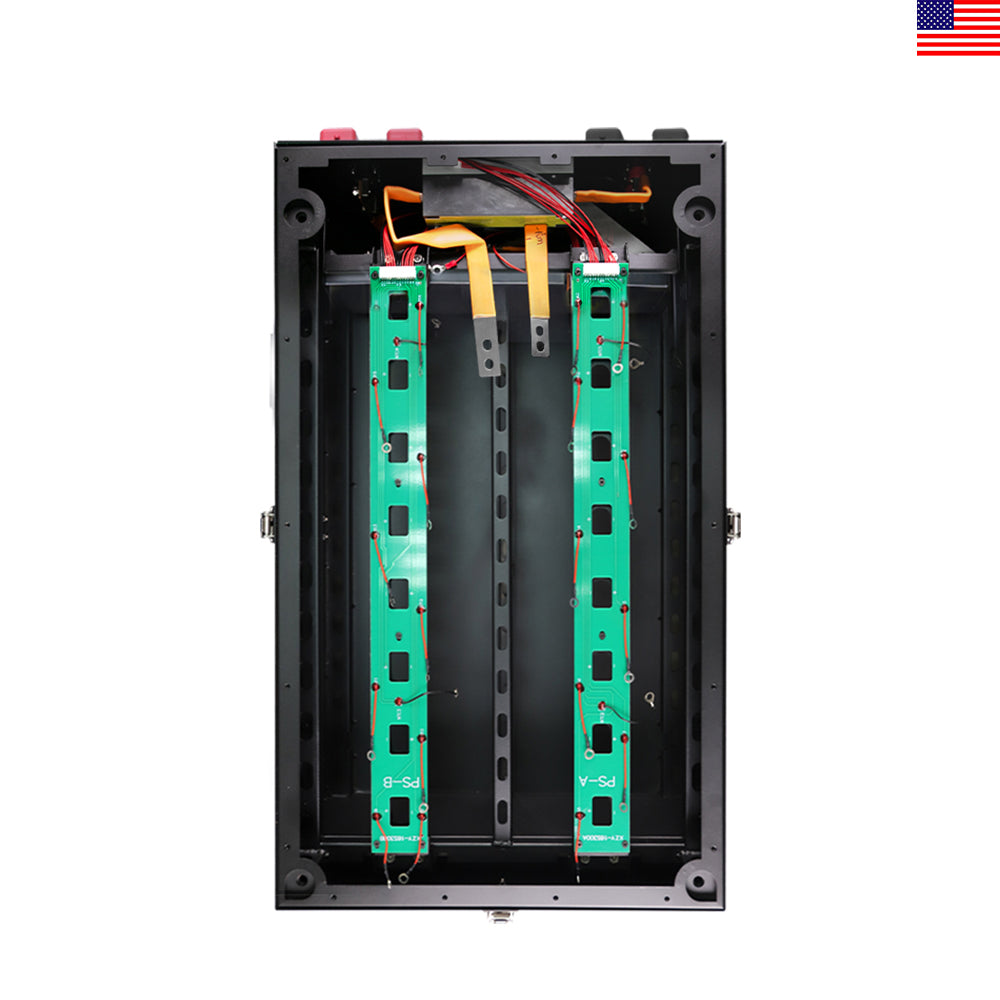

15kWh DIY Battery Box
Applicable Battery Cells
Suitable for
- EVE 280Ah/304Ah/306Ah/314Ah
- CATL 302Ah,Hithium 280Ah/314Ah
- Cornex 280Ah/314Ah
- REPT 280Ah/314A prismatic cell
Battery cells dimension(W*T*H):173*72*204mm
Wide Cell Compatibility with Dual-Hole Master Busbars
The included master positive and negative busbars feature an innovative dual-hole configuration, giving you the ultimate flexibility to host both single-M6 terminal cells and dual-hole terminal prismatic cells.
💡 Note: The kit includes the standard universal master busbars. Flexible cell-to-cell busbars/links specifically engineered for dual-hole cells are not included and should be sourced based on your specific cell model.
High Quality Circuit Breaker
The DIY BOX is equipped with a high-quality 250A circuit breaker, which provides sensitive and fast response to protect the battery and circuit system from damage.
Heating Plate and Fire Extinguisher
The DIY power bank enclosure is equipped with a heating pad and a fire extinguisher.
Heating plate: Protects your battery from damage caused by low temperatures, allowing for normal and stable charging and discharging even below zero degrees Celsius.
Fire extinguisher: Provides an extra layer of protection for the battery and your property.
High Quality BMS
- JK PB2A16S20P BMS
- 200A Continuous Charge/Discharge Current
- 2A Active Balancing Current
- Bluetooth App Monitoring
- Wide Inverter Brand Compatibility.Growatt, Goodwe, Deye, Sok, EG4, SRNE, etc.
Easy assembly
Installation videos and documentation are provided to help you complete the assembly at home.

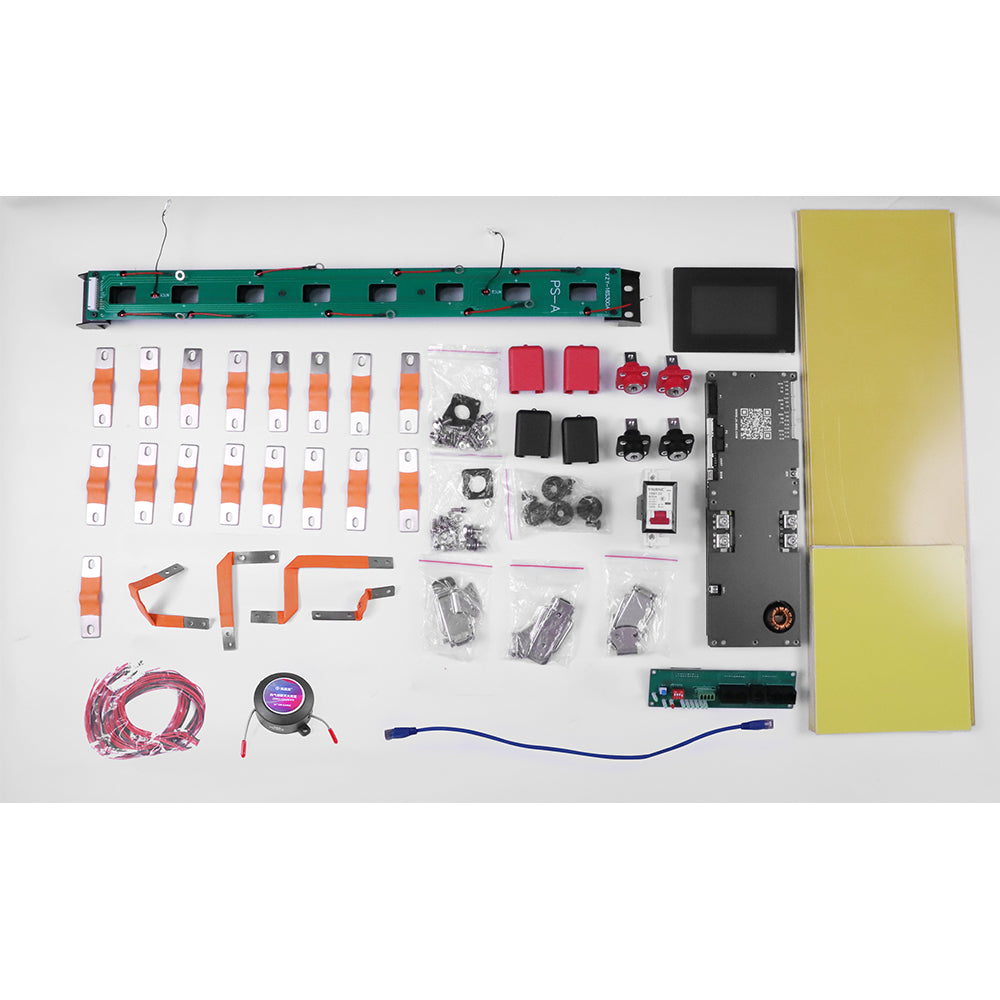

Packing List (Main Accessories Shown)
Spec & Download
x| Battery Box Model | 48V 16S 15kWh DIY Battery Box (V2 Series) |
| Compatible Cell Type | LiFePO4 (Prismatic 280Ah / 300Ah / 314Ah) |
| Applicable Number of Strings | 16S (51.2V Nominal) |
| Nominal Energy Capacity | 14.3 kWh - 16.0 kWh |
| Integrated BMS Model | JK Inverter BMS (JK-PB2A16S20P) |
| Balance Mode | Active Balance |
| Balance Current | 2A |
| Max Continuous Discharge Current | 200A |
| Peak Discharge Current | 350A |
| NTC Quantities | 4 Temp Sensors (NTC1 - NTC4) |
| Overcurrent Protection | Yes |
| Overvoltage Protection | Yes |
| Temperature Protection | Yes |
| Short Circuit Protection | Yes |
| Display & Interface | 4.3-inch LCD Touch Screen |
| Bluetooth / App Monitoring | Yes |
| Communication Protocols | CANbus / RS485 / RS232 |
| Operating Temperature Range | -20℃ ~ 65℃ |
FAQ
x●Can the 15kWh (16kWh) DIY box be stacked?
Yes. 1. The top and bottom feature interlocking grooves for stability. 2. Mechanical latches on the left, right, and rear sides secure the stacked units together.
●Can I install wheels or a base tray to move the DIY battery?
Yes, a base tray is available as an option; you can purchase it via the product link. (Tray orders ship from China; please refer to the tray product details for shipping times.)
●What brand of BMS is used in this DIY box?
This DIY box comes with a built-in JK PB2A16S20P BMS.
●Does this DIY box include a heating pad?
Yes, a heating pad is included as standard.
