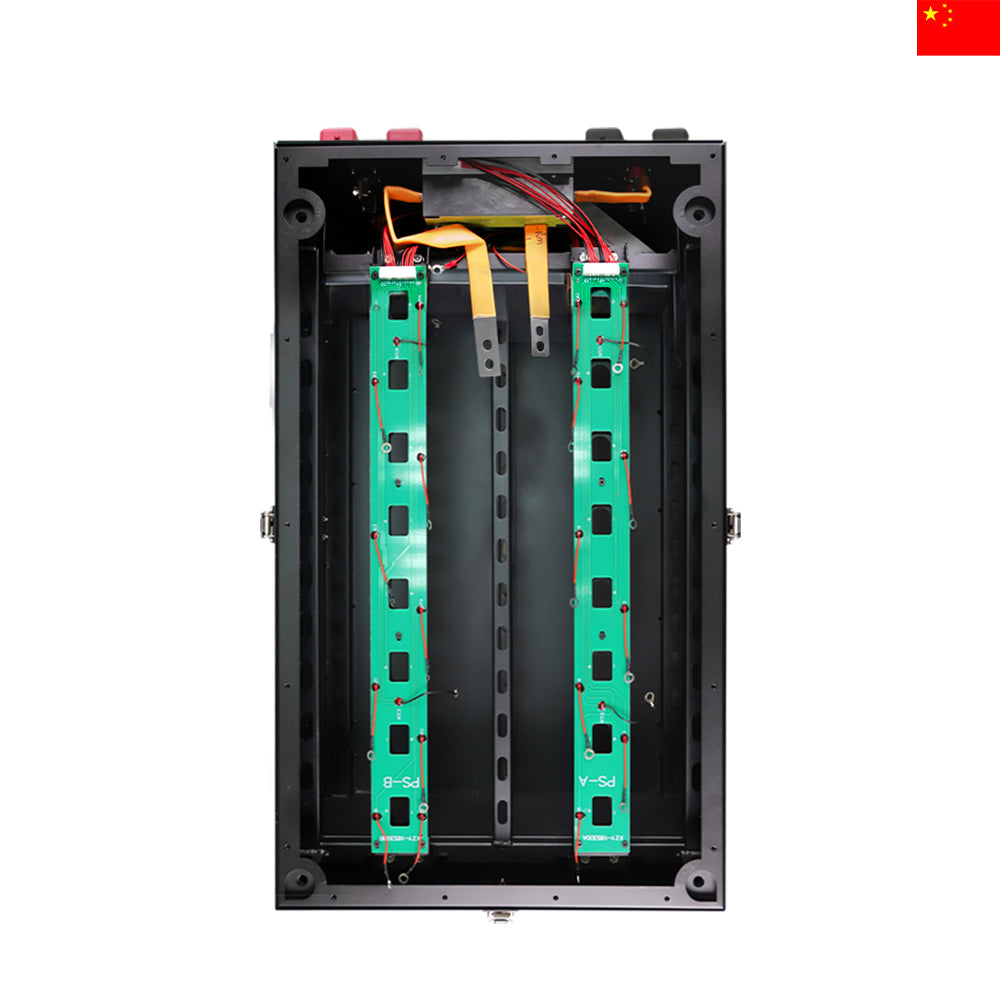

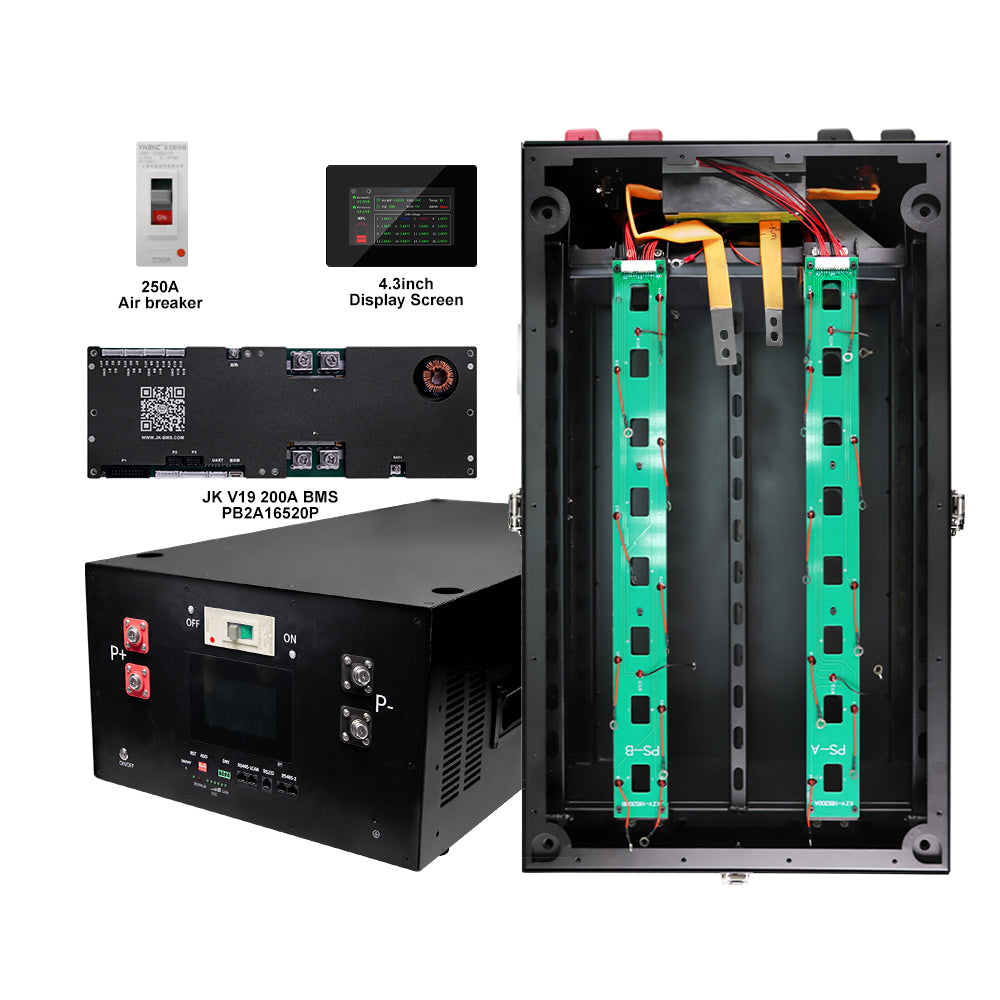

[Pre-assembled Version] This 15KWh DIY battery box is pre-assembled. When assembling, you only need to arrange the battery cells in the correct order, and then tighten the screws to use it.

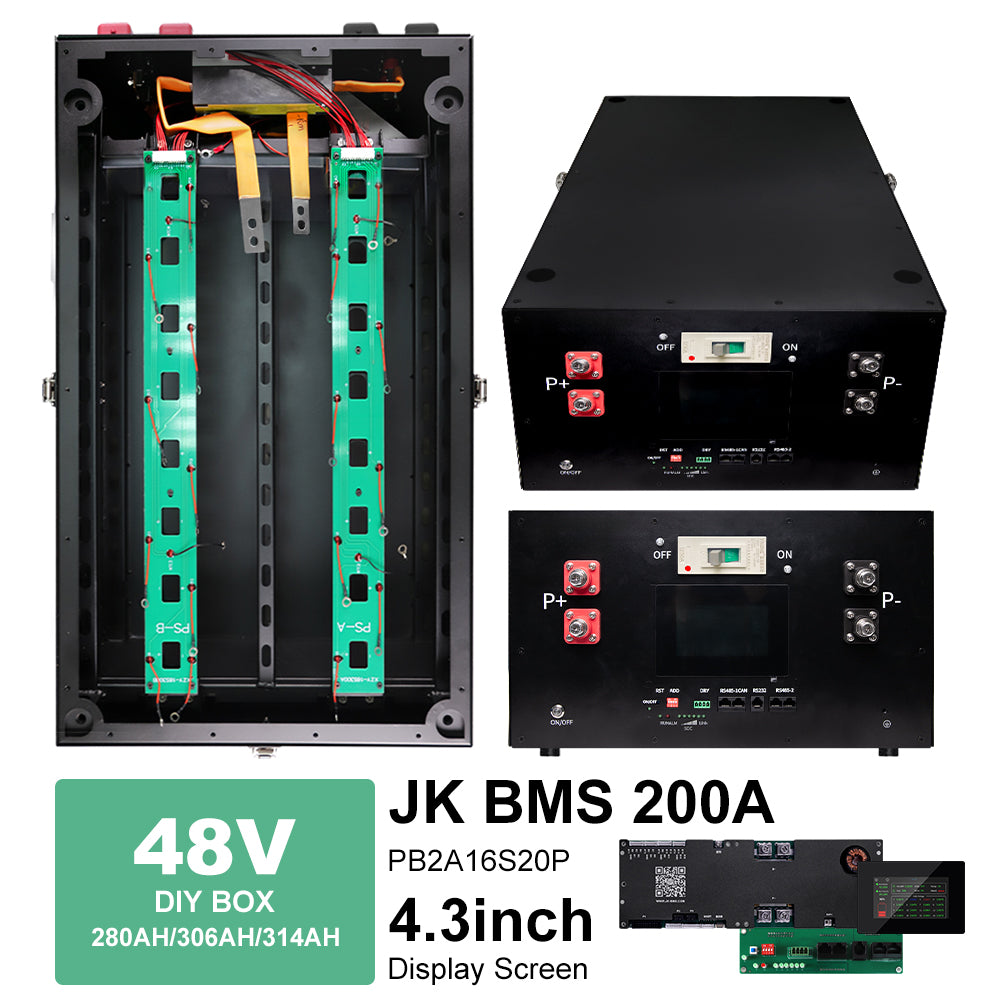

[Smart BMS] Equipped with V19 JK PB2A16S20P BMS, 2A active balancing, 200A continuous discharge current, wireless Bluetooth APP monitoring, 4.3-inch touch screen
[High-quality Materials] The 1.5mm thick stainless steel casing is designed to withstand drops and protect the battery cells from damage. Flexible connectors are included to handle high currents while also protecting the battery terminals.
[Matching Inverter] JK BMS can communicate with many brands of inverters on the market, enabling the inverter to understand the battery status in real time and provide double protection for the battery.

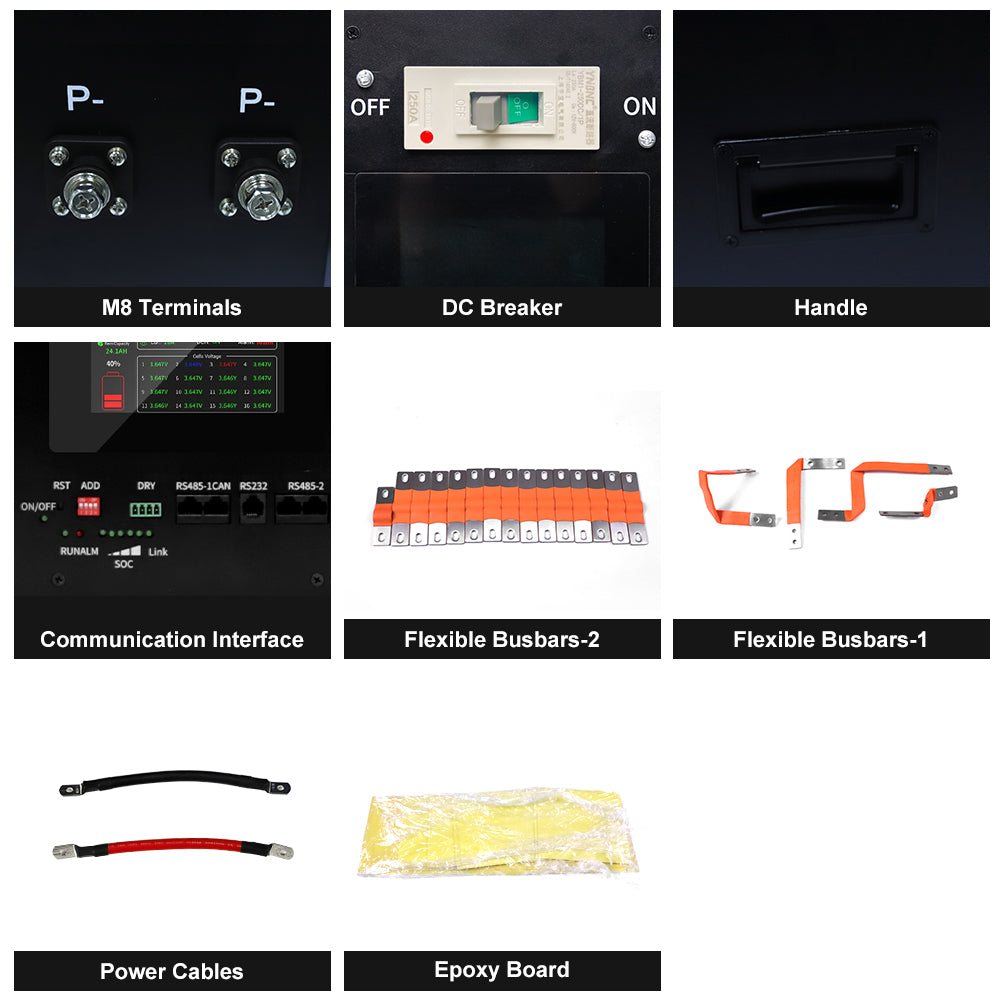

[Compatible with Different Types of Terminals] This 15kWh DIY battery box comes with dual-hole flexible connectors (circuit breaker to cell terminal busbar and BMS P- to cell terminal busbar), compatible with single M6 stud version cells and dual-hole cells.
[High-quality 250A Circuit Breaker] This 15kWh DIY battery box is equipped with a high-quality circuit breaker for sensitive and rapid disconnection.

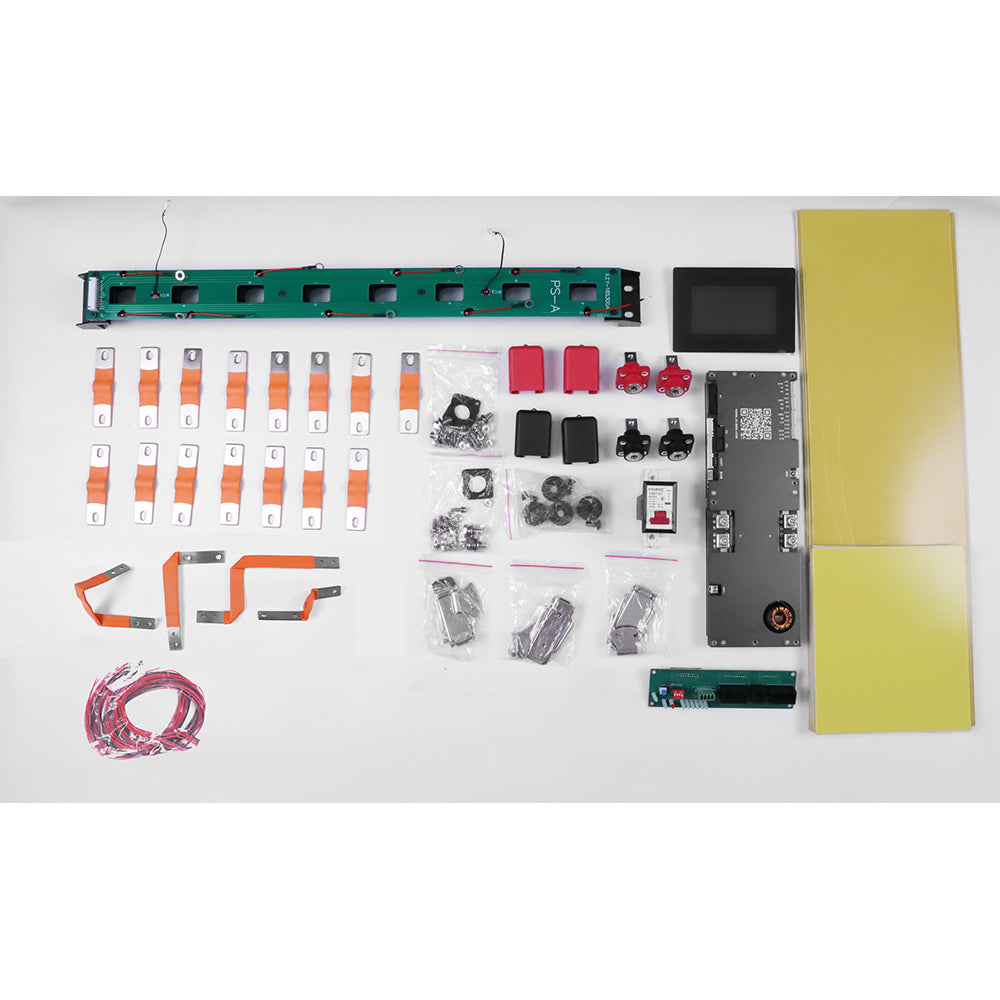

| Number | Item | Quantities(Pieces) |

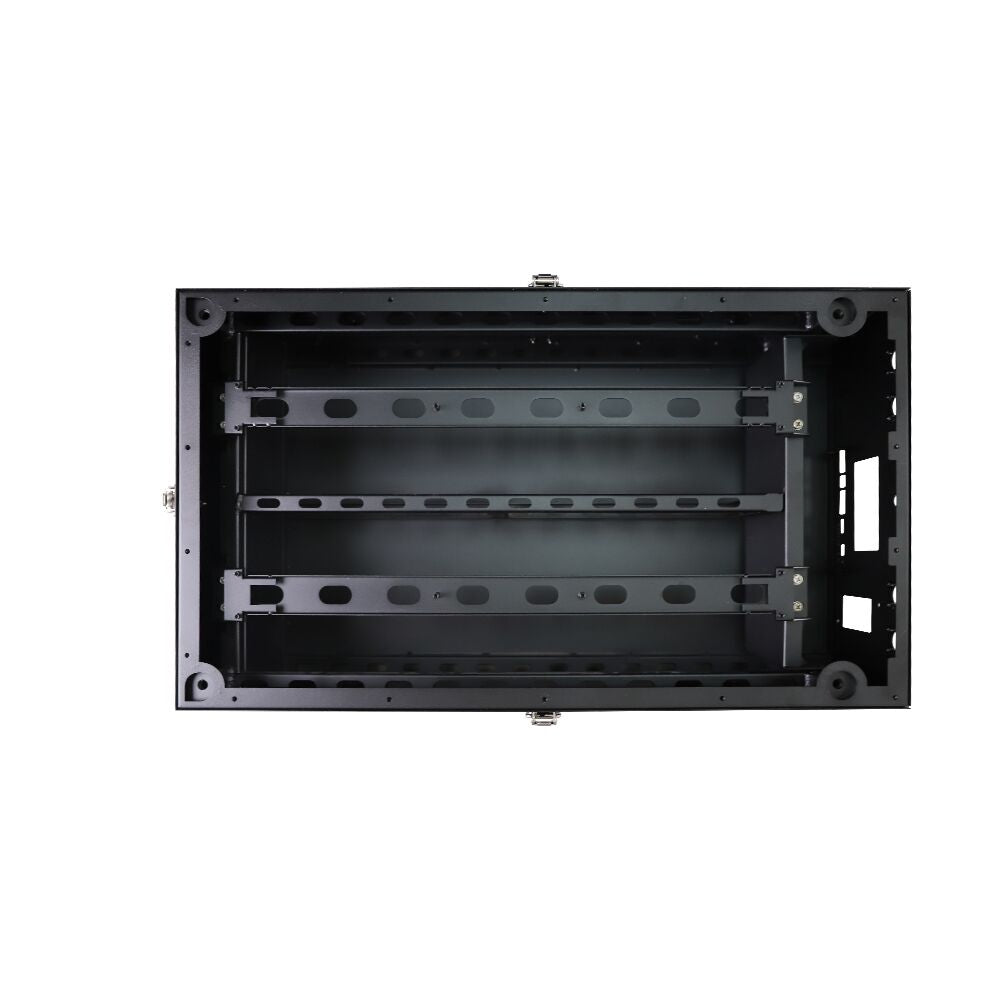

| 1 | Empty Battery Box | 1 |
| 2 | Epoxy Plate-1(210*180*0.5mm) | 18 |
| 3 | Epoxy Plate-2(580*200*1mm) | 6 |
| 4 | Epoxy Plate-3(580*350*1mm) | 1 |
| 5 | Battery Terminal | 4(red two,black two) |
| 6 | 250A Circuit Breaker | 1 |
| 7 | Flexible Busbars-1(Cell to Battery Terminal) | 4 |
| 8 | Flxible Busbars-2(Cell to Cell) | 15 |
| 9 | Signal PCB | 2 |
| 10 | Insulation Tape | 2 |
| 11 | Signal Line | 2 |
| 12 | JK V19 PB2A16S20P BMS with 4.3 inch Display | 1 |
| 13 | 1AWG Power Cable | 2(red one,black one) |
| 14 | MatFire Extinguisher | 4 |
| 15 | Fire Extinguisher(Optional) | 1 |
| 16 | Heating Plate(Optional) | 1 |
| 17 | Battery Box Base(Optional) | 1 |
