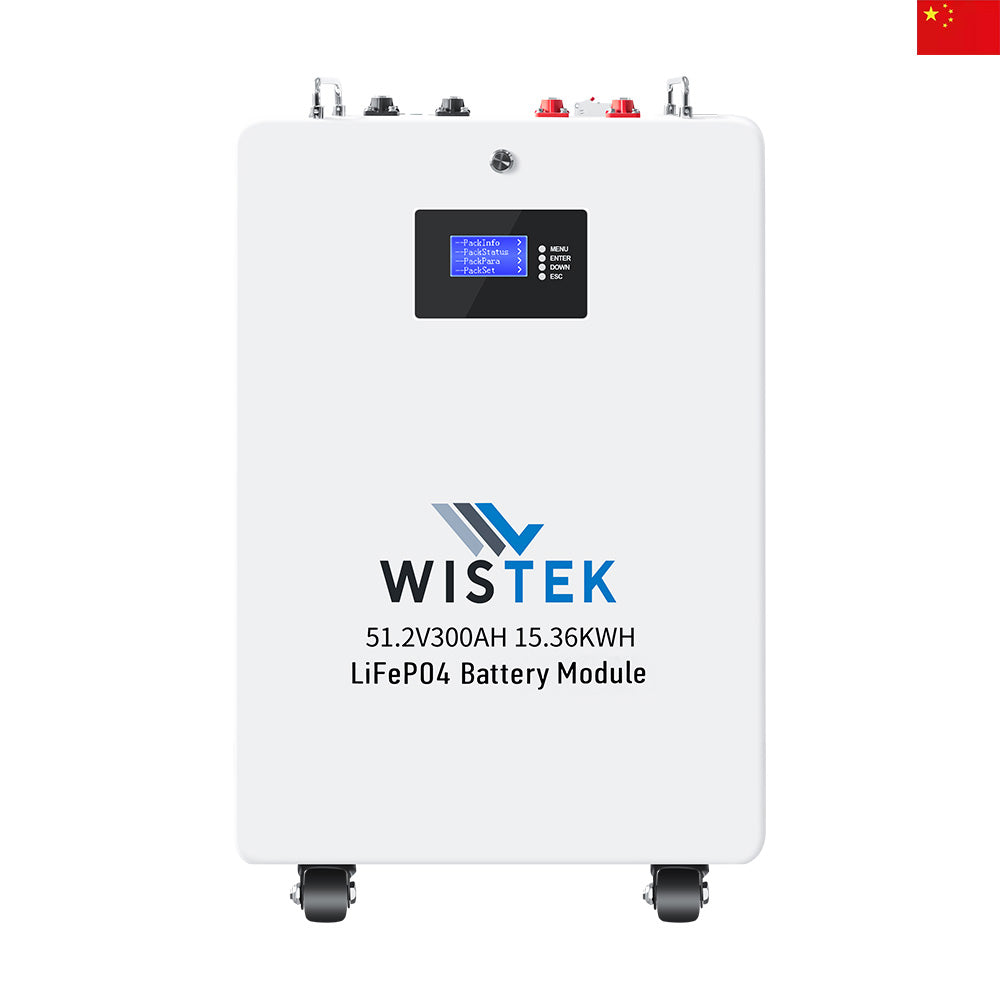

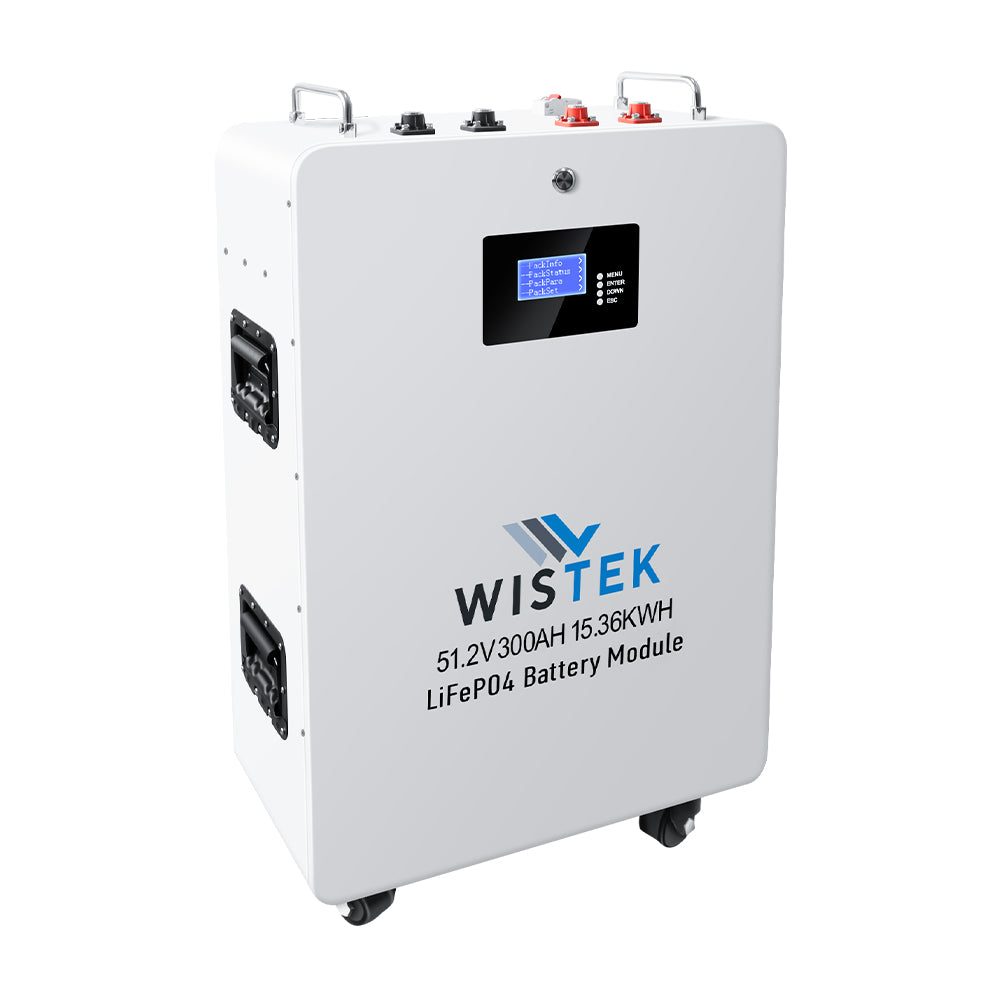

[Grade A, Brand New Battery Cells] The Wistek 51.2V 15KWh wall mounted battery is assembled from 16 EVE grade A, brand new cells, using high-quality battery cells as raw materials.
[Built-in Intelligent BMS] The 15KWh wall-mounted battery is equipped with a JBD 16S intelligent BMS, which provides overcharge protection, over-discharge protection, overcurrent protection, high and low temperature protection, and cell balancing.
[10KW Continuous Output] The 15KWh battery has a built-in 200A BMS, with a continuous 200A discharge current and 10KW continuous output power.
[Scalability] This 15KWh battery can support up to 16 battery modules in parallel, expanding to a 240KWh system.

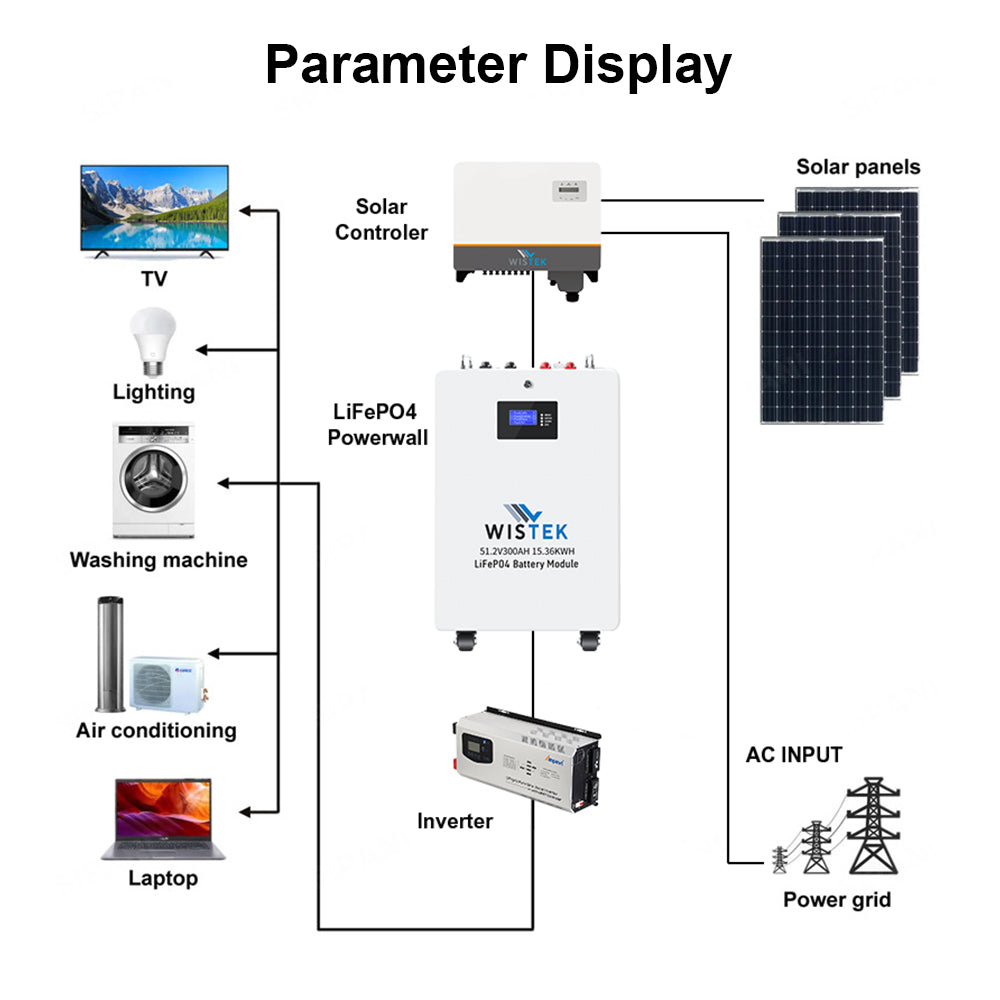

[Compatible with Various Brands of Inverters] The Wistek 15kwh battery pack is compatible with most inverters on the market and perfectly implements communication functions.

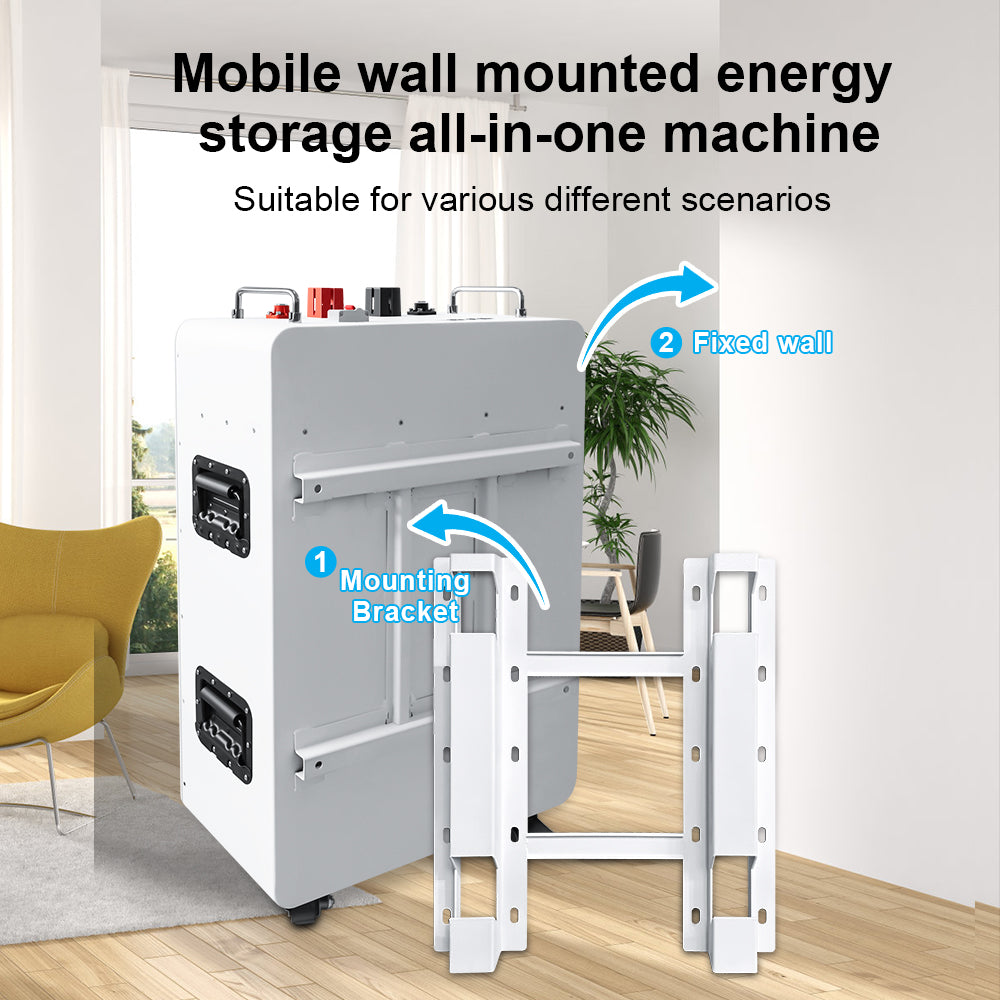

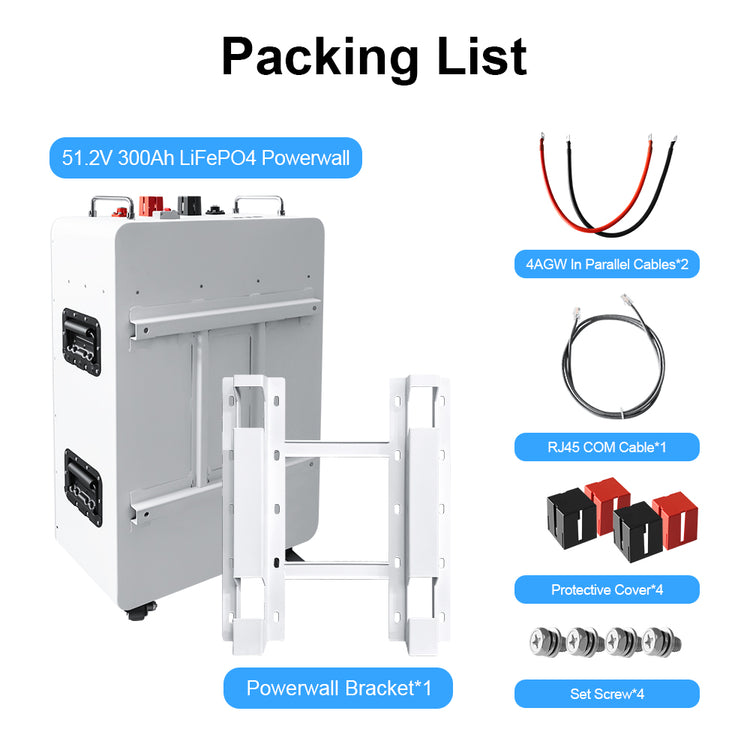

[Two Installation Methods] Supports two installation methods, wall-mounted installation and wheels at the bottom for easy movement.
Discount Code:firstorder
Couldn't load pickup availability

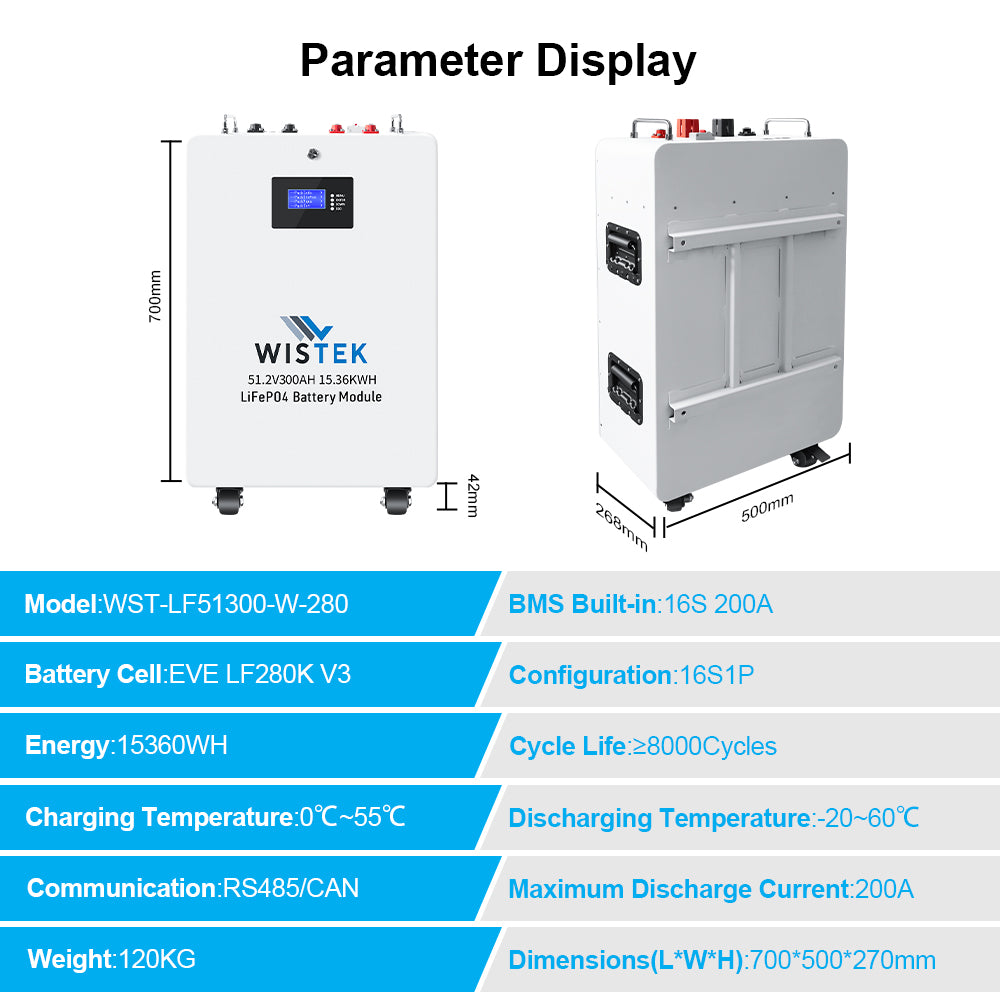

SPEZIFIKATIONEN |
Modell |
WST-LF51300-W |
Nennkapazität |
300 Ah (15,36 kWh) |
Nennspannung |
51,2 V |
Anzahl der Zyklen |
≥ 8000@0,5 °C, 70 % SO₂H |
Ladespannung |
58,4 V |
Maximaler Dauerladestrom |
200A |
Maximaler Dauerentladestrom |
200A |
BMS |
Integriert |
Überwachung |

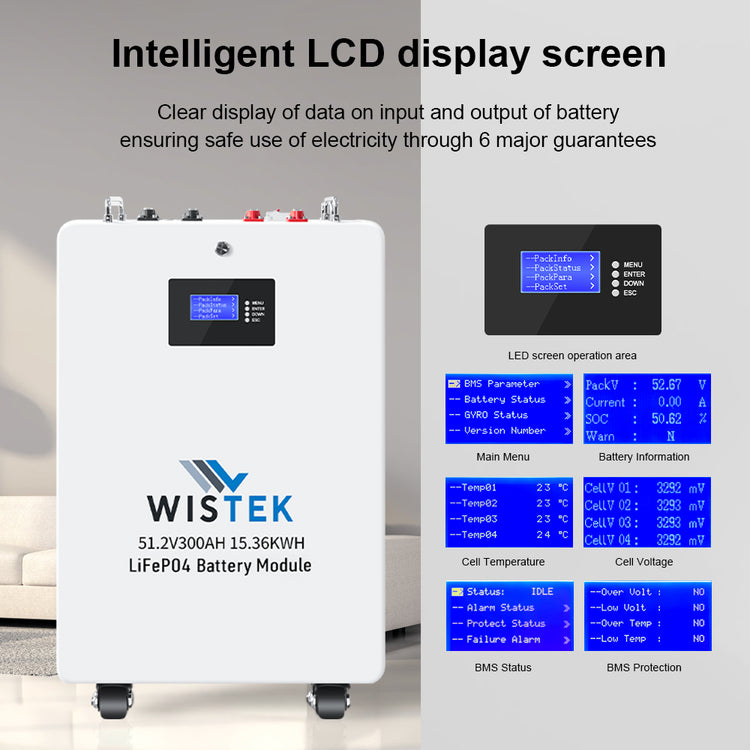

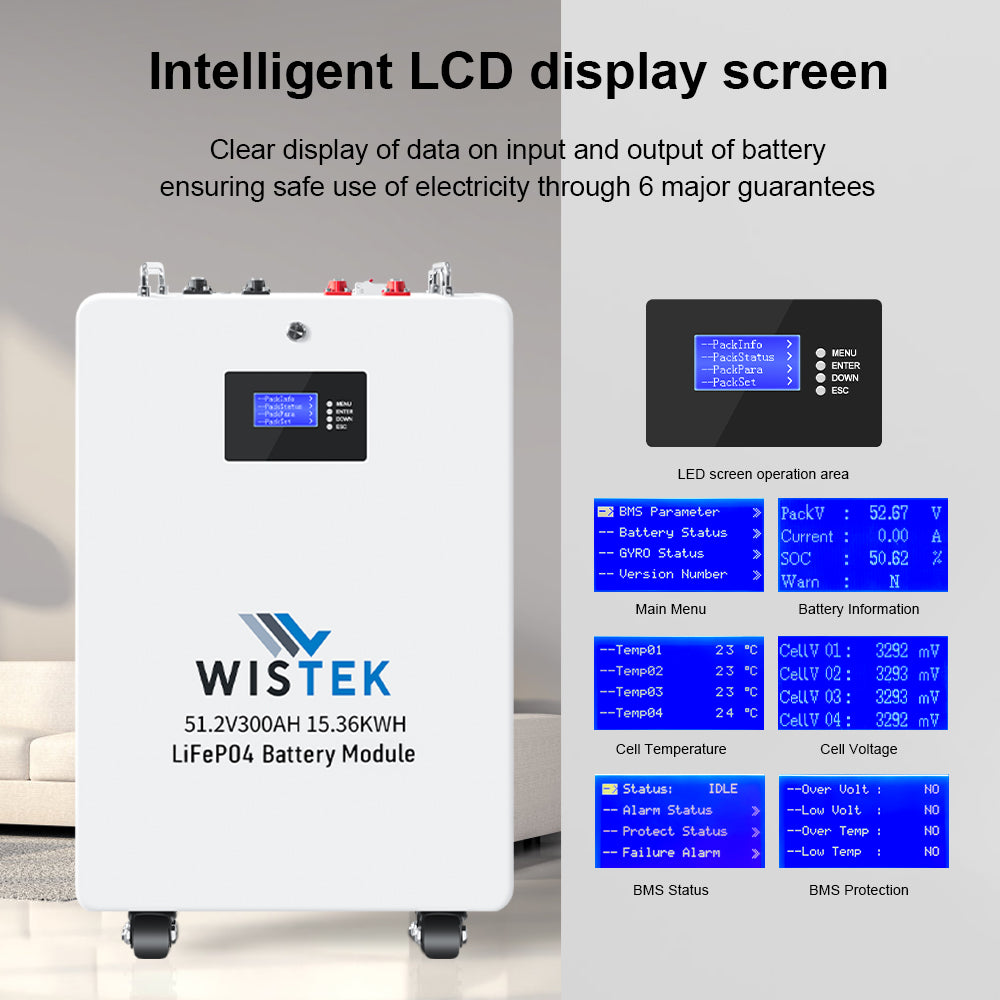

LCD-Anzeige und Kommunikationsprotokoll |
Wasserdichtigkeit |
IP55 |
Temperaturbereich (Entladung) |
-20°C bis 55°C |
Anschlussschraube |
M8 |
Garantie |
5 Jahre |
Nettogewicht |
125 kg |
Abmessungen (H*B*T) |
700*500*270 mm |
