[300A Continuous Discharge Current] Suitable for 3S-8S lifepo4 battery packs, providing a continuous 300A discharge current, and the 8S lifepo4 battery pack has an output power of 5KW.
[2A Active Balancing Current] BMS has a built-in 2A active balancing current to achieve lifepo4 cell voltage balancing and extend battery life.
[Bluetooth APP Monitoring] Mobile phone Bluetooth APP monitoring, real-time viewing of battery status.
[Battery Management System] Overcharge, over-discharge, overcurrent, short circuit protection, balancing battery cells, high and low temperature protection...

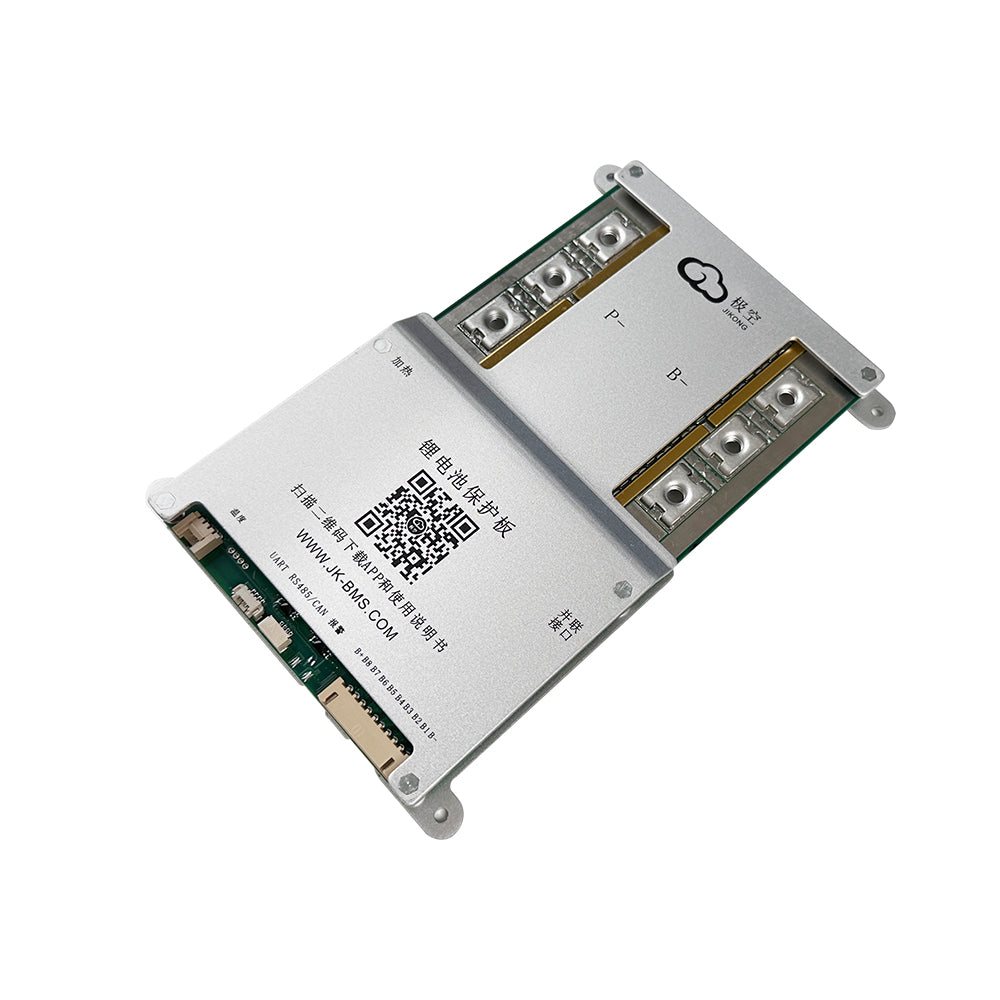

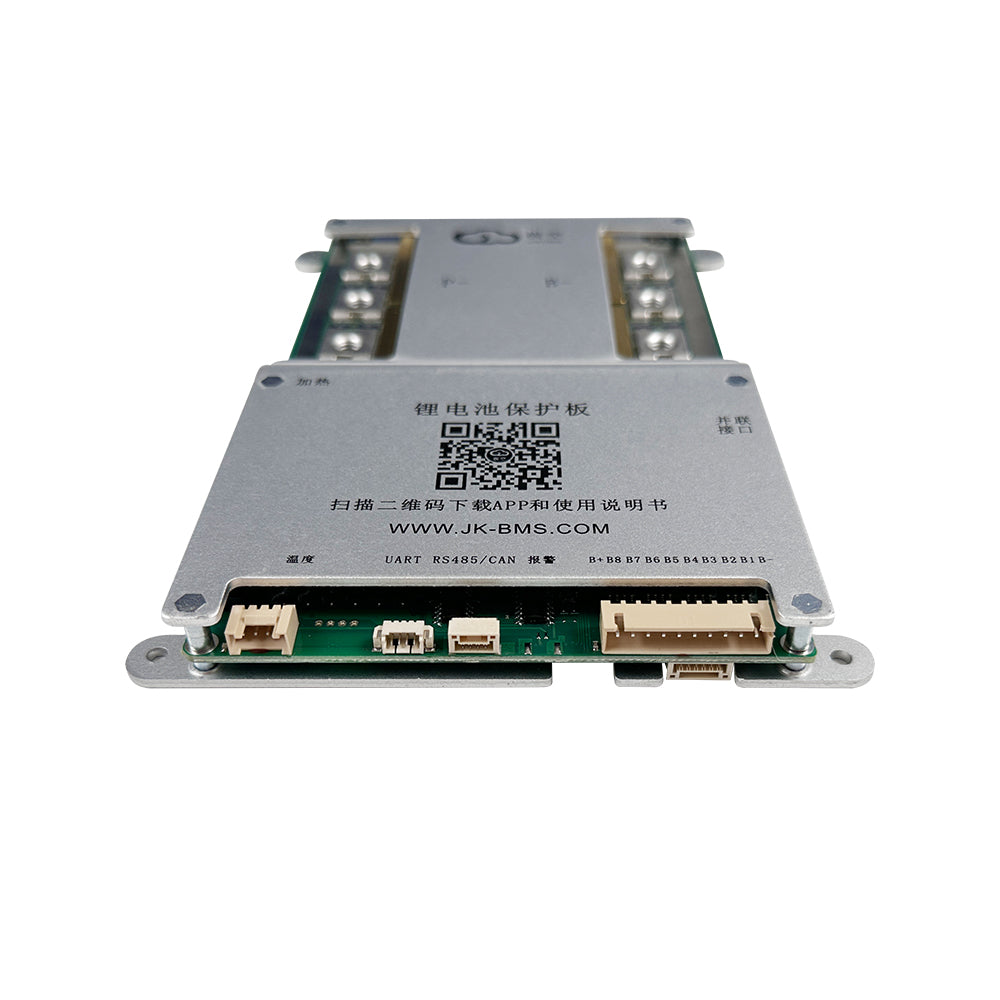

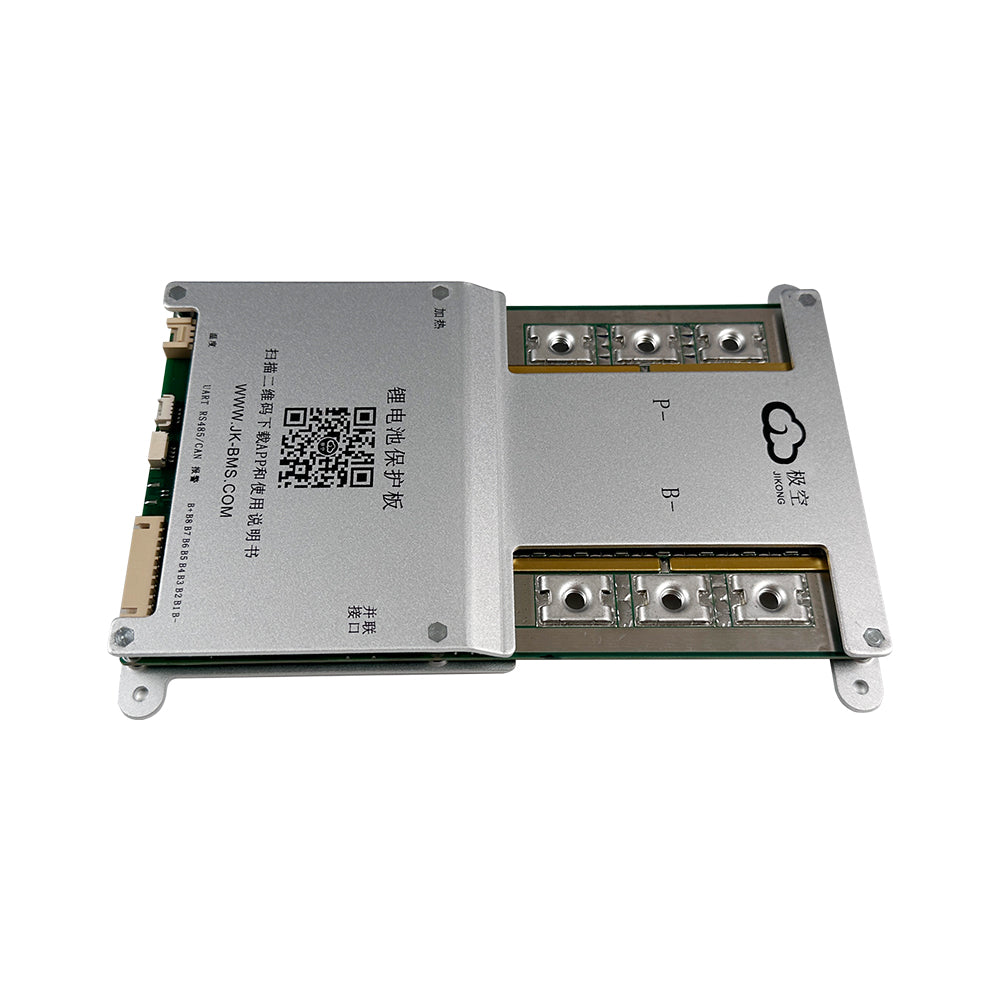

The JK B2A8S30P BMS is a battery management system specifically designed for 12V and 24V energy storage systems. Featuring capabilities such as a 2A active balancing current and 300A continuous charge/discharge rates, this BMS effectively resolves cell imbalance issues and enables high-current power output for the battery pack.
3-8S LiFePO4 battery
3-8S NCM (ternary) lithium battery
7-8S lithium titanate battery
1. Low voltage protection
2. High voltage protection
3. Low temperature protection
4. High temperature protection
5. Charging overcurrent protection
6. Discharging overcurrent protection
7. Short circuit protection
8. Active balancing function
1. 300A continuous discharge current
2. 2A active balancing current
RVs,Solar Home Energy Storage System
| Product Model | JK B2A8S30P |
| Applicable Cell Materials | LFP or NCM or LTO |
| Applicable number of strings | 3S-8S |
| Balance Mode | Active Balance |
| Balance Current | 2A |
| Max Continuous Discharge Current | 300A |
| Peak Discharge Cuurent | 600A |
| NTC Quanitities | 3 |
| Overcurrent Protection | Yes |
| Overvoltage Protection | Yes |
| Temperture Protection | Yes |
| Short Circuit Protection | Yes |
| Blueooth Monitoring | Yes |
| Operate Temperture Range | -30~70℃ |
| Dimension | 182*127*15mm |
| Monitoring Battery Function | Bluetooth |
