[Grade A, Brand New Quality] EVE original grade A, brand new MB31 cells, with intact QR, ready for assembly into high-voltage systems.
[Real Capacity 330Ah] Nomial capacity 314Ah, actual capacity 330Ah, higher energy density, compact size.
[Free Accessories] Provide all necessary accessories for DIY batteries, including screws, busbars, epoxy plates and other accessories.
[Already Matched] All cells have consistent voltage, internal resistance, and capacity, allowing for direct assembly without the need for balancing.
[Original Test Report] With the original test report, all battery cell test data is traceable, capacity range 330.0011-332.9999Ah, internal resistance range 0.1702–0.1836 mΩ, voltage range 3.2650-3.2678V
[8000 Cycles] At 25 ℃, 10%-90% humidity, the battery is subjected to a pressure of 300 kgf and a charge and discharge power of 0.5P. After 8000 cycles, the actual remaining capacity is greater than 70% (SOH ≥ 70%).
[JK BMS] JK New V19 PB2A16S20P BMS, 2A active balance current, 4.3-inch touch display, features overcharge protection, over-discharge protection, overcurrent protection, short-circuit protection, and cell balancing.
View More
BESCHREIBUNG

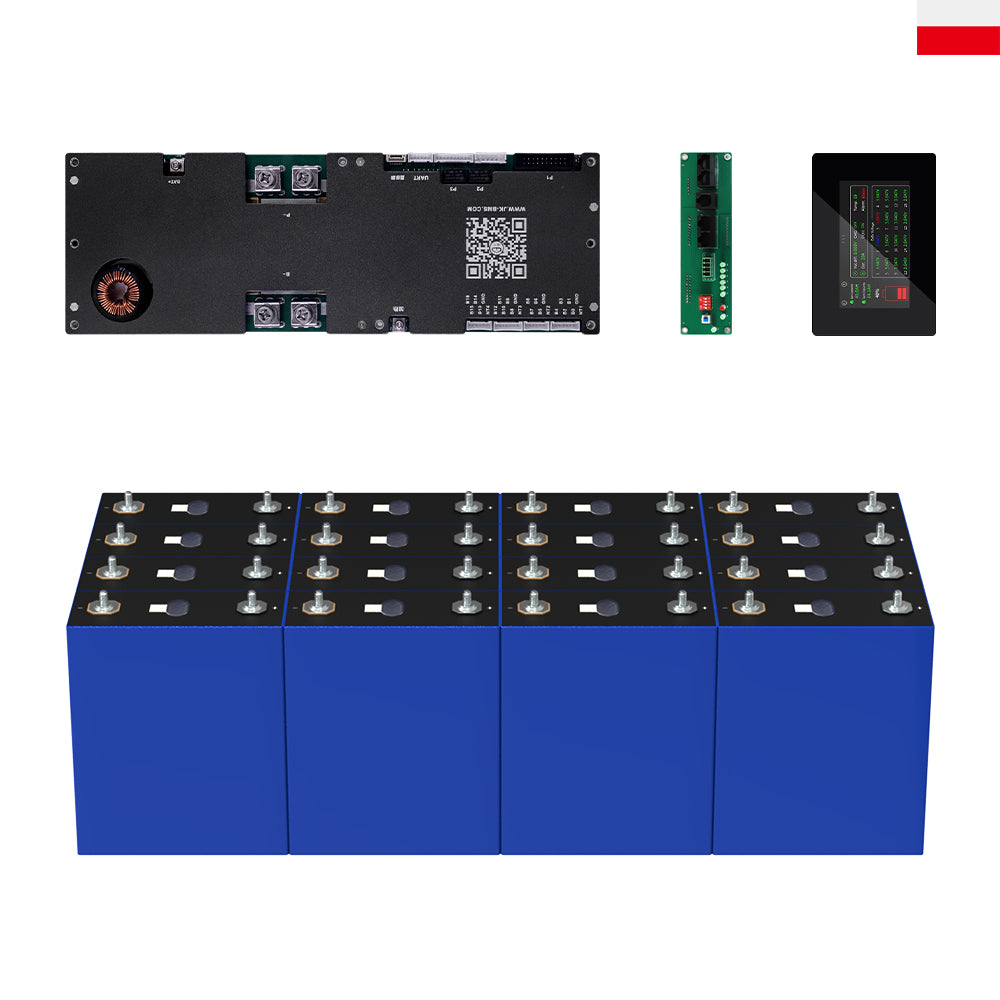

xExperience 15 years of reliable energy with our 16kWh LiFePO4 battery system, built around premium EVE MB31 Grade A cells. This DIY-friendly powerhouse offers a 200A continuous discharge and 10kW of output, managed by a smart JK BMS with 2A active balancing to maximize cell health. Stay in total control with real-time Bluetooth monitoring and enjoy the peace of mind that comes with an 8,000-cycle service life.
Wistek EVE MB31 LiFePO4 Cells Reviews - @Easypowerwall
Supply Original EVE Grade A, Brand New Prismatic LiFePO4 Cell
Single M6 Stud
The battery cell has been welded with a single M6 stud, which is convenient for DIY battery. It is recommended to use a torque of less than 6N.m for assembly.
Grade A,brand new quality
The battery cells have the original test report, the QR code is intact, and all the battery cell test data can be tracked.
Free Accessories
The battery cell comes with the necessary accessories, busbars, screws and epoxy sheets to assemble the battery pack.
New V19 JK PB2A16S20P BMS
(The difference between the new V19 BMS and the old V19 lies in the color of the signal line terminals. The new V19 uses color differentiation to more effectively prevent errors during assembly.)
Good packaging conditions
The battery cells are packed in cartons that meet the requirements of dangerous goods, with transparent tape wrapped around the outside to prevent rainwater from seeping into the cartons. Customized sponges are used to fix the cells, effectively protecting them from impact damage.
Wide Applications
SPEZIFIKATION
x
SPEZIFIKATIONEN |
|
Modell |
EVE MB31 |
|
Nennkapazität |
314 Ah (1004,8 Wh) |
|
Nennspannung |
3,2 V |
|
Anzahl der Zyklen |
≥ 8000 (25 °C bei 0,5 P, 70 % SOH) |
|
Ladespannung |
3,65 V |
|
Maximale Ladeleistung |
0,5P |
|
Maximaler Entladestrom |
0,5P |
|
Grad |
ESS |
|
Anwendung |
Energiespeichersystem (ESS) |
|
Temperaturbereich (Entladung) |
-30°C bis 60°C |
|
Garantie |
5 Jahre |
|
Nettogewicht |
5,6 kg |
|
Abmessungen (B*T*H) |
174*72*208 mm |
|
Produktionsjahr |
Januar-Februar 2025 |
|
Original-Werksprüfbericht |
Verfügbar |
| Detaillierte Spezifikation | |
| Stud-Modell |
Einzelner M6-Bolzen |
Rückgabe & Versand
xRückgaberecht
Sie können die meisten neuen, ungeöffneten Artikel innerhalb von 30 Tagen nach Lieferung gegen eine volle Rückerstattung zurückgeben. Wir übernehmen auch die Kosten für die Rücksendung, wenn die Rücksendung auf unseren Fehler zurückzuführen ist (Sie haben einen falschen oder defekten Artikel erhalten usw.).
Sie sollten damit rechnen, dass Sie Ihre Rückerstattung innerhalb von vier Wochen nach Übergabe Ihres Pakets an den Rücksender erhalten. In vielen Fällen erhalten Sie die Rückerstattung jedoch schneller. Dieser Zeitraum umfasst die Transitzeit, die wir benötigen, um Ihre Rücksendung vom Versender zu erhalten (5 bis 10 Werktage), die Zeit, die wir für die Bearbeitung Ihrer Rücksendung nach Erhalt benötigen (3 bis 5 Werktage), und die dafür benötigte Zeit Bitte wenden Sie sich an Ihre Bank, um unseren Rückerstattungsantrag zu bearbeiten (5 bis 10 Werktage).
Wenn Sie einen Artikel zurücksenden müssen, melden Sie sich einfach bei Ihrem Konto an, sehen Sie sich die Bestellung über den Link „Bestellungen abschließen“ im Menü „Mein Konto“ an und klicken Sie auf die Schaltfläche „Artikel zurücksenden“. Wir benachrichtigen Sie per E-Mail über Ihre Rückerstattung, sobald wir den zurückgegebenen Artikel erhalten und bearbeitet haben.
Versand
Wir können an praktisch jede Adresse auf der Welt versenden. Beachten Sie, dass für einige Produkte Einschränkungen gelten und einige Produkte nicht an internationale Ziele versendet werden können.
Wenn Sie eine Bestellung aufgeben, schätzen wir für Sie die Versand- und Liefertermine basierend auf der Verfügbarkeit Ihrer Artikel und den von Ihnen gewählten Versandoptionen. Je nachdem, welchen Versandanbieter Sie wählen, werden auf der Seite mit den Versandangeboten möglicherweise geschätzte Versanddaten angezeigt.
Bitte beachten Sie auch, dass die Versandkosten für viele von uns verkaufte Artikel gewichtsabhängig sind. Das Gewicht eines solchen Artikels finden Sie auf der Detailseite. Um die Richtlinien der von uns eingesetzten Versandunternehmen widerzuspiegeln, werden alle Gewichte auf das nächste volle Pfund aufgerundet.
FAQ
x●Advantages of Prismatic Batteries?
1. Larger monomer capacity.
2. Higher stability.
3. Higher security.
4. Higher space utilization.
5. Lighter weight.
2. Higher stability.
3. Higher security.
4. Higher space utilization.
5. Lighter weight.
●What is the series and parallel connection of batteries?
Both are how the battery is connected and is something you have to learn when assembling the battery.
Series connection: Connecting the positive pole of one battery to the negative pole of another battery increases the voltage of the battery pack, but the capacity remains the same.
Parallel connection: Connecting the positive pole of one battery to the positive pole of another battery increases the capacity of the battery pack, but the voltage remains the same.
Series connection: Connecting the positive pole of one battery to the negative pole of another battery increases the voltage of the battery pack, but the capacity remains the same.
Parallel connection: Connecting the positive pole of one battery to the positive pole of another battery increases the capacity of the battery pack, but the voltage remains the same.
●Are LiFePO4 batteries safe?
There is no doubt that LiFePO4 batteries are one of the safest lithium-ion batteries out there. Due to its chemical properties and safe internal structure, LiFePO4 batteries will not explode even if they are severely damaged (such as puncture/strong knocks).
●Can LiFePO4 batteries be mixed?
Generally speaking, it is best not to, but it depends on the situation.
It is best not to mix batteries of different brands, because there may be subtle differences;
It is also best not to mix batteries with different degrees of old and new, because the weakest battery in the battery pack will restrict the performance of the entire battery pack;
Never mix batteries of different chemical properties, this may kill your LiFePO4 battery, although there are ways to achieve it, it is definitely not recommended for battery beginners to consider;
Batteries with different capacities can be mixed, but the premise is that both batteries are 3.2V and connected in parallel.
It is best not to mix batteries of different brands, because there may be subtle differences;
It is also best not to mix batteries with different degrees of old and new, because the weakest battery in the battery pack will restrict the performance of the entire battery pack;
Never mix batteries of different chemical properties, this may kill your LiFePO4 battery, although there are ways to achieve it, it is definitely not recommended for battery beginners to consider;
Batteries with different capacities can be mixed, but the premise is that both batteries are 3.2V and connected in parallel.
●How are LiFePO4 batteries stored?
The most important thing is the temperature. LiFePO4 batteries are well stored at room temperature (15°C~25°C), but too low temperature may damage the battery. In an icy environment, you need to pay attention to the insulation of the battery. Alternatively, the battery can be stored in a dry and ventilated room at 50% SOC.
●What should I do when I receive cells?
After receiving the battery, please immediately check whether the insulating layer of the battery (usually a blue film) is damaged and whether the QR code is scratched. Also use a multimeter to check the voltage/internal resistance/capacity. Be sure to charge the battery to full voltage before using it for the first time.
●What is Grade A battery cells?
● Grade A: Cells perform to manufacturer specifications.
● Grade B: Cells under-perform or have other defects.
● Grade C: Cells are used, repackaged, salvaged, or damaged.
● Grade B: Cells under-perform or have other defects.
● Grade C: Cells are used, repackaged, salvaged, or damaged.
●When assembling, what torque should I use?
Although we have tested and found that the welding studs can withstand 15N.m torque, we still recommend using no more than 6N.m torque.
