[Maximum Capacity] Nominal capacity 628Ah, actual capacity up to 680Ah, cost-effective battery cell.
[Extremely Low Internal Resistance] Compared to the EVE 314Ah internal resistance of 0.18±0.05mΩ, the 628Ah internal resistance is 0.10±0.05mΩ.
[Reduce Battery Pack Costs] The perfect choice for large-capacity systems, it can effectively reduce the cost of energy storage system accessories, labor costs and floor space.

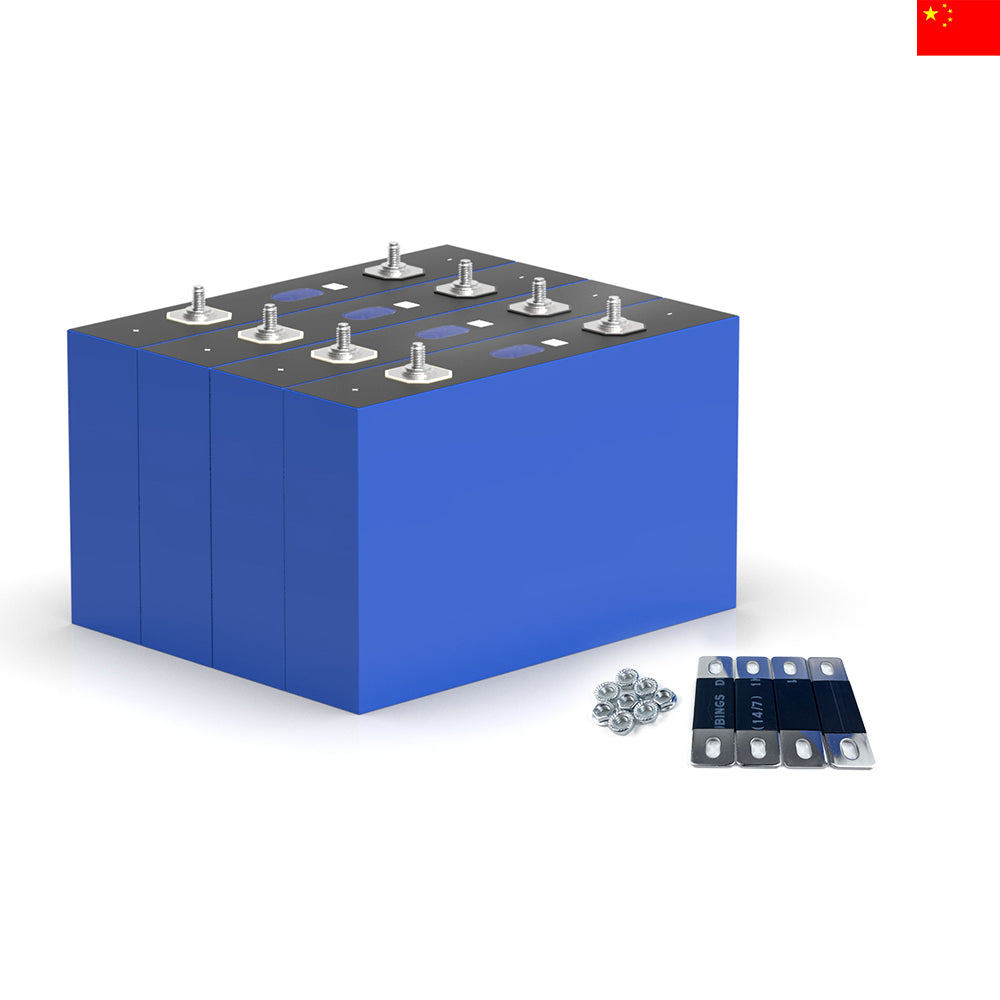

[Free Accessories] Provides the necessary accessories for DIY battery, bur bars, screws and epoxy plates, no need to buy other accessories.
[5-year Warranty] Wistek offers a five-year warranty on the Lifepo4 cells it sells. If there are any quality issues, we will provide a free replacement or refund.
[Grade A,Brand New Quality] The battery cell has an original QR code and the battery cell is tested and balanced before shipment.

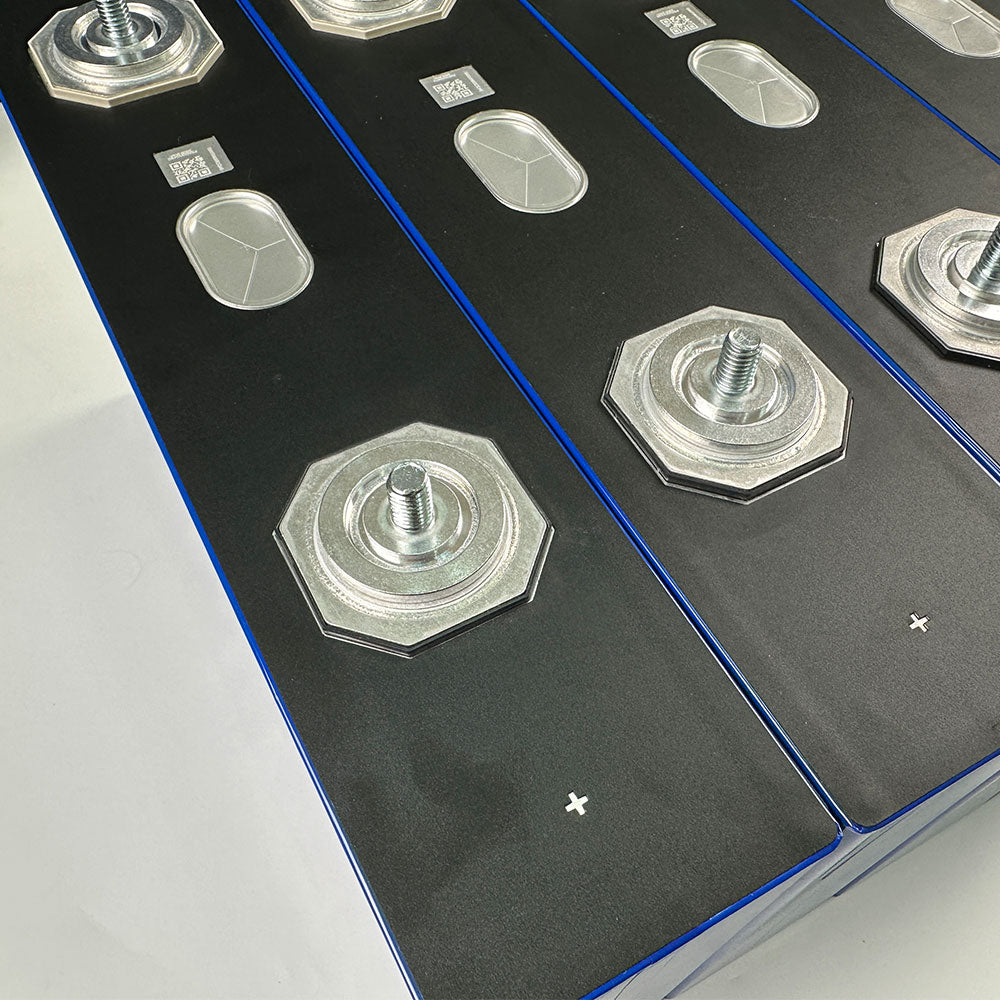

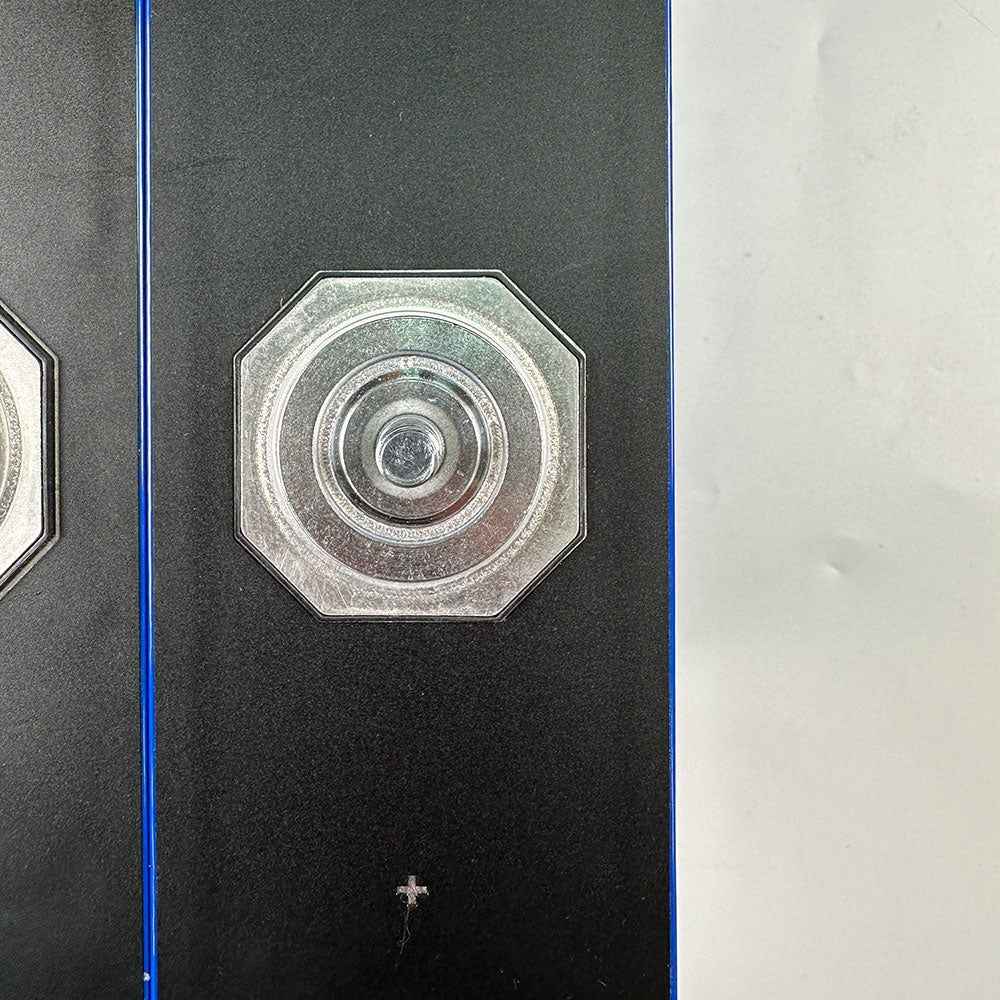

The battery cell will be welded with a single M8 stud





|

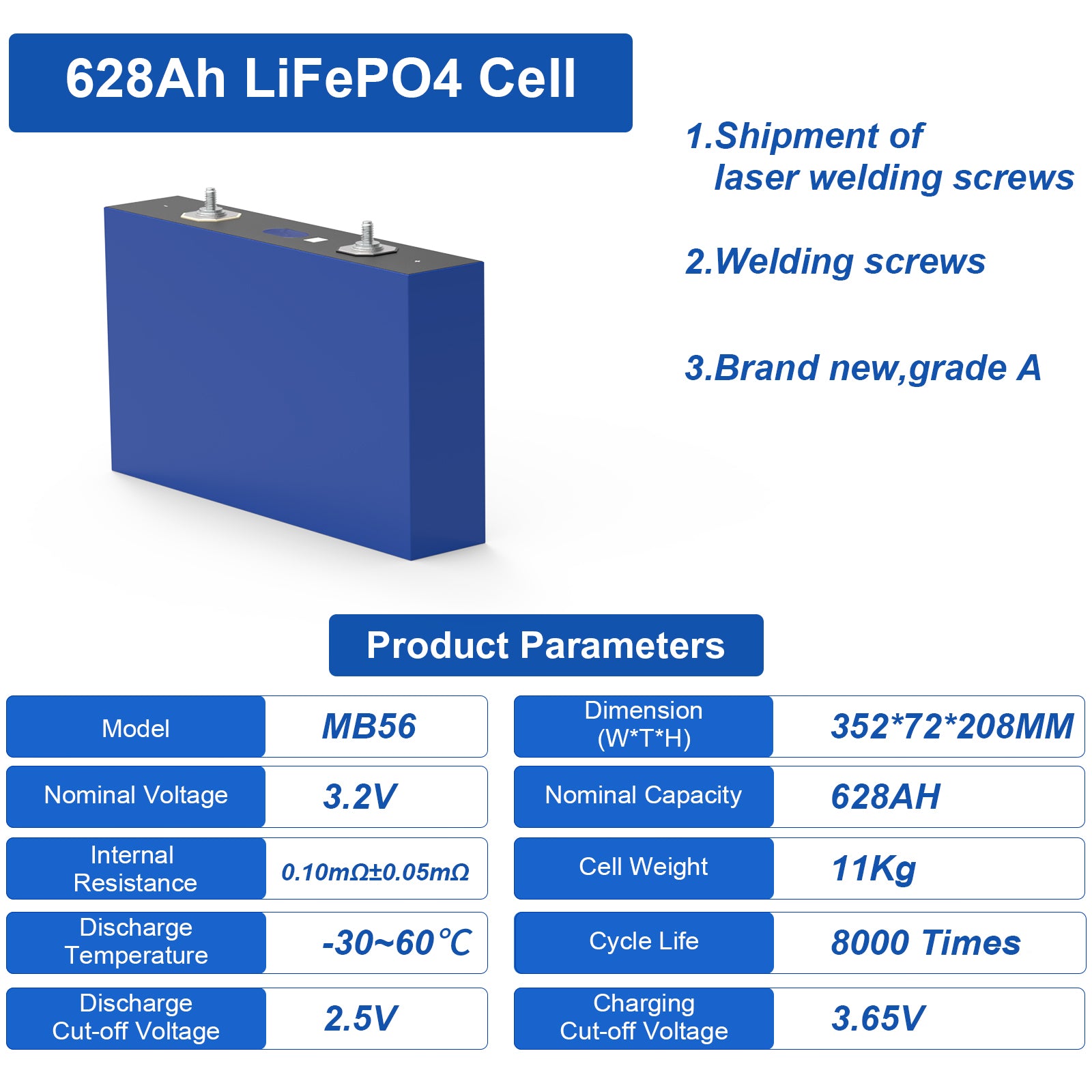

Model |
EVE MB56 |
|
Nominal Capacity |
628Ah(2009.6Wh) |
|
Nominal Voltage |
3.2V |
|
Number of Cycles |
≥8000(25℃@0.5P,70% SOH) |
|
Charging Voltage |
3.65V |
|
Maxinum Charging Power |
0.5P |
|
Maxinum Discharging Power |
0.5P |
|
Application |
Energy Storage System(ESS) |
|
Temperature Range(discharge) |
-30°C~60°C |
|
Warranty |
5 Years |
|
Net Weight |
11.5KG |
|

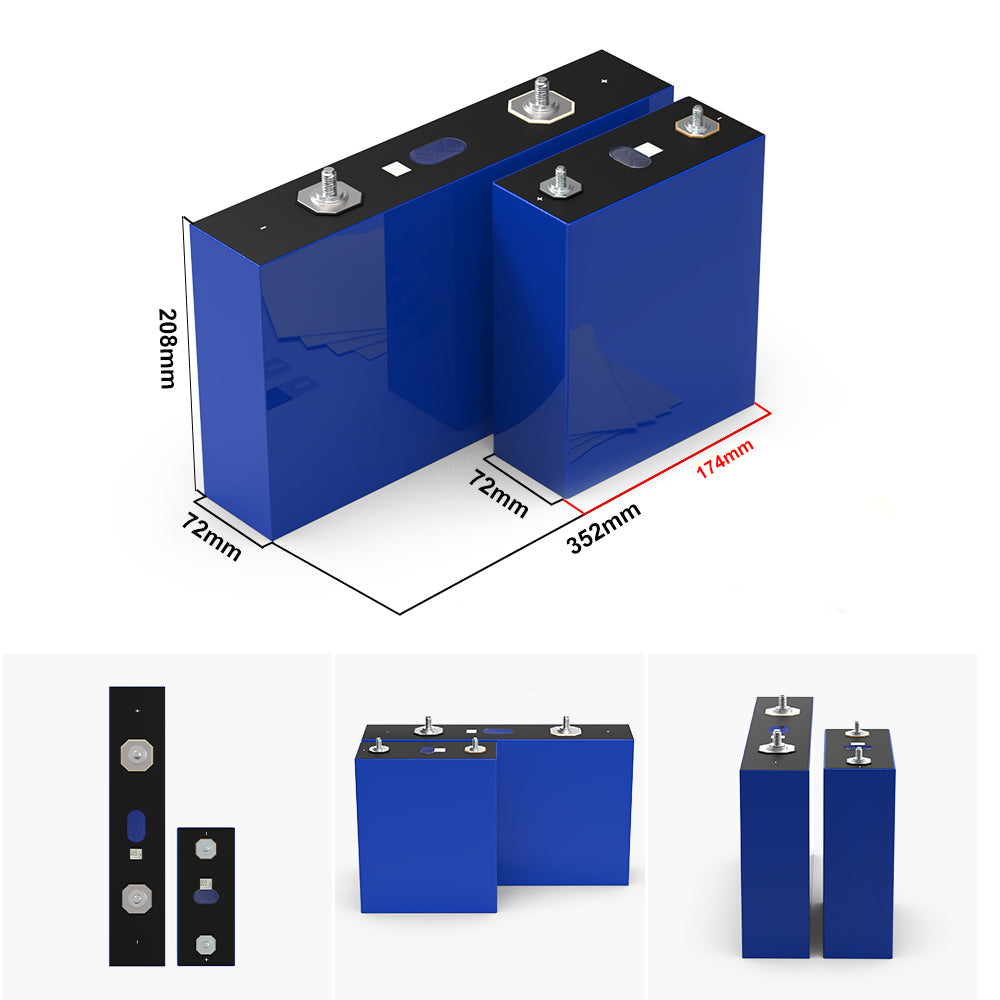

Dimensions(W*T*H) |
352*72*208mm |
|
Original Factory Test Report |
Available |
|
Specification Sheet |
