[ESS Grade, Brand New Quality] ESS grade, brand new MB31 battery, intact QR code, perfectly suited for residential home energy storage systems(ESS).
[Real Capacity 225-335Ah] Nominal capacity 314Ah, actual capacity 225-335Ah, higher energy density, compact size.

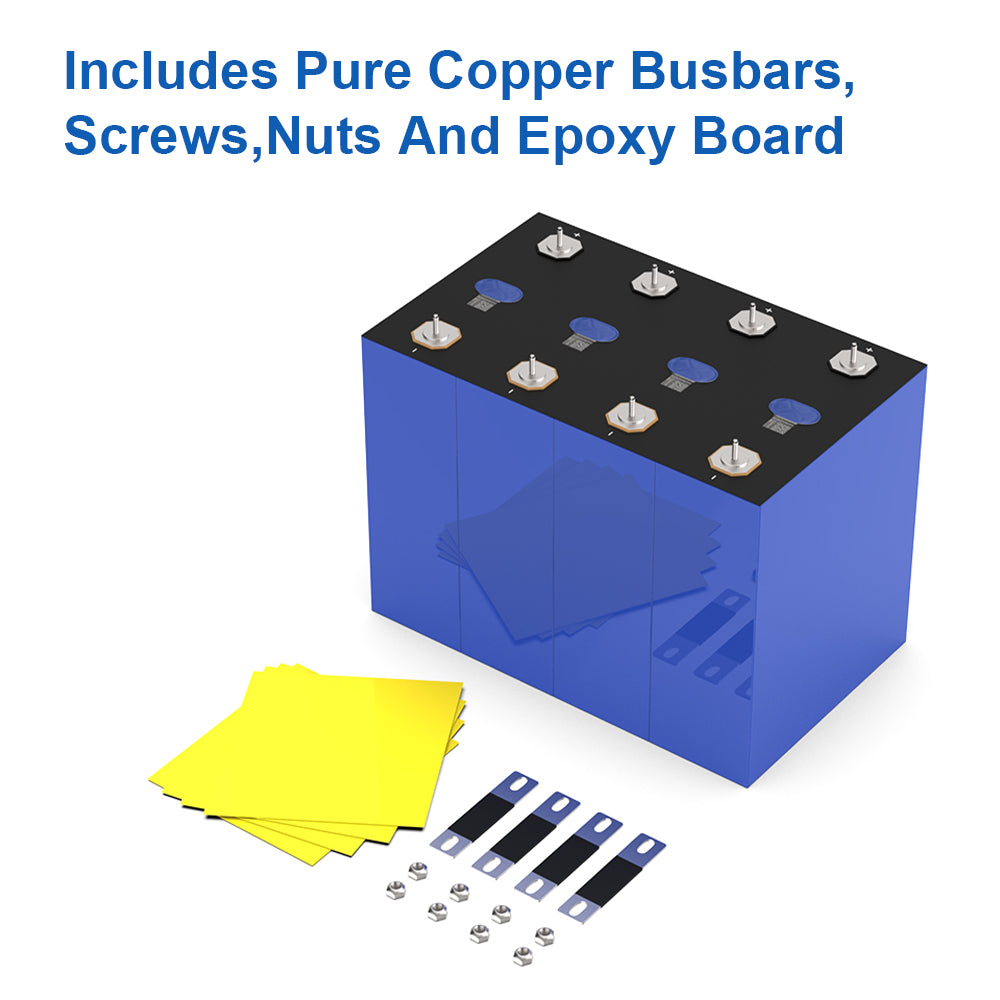

[Free Accessories] Provide all necessary accessories for DIY batteries, including screws, busbars, epoxy plates and other accessories.
[Already Matched] All cells have consistent voltage, internal resistance, and capacity, allowing for direct assembly without the need for balancing.
[Nickel-plated Copper Busbars] The busbars are made of nickel-plated copper material, featuring low internal resistance and a thickness of 2mm, enabling them to withstand high currents without generating excessive heat.
[8000 Cycles] At 25 ℃, 10%-90% humidity, the battery is subjected to a pressure of 300 kgf and a charge and discharge power of 0.5P. After 8000 cycles, the actual remaining capacity is greater than 70% (SOH ≥ 70%).
[Pre-assembled Version] The BMS is already installed on the battery box. During assembly, simply install the cells in order according to the signal lines and tighten the screws on the battery box again.

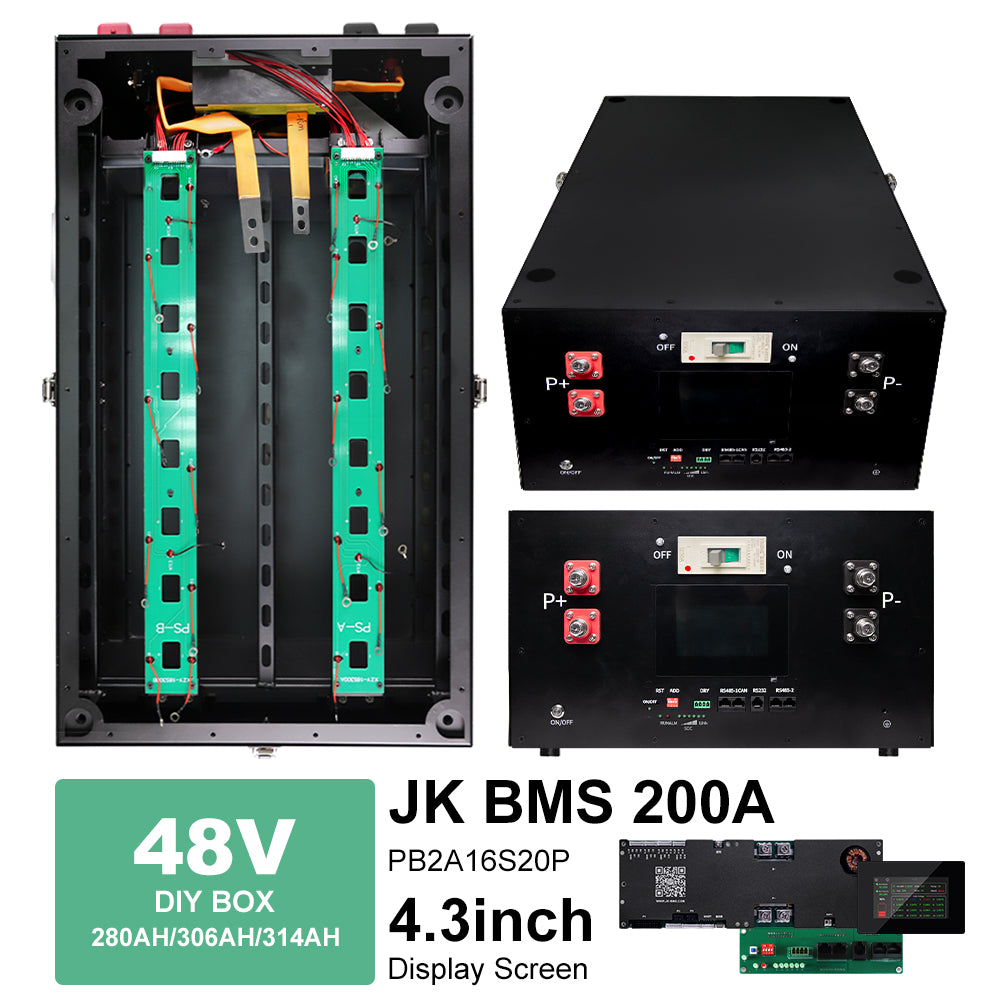

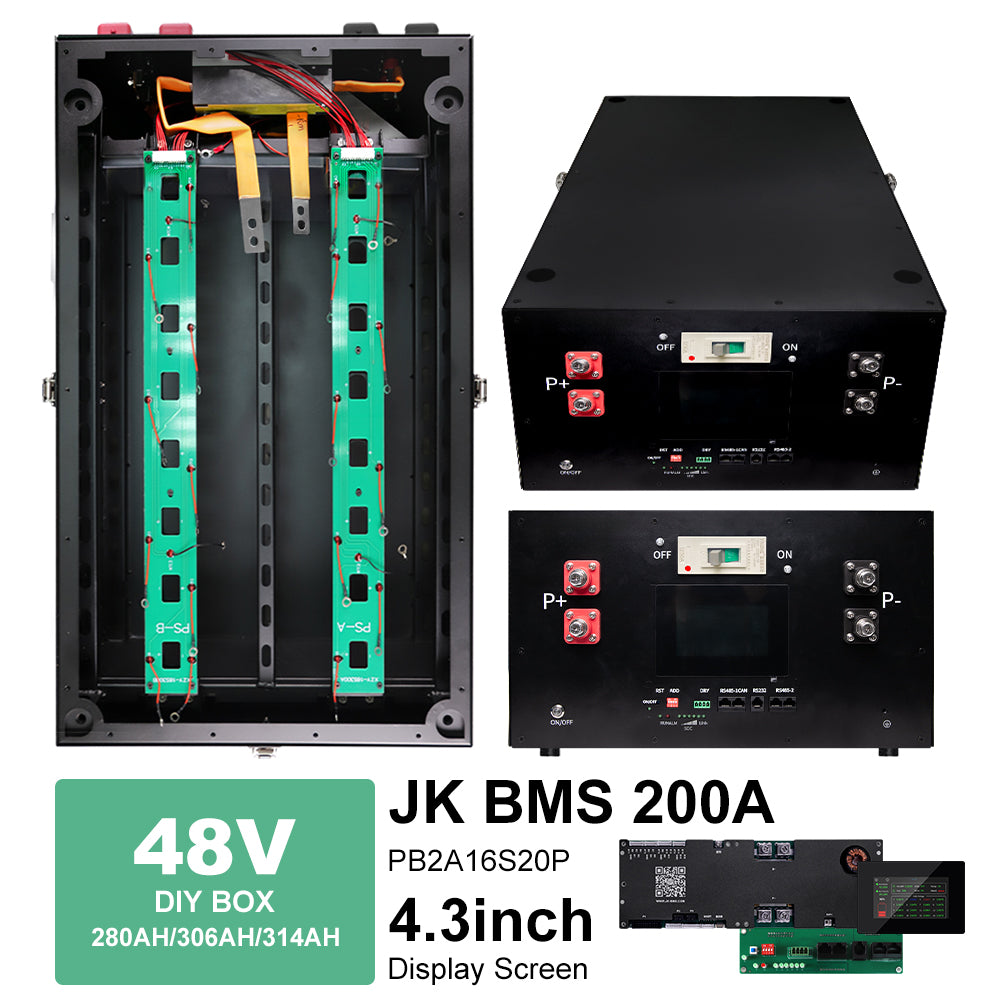

[16S 200A BMS] The battery box includes a JK V19 PB2A16S20P BMS, a touchscreen display, 2A active current balancing, and a continuous output of 200A.
[Compatible with Different Terminal Cells] The DIY box is suitable for battery cells with different studs, including single m6 cells and double-hole cells.(Note: The flexible connector included with the DIY box is a single m6 hole connector.)
Description

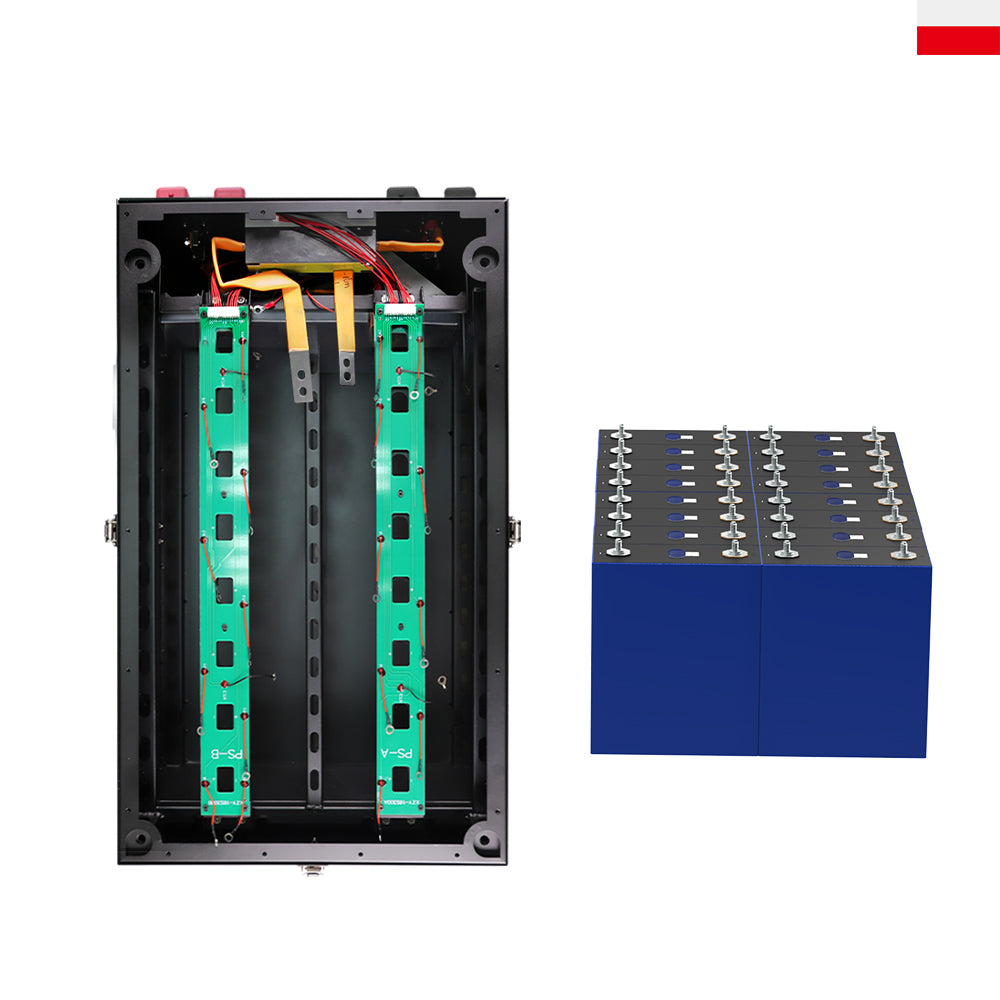

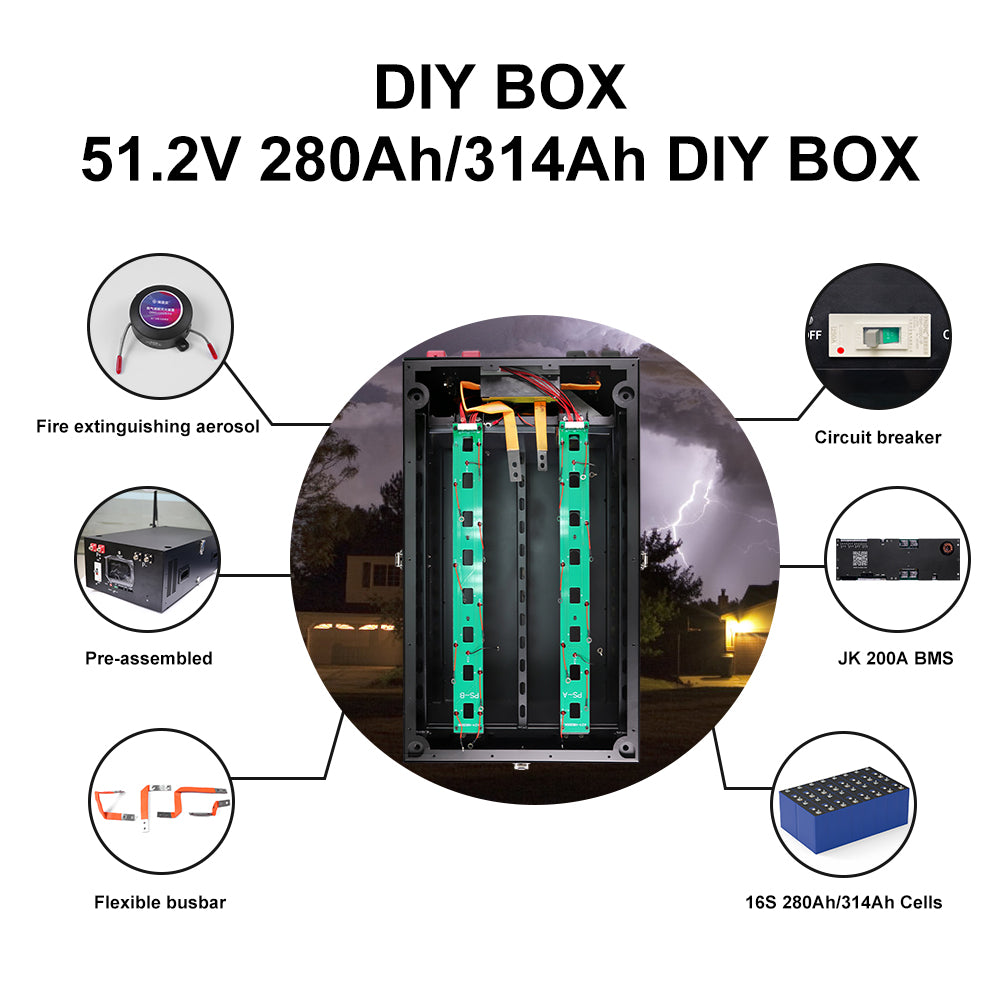

x1 Diy kits include 16 mb31 cells and 1 diy box
The DIY box is a pre-assembled version.

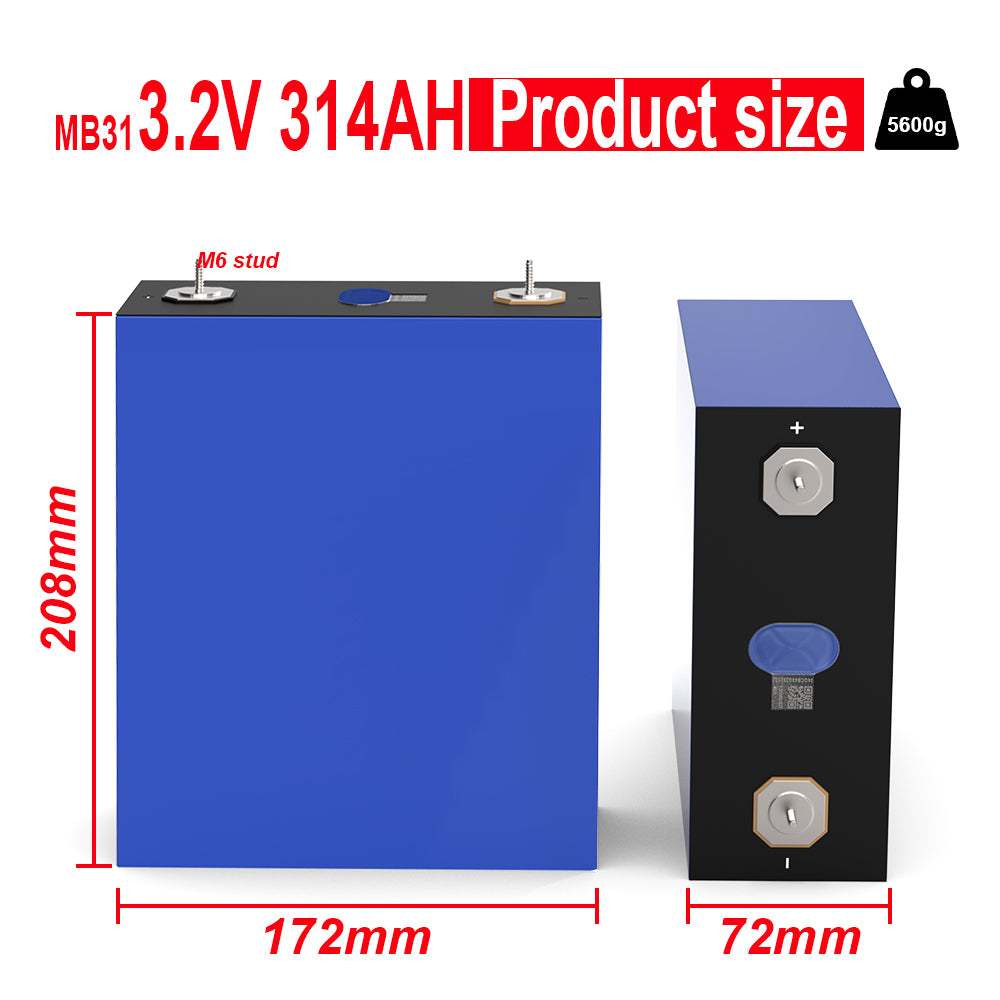

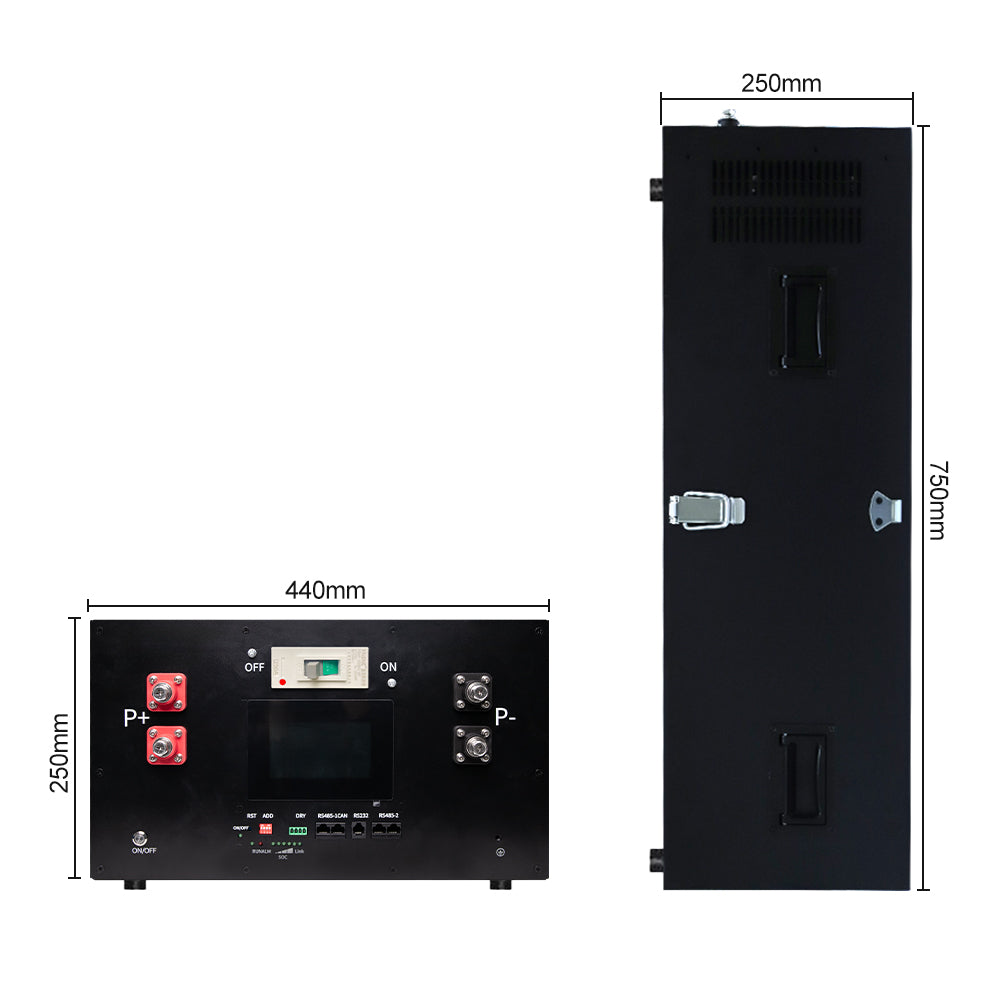

Prismatic Cell Dimension(W*T*H): 173*72*207mm
This DIY battery box is suitable for EVE LF280K and MB1 cells, with prismatic cell dimensions of (W*T*H): 173*72*207mm.
Suitable for both double holes and single M6 studs

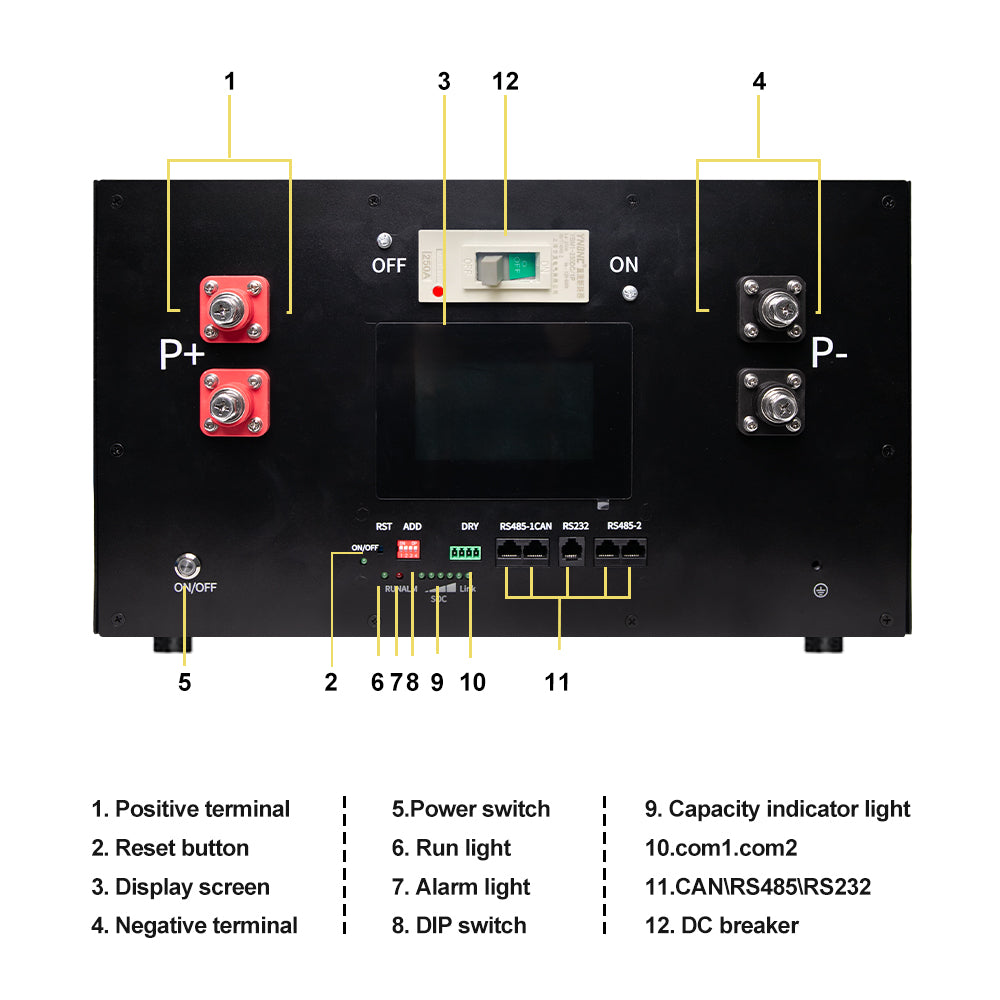

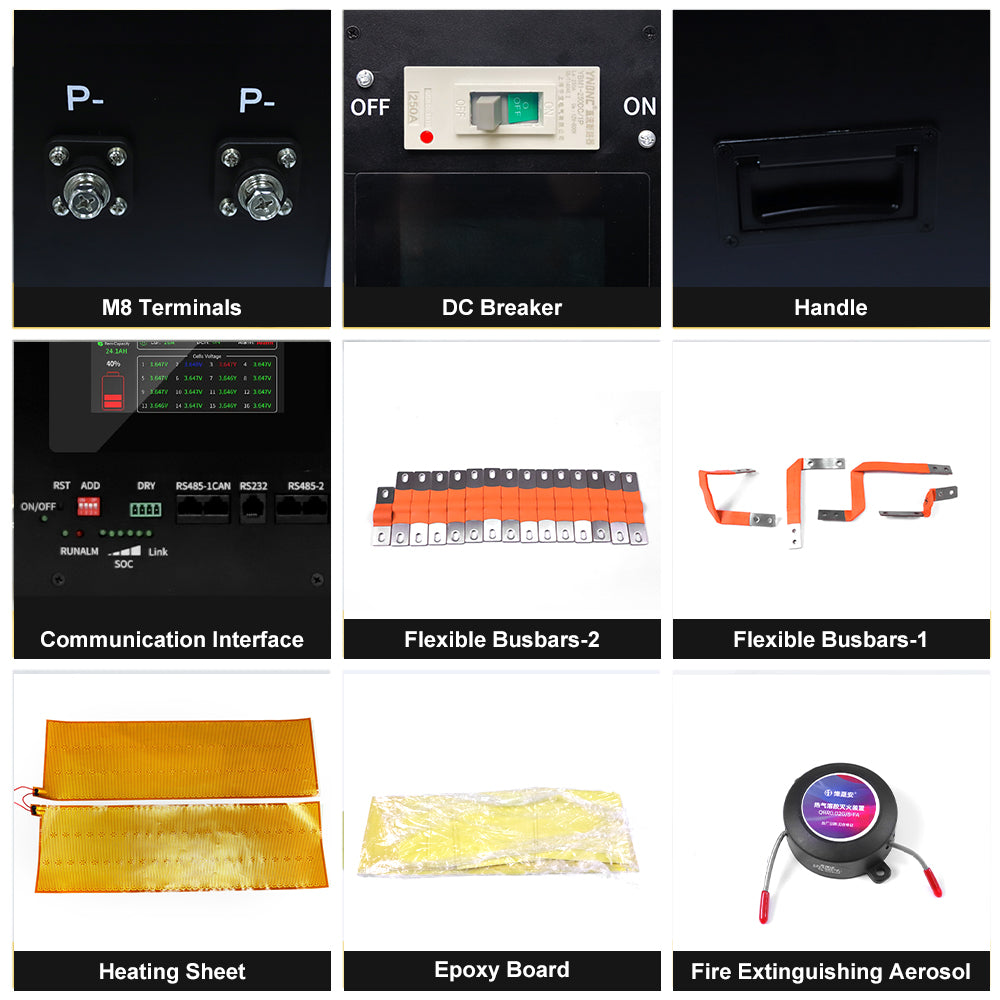

The box is equipped with a 250A circuit breaker, heating pad, and fire extinguisher.
JK PB2A16S20P BMS
Pack listing
High Quality EVE LiFePO4 Cells
EVE MB31 314Ah 3.2V

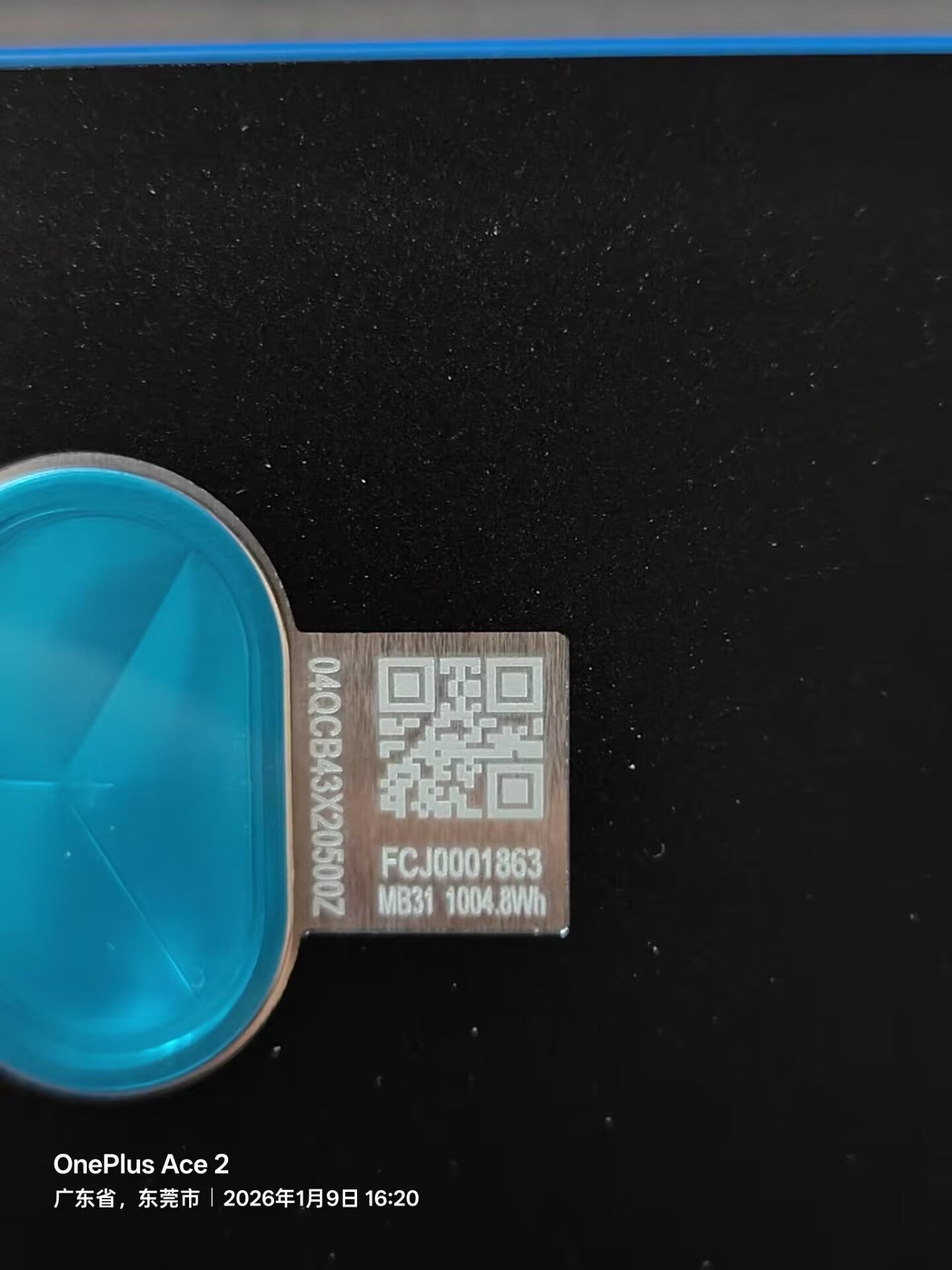

Battery Cell Apperance,intact QR,single m6 stud
Original shipping test avaliable

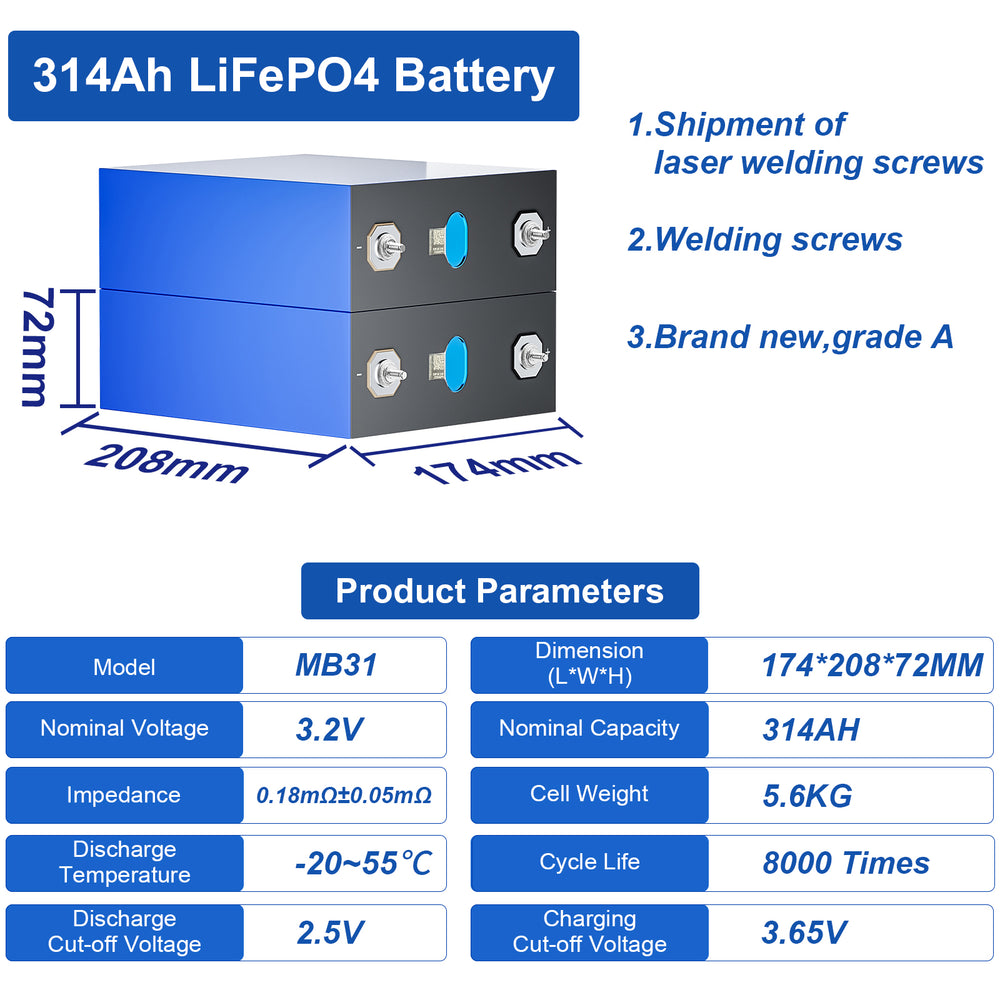

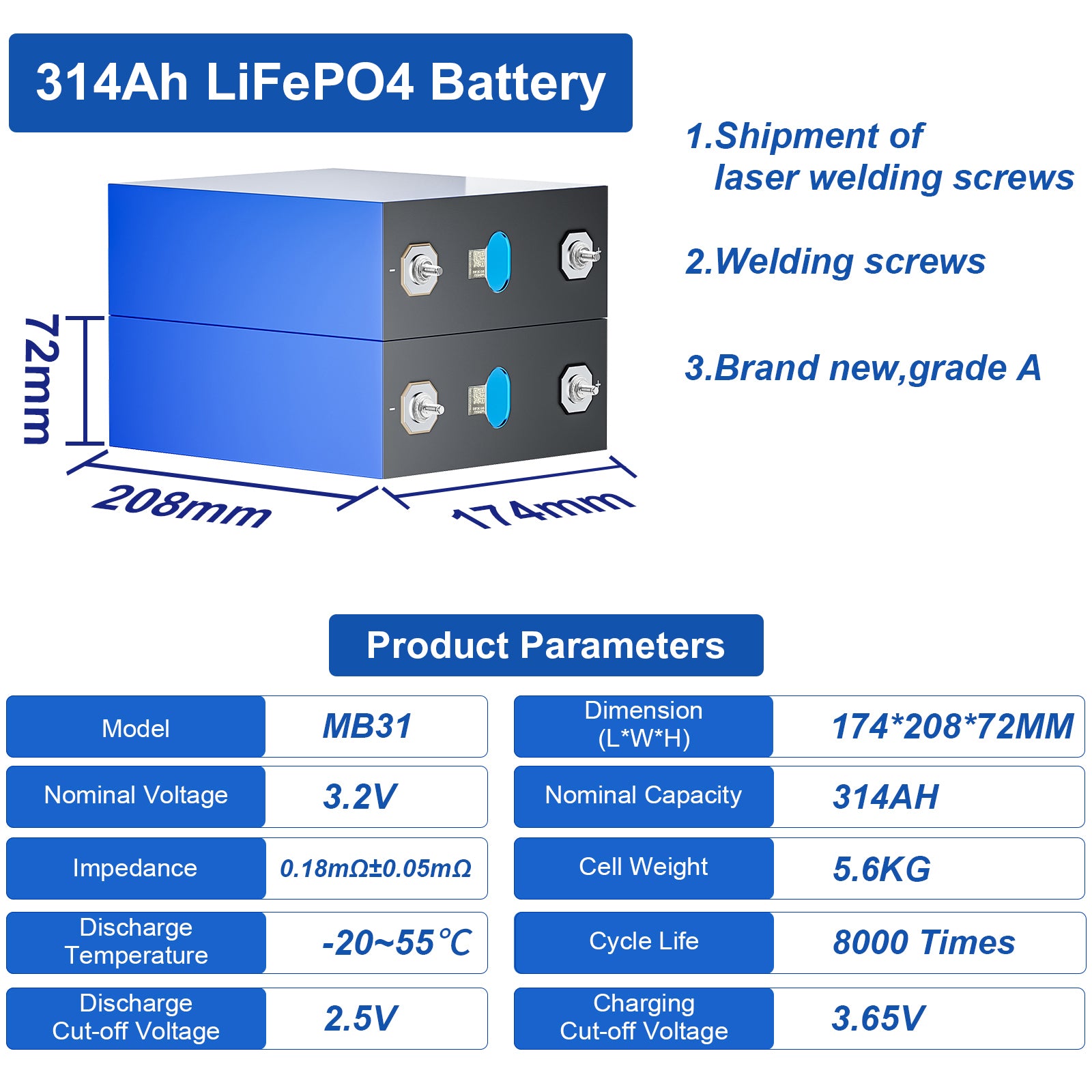

Specification
x|
Model |
EVE MB31 |
|
Nominal Capacity |
314Ah(1004.8Wh) |
|
Norminal Voltage |
3.2V |
|
Number of Cycles |
≥8000cycles@70%SOH |
|
Charging Voltage |
4.2V |
|
Maxinum Charge Current |
157A |
|
Maxinum Discharge Current |
157A |
|
Temperature Range(discharge) |
-30°C~66°C |
|
Connection Screw |
Single M6 |
|
Warranty |
5 years |
|
Weight |
5.6KG |
|
Dimensions(W*T*H) |
173*72*208mm |
FAQ
x●Advantages of Prismatic LiFePO4 Batteries?
1. Larger monomer capacity.
2. Higher stability.
3. Higher security.
4. Higher space utilization.
5. Lighter weight.
2. Higher stability.
3. Higher security.
4. Higher space utilization.
5. Lighter weight.
●What is the series and parallel connection of batteries?
Both are how the battery is connected and is something you have to learn when assembling the battery.
Series connection: Connecting the positive pole of one battery to the negative pole of another battery increases the voltage of the battery pack, but the capacity remains the same.
Parallel connection: Connecting the positive pole of one battery to the positive pole of another battery increases the capacity of the battery pack, but the voltage remains the same.
Series connection: Connecting the positive pole of one battery to the negative pole of another battery increases the voltage of the battery pack, but the capacity remains the same.
Parallel connection: Connecting the positive pole of one battery to the positive pole of another battery increases the capacity of the battery pack, but the voltage remains the same.
●Are LiFePO4 batteries safe?
There is no doubt that LiFePO4 batteries are one of the safest lithium-ion batteries out there. Due to its chemical properties and safe internal structure, LiFePO4 batteries will not explode even if they are severely damaged (such as puncture/strong knocks).
●Can LiFePO4 batteries be mixed?
Generally speaking, it is best not to, but it depends on the situation.
It is best not to mix batteries of different brands, because there may be subtle differences;
It is also best not to mix batteries with different degrees of old and new, because the weakest battery in the battery pack will restrict the performance of the entire battery pack;
Never mix batteries of different chemical properties, this may kill your LiFePO4 battery, although there are ways to achieve it, it is definitely not recommended for battery beginners to consider;
Batteries with different capacities can be mixed, but the premise is that both batteries are 3.2V and connected in parallel.
It is best not to mix batteries of different brands, because there may be subtle differences;
It is also best not to mix batteries with different degrees of old and new, because the weakest battery in the battery pack will restrict the performance of the entire battery pack;
Never mix batteries of different chemical properties, this may kill your LiFePO4 battery, although there are ways to achieve it, it is definitely not recommended for battery beginners to consider;
Batteries with different capacities can be mixed, but the premise is that both batteries are 3.2V and connected in parallel.
●How are LiFePO4 batteries stored?
The most important thing is the temperature. LiFePO4 batteries are well stored at room temperature (15°C~25°C), but too low temperature may damage the battery. In an icy environment, you need to pay attention to the insulation of the battery. Alternatively, the battery can be stored in a dry and ventilated room at 50% SOC.
●What should I do when I receive cells?
After receiving the battery, please immediately check whether the insulating layer of the battery (usually a blue film) is damaged and whether the QR code is scratched. Also use a multimeter to check the voltage/internal resistance/capacity. Be sure to charge the battery to full voltage before using it for the first time.
●What is Grade A battery cells?
● Grade A: Cells perform to manufacturer specifications.
● Grade B: Cells under-perform or have other defects.
● Grade C: Cells are used, repackaged, salvaged, or damaged.
● Grade B: Cells under-perform or have other defects.
● Grade C: Cells are used, repackaged, salvaged, or damaged.
●When assembling, what torque should I use?
Although we have tested and found that the welding studs can withstand 15N.m torque, we still recommend using no more than 6N.m torque.
