[Grade A, Brand New Quality] EVE original grade A, brand new MB31 cells, with intact QR, ready for assembly into high-voltage systems.
[Real Capacity 330Ah] Nomial capacity 314Ah, actual capacity 330Ah, higher energy density, compact size.
[Free Accessories] Provide all necessary accessories for DIY batteries, including screws, busbars, epoxy plates and other accessories.
[Already Matched] All cells have consistent voltage, internal resistance, and capacity, allowing for direct assembly without the need for balancing.
[Original Test Report] With the original test report, all battery cell test data is traceable, capacity range 330.0011-332.9999Ah, internal resistance range 0.1702–0.1836 mΩ, voltage range 3.2650-3.2678V
[8000 Cycles] At 25 ℃, 10%-90% humidity, the battery is subjected to a pressure of 300 kgf and a charge and discharge power of 0.5P. After 8000 cycles, the actual remaining capacity is greater than 70% (SOH ≥ 70%).
[JK BMS] JK New V19 PB2A16S20P BMS, 2A active balance current, 4.3-inch touch display, features overcharge protection, over-discharge protection, overcurrent protection, short-circuit protection, and cell balancing.
View More
DESCRIPTION
xThe EVE MB31 3.2V 314Ah LiFePO4 Cell will be shipped from our Poland warehouse, with a shipping time of 3-7 days.
The JK New V19 PB2A16S20P will be shipped from our China warehouse via express or air delivery, with a shipping time of 10-12 days.(BMS currently has no inventory in Europe.)
Wistek EVE MB31 Lifepo4 Cells Reviews - @Easypowerwall
Supply Original EVE Grade A, Brand New Prismatic LiFePO4 Cell

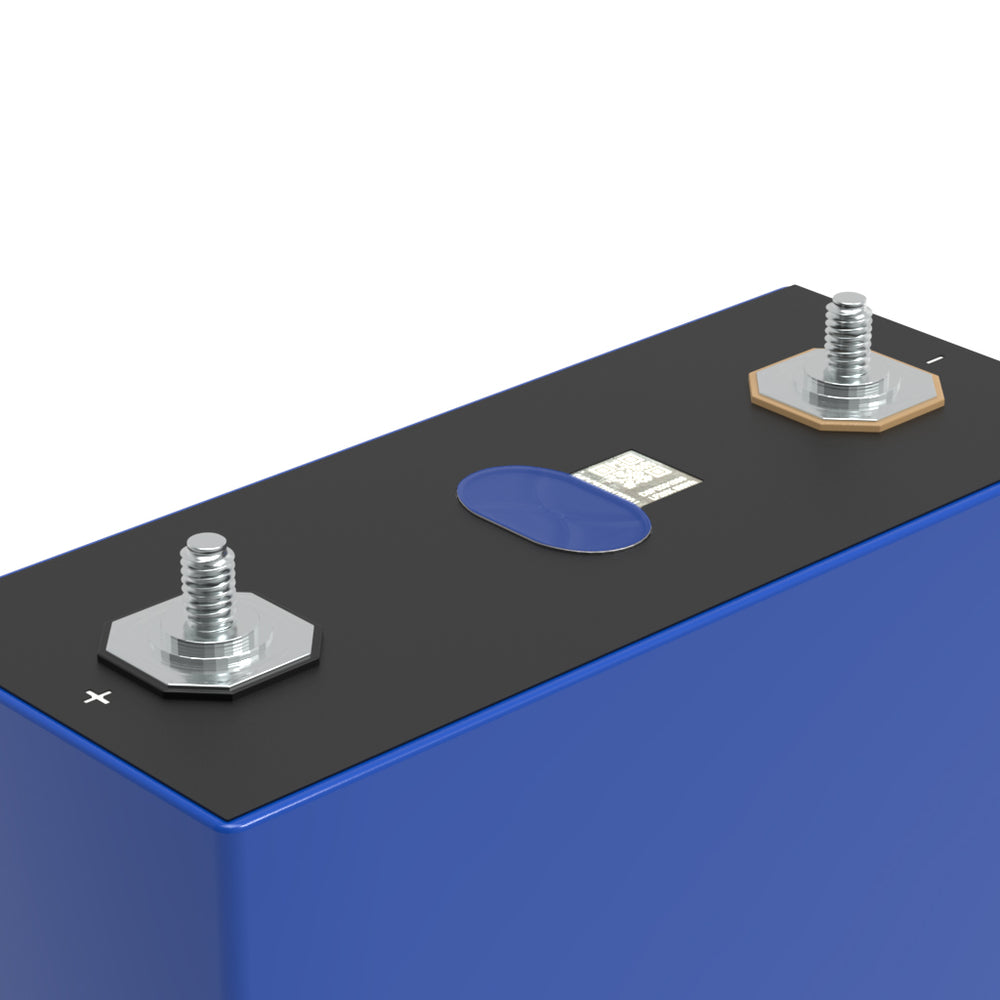

Single M6 Stud
The battery cell has been welded with a single M6 stud, which is convenient for DIY battery. It is recommended to use a torque of less than 6N.m for assembly.

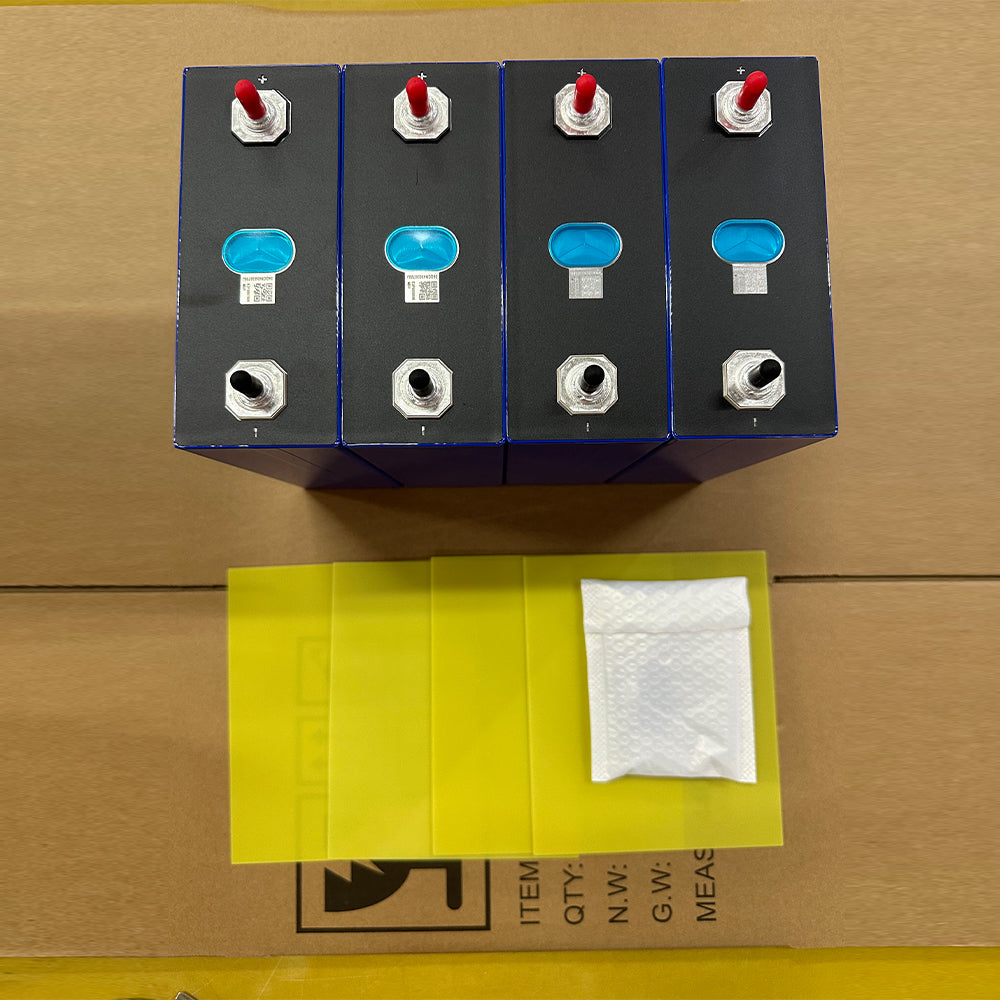

Grade A,brand new quality
The battery cells have the original test report, the QR code is intact, and all the battery cell test data can be tracked.

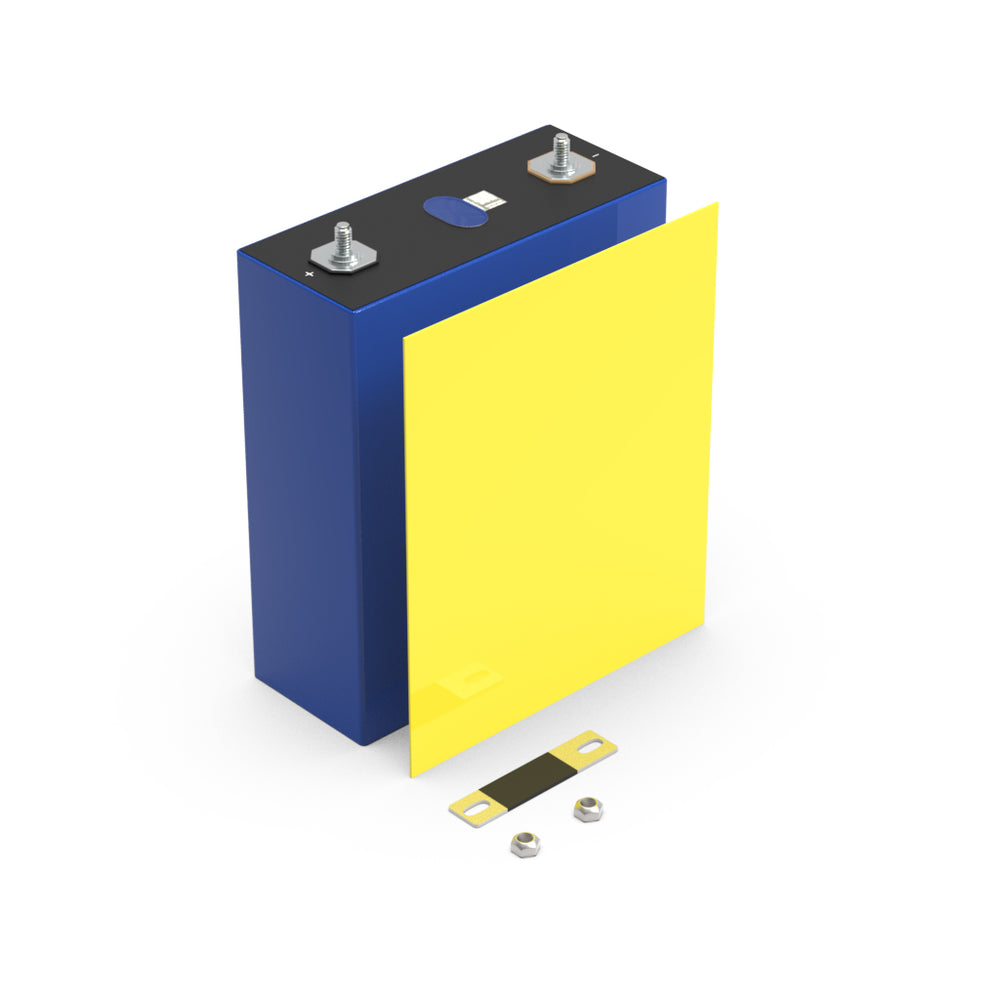

Free Accessories
The battery cell comes with the necessary accessories, busbars, screws and epoxy sheets to assemble the battery pack.

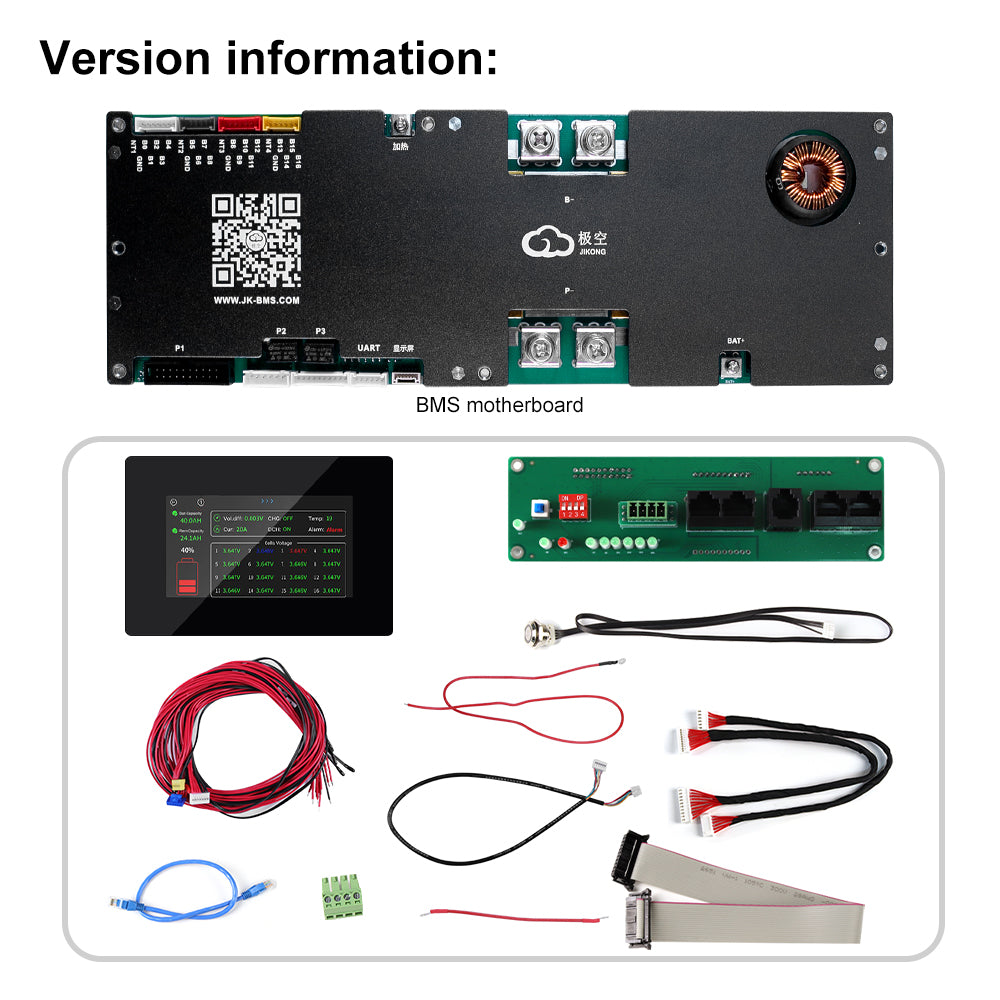

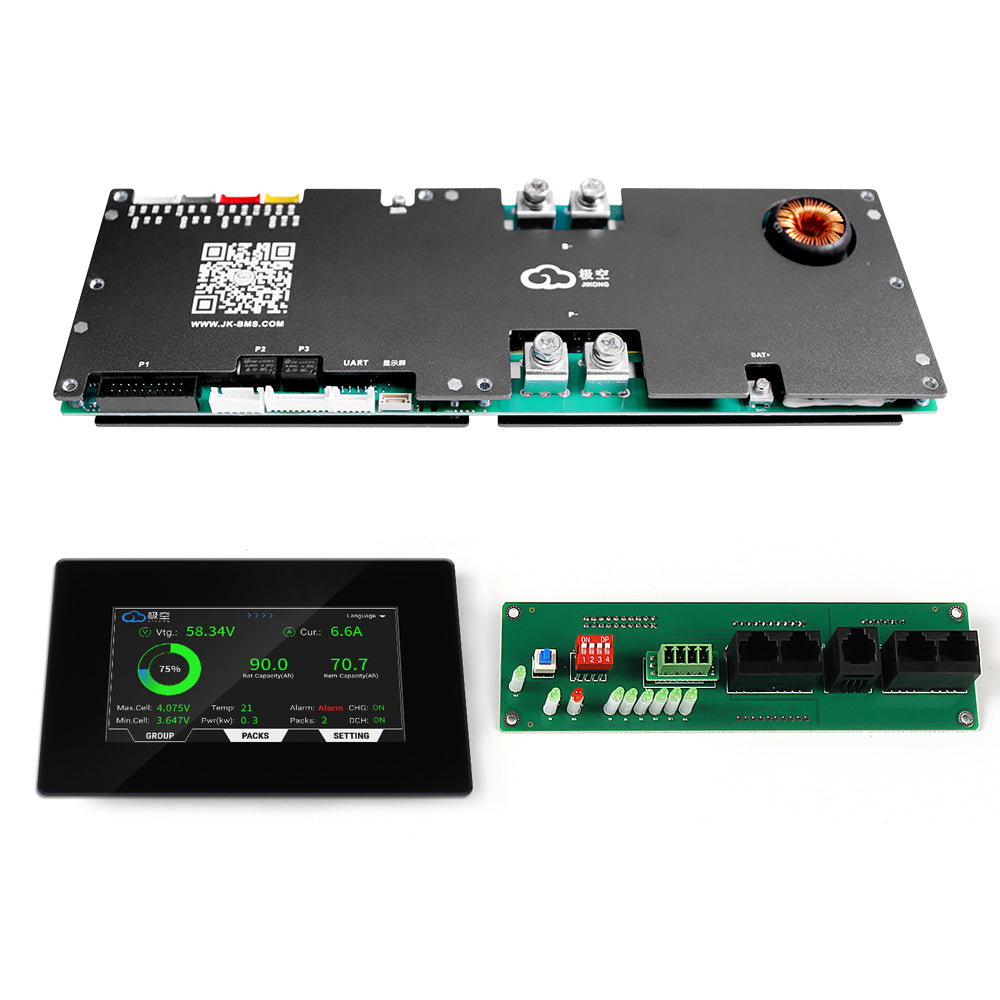

New V19 JK PB2A16S20P BMS
(The difference between the new V19 BMS and the old V19 lies in the color of the signal line terminals. The new V19 uses color differentiation to more effectively prevent errors during assembly.)

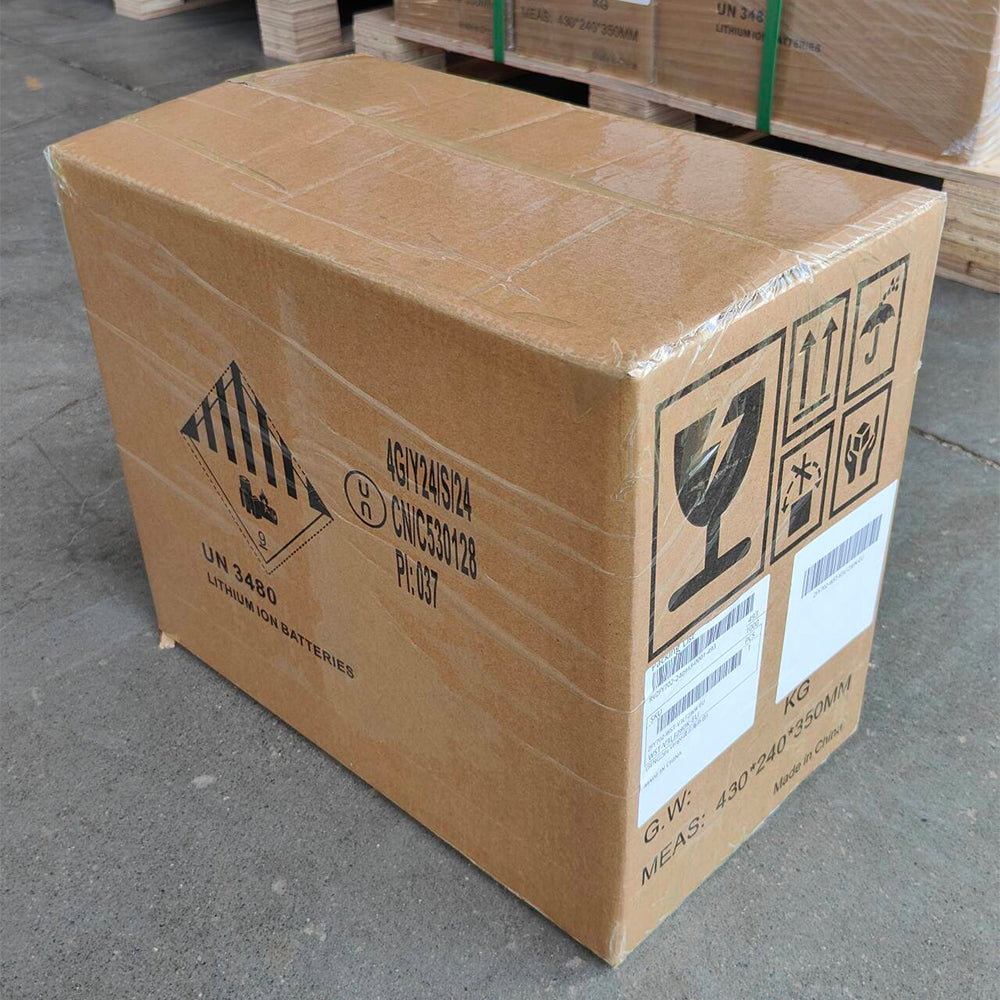

Good packaging conditions
The battery cells are packed in cartons that meet the requirements of dangerous goods, with transparent tape wrapped around the outside to prevent rainwater from seeping into the cartons. Customized sponges are used to fix the cells, effectively protecting them from impact damage.
Wide Applications
SPECIFICATION
x|
Model |
EVE MB31 |
|
Nominal Capacity |
314Ah(1004.8Wh) |
|
Nominal Voltage |
3.2V |
|
Number of Cycles |
≥8000(25℃@0.5P,70% SOH) |
|
Charging Voltage |
3.65V |
|
Maxinum Charging Power |
0.5P |
|
Maxinum Discharging Current |
0.5P |
|
Grade |
ESS |
|
Application |
Energy Storage System(ESS) |
|
Temperature Range(discharge) |
-30°C~60°C |
|
Warranty |
5 Years |
|
Net Weight |
5.6KG |
|
Dimensions(W*T*H) |
174*72*208mm |
|
Year of Production |
January-February, 2025 |
|
Original Factory Test Report |
Available |
| Detailed Specification | |
| Stud Model |
Single M6 Stud |
