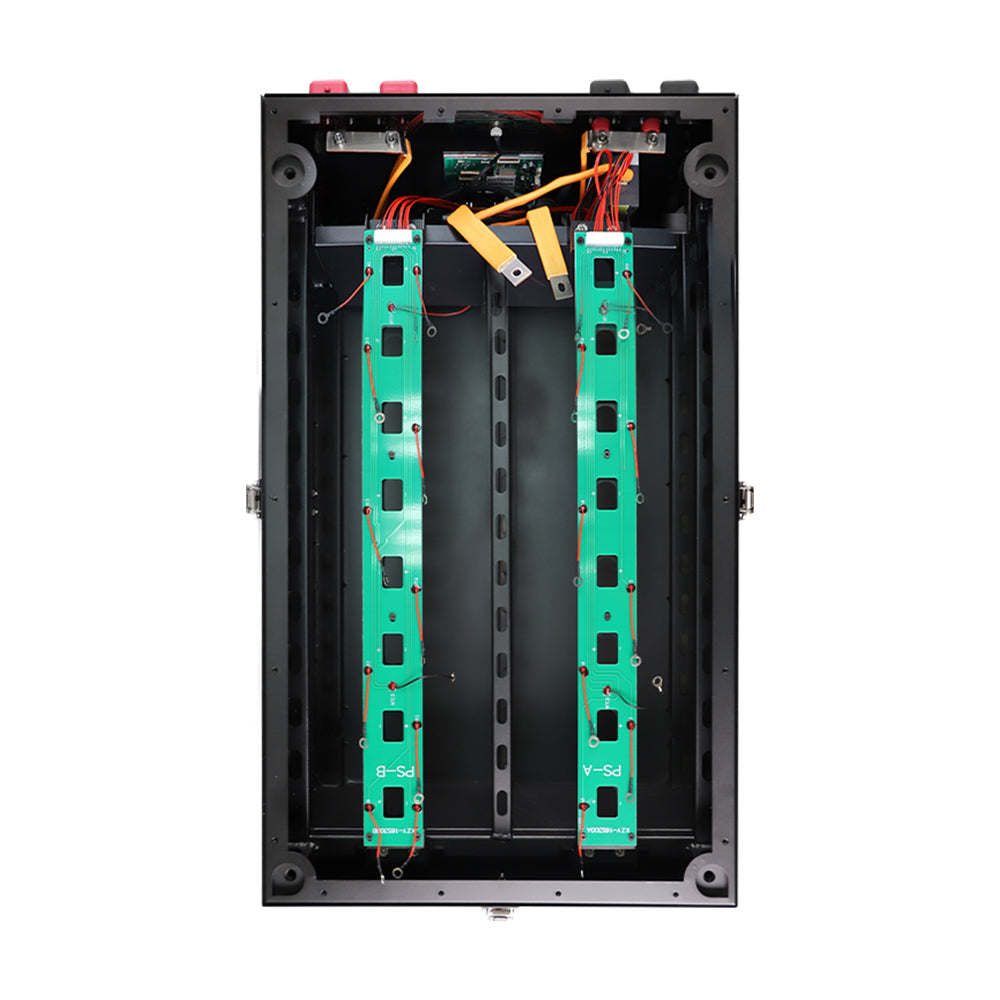

[Pre-assembled Version] This 15kWh DIY battery box is pre-assembled. When assembling, you only need to arrange the battery cells in the correct order, and then tighten the screws to use it.

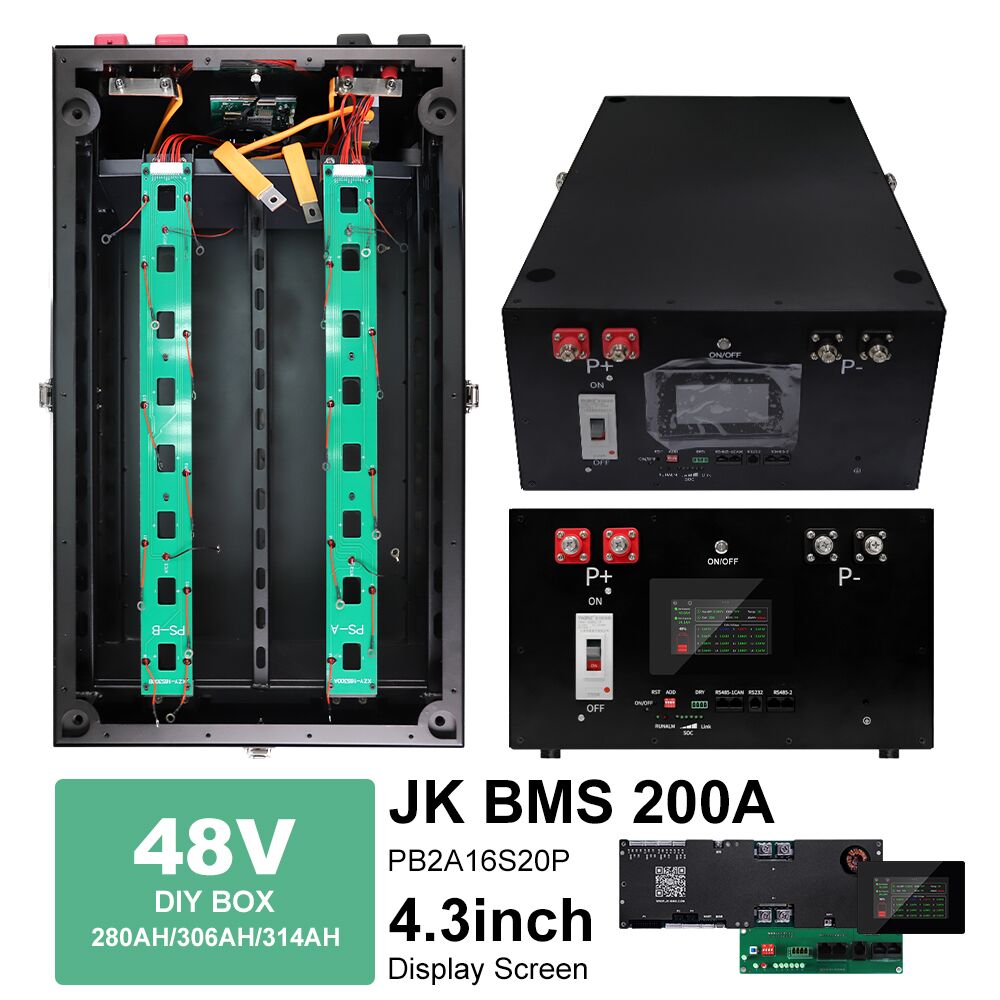

[Smart BMS] Equipped with V19 JK PB2A16S20P BMS, 2A active balancing, 200A continuous discharge current, wireless Bluetooth APP monitoring, 4.3-inch touch screen
[High-quality Materials] The 1.5mm thick stainless steel casing is designed to withstand drops and protect the battery cells from damage. Flexible connectors are included to handle high currents while also protecting the battery terminals.
[Matching Inverter] JK BMS can communicate with many brands of inverters on the market, enabling the inverter to understand the battery status in real time and provide double protection for the battery.
[Fire Extinguishing Equipment] The V2 15KWh battery box is equipped with a fire extinguishing device, allowing you to use the lifepo4 battery without worry.
[Heating Plate] Intelligent temperature control allows you to set the temperature and heating conditions, allowing you to use the battery without worrying about it.
[Free Power Cables] The battery DIY box will be equipped with two 50mm² 30mm power cables for parallel battery connection.
Suitable for EVE 280Ah/304Ah/306Ah/314Ah,CATL 302Ah,Hithium 280Ah/314Ah,Cornex 280Ah/314Ah,REPT 280Ah/314A prismatic cell.
Battery cells dimension(W*T*H):173*72*204mm

The busbars use a double-hole design and can be used with both single M6 stud cells and double-hole cells.

The DIY BOX is equipped with a high-quality 250A circuit breaker, which provides sensitive and fast response to protect the battery and circuit system from damage.

The DIY power bank enclosure is equipped with a heating pad and a fire extinguisher.
Heating plate: Protects your battery from damage caused by low temperatures, allowing for normal and stable charging and discharging even below zero degrees Celsius.
Fire extinguisher: Provides an extra layer of protection for the battery and your property.

The JK V19 PB2A16S20P BMS provides your battery with a 200A discharge current and 10KW power output, meeting the daily power needs of a household.
It features 2A active balancing, current actively balancing the voltage difference between battery cells to extend battery life.
Other protection functions include: overcharge protection, over-discharge protection, overcurrent protection, short-circuit protection, high and low-temperature protection, etc.
It is compatible with most inverters on the market: Growatt, Goodwe, Deye, Sok, EG4, SRNE, etc.

Installation videos and documentation are provided to help you complete the assembly at home.
