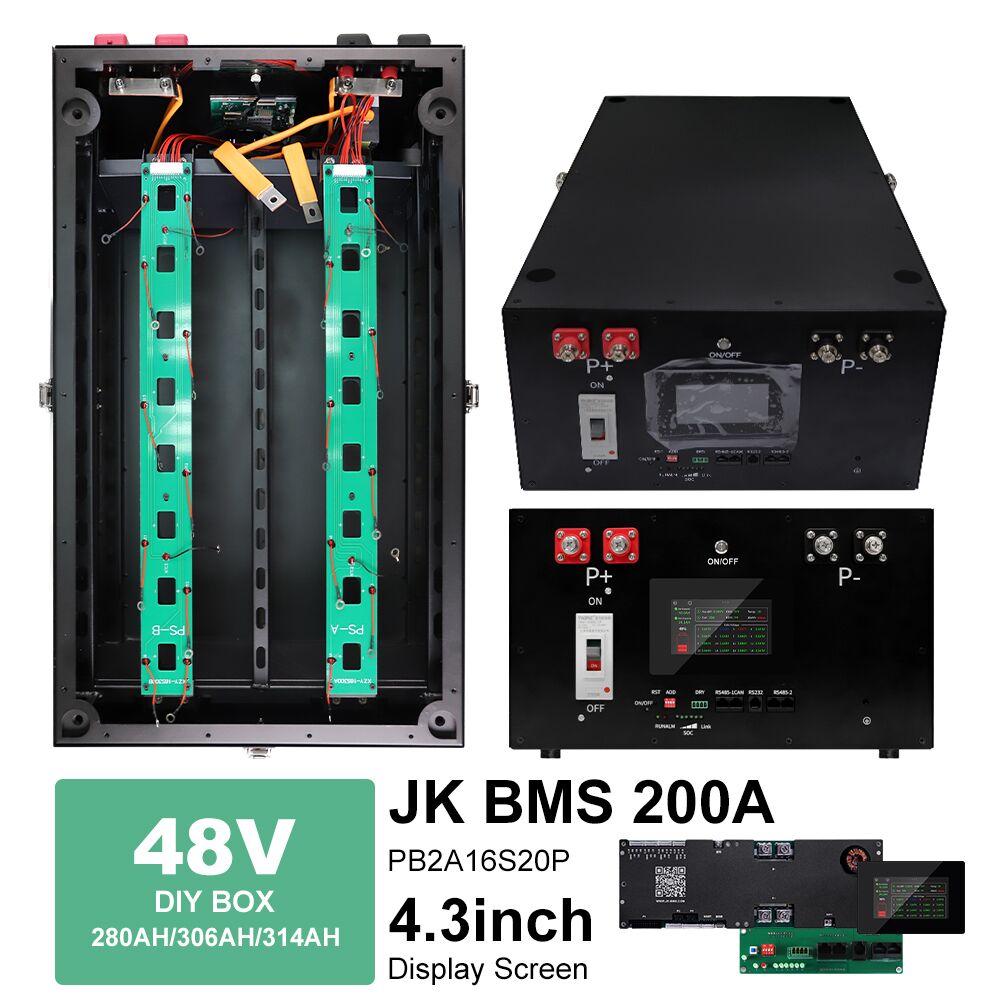

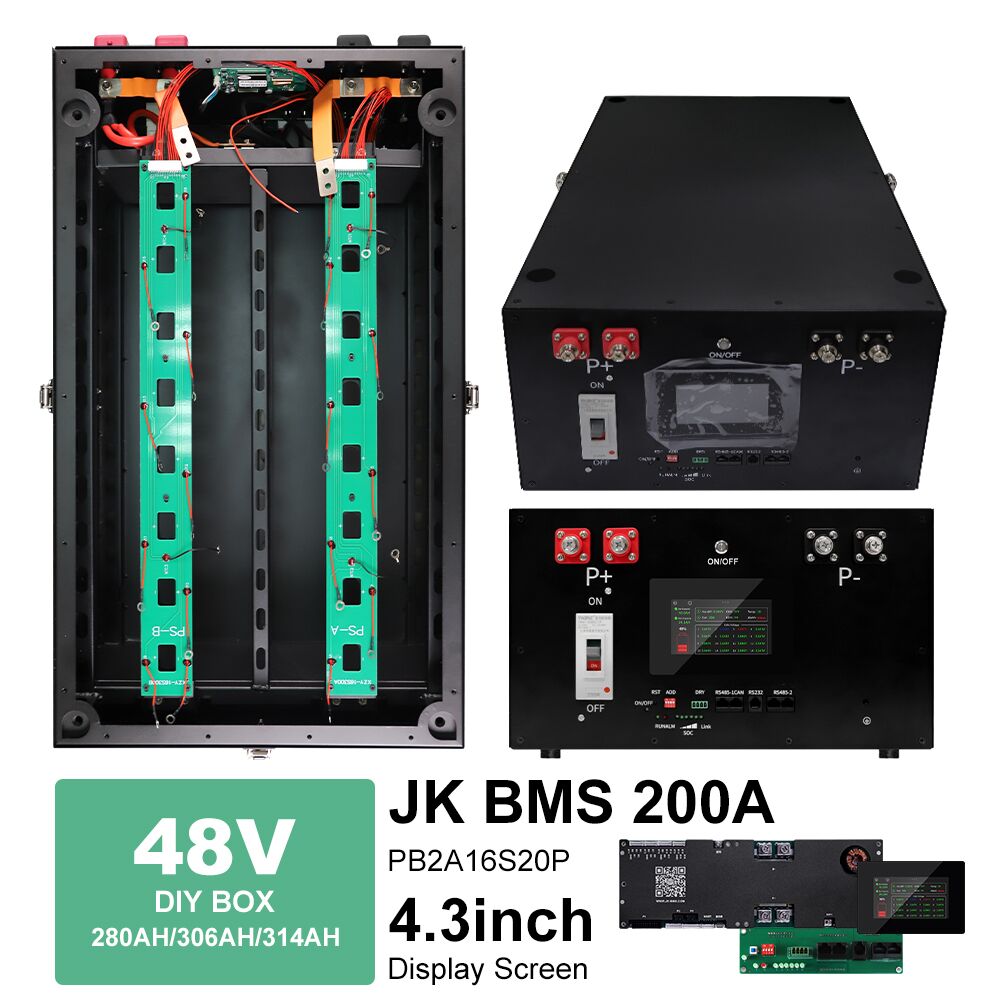

[Pre-assembled Version] This 15KWh DIY battery box is pre-assembled. When assembling, you only need to arrange the battery cells in the correct order, and then tighten the screws to use it.
[Smart BMS] Equipped with V19 JK PB2A16S20P BMS, 2A active balancing, 200A continuous discharge current, wireless Bluetooth APP monitoring, 4.3-inch touch screen

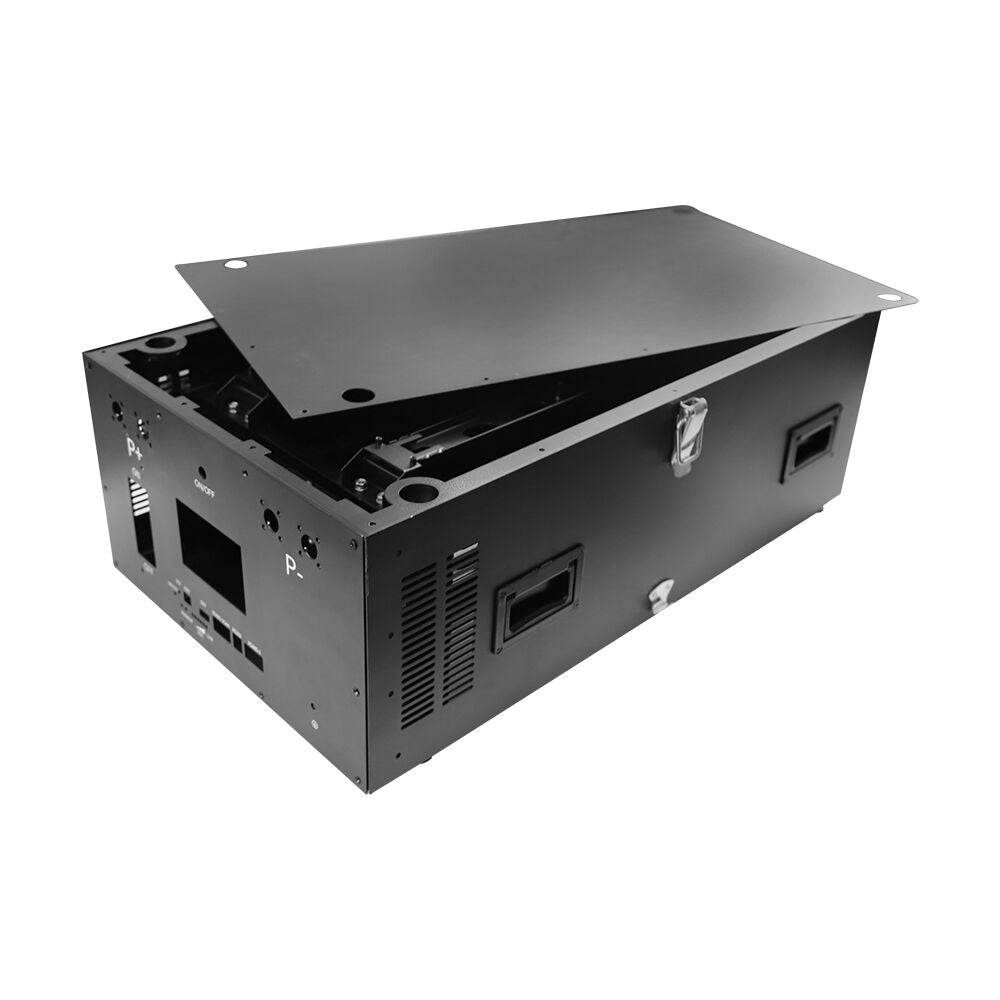

[High-quality Materials] The 1.5mm thick stainless steel casing is designed to withstand drops and protect the battery cells from damage. Flexible connectors are included to handle high currents while also protecting the battery terminals.
[Matching Inverter] JK BMS can communicate with many brands of inverters on the market, enabling the inverter to understand the battery status in real time and provide double protection for the battery.
Applicable battery cells models:
EVE 280Ah, 304Ah, 306Ah, 314Ah battery

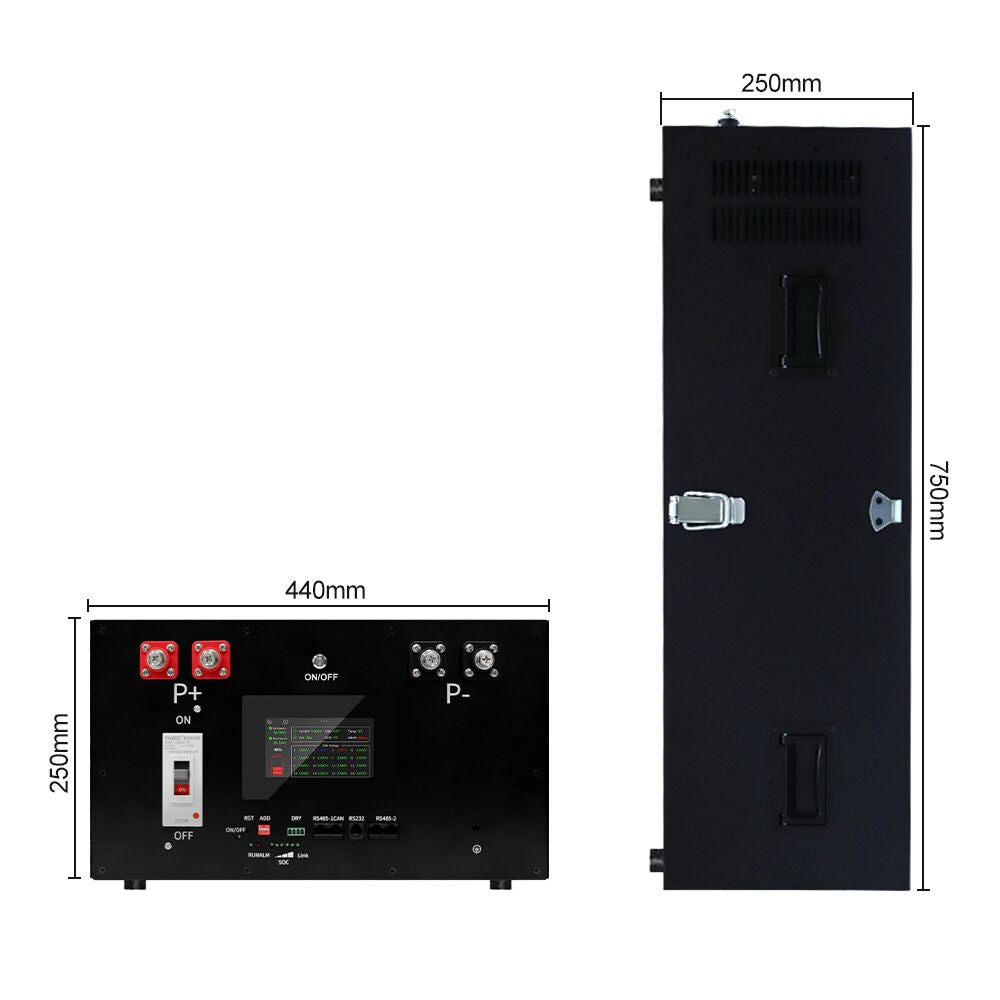

Dimensions: (W*T*H): 173*72*204mm available
What will you get?

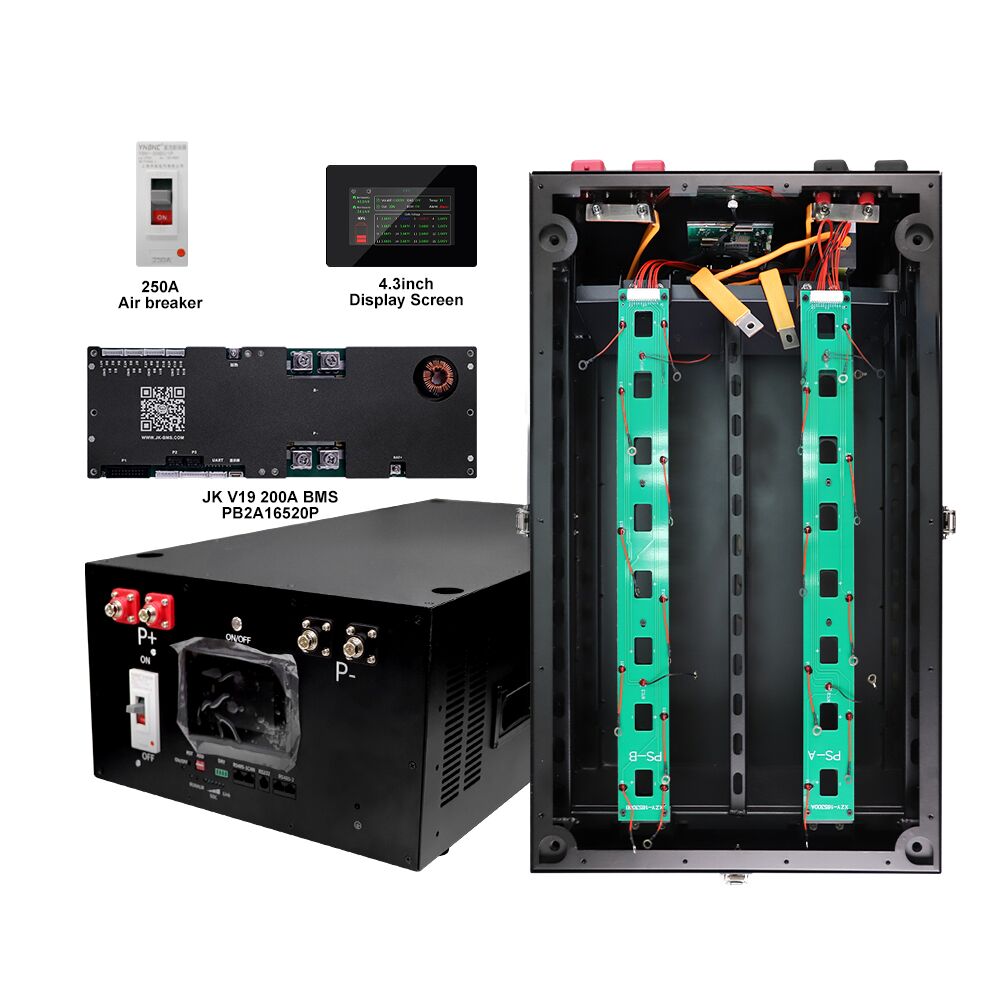

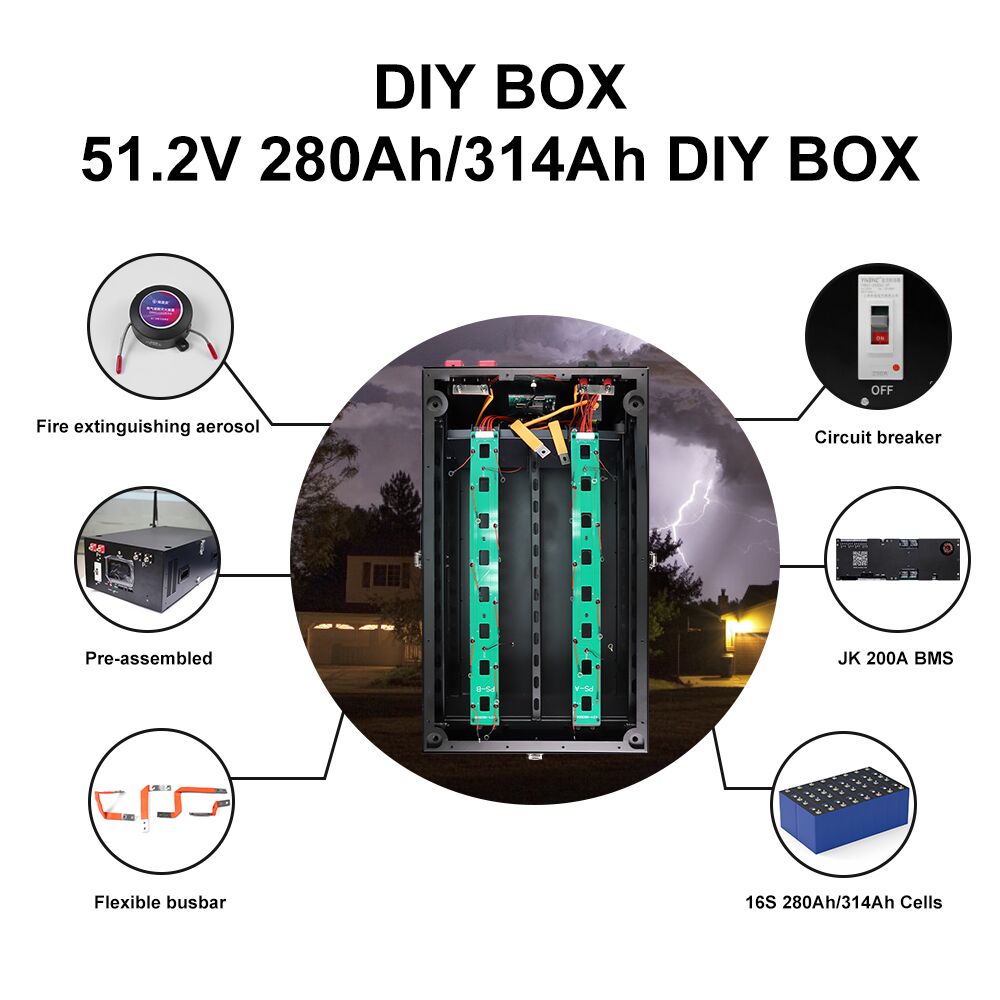

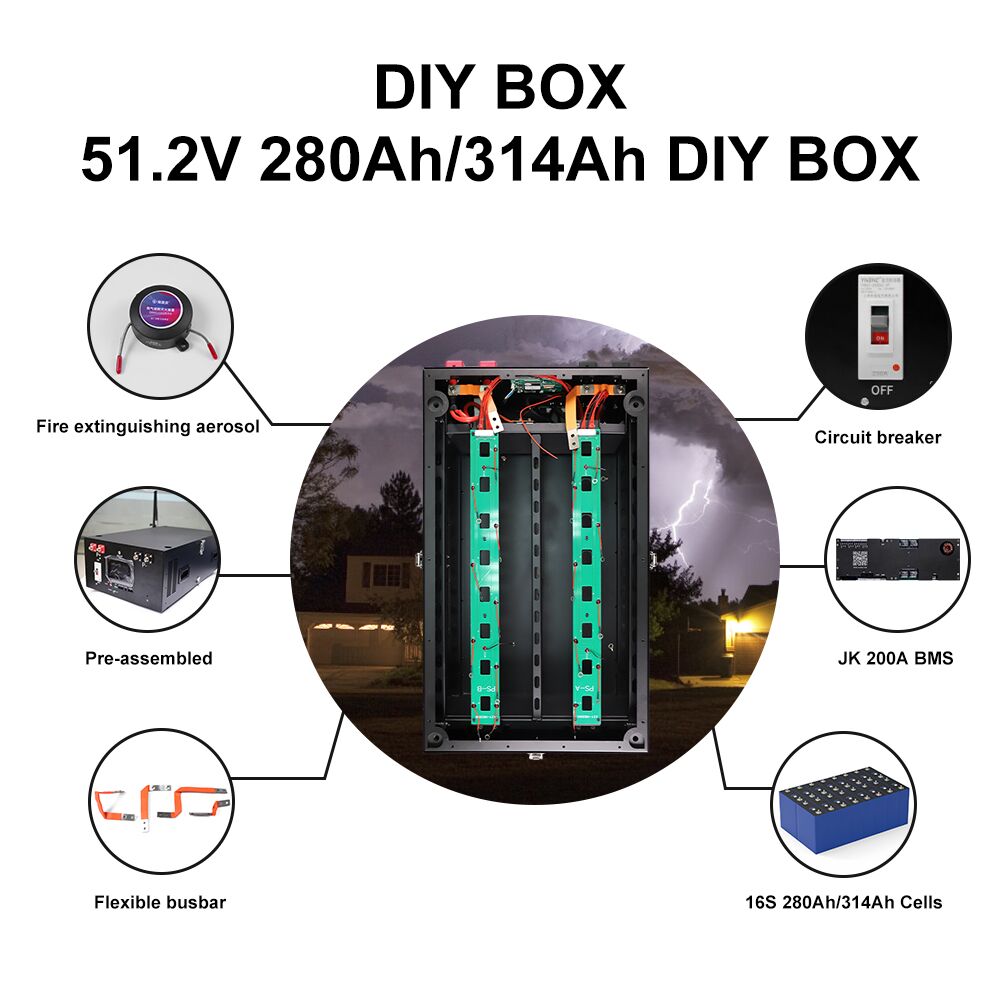

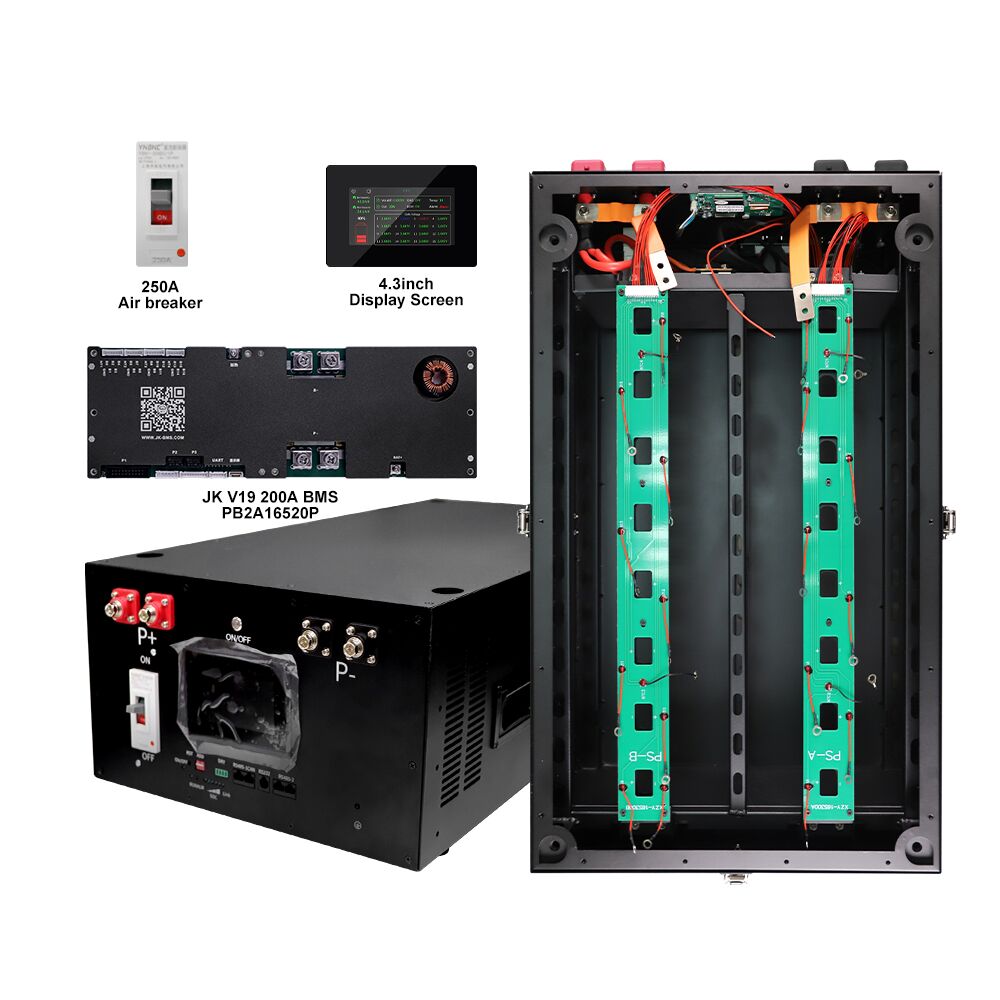

Stainless steel box + JK PB2A16S20P BMS + 4.3 inch display+250A circuit breaker + other accessories required for assembly.

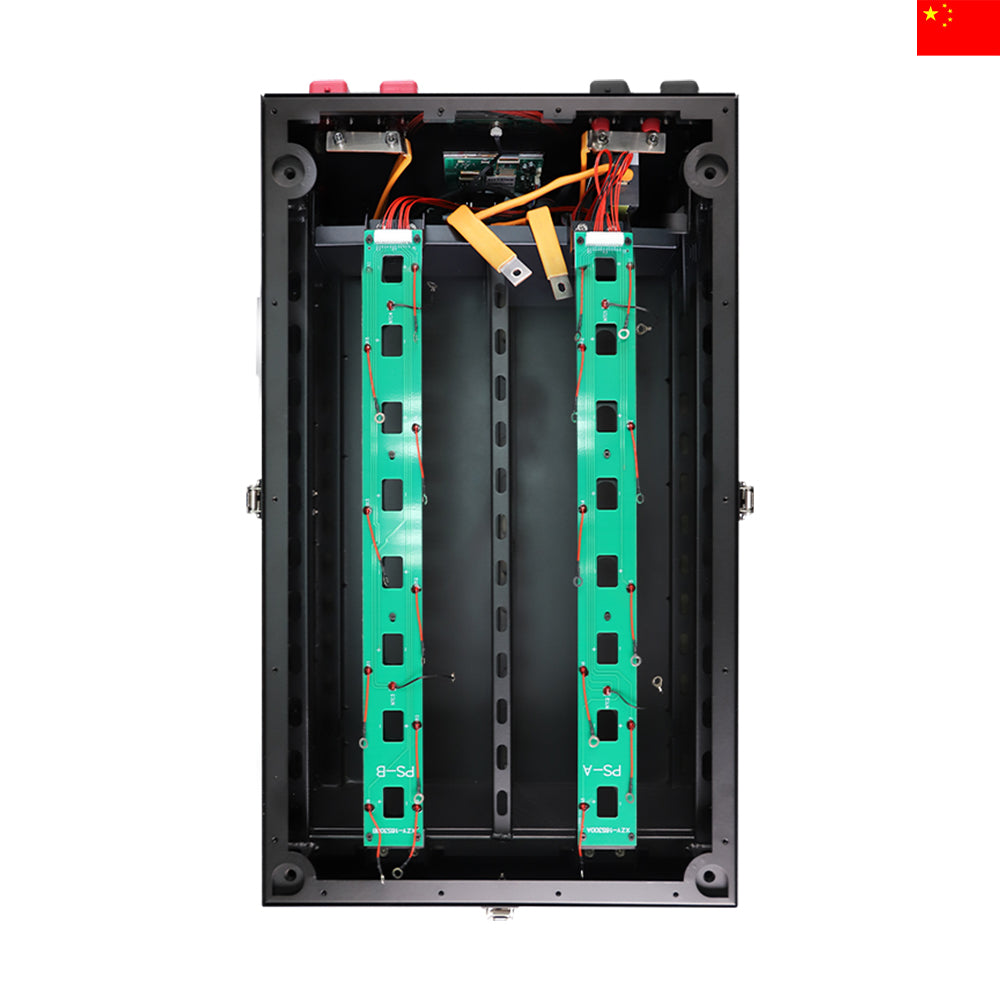

The box will be pre-assembled and shipped, you only need to connect the battery and you can use it.

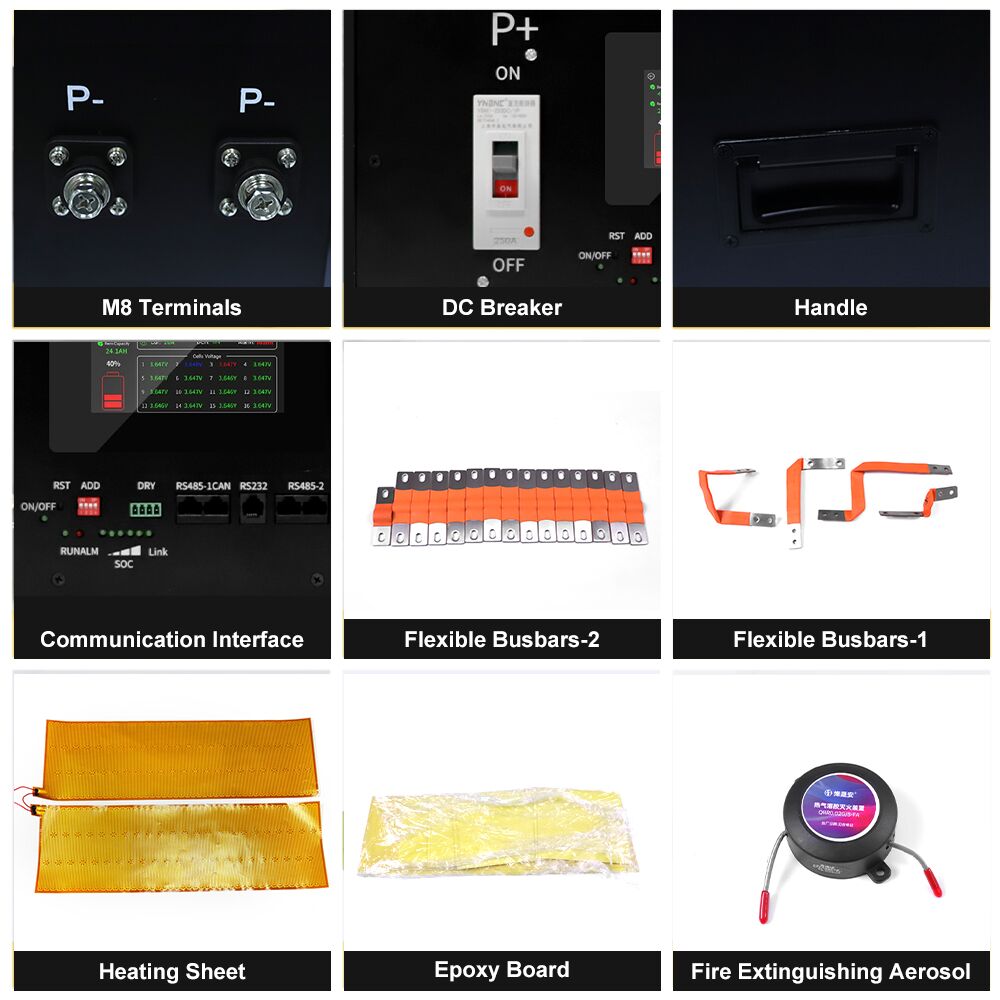

| Number | Item | Quantities(Pieces) |
| 1 | Empty Battery Box | 1 |
| 2 | Epoxy Plate-1(210*180*0.5mm) | 18 |
| 3 | Epoxy Plate-2(580*200*1mm) | 6 |
| 4 | Epoxy Plate-4(580*350*1mm) | 1 |
| 5 | Battery Terminal | 4(red two,black two) |
| 6 | 250A Circuit Breaker | 1 |
| 7 | Flexible Busbars-1(Cell to Battery Terminal) | 4 |
| 8 | Flxible Busbars-2(Cell to Cell) | 15 |
| 9 | Signal PCB | 2 |
| 10 | Insulation Tape | 2 |
| 11 | Signal Line | 2 |
| 12 | JK V19 PB2A16S20P BMS with 4.3 inch Display | 1 |
| 13 | 1AWG Power Cable | 2(red one,black one) |

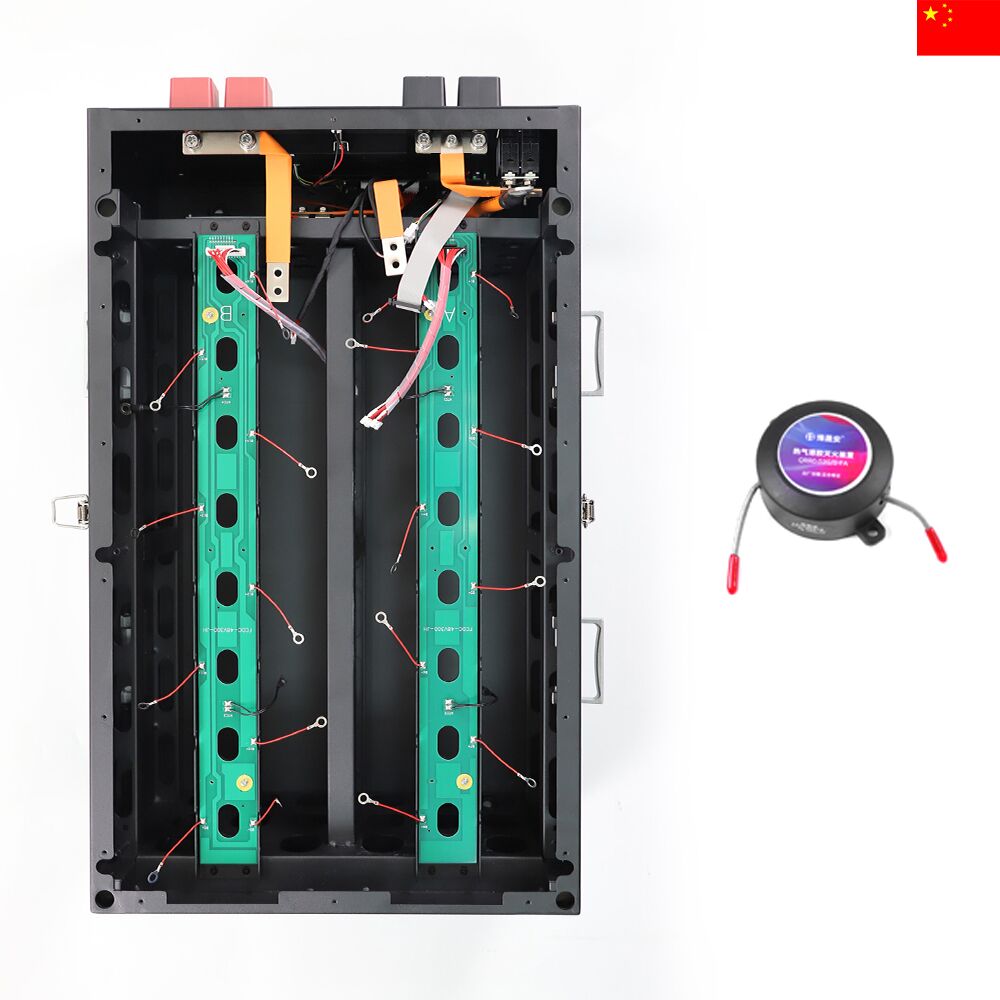

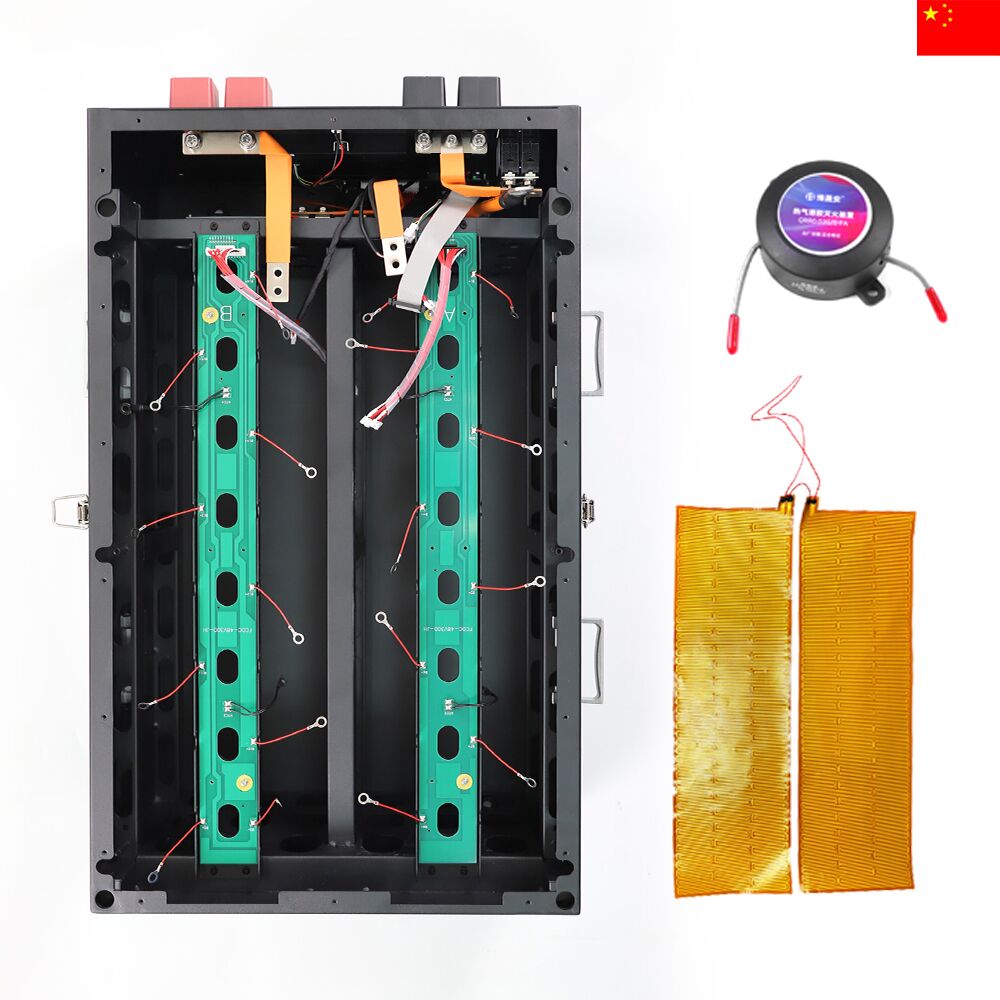

| 14 | Fire Extinguisher | 1 |
| 15 | Mat | 4 |

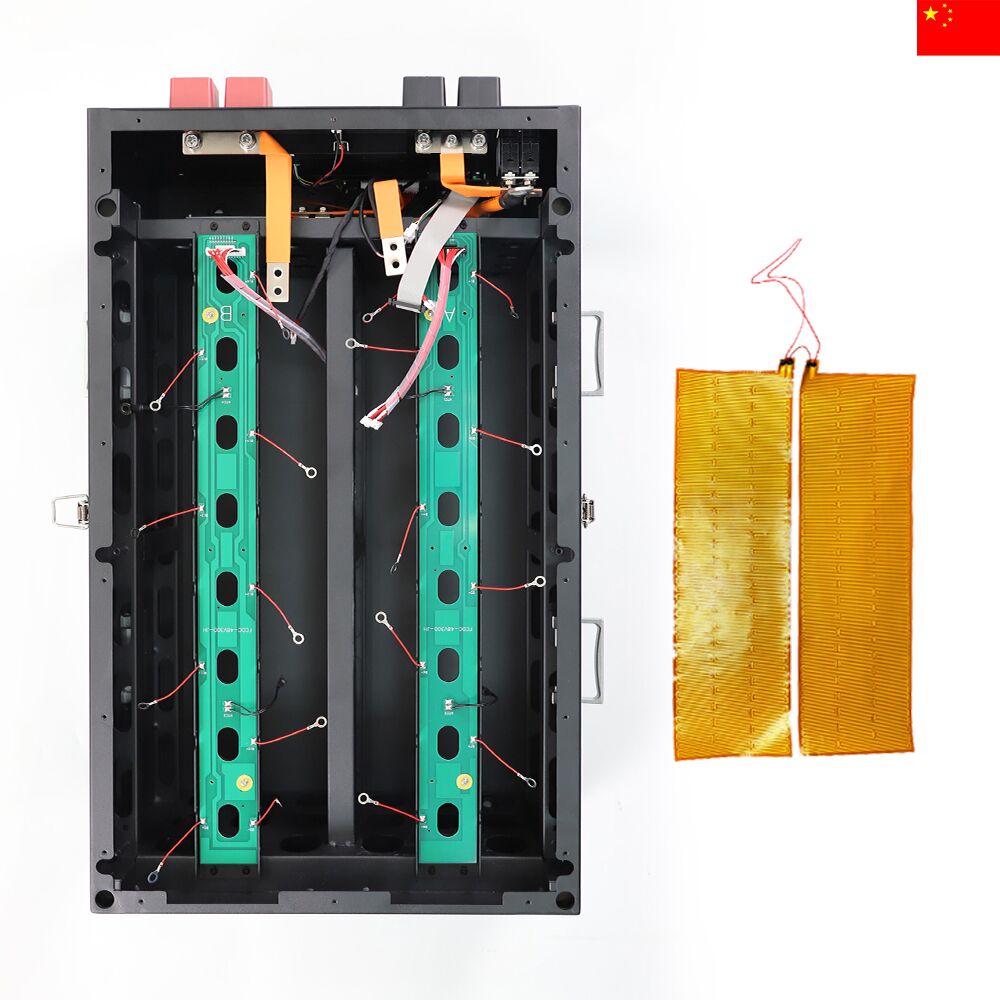

| 16 | Heating Plate | 1 |
| 17 | Battery Box Base(Optional) | 1 |
