MB56 with JK 200A BMS
MB56 display

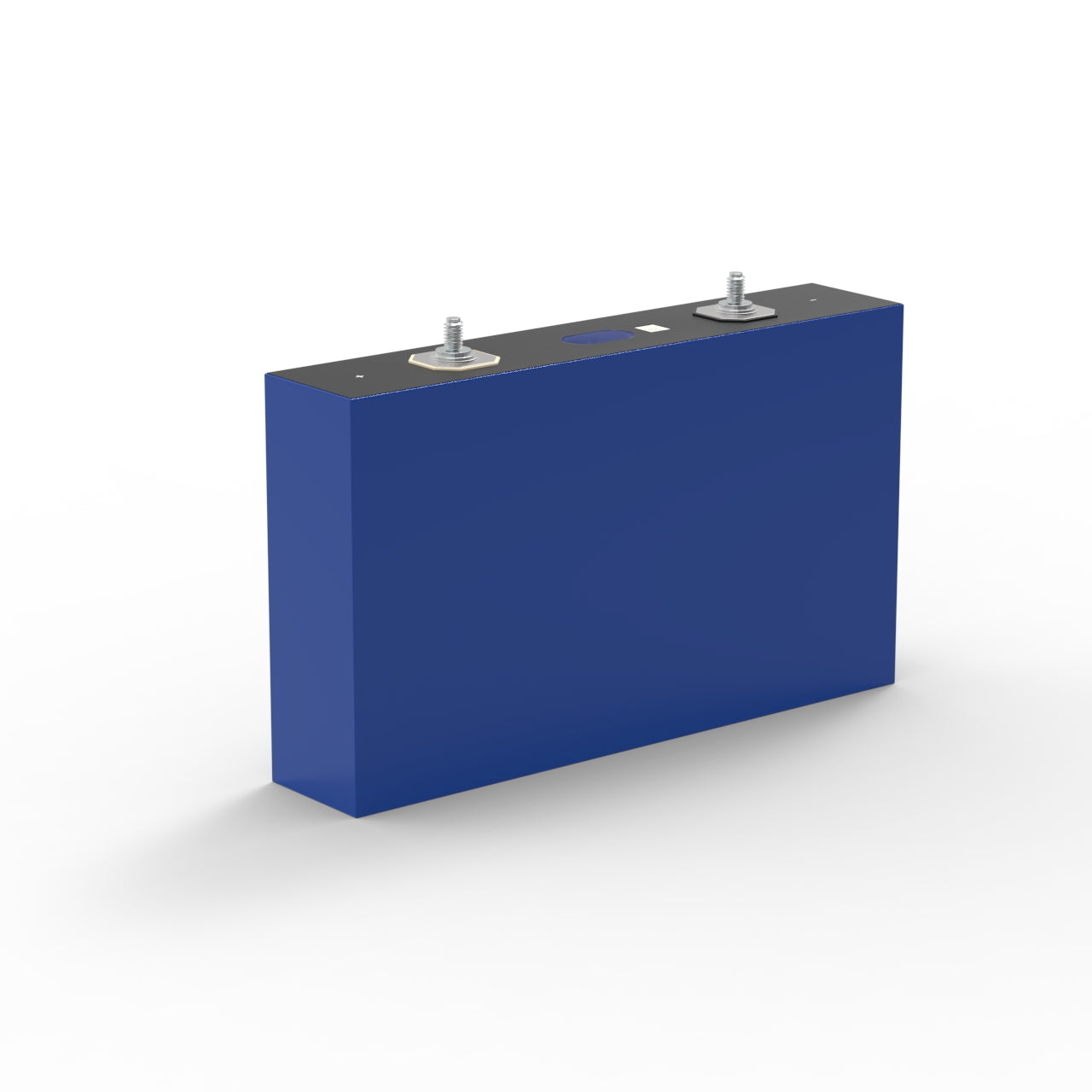

MB56 appearance
EVE Lithium Battery 3.2V 314Ah MB31 LiFePO4 Cell with V19 JK PB2A16S20P|Wistek(Poland) - Wistek

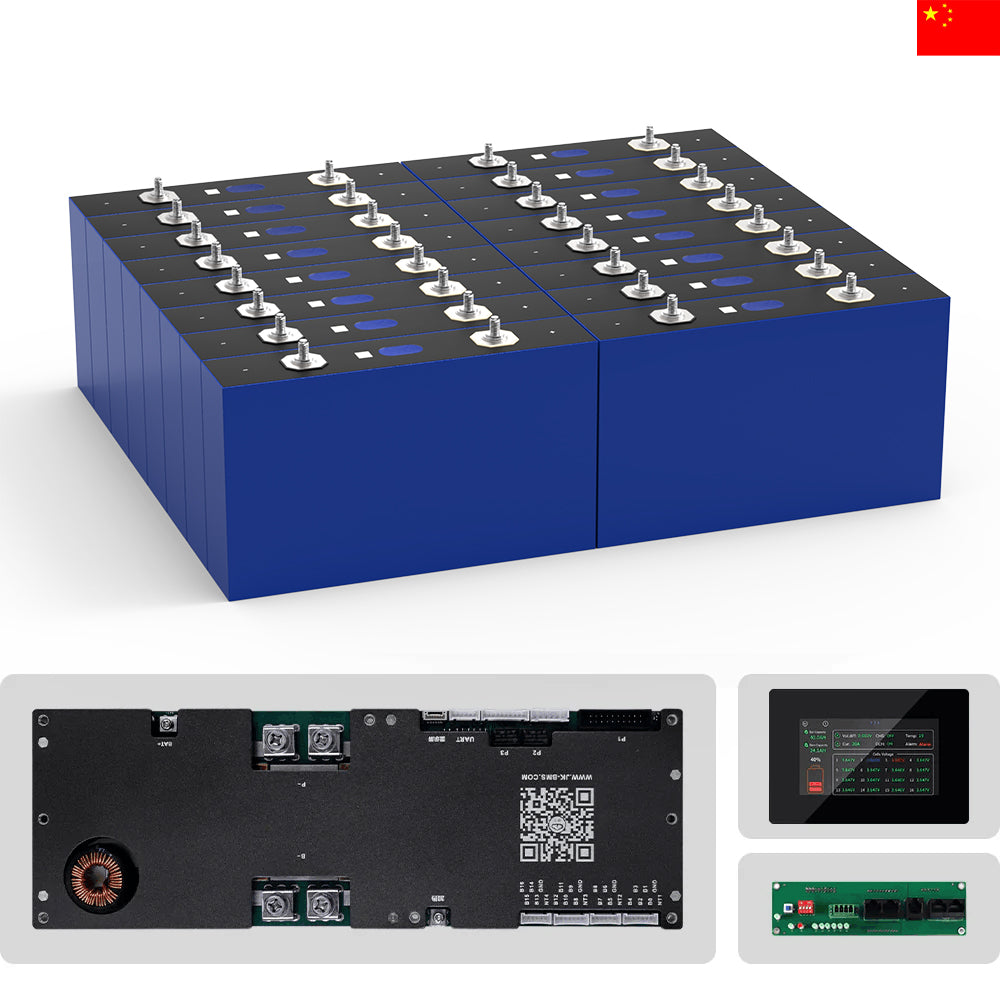

EVE MB56 628Ah 3.2V Prismatic LiFePO4 Battery Cell with JK 200A BMS 4.3 inch Display

[Grade A,Brand New Cell] EVE original battery cell, intact QR, 8000 cycles,low internal resistance.

[Assemble Immediately] Contains all the accessories of DIY battery and can be assembled immediately.

[Brand Battery Cells + High-quality BMS] EVE MB56 3.2V 628Ah battery cells and V19 JK-PB2A16S20P BMS.

[680Ah Real Capacity + 200A Continuous Output Current] MB56 has an actual capacity of 680Ah, and the BMS provides a continuous output of 200A discharge current and 10KW output power.

[Safe Material]MB56 uses LifePO4 cells, which are non-flammable, non-explosive, maintenance-free, memory-free, and deep-cycle.

Limited-Time Offers, End in: 151D 8H 23M 0S
Specification: 16 MB56 Cells+1 JK V19 200A BMS
Please hurry! Only 100 left in stock
$1,897.00
$2,817.00
$1,897.00
Subtotal: $1,897.00
10 customers are viewing this product

Ocean Transport

The goods will be shipped within seven days, and arrive in the United States in about 30 days and in Europe in 45 days.

Free ReturnsLearn More.

Learn More.

5 Years Warranty

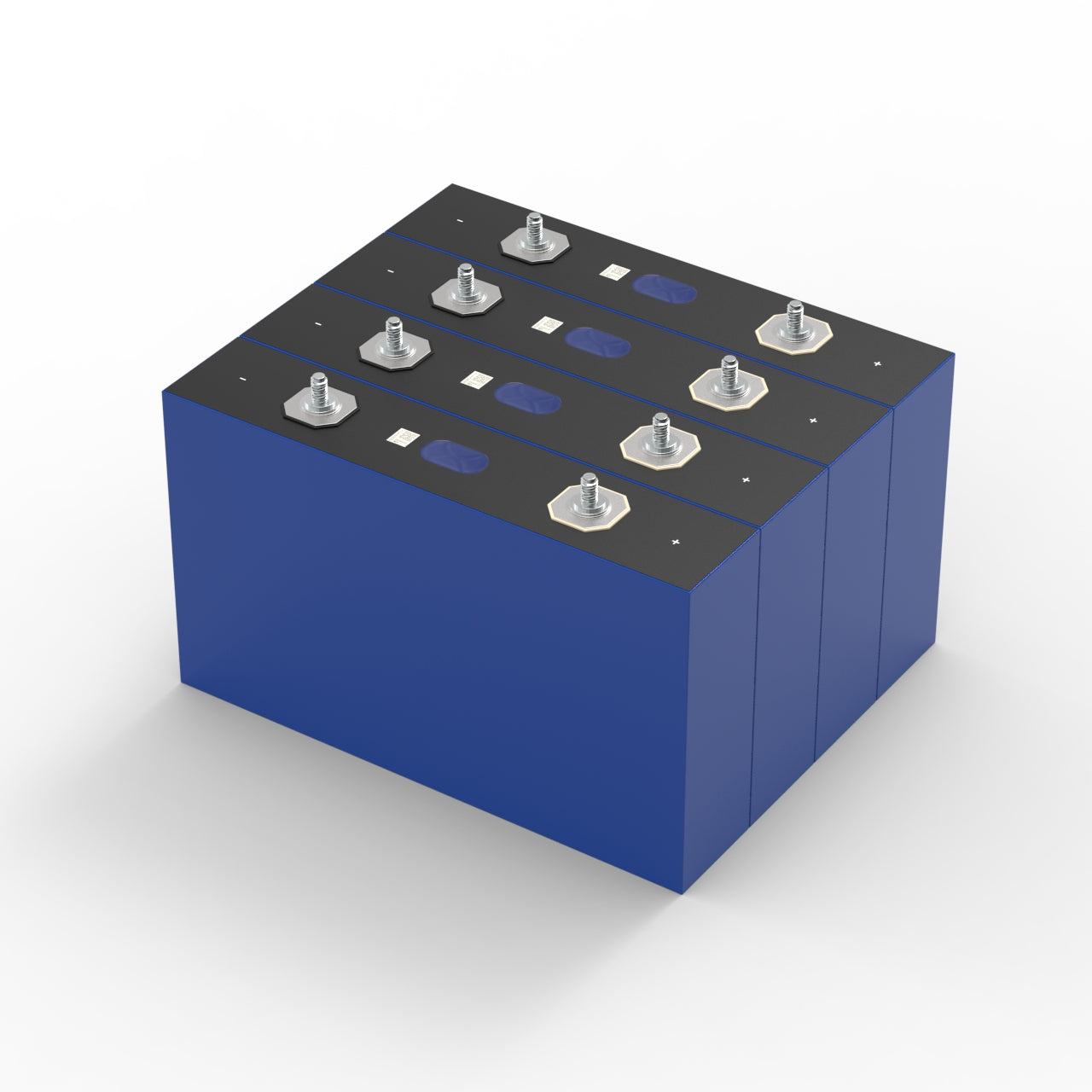

4pcs mb56 products display
mb56 features
mb56 parameters
EVE MB56 Cells Size Detail and aftermarkert M8 studs
The battery cell will be welded with a single M8 stud
mb56 bluk order
MB56 Accessories nickel-plated copper bus bars material
jk pb2a16s20p bms with 4.3 inch display
mb56 applications

 SPECIFICATIONS

Model

 EVE MB56

Nominal Capacity

 628Ah(2009.6Wh)

Nominal Voltage

 3.2V

Number of Cycles

 8000(25℃@0.5P,70% SOH)

Charging Voltage

 3.65V

Maxinum Charging Power

 0.5P

Maxinum Discharging Current

 0.5P

Grade

A

Application

 Energy Storage System(ESS)

Temperature Range(discharge)

 -30°C~60°C

Warranty

 5 Years

Net Weight

 11.5KG

Dimensions(W*T*H)

352*72*208mm

Year of Production

January-February, 2025

Original Factory Test Report

Available

Detailed Specification
Stud Model

Single M8 Stud
