[Smart BMS] This LiFePO4 Battery has a built-in 4S 100A intelligent BMS with overcharge protection, over-discharge protection, overcurrent protection, short-circuit protection, cell balancing, etc. It has a 1200W output power and a 100A continuous discharge current.
[Remote Monitoring] The Battery has a built-in Bluetooth module, which can be connected to Bluetooth via a mobile phone APP to monitor the battery status.
[IP65] The battery package is coated with waterproof glue to achieve IP65 level dust and water resistance, which is better for outdoor scenes such as trolling motors and electric boats.
[Low Temperature Protection] The battery is equipped with a low temperature protection function to effectively protect the battery from damage.
[5000 Times Deep Cycles] The battery uses A-grade new lifepo4 cells. After 5000 deep cycles, the battery health (SOH ≥ 80%)
[4S4P Extended Energy Storage System] The battery module supports a 4S4P structure, suitable for 48V systems, and achieves 20.48KWh of energy storage.
Couldn't load pickup availability
The package will be sent out within 24 hours and delivered to your door within 3-7 working days.
Wistek usually uses the following express delivery methods to deliver your goods: DHL, GLS or UPS. If you have not received the goods for a long time, the logistics is suspended or abnormal, please contact us.
You may return most new, unopened items within 30 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).
You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).
If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.
Wistek Energy Guarantee
Dear Valued Customers,
Thank you for choosing WISTEK! We understand the importance of reliable and safe battery cells. That's why we're committed to providing the highest quality products and exceptional customer service. This guarantee outlines our dedication to product quality and ensures a smooth experience for you.
Unmatched Quality:
Comprehensive After-Sales Support:
What's Not Covered:
Unparalleled Warranty:
WISTEK stands behind the quality and performance of our products. We are committed to earning your trust and providing a positive customer experience.
Wistek 12V 100Ah Max LiFePO4 Lithium Deep Cycle Battery adopts 1C rate EVE Grade A cells.
It contains no toxins and can charge over 5000 times at 100% DOD for over a 10-year lifespan. Withstanding Max 1280W Power and can support a maximum 1C rate discharging and 1C rate charging, it can be used in scenarios that require higher Power.
No need to bother with the limitations of lead-acid batteries anymore! Choose Wistek without hesitation for its lighter weight, less space, higher power, and larger energy!

As a group 31 size battery with 1280Wh capacity, the 12V 100Ah Max LiFePO4 battery supports up to 1280W of power delivery. This high-power performance makes it well-equipped to fuel energy-intensive applications. Whether traveling with RVs, fishing with trolling motors, or maintaining higher Power loads at home and off-grid, this high-output LiFePO4 battery answers with enduring strength and stable performance.

Equipping a high-performance 100A BMS, the Wistek 12V 100Ah Max lithium ion deep cycle battery allows for running more energy-intensive appliances with stable, unaffected power and supports over-charging, over-discharging, over-current, over-temperature and short-circuit protections to keep users and the battery itself safeguarded from harm.
Wistek 12V 100Ah Max lithium battery has a 100A Continuous discharge/100A Continuous charge current and 300A/1S peak discharge Current. No compromises need to be made on Load Power. With its top quality & performance, this battery as a robust workhorse is ready to handle whatever appliances you power with it.




| Product Model | LM12100 |
| Nominal Capacity | 100Ah/1280Wh |
| Operating Voltage Range | 10V-14.6V |
| Nominal Voltage |
12.8V |
| Number Of Cycles |
5000 Cycles(@80%SOH) |
| Charging Characteristics |
CCCV/IU |
| Peak Discharge Current | 350A |
| Charging Voltage | 14.6V |
| Recommended Charge Current | 20A |
| Maximum Charge Current | 100A |
| Maximum Discharge Current | 100A |
| Peak Discharge Cut-Off Current (5 ~15 ms) | 300A |
| BMS Battery Management System | Intergrated |
| Monitoring | Bluetooth APP |
| Application/ Interconnection | Series and parallel connection for 12V,24V,36V,48V applications. |
| Protection | IP65 |
| Temperature Range(discharge) | -20~55℃ |
| Temperature Range(charge) | 0~55℃ |
| Temperature Range(storage) | -20~55℃ |
| Connection Screw | M8 |
| Warranty | 5 Years Warranty |
| Weight | 11±0.5kg |
|
Dimension(W*T*H) in mm |
330*170*220mm |
All great so far, and even better than expected.

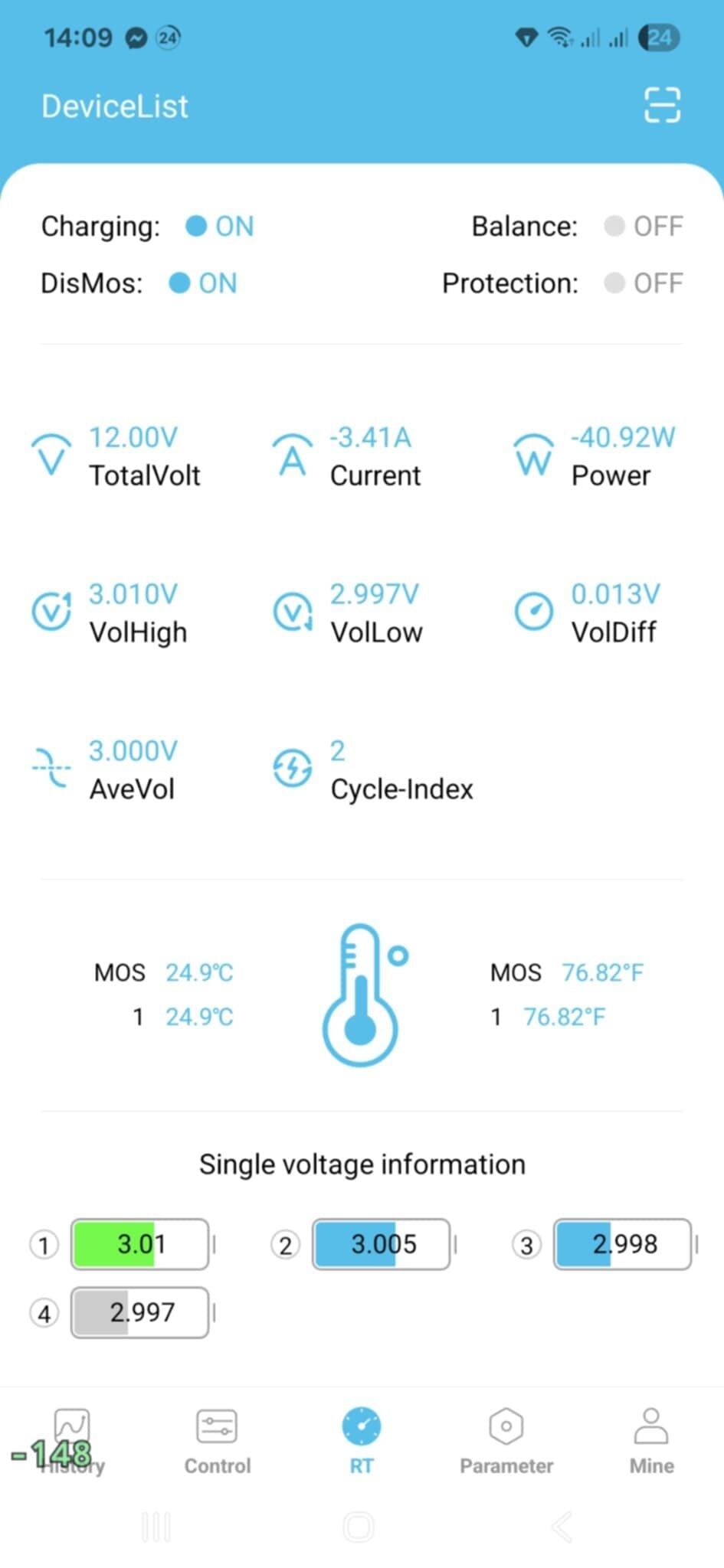

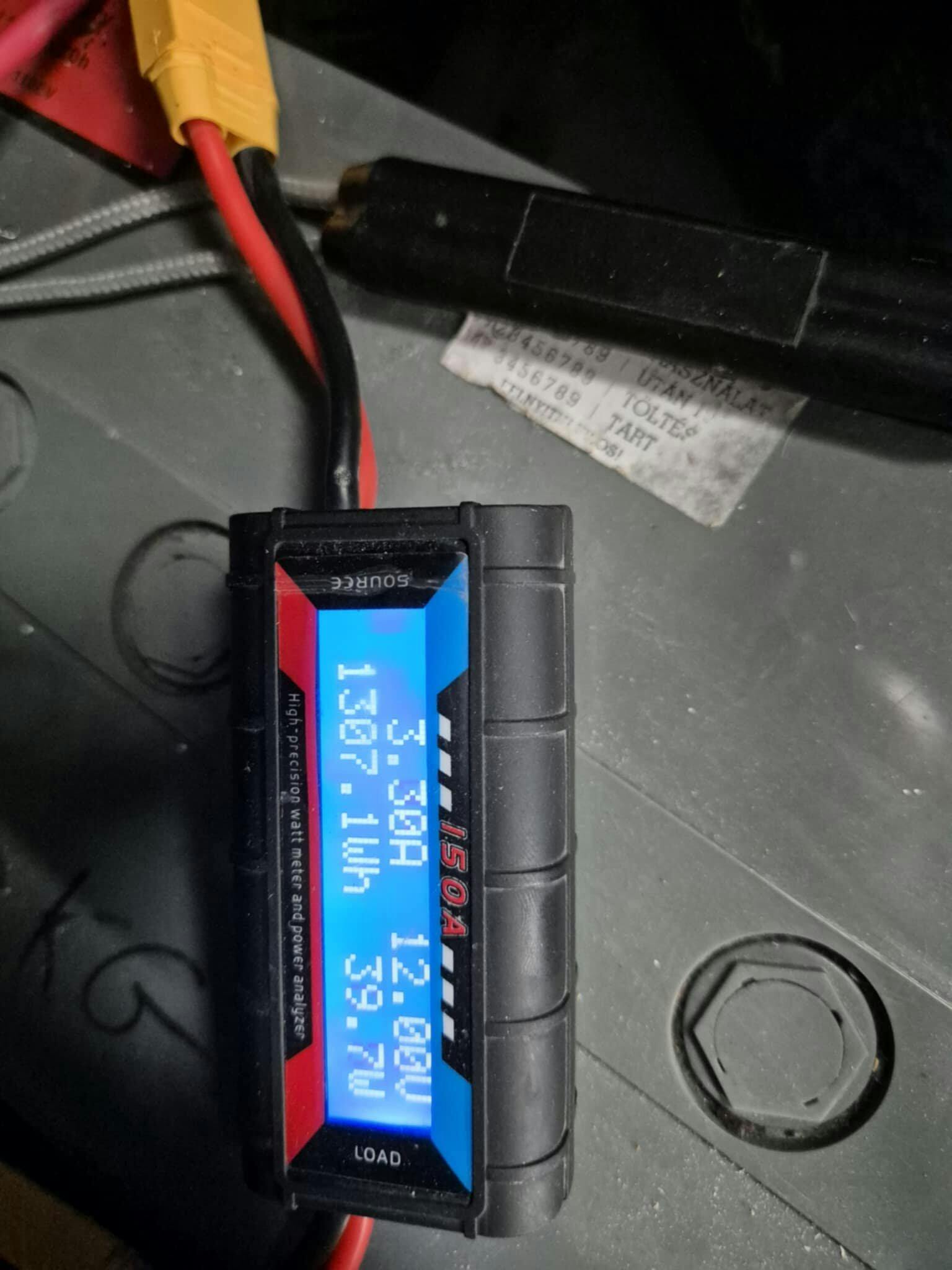

Just finished my capacity test for the 100AH. First fully charged it, then I used my 12v fridge, which consumes ~40w. I ended the test when voltage under load reached 12.00 and 1307.1wh as you can see on the pictures. The voltage diff between cells are also acceptable.
For the ones who want to buy it: do it, won't regret it.
Application for BMS monitoring: https://play.google.com/store/apps/details?id=com.jiabaida.little_elephant&hl=en_US&pli=1
Wistek: This should be mentioned on the datasheet or somewhere. :)
Good first impression, does the job! Great value for money, no complaints!
Nice quality !! Thx
