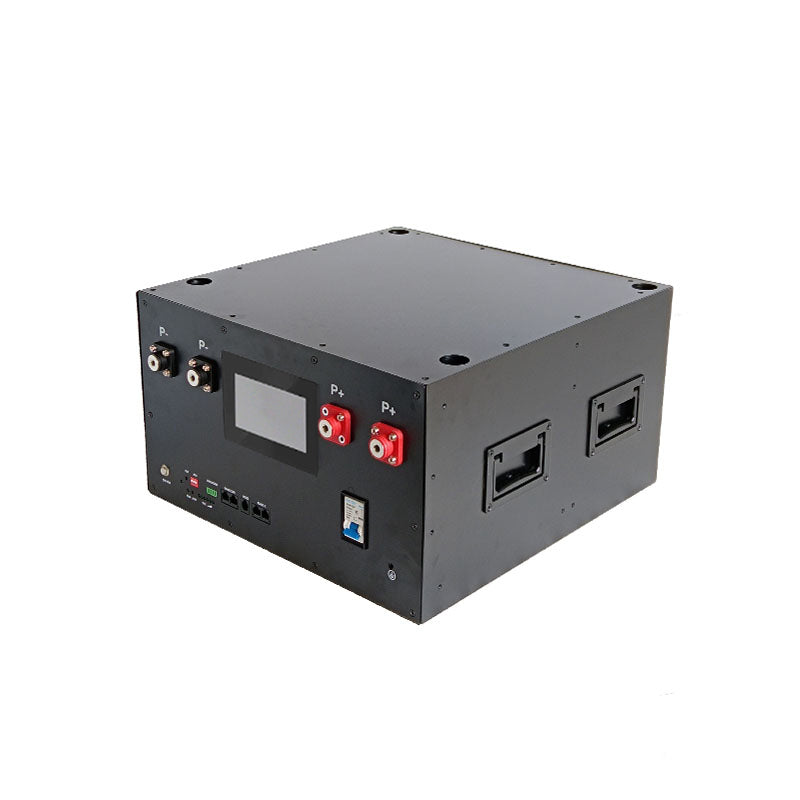

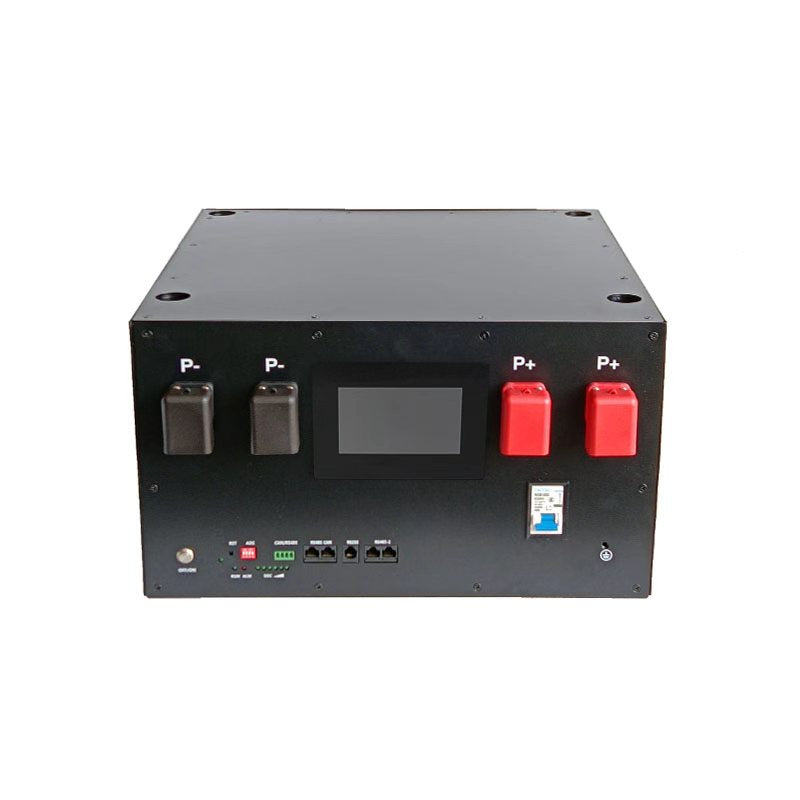

[Pre-assembled Version] This 24V MB31 DIY battery box is pre-assembled. When assembling, you only need to arrange the battery cells in the correct order, and then tighten the screws to use it.
[Smart BMS] Equipped with JK PB2A16S20P BMS, 2A active balancing, 200A continuous discharge current, wireless Bluetooth APP monitoring, 4.3-inch touch screen
[High-quality Materials] The 1.5mm thick stainless steel casing is designed to withstand drops and protect the battery cells from damage. Flexible busbars are included to handle high currents while also protecting the battery terminals.
[Matching Inverter] JK BMS can communicate with many brands of inverters on the market, enabling the inverter to understand the battery status in real time and provide double protection for the battery.
[250A Circuit Breaker] It is equipped with a 250A circuit breaker to protect the battery and household electrical system, promptly cutting off abnormal currents.
Suitable for EVE 280Ah/304Ah/306Ah/314Ah,CATL 302Ah,Hithium 280Ah/314Ah,Cornex 280Ah/314Ah,REPT 280Ah/314A prismatic cell.
Battery cells dimension(W*T*H):173*72*204mm
8S 200A BMS,2A active balance current,200A continuous discharge current,5kW output power.

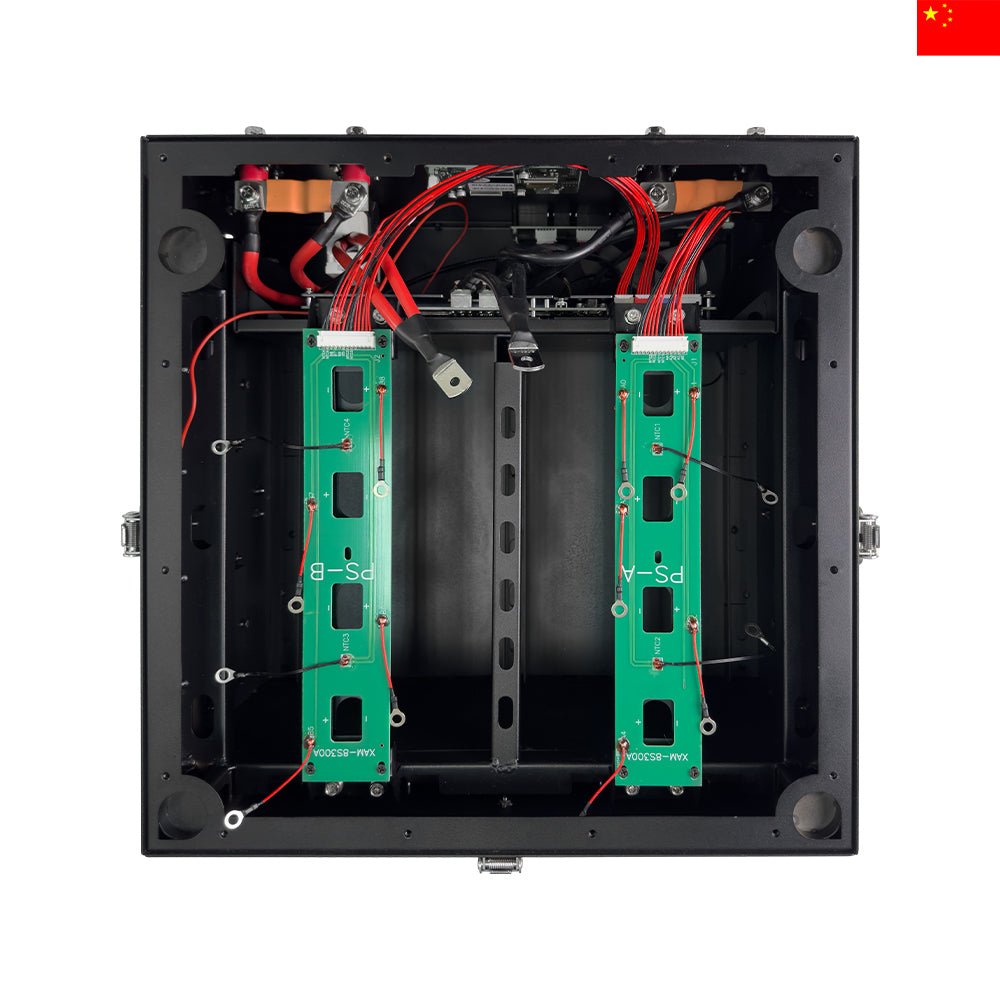

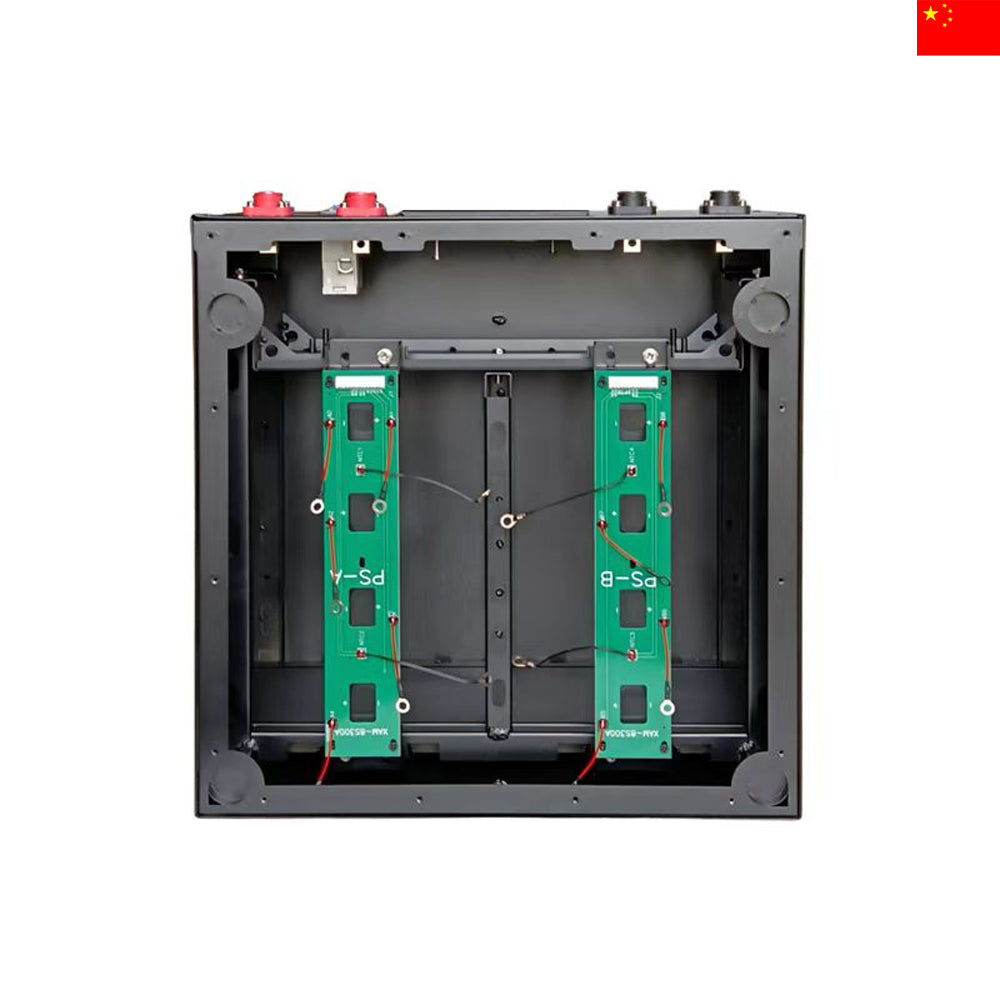

The DIY box comes pre-installed with the BMS, terminals, signal PCB, and circuit breaker.
When assembling, simply follow the correct battery cell placement order to complete the assembly.
| 8S 24V MB31 Diy Box Packing List |
| Item | Quantities |
| 24V Diy Empty Box | 1PCS |
| Epoxy Plate-1(290*185*5mm) | 6PCS |
| Epoxy Plate-2(200*175*5mm) | 10PCS |
| Battery Terminal | 4PCS(2PCS for Red,2PCS for Black) |
| Circuit Breaker | 250A |
| Silicone Cables | 4PCS(BMS to Battery Terminal) |
| Signal PCB | 2PCS |
| Signal Wires | 2PCS |
| BMS | JK PB2A16S20P BMS with 4.3 inch Display |
| Flexible Busbars | 9PCS |
