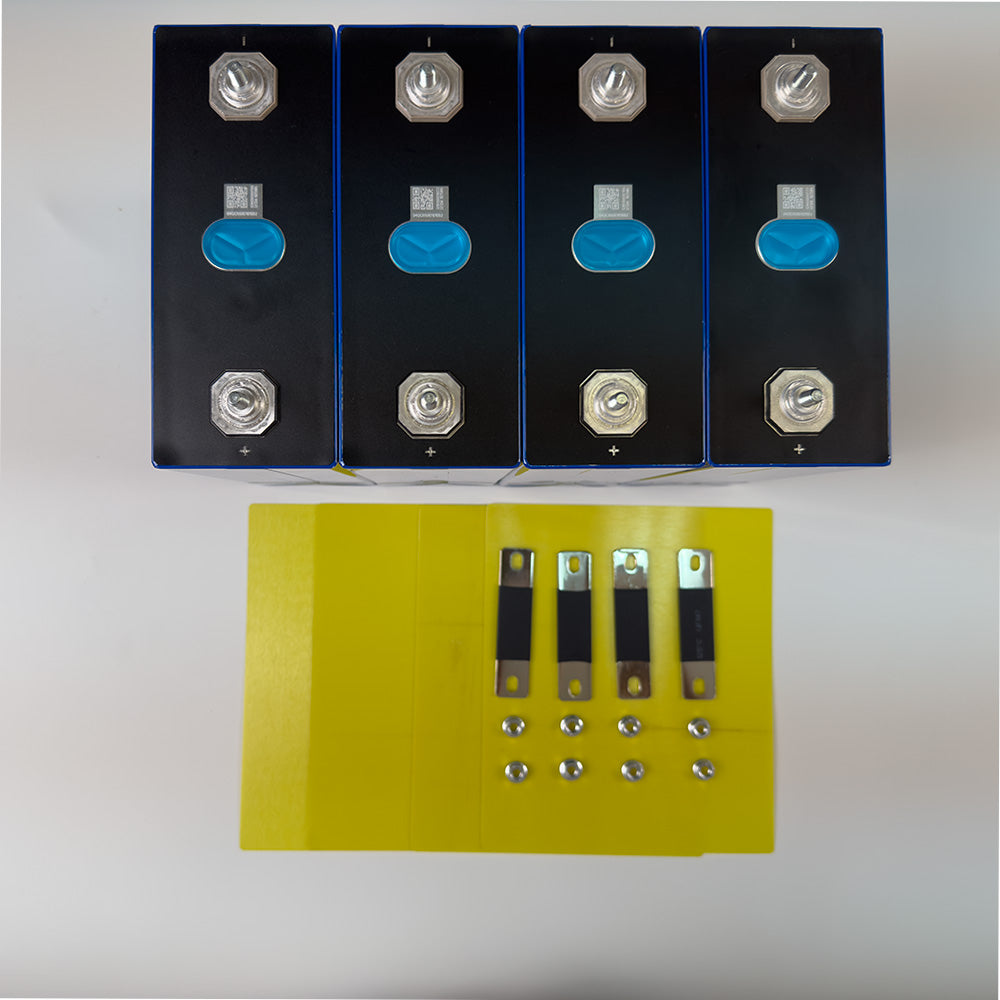

Blue EVE LF334 cells and busbar,flange nuts

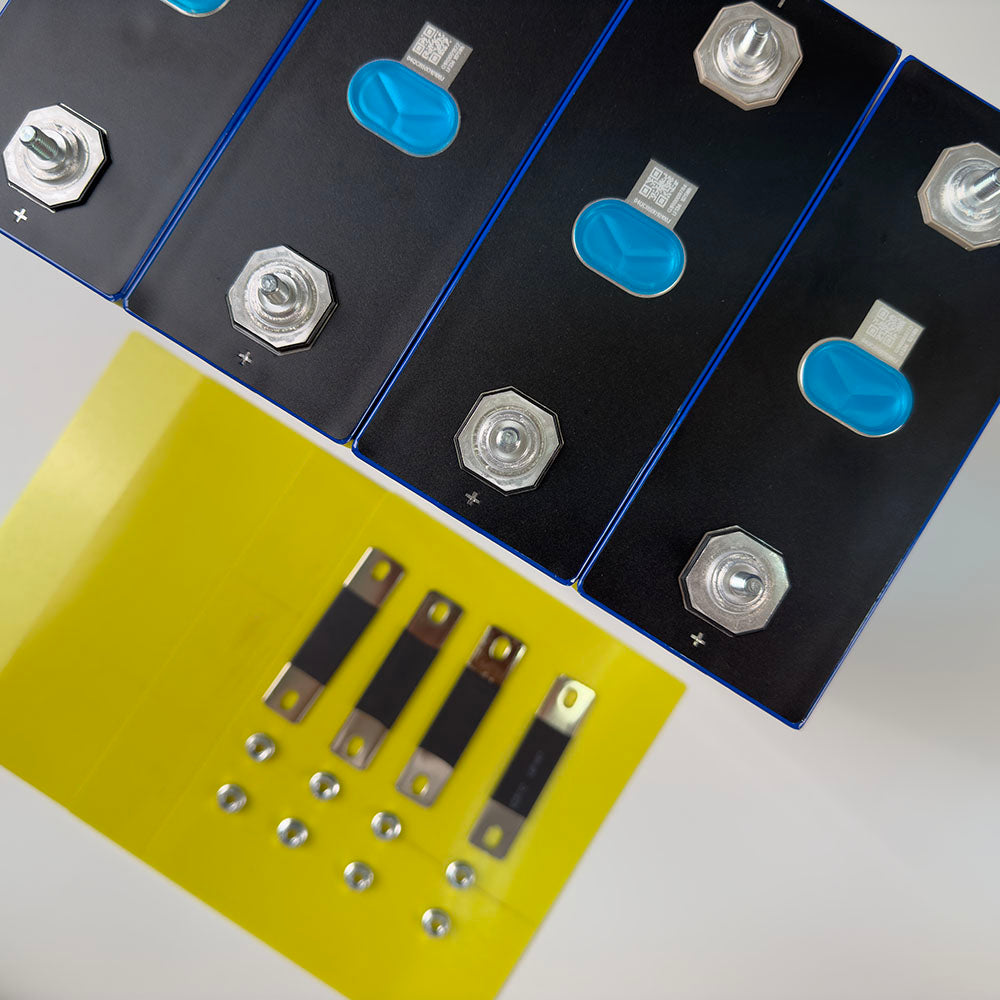

blue EVE LF334 cells welded M8 studs

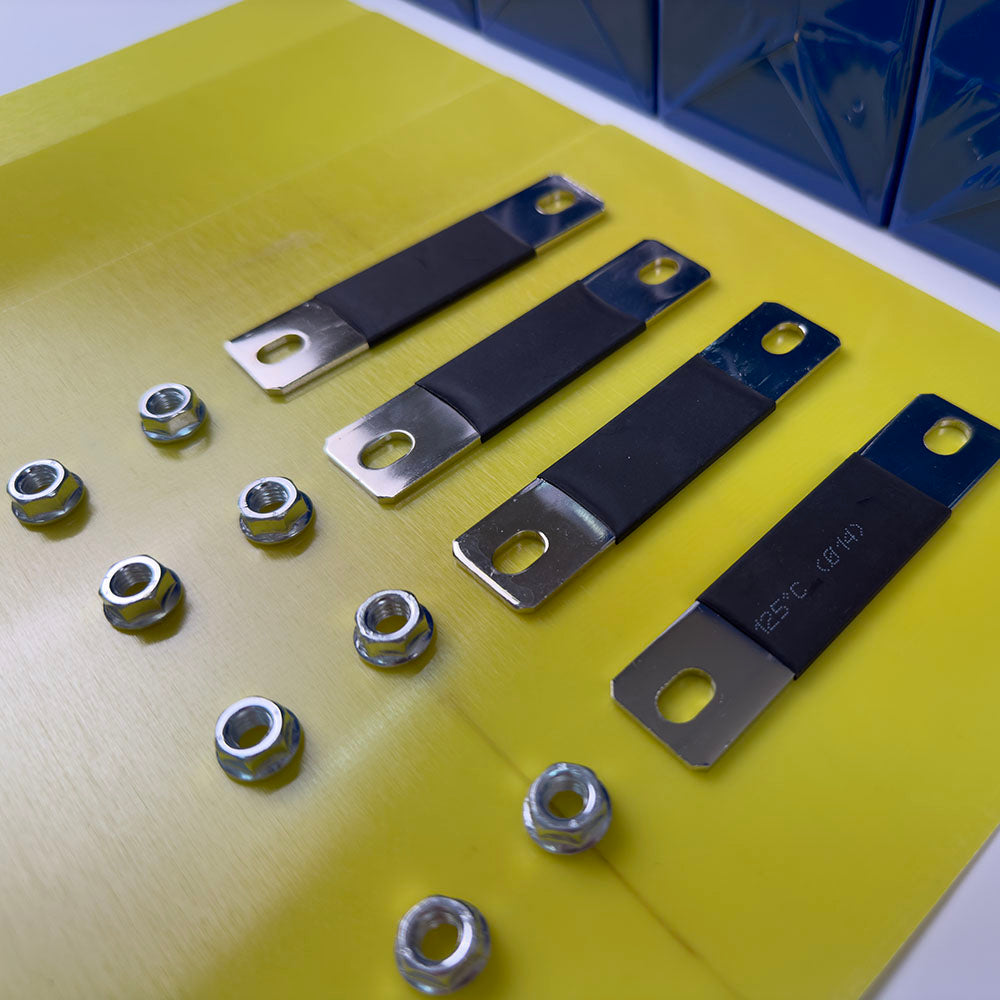

busbar and flange nut

EVE 334Ah 3.2V LF334 Grade A LiFePO4 Prismatic Cell|Wistek

SKU: LF334-CN-4
$304.00
$390.00
$304.00
Specification: 4PCS (Each Item US$76)
Subtotal: $304.00
10 clientes estão a visualizar este produto
4 EVE LF334 LiFePO4 Cell

EVE 334Ah 3.2V LF334 Grade A LiFePO4 Prismatic Cell|Wistek

$390.00 $304.00
4 EVE LF334 LiFePO4 Cell
EVE LF334 3.2V 334Ah prismatic cells apperance
3.2V 334Ah lifepo4 cell parameters
Blue EVE LF334 cells and busbar,flange nuts
blue EVE LF334 cells welded M8 studs
busbar and flange nut

EVE 334Ah 3.2V LF334 Grade A LiFePO4 Prismatic Cell|Wistek

$390.00 $304.00
Specification: 4PCS (Each Item US$76)
Description
Description
x

The EVE LF334 is a prismatic lithium iron phosphate battery cell featuring pre-welded M6 studs; this eliminates the need for specialized welding equipment, allowing for direct DIY assembly. With a continuous charge/discharge rate of 1C and a pulse discharge rate of 3C, this cell model is suitable for use in both Electric Vehicles (EV) and Energy Storage Systems (ESS).

LF334 334Ah 3.2V Prismatic Cell

EVE New Model LiFePO4 Cell

Importance Parameters

Battery Chemical Material Lithium Iron Phosphate(LiFePO4)
Nominal Voltage 3.22V
Nominal Capacity 334Ah
Real Capacity Above 345Ah
Internal Resistance 0.18±0.05mΩ
Continuous Discharge Rate 1C
Continuous Charge Rate 1C
Maxium Disharge Rate 3C
Cycle Life 4000 Cycles@80%SOH
Weight 5.5KGS
Charge Temperature -10~65℃
Discharge Temperture -30~65℃


EVE 334Ah VS EVE 314Ah



Model MB31 LF334
Nominal Voltage 3.2V 3.22V
Nominal Capacity 314Ah 334Ah
Internal Resistance 0.18±0.05mΩ 0.18±0.05mΩ
Continuous Discharge Rate 0.5C 1C
Continuous Charge Rate 0.5C 1C
Cycle Life 8000 Cycle@70%SOH 4000 Cycles@80%SOH

Weight

 5.6KG 5.5KG
Charge Temperture 0~60℃ -10~65℃
Discharge Temperture -30~60℃ -35~65℃



Compared to the MB31 cell, the LF334 cell offers higher discharge and charge rates, making it suitable for both residential energy storage systems(ESS) and EVs.

The LF334 cell also boasts a wider temperature range, with a charging temperature range of -10 to 65°C and a discharging temperature range of -35 to 65°C.

It's important to note that MB31 and LF334 cells differ slightly in their cycle lifetime representation.

MB31 cycle lifetime: After 8000 cycles, the actual remaining capacity is greater than 70%.
LF334 cycle lifetime: After 4000 cycles, the actual remaining capacity is greater than 80%.

Grade A,brand new quality

The LF334 has an original factory QR code on the top, and all cells have been tested and are traceable. Original factory test data sheets are available.

What will you get?

One carton contains 4 LF334 cells + 4 busbars + 4 epoxy plates + 8 flange nuts

busbar dimension:90*20*2mm,material:copper

epoxy plate dimension:200*170*0.5mm

Package Detail

MB31 package details

Applications

3.2V 628Ah lifepo4 battery application

Important Notes

Although the EVE LF334 datasheet specifies a charging temperature range of -10°C to 65°C, the table regarding continuous charging modes indicates that the charging rate is restricted within the -10°C to 0°C range.
