[Pre-assembled Version] This 12V MB31 RV DIY battery box is pre-assembled. When assembling, you only need to arrange the battery cells in the correct order, and then tighten the screws to use it.
[Smart BMS] Equipped with JK B2A8S20P BMS, 2A active balancing, 200A continuous discharge current, wireless Bluetooth APP monitoring, 3.2-inch touch screen
[High-quality Materials] The 1.5mm thick stainless steel casing is designed to withstand drops and protect the battery cells from damage. Flexible busbars are included to handle high currents while also protecting the battery terminals.
[Anderson Charging Connector] An external 50A Anderson plug-in charging port makes charging more worry-free.
[Cigarette lighter interface, PD interface and QC 3.0 interface]
Prismatic cells:
Prismatic cell dimension(W*T*H):173*72*204mm
This 12V DIY box comes with a JK B2A8S20P BMS, featuring 2A active balancing current, 200A continuous discharge current, and Bluetooth APP wireless monitoring.
It includes

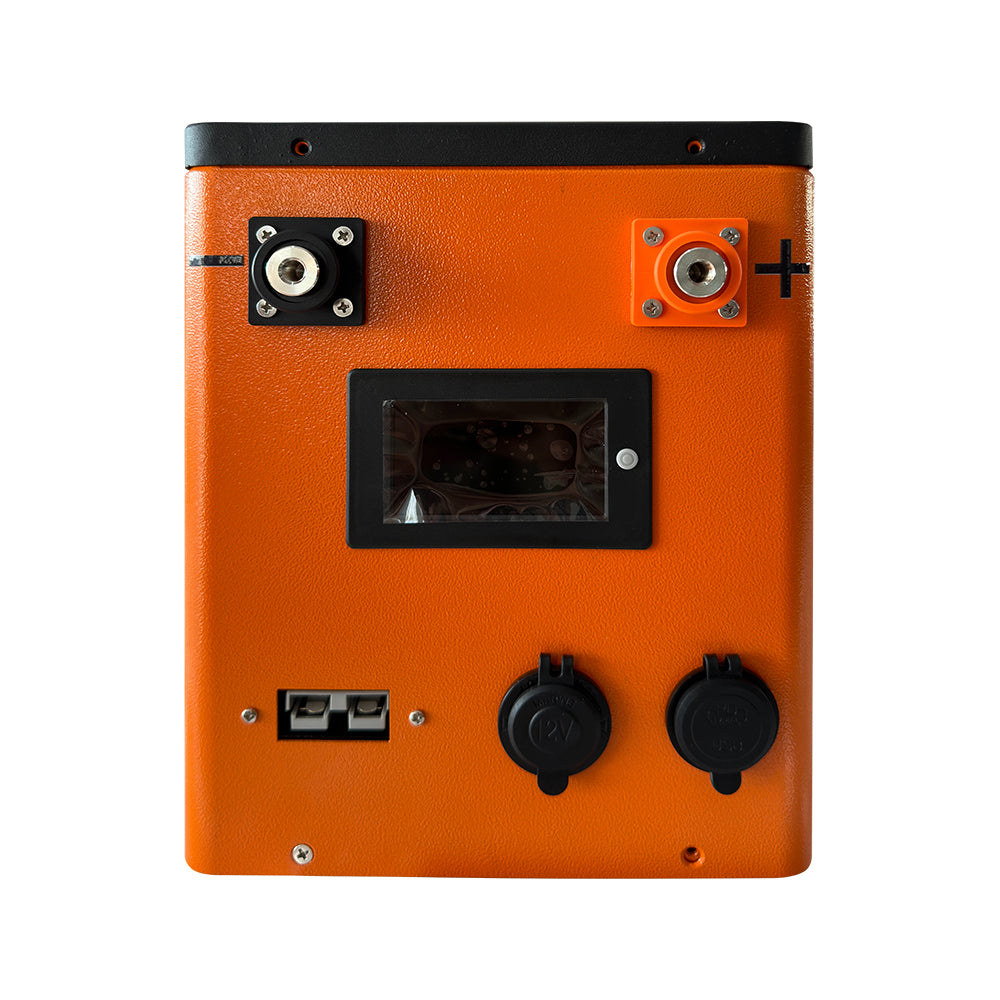

The front panel of the battery casing features a 50A Anderson charging port, enabling plug-and-play functionality with the charger. This is convenient and simple, eliminating the need for the M8 circular charger output terminal.
| Item | Quantities |
| 12V Diy Empty Box | 1PCS |
| Epoxy Plate-1(290*185*5mm) | 4PCS |
| Epoxy Plate-2(200*175*5mm) | 5PCS |
| Battery Terminal | 2PCS(1PCS for Red,1PCS for Black) |
| Circuit Breaker | 250A |
| Silicone Cables | 4PCS(BMS to Battery Terminal) |
| Signal PCB | 2PCS |
| Signal Wires | 2PCS |
| BMS | JK B2A8S20P BMS with 3.2 inch Display |
| Flexible Busbars | 3PCS |
