[Grade A, Brand New Battery Cells] The Wistek 51.2V 15KWh wall mounted battery is assembled from 16 EVE grade A, brand new cells, using high-quality battery cells as raw materials.
[Built-in Intelligent BMS] The 15KWh wall-mounted battery is equipped with a JBD 16S intelligent BMS, which provides overcharge protection, over-discharge protection, overcurrent protection, high and low temperature protection, and cell balancing.
[10KW Continuous Output] The 15KWh battery has a built-in 200A BMS, with a continuous 200A discharge current and 10KW continuous output power.
[Scalability] This 15KWh battery can support up to 16 battery modules in parallel, expanding to a 240KWh system.
[Compatible with Various Brands of Inverters] The Wistek 15kwh battery pack is compatible with most inverters on the market and perfectly implements communication functions.

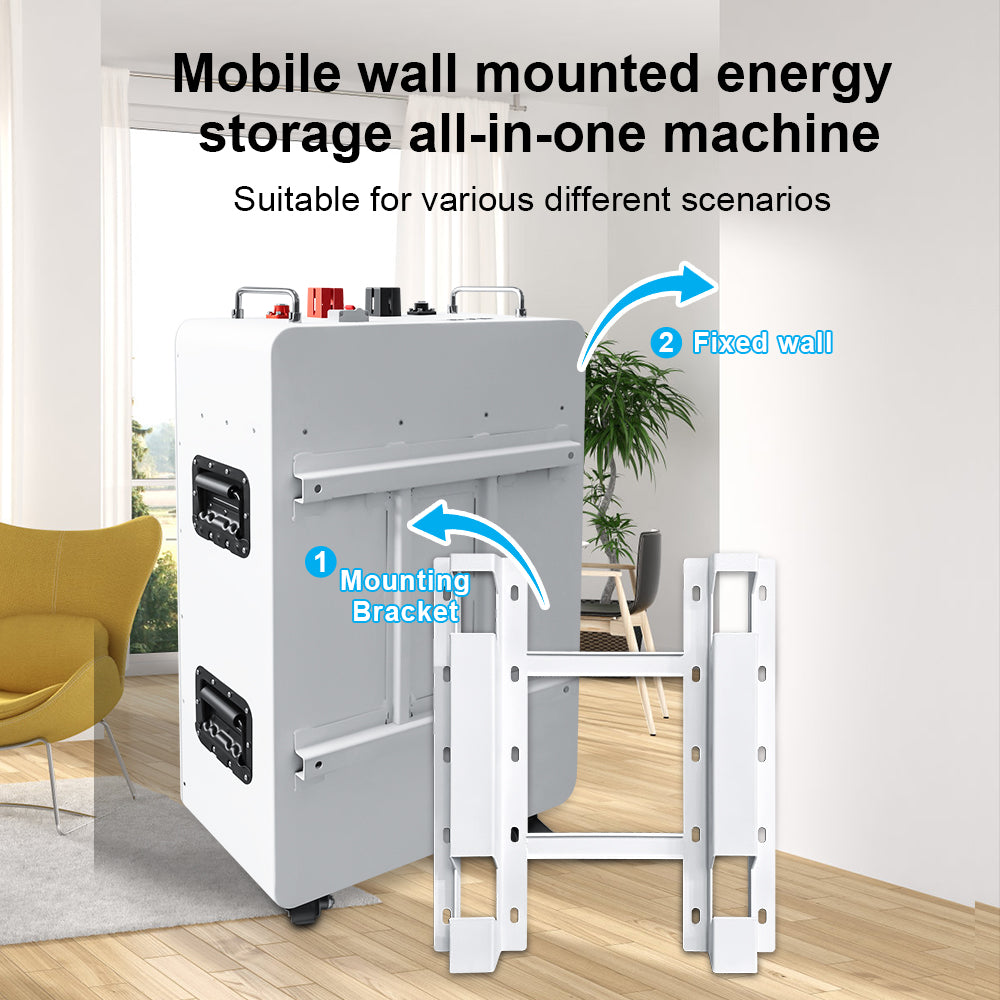

[Two Installation Methods] Supports two installation methods, wall-mounted installation and wheels at the bottom for easy movement.
DESCRIPTION
x

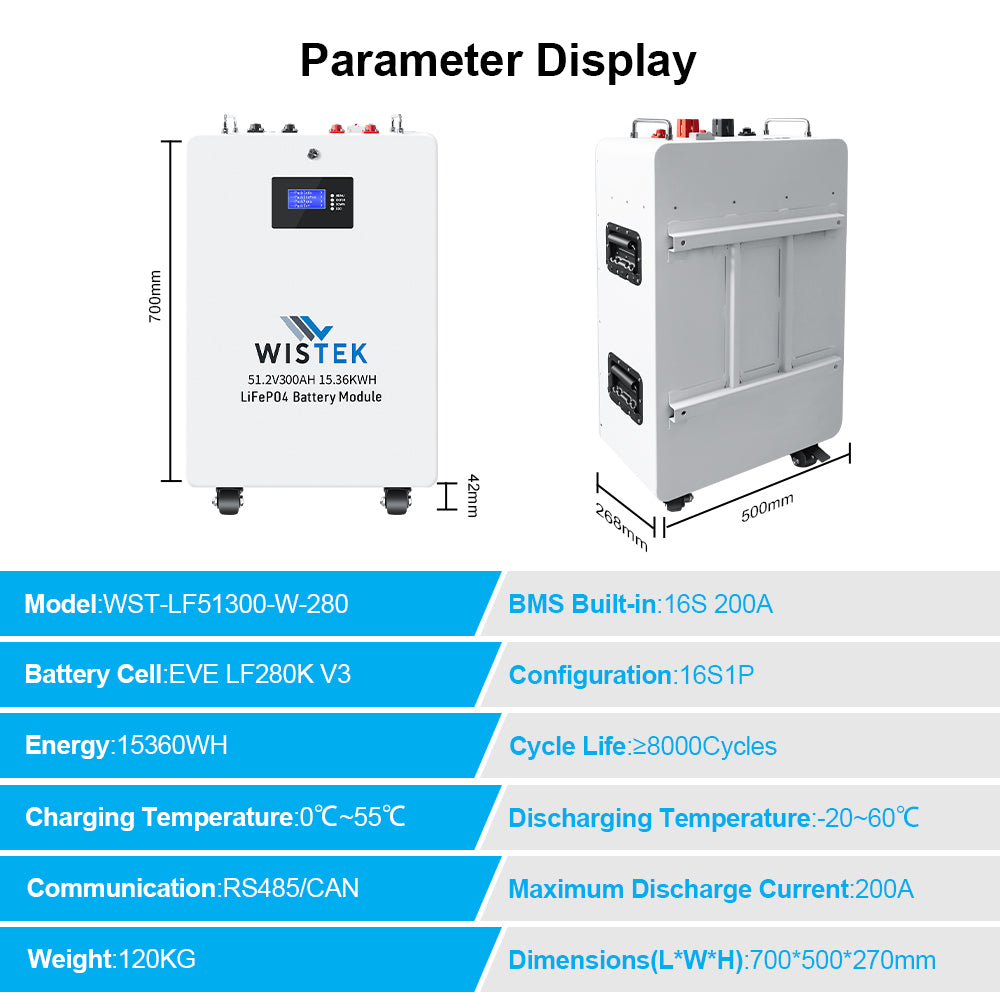

SPECIFICATIONS |
|
Model |
WST-LF51300-W |
|
Nominal Capacity |
300Ah(15.36KWh) |
|
Norminal Voltage |
51.2V |
|
Number of Cycles |
≥8000@0.5C,70%SOH |
|
Charging Voltage |
58.4V |
|
Maxinum Continuous Charge Current |
200A |
|
Maxinum Continuous Discharge Current |
200A |
|
BMS |
Intergrated |
|

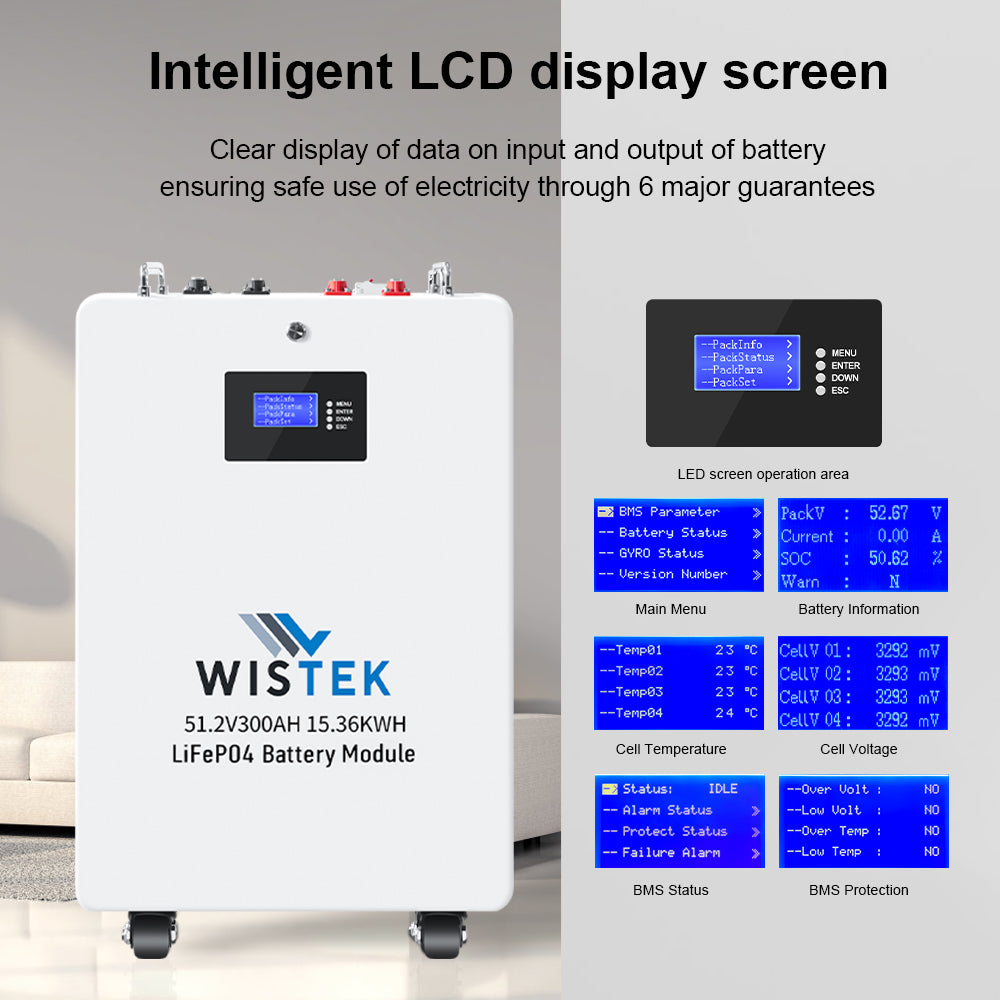

Monitoring |
LCD display and communication protocol |
|
Waterproof Grade |
IP55 |
|
Temperature Range(discharge) |
-20°C~55°C |
|
Connection Screw |
M8 |
|
Warranty |
5 years |
|
Net Weight |
125KG |
|
Dimensions(H*W*T) |
700*500*270mm |
51.2V 300Ah 15.3KWh LiFePO4 Portable Home Power ESS

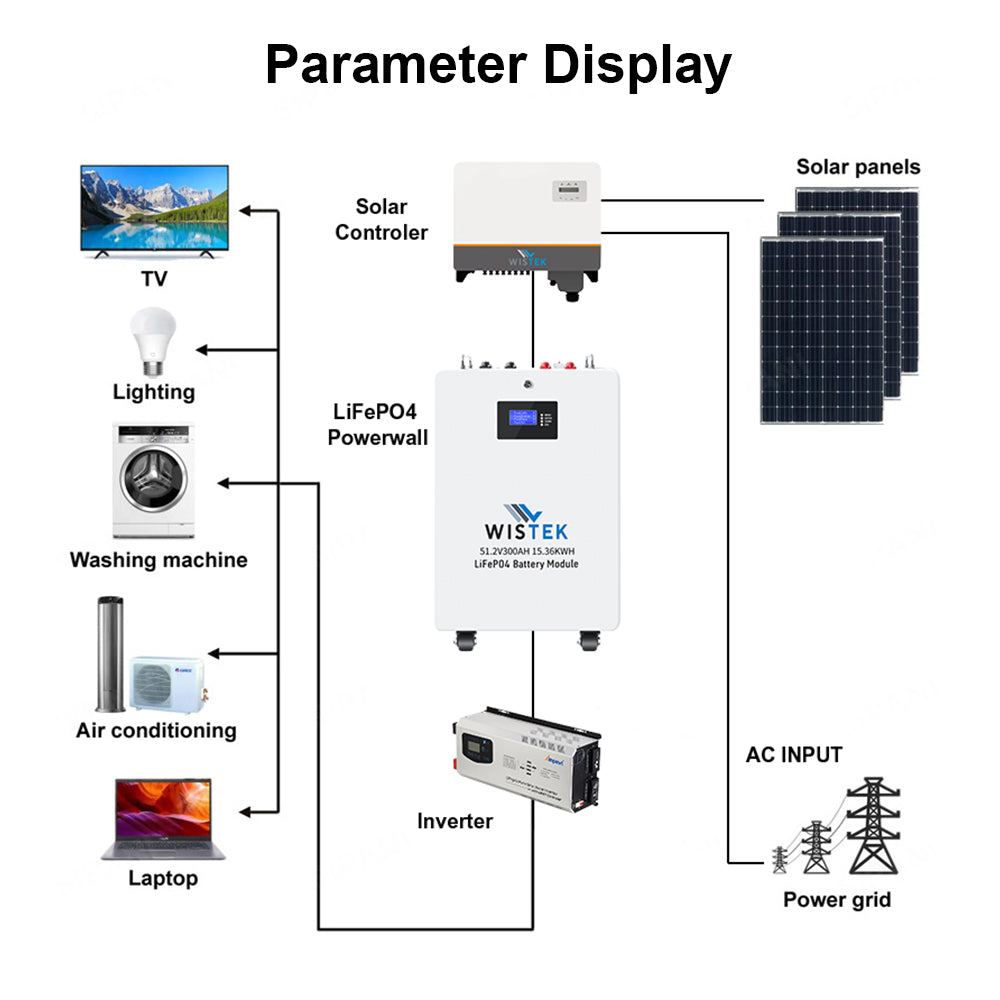

●What types of home solar systems is this battery suitable for?
This battery is compatible with most home solar systems, particularly for medium to large residential energy needs.
●What is the lifespan of the battery?
The lifespan is approximately 4000 charge-discharge cycles, equivalent to over 10 years of use, depending on the environment and maintenance.
●Can multiple batteries be connected in parallel to increase capacity?
Yes, multiple batteries can be connected in parallel to increase the total storage capacity.
●What protection functions does the Battery Management System (BMS) provide?
The built-in BMS prevents overcharging, over-discharging, excessive current, and ensures safe operation of the battery.
●How is this wall-mounted battery installed?
Installation is relatively simple, but it is recommended to have a professional complete the installation to ensure safety and optimal performance.
●Is there a warranty service?
Yes, this product comes with a standard 2-year warranty, ensuring safety and quality under normal use conditions.
