[200A Continuous Discharge Current] Suitable for 7S-16S lifepo4 battery packs, providing a continuous 200A discharge current, and the 16S lifepo4 battery pack has an output power of 10KW.
[2A Active Balancing Current] BMS has a built-in 2A active balancing current to achieve lifepo4 cell voltage balancing and extend battery life.

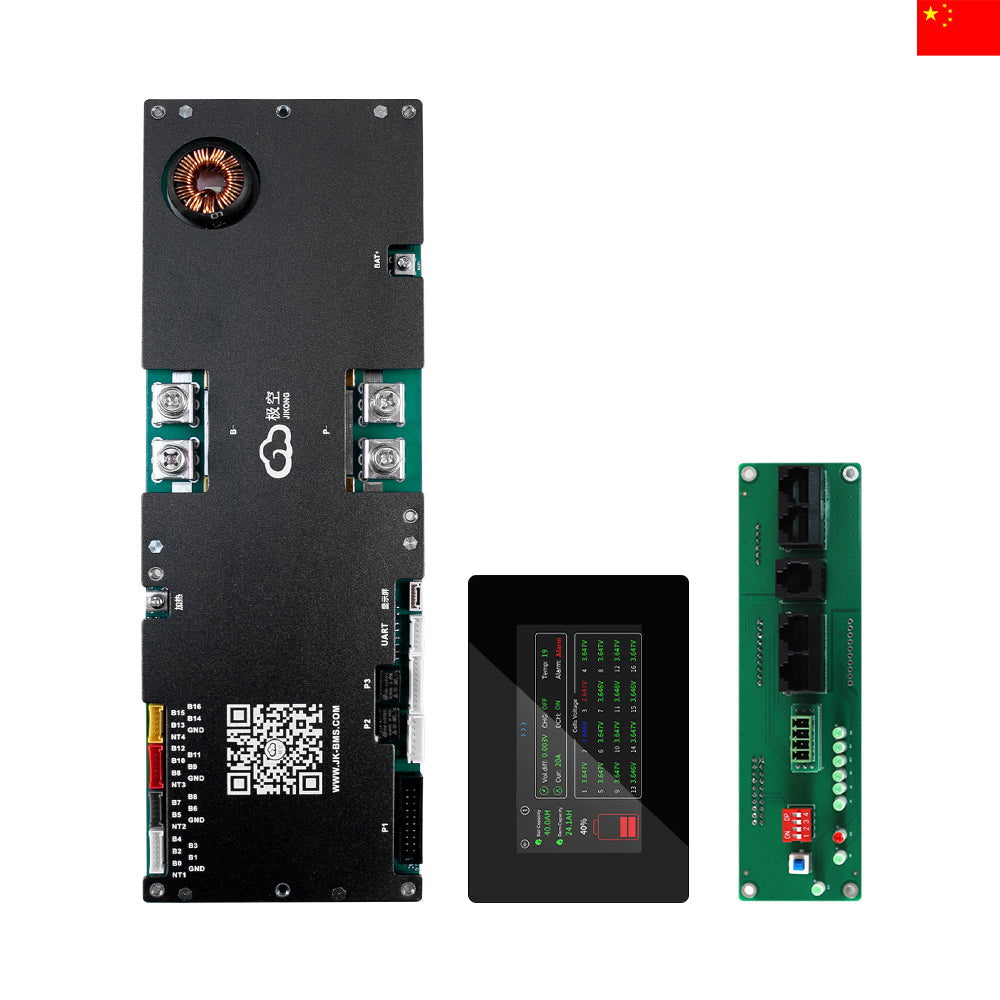

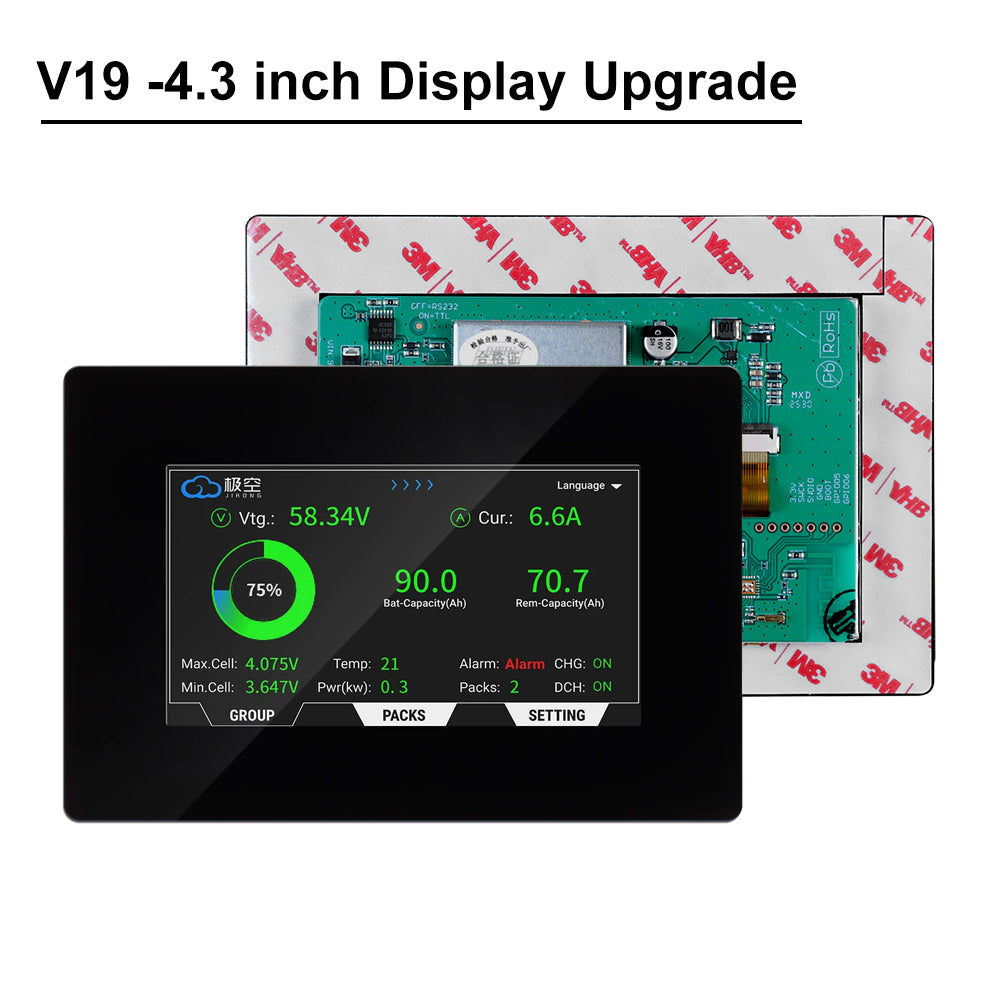

[Touch Screen Display] After the upgrade, the 4.3-inch display screen can further understand the status of a single battery cell.
[Bluetooth APP Monitoring] Mobile phone Bluetooth APP monitoring, real-time viewing of battery status.
[Battery Management System] Overcharge, over-discharge, overcurrent, short circuit protection, balancing battery cells, high and low temperature protection...
[Matching Inverter] Adapts to most mainstream inverter brands on the market.
Useful Functions:
1. Charge overcurrent Protection
2. Discharge overcurrent Protection
3. Short Circuit Protection
4. Cell Balancing
5. High and Low Temperature Protection
6. Charging Overvoltage Protection
7. Discharging Overvoltage Protection
...
For detailed protection mechanisms and working principles, please refer to the datasheet.

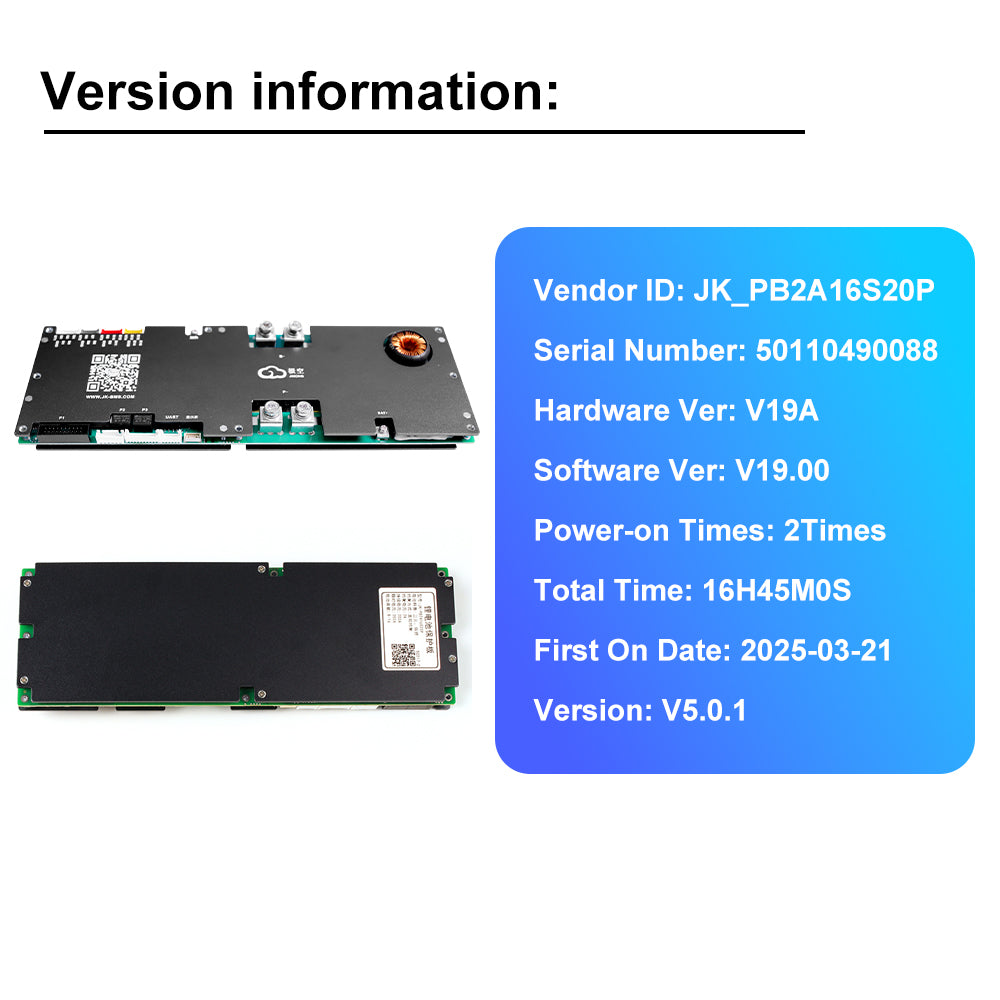

| Product Model | JK PB2A16S20P |
| Applicable Cell Materials | LFP or NCM or LTO |
| Applicable number of strings | 7S-16S |
| Balance Mode | Active Balance |
| Balance Current | 2A |
| Max Continuous Discharge Current | 200A |
| Peak Discharge Cuurent | 350A |
| NTC Quanitities | 5 |
| Overcurrent Protection | Yes |
| Overvoltage Protection | Yes |
| Temperture Protection | Yes |
| Short Circuit Protection | Yes |
| Blueooth Monitoring | Yes |
| Operate Temperture Range | -30~70℃ |
| Dimension | 300*100*24mm |
| Monitoring Battery Function | Display,Bluetooth,Communication Protocol |
