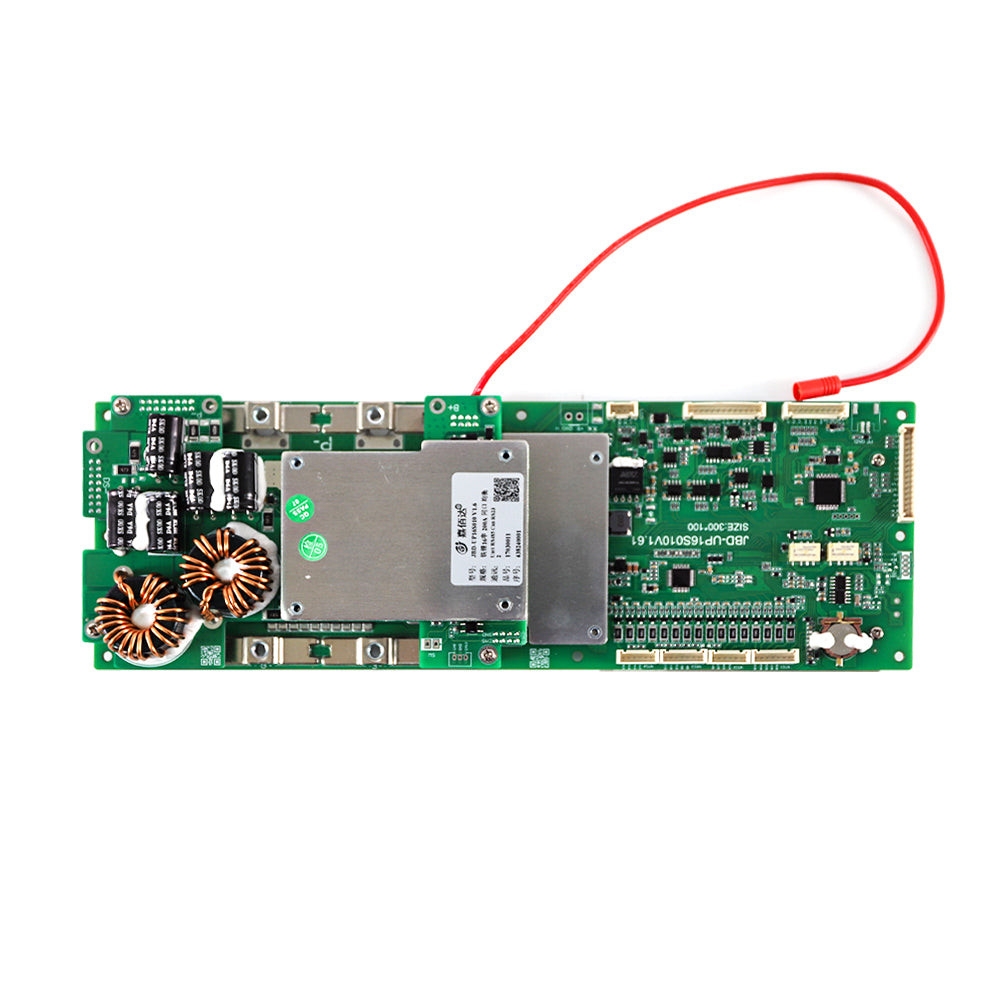

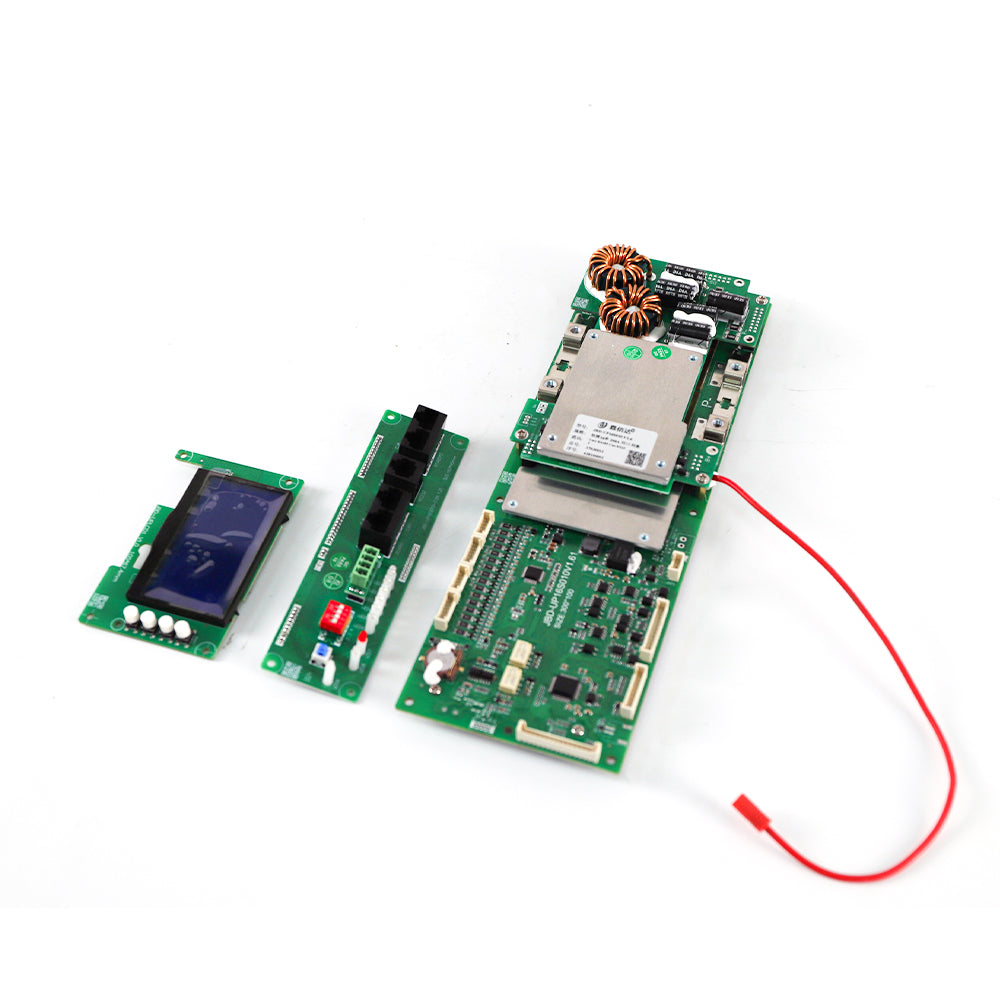

[200A Continuous Discharge Current] Suitable for 16S lifepo4 battery packs, providing a continuous 200A discharge current, and the 16S lifepo4 battery pack has an output power of 10KW.

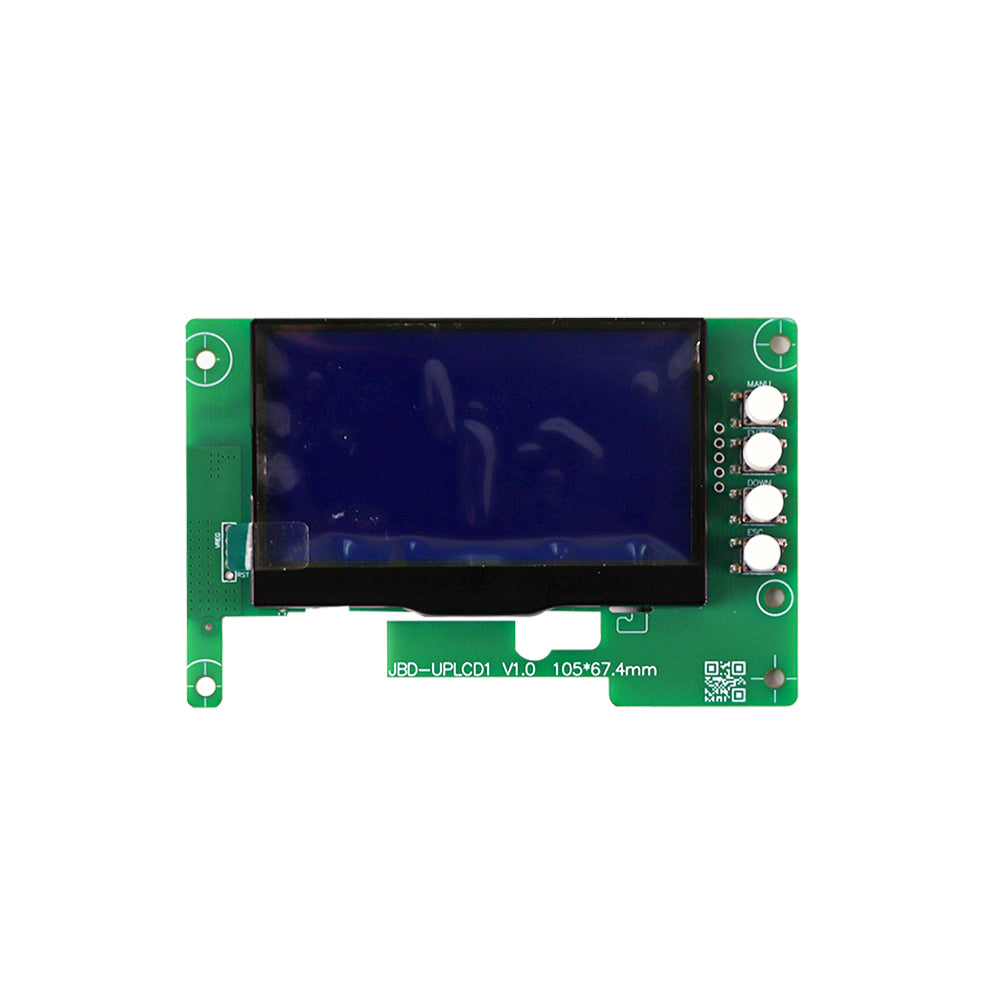

[Button Screen Display] After the upgrade, the 4.3-inch display screen can further understand the status of a single battery cell.
[Battery Management System] Overcharge, over-discharge, overcurrent, short circuit protection, balancing battery cells, high and low temperature protection...
[Matching Inverter] Adapts to most mainstream inverter brands on the market.
[6 Temperature Monitoring] The BMS has 6 NTCs, which can fully monitor battery temperature changes and effectively and quickly protect the battery.
Specification
x| Product Model | JBD-UP16S010V1.61 |
| Applicable Cell Materials | LFP |
| Applicable number of strings | 16S |
| Balance Mode | Passive Balance |
| Balance Current | 20mA |
| Max Continuous Discharge Current | 200A |
| Max Continuous Discharge Current | 200A |
| NTC Quanitities | 6 |
| Overcurrent Protection | Yes |
| Overvoltage Protection | Yes |
| Temperture Protection | Yes |
| Short Circuit Protection | Yes |
| Blueooth Monitoring | Custom |
| Operate Temperture Range | -20~75℃ |
| Dimension(L*W*H) | 300*100*38mm |
FAQ
x●Does this version of BMS support battery modules connected in series?
1.No
●Does this version of BMS support parallel connection of battery modules?
Yes.
●How many battery cell module strings does this version of BMS support?
16S
●Which inverter brands can be matched?
Pytron, GoodWe, Growatt, SMA, Victron Energy, MUST, SRNE, DEYE, Sofar
●What battery cell materials are suitable for this version of BMS?
16S lithium ion battery pack，16S lifepo4 battery pack，16S polymer battery pack
