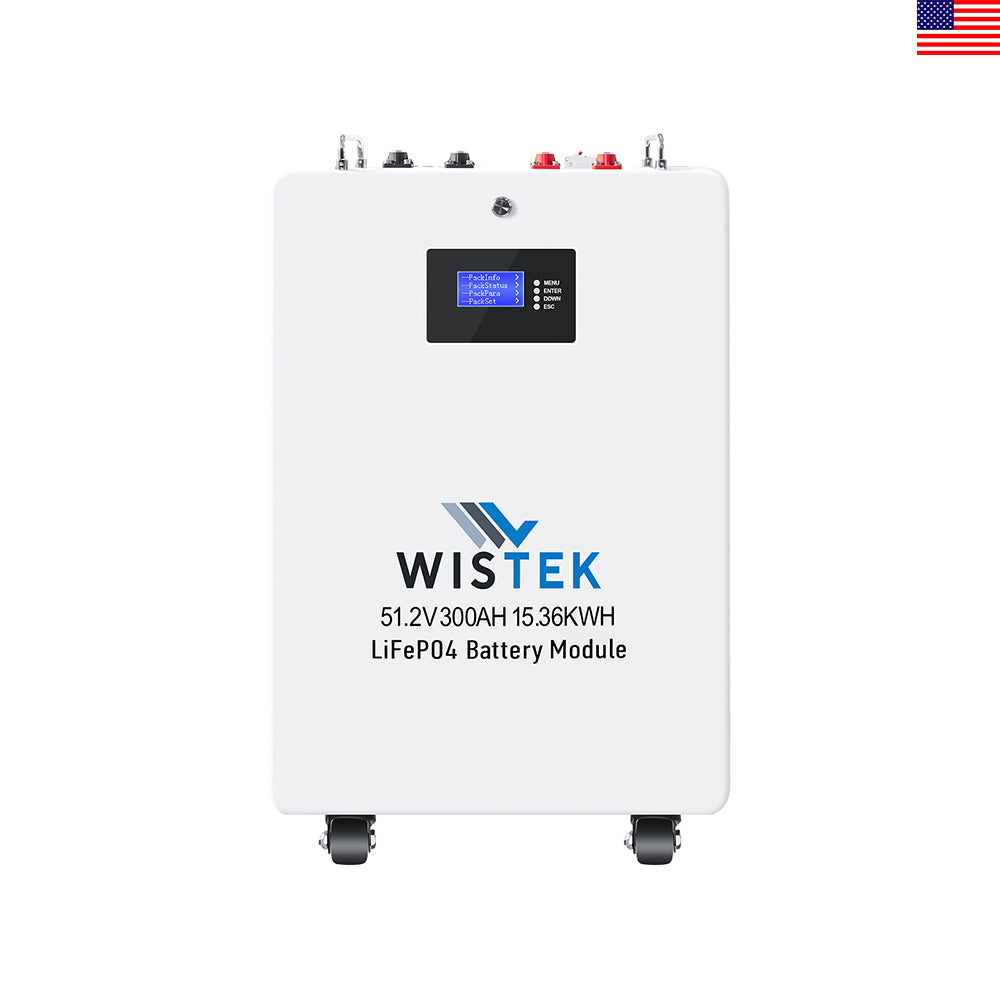

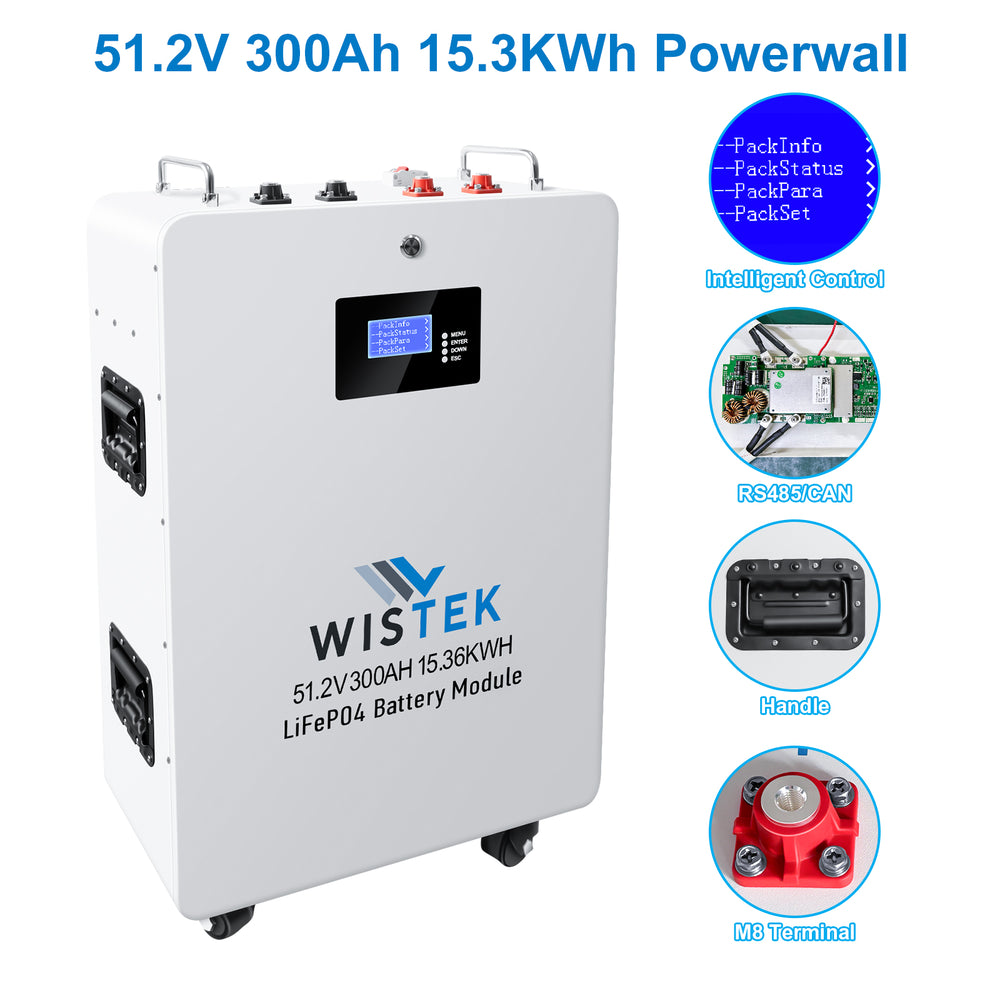

[Grade A, Brand New Battery Cells] The Wistek 51.2V 15kWh wall mounted battery is assembled from 16 EVE grade A, brand new cells, using high-quality battery cells as raw materials.
[Built-in Intelligent BMS] The 15kWh wall-mounted battery is equipped with a JBD 16S intelligent BMS, which provides overcharge protection, over-discharge protection, overcurrent protection, high and low temperature protection, and cell balancing.
[10kW Continuous Output] The 15kWh battery has a built-in 200A BMS, with a continuous 200A discharge current and 10KW continuous output power.
[Scalability] This 15kWh battery can support up to 8 battery modules in parallel, expanding to a 120kWh system.
[Compatible with Various Brands of Inverters] The Wistek 15kWh battery pack is compatible with most inverters on the market and perfectly implements communication functions.
[Two Installation Methods] Supports two installation methods, wall-mounted installation and wheels at the bottom for easy movement.
The 15kWh LiFePO4 Battery is an energy storage system specifically designed for off-grid solar applications. By utilizing Grade A EVE battery cells and a high-quality BMS, it effectively resolves common issues such as misrepresented capacity, limited cycle life, and cell imbalance. It currently stands as the premier choice on the market for residential off-grid solar systems.
15kWh energy storage system(ESS), can meet the household electricity demand for 3 days, 8 battery module connected in parallel, 120kWh system, worry-free electricity for 15 days.


The 15kWh LiFePO4 battery has a built-in 16S 200A BMS, 200A continuous discharge current, 10kW continuous power, can drive most household appliances.
BMS funtions

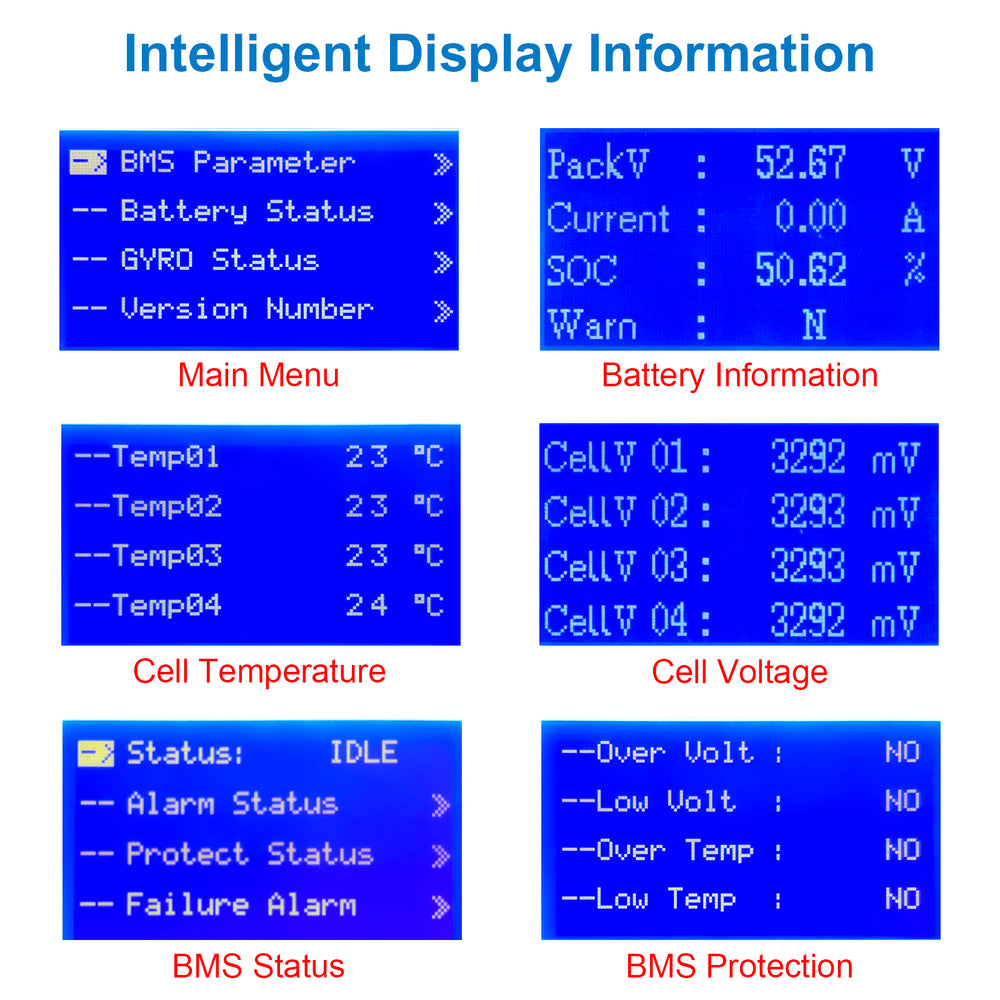

Real-time information on battery pack status, battery temperature, discharge current, SOC, cycle life, etc.

Install It Your Way: Wall-Mount or Go Portable
Portable Use: Built-in wheels let you move it effortlessly wherever needed.

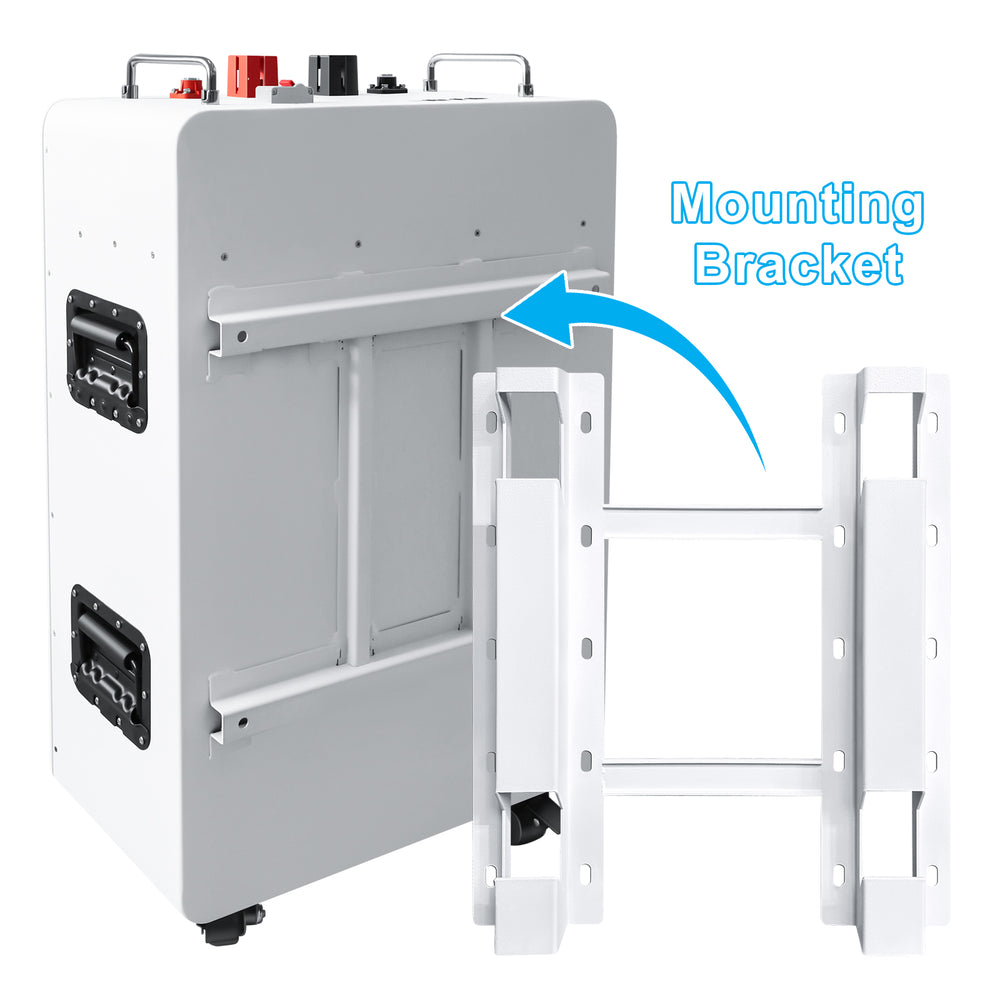

Wall-Mount Use: The included bracket enables secure, space-saving installation.
A locking mechanism keeps it safely stationed until you're ready to move it again.

Compact design, white stainless steel shell, arc-shaped appearance, friendly to children.


If your inverter brand is not listed, please send us your inverter communication protocol and we will write the corresponding protocol into the BMS.

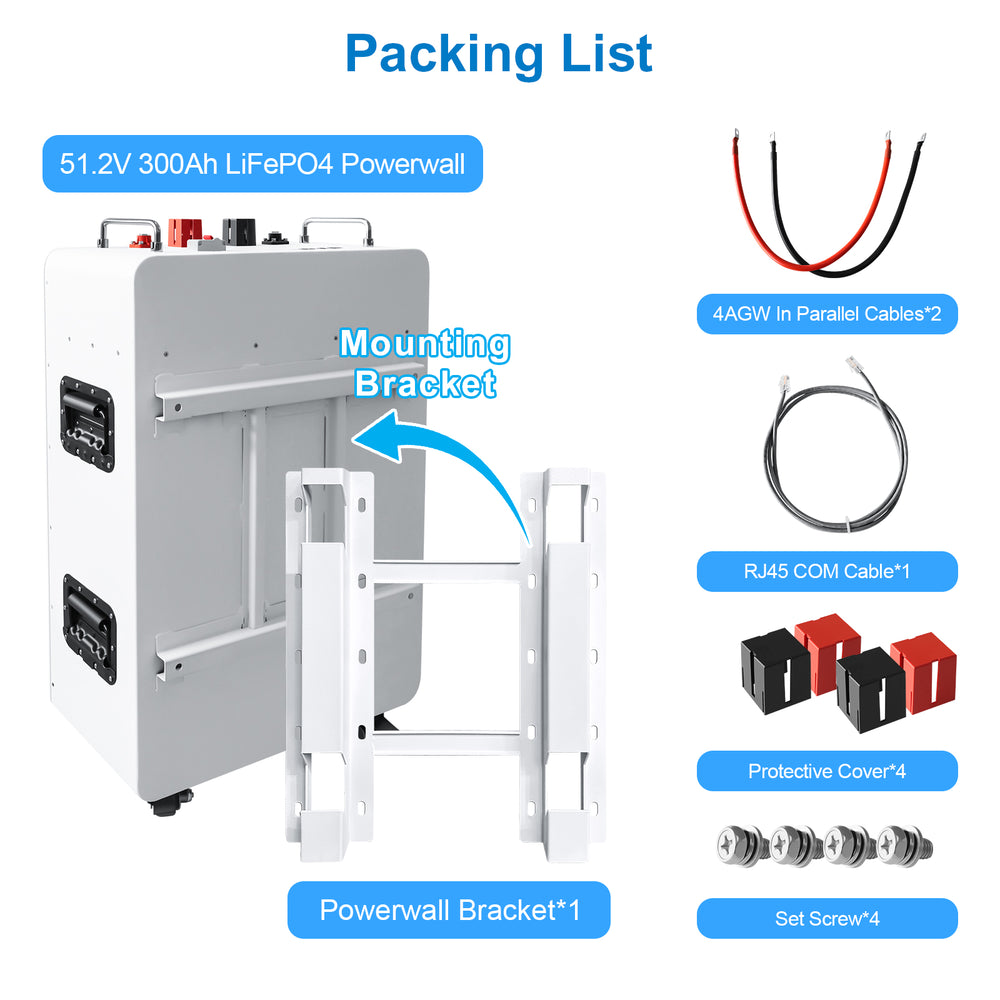

The battery pack contains the necessary installation components.

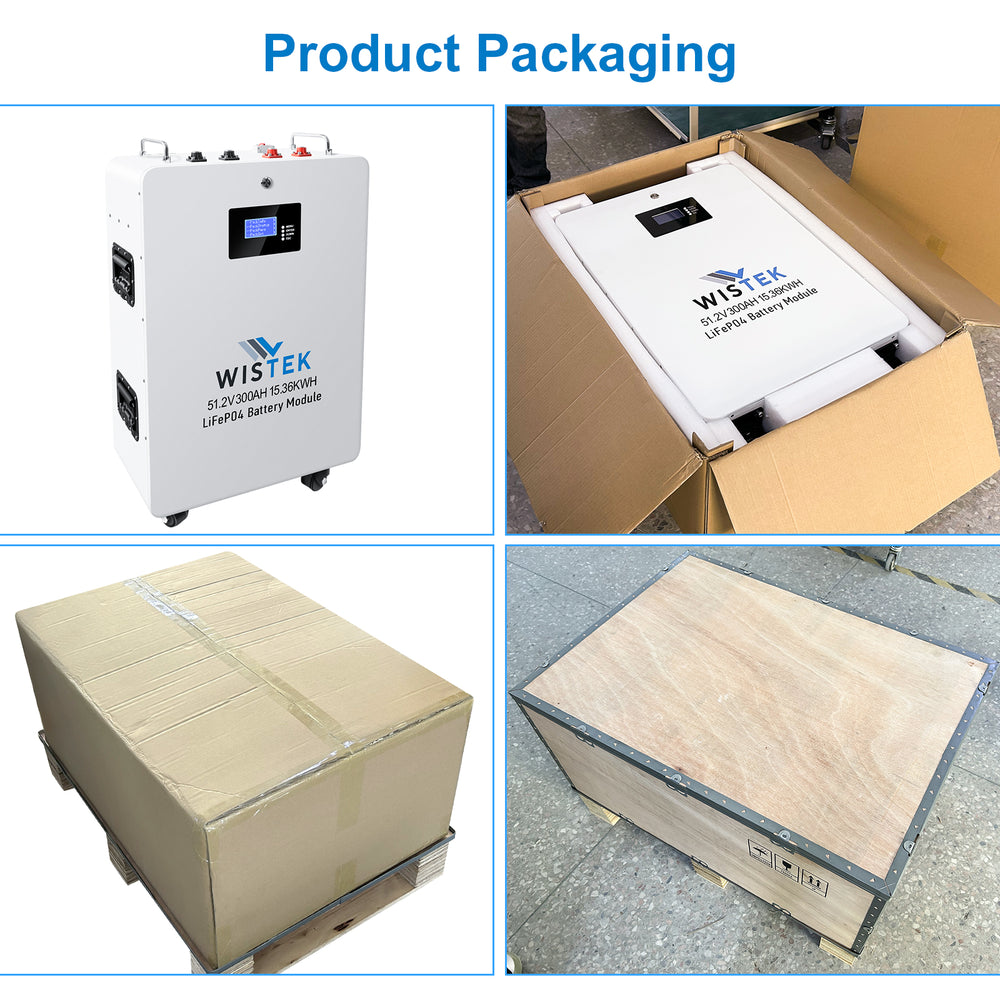

How will we protect your batteries during transport? The 15kWh batteries are wrapped in high-hardness custom foam, packed in cartons and wooden crates, delivered by truck, and unloaded by forklift, preventing damage from bumps and knocks during transit.

|

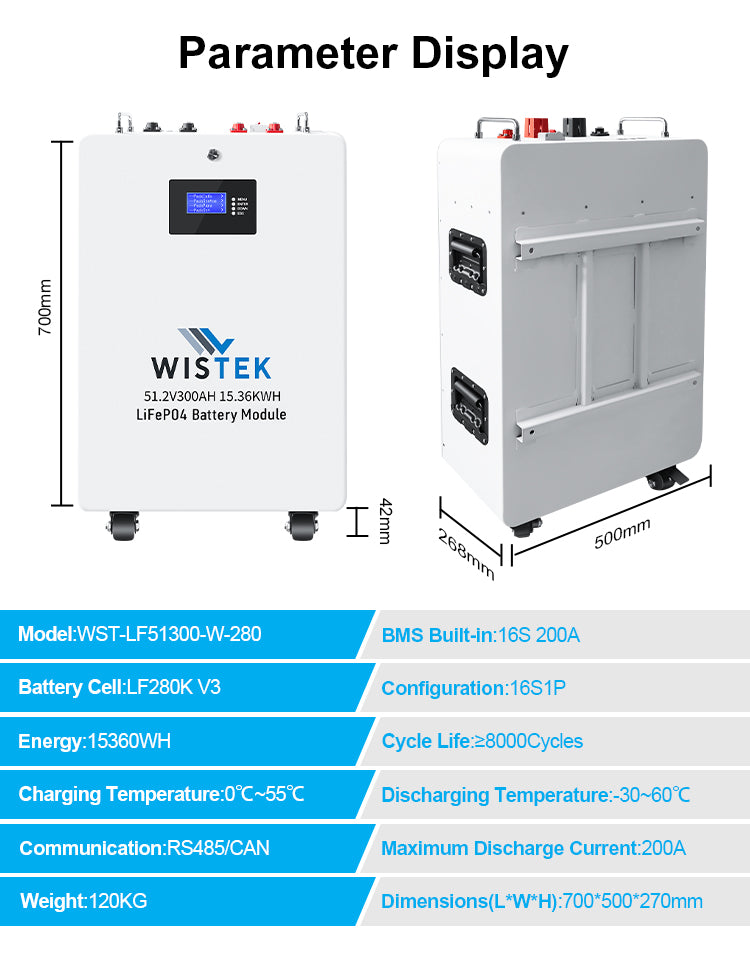

Model |
WST-LF51300-W |
|
Nominal Capacity |
300Ah(15.36KWh) |
|
Norminal Voltage |
51.2V |
|
Number of Cycles |
≥8000@0.5C,70%SOH |
|
Charging Voltage |
58.4V |
|
Maxinum Continuous Charge Current |
200A |
|
Maxinum Continuous Discharge Current |
200A |
|
BMS |
Intergrated |
|
Monitoring |
LCD display and communication protocol |
|
Waterproof Grade |
IP55 |
|
Temperature Range(discharge) |
-20°C~55°C |
|
Connection Screw |
M8 |
|
Warranty |
5 years |
|
Net Weight |
125KG |
|
Dimensions(H*W*T) |
700*500*270mm |
