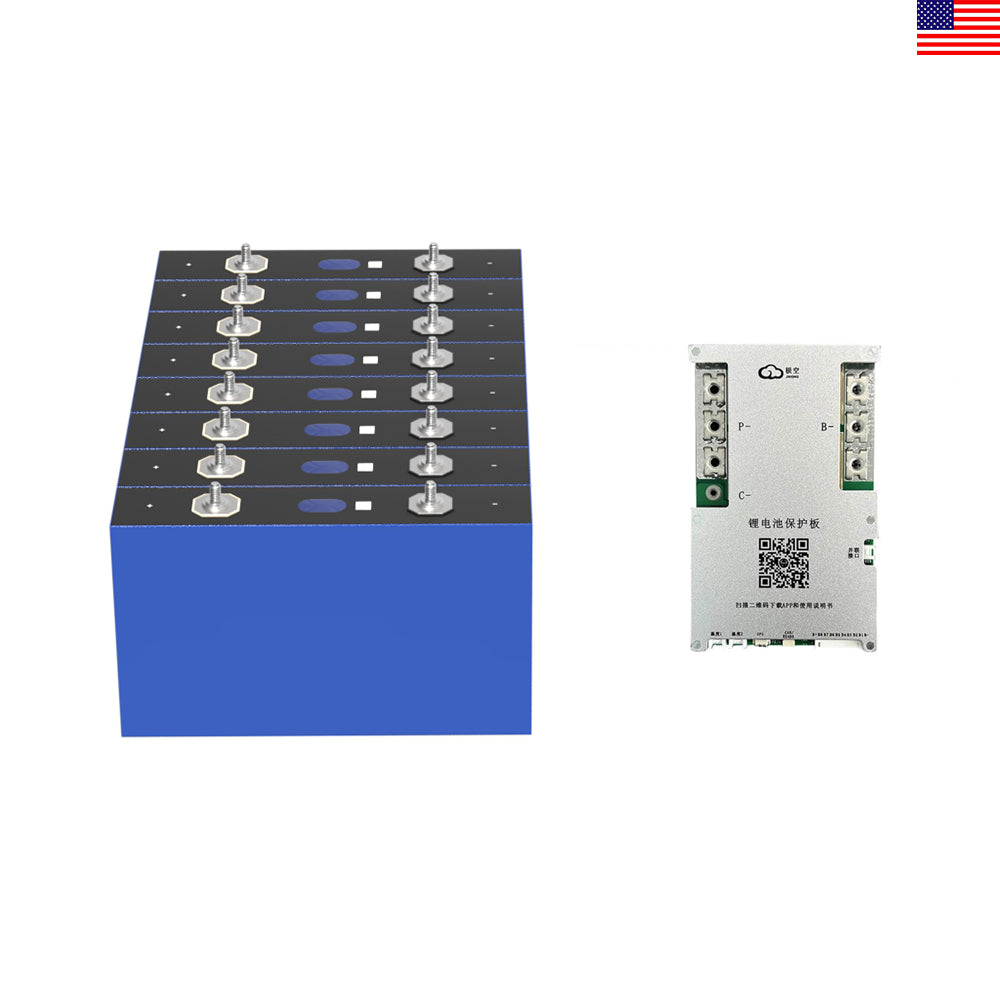

8pcs mb56 cells jk b2a8s30p bms

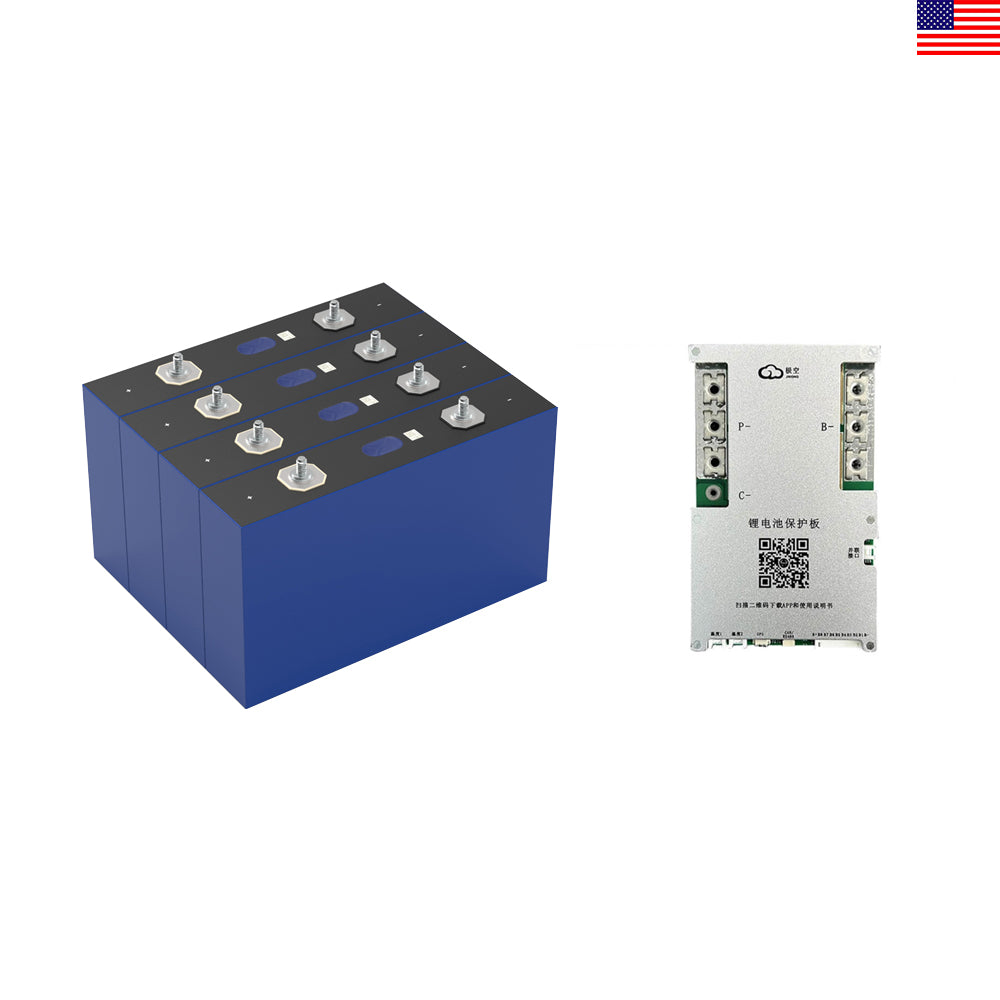

4pcs mb56 cells jk b2a8s30p bms

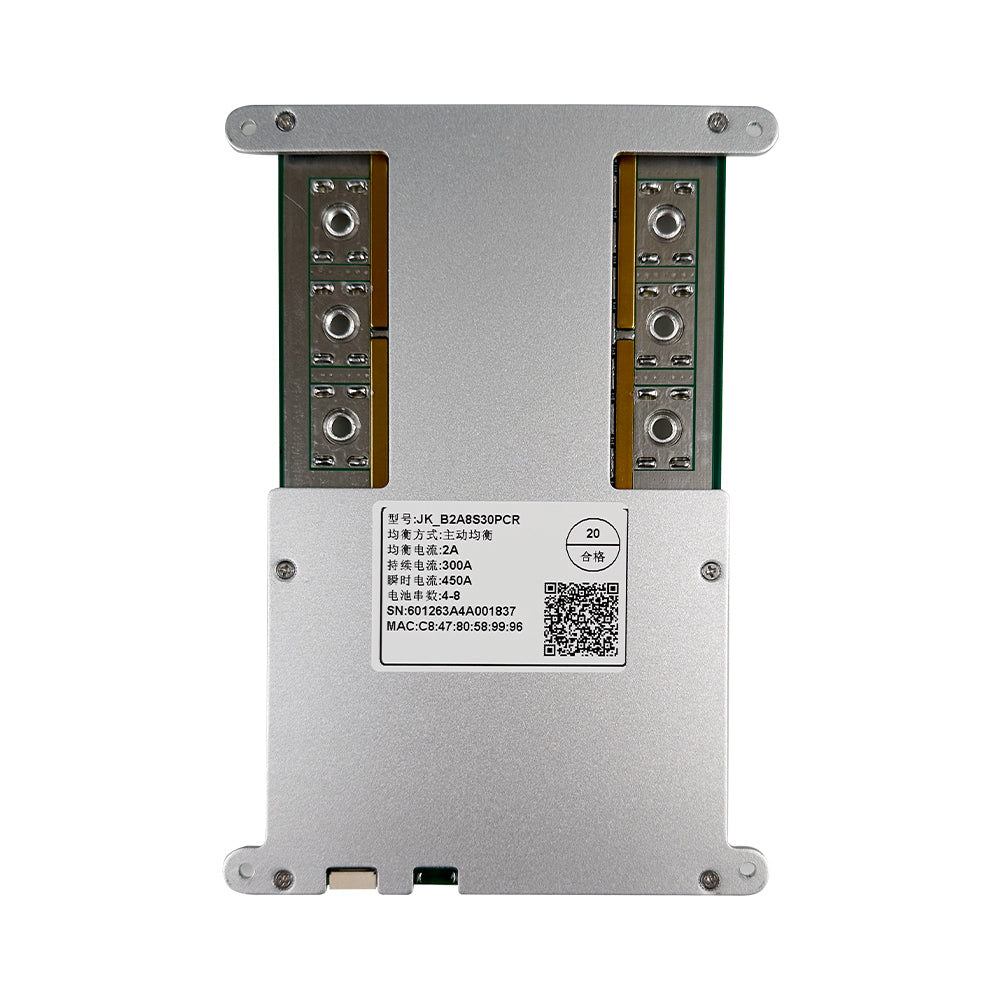

JK B2A8S30P BMS back view
JK B2A8S30P BMS Packing list
628ah battery cell parameters
3.2v 628ah features
4pcs lf628k cells with yellow epoxy plate and burbars
M8 size flexible busbar for mb56
8pcs lf628k cells

EVE LF628K MB56 628Ah 3.2V LiFePO4 Cell with JK B2A8S30P BMS|Wistek(USA Stock)

SKU: MB56S-4-B1.3
Availability: In Stock
Product Type: DIY Battery Kits

[Grade A,Brand New Cell] EVE original battery cell, intact QR, 8000 cycles(70%SOH),0.10±0.05mΩ low internal resistance.

[Assemble Immediately] Contains all the accessories of DIY battery and can be assembled immediately.

[Brand Battery Cells + High-quality BMS] EVE MB56 3.2V 628Ah battery cells and V19 JK-PB2A16S20P/PB2A16S30P BMS.

[680Ah Real Capacity + 200A/300A Continuous Output Current] MB56 has an actual capacity of 680Ah, and the BMS provides a continuous output of 200A/300A discharge current and 10KW/15KW output power.

[Safe Material]MB56 uses LiFePO4 Material, which are non-flammable, non-explosive, maintenance-free, memory-free, and deep-cycle.

View More
Choose Products: 4 MB56 Cells+1 JK B2A8S30P BMS
Delivery & Self-Pickup Options: Delivery
Please hurry! Only 98 left in stock
$702.00
$870.00
$702.00
Subtotal: $702.00
10 customers are viewing this product

Local Express Delivery

The goods will be shipped within 24 hours and the transportation time is 3-7 days.

Free Returns

7-day no-questions-asked return.

5 Years Warranty

24/7 online technical support

The EVE MB56 cell and JK B2A8S30P BMS combination is a lithium battery solution specifically designed for DIY battery enthusiasts. By offering simple, comprehensive, and easy-to-assemble DIY kits, it effectively addresses the issue of high costs associated with pre-built battery packs, making it an excellent choice for RV and residential ESS applications currently available on the market.

New Arrival MB56 LF628K 628Ah 3.2V LiFePO4 Cell

  • Grade A,Brand New Quality
  • Nominal Capacity:628Ah,Real Capacity:680Ah
MB56 promotion
4pcs mb56 products display
All battery cell testing data is traceable, with intact QR.
This batch of battery cells
  • Above 680Ah capacity
  • 5Ah capacity difference,
  • 0.12mΩ internal resistance,
  • 0.05mV voltage difference,
  • Production period:17-19,Nove,2025

Features

  • Deep Cycle Battery: Discharge depth can reach 95%, storing more energy for the same weight and size, saving battery footprint.
  • Long Cycle Life: After 8000 cycles, the actual remaining capacity is greater than 70%, with a lifespan of 15 years.
  • High Energy Density:Compact size, 2009.6Wh (2176W) energy storage, 11.5KG weight.
mb56 features

Some Important Parameters

  • Ultra-low Internal Resistance: 0.10±0.05mΩ. Effectively reduces battery loss and fully releases high current.
    0.5P Charge/Discharge ratio: 314A continuous charge/discharge current, the battery can be fully charged in only 2-3 hours, with a continuous output power of 1kW.
mb56 parameters

Appearance Details

628Ah Cells with Pre-welded M8 Studs
Skip the complex setup. These cells come ready for your DIY battery projects, so no welding is needed.

They share the same height and thickness as the MB31, but with double the width for greater capacity in a familiar form factor.

MB56 Prismatic Cell dimension/weight information
The battery cell will be welded with a single M8 stud
mb56 bluk order
Intact QR

Free Accessories

The MB56 cell comes with everything you need for assembly: flexible busbars, screws, and an epoxy plate. Build with confidence.

Flexible Busbars: Made of nickel-plated copper, offering excellent conductivity and oxidation resistance. With a thickness of 3mm, they can easily handle high currents of 300A without overheating. The flexible material protects the battery cells from damage to the terminals during use.

Package

Each package will contain two battery cells, which will be wrapped in high-rigidity custom foam and transported in a UN-compliant cardboard box.

The two flexible busbars and four flange nuts will be individually wrapped in bubble wrap.

Applications

Home Solar Energy Storage System,RV,UPS,Wind Energy Storage System...

mb56 applications

JK B2A8S30P BMS

Applicable Battery Types

3-8S LiFePO4 battery
3-8S NCM (ternary) lithium battery
7-8S lithium titanate battery

Main Protection Functions

1. Low voltage protection
2. High voltage protection
3. Low temperature protection
4. High temperature protection
5. Charging overcurrent protection
6. Discharging overcurrent protection
7. Short circuit protection
8. Active balancing function

Important Parameters

1. 300A continuous discharge current
2. 2A active balancing current

Applicable Battery Application Scenarios

RVs,Solar Home Energy Storage System

Packing List

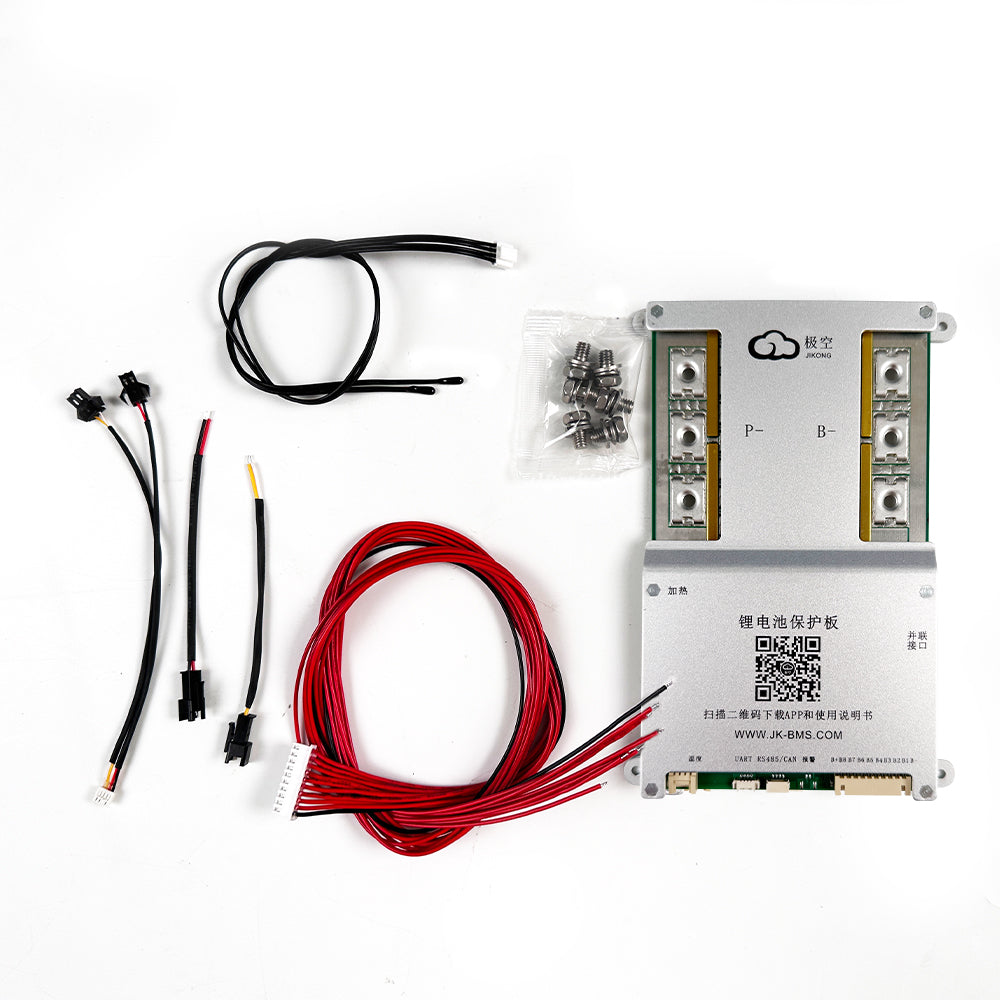

JK B2A8S30P BMS Packing list

Model

 EVE MB56

Nominal Capacity

 628Ah(2009.6Wh)

Nominal Voltage

 3.2V

Number of Cycles

 8000(25℃@0.5P,70% SOH)

Charging Voltage

 3.65V

Maxinum Charging Power

 0.5P

Maxinum Discharging Current

 0.5P

Grade

A

Application

 Energy Storage System(ESS)

Temperature Range(discharge)

 -30°C~60°C

Warranty

 5 Years

Net Weight

 11.5KG

Dimensions(W*T*H)

352*72*208mm

Year of Production

Nov, 2025

Original Factory Test Report

Available

Detailed Specification
Stud Model

Single M8 Stud

FAQ Section Example
●What is the stud model for MB56 welding?
M8
●What type of busbar is the MB56?
This is a standard busbar, not a flexible one. A flexible busbar is available at an additional cost. The connector is nickel-plated copper.
●MB56 vs MB31?
1. Dimensions: The MB56 and MB31 have the same thickness and height, but the MB56 is twice as wide as the MB31.
2. Studs: The MB56 uses welded M8 studs, while the MB31 uses welded M6 studs.
3. Capacity: The Grade A MB56 has an actual capacity of 680Ah, while the MB31 has an actual capacity of 330Ah.
