[Pre-assembled Version] This 32kWh DIY battery box is pre-assembled. When assembling, you only need to arrange the battery cells in the correct order, and then tighten the screws to use it.

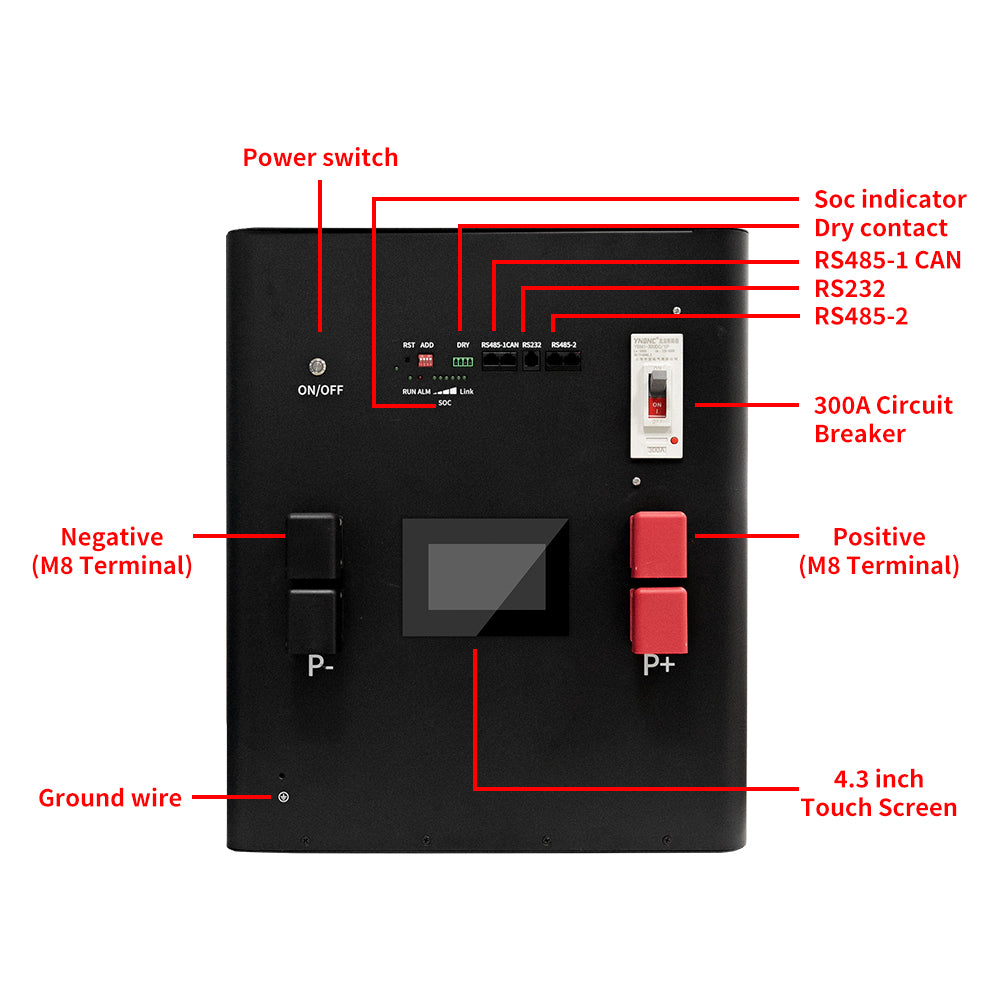

[Smart BMS] Equipped with V19 JK PB2A16S30P BMS, 2A active balancing, 300A continuous discharge current, wireless Bluetooth APP monitoring, 4.3-inch touch screen

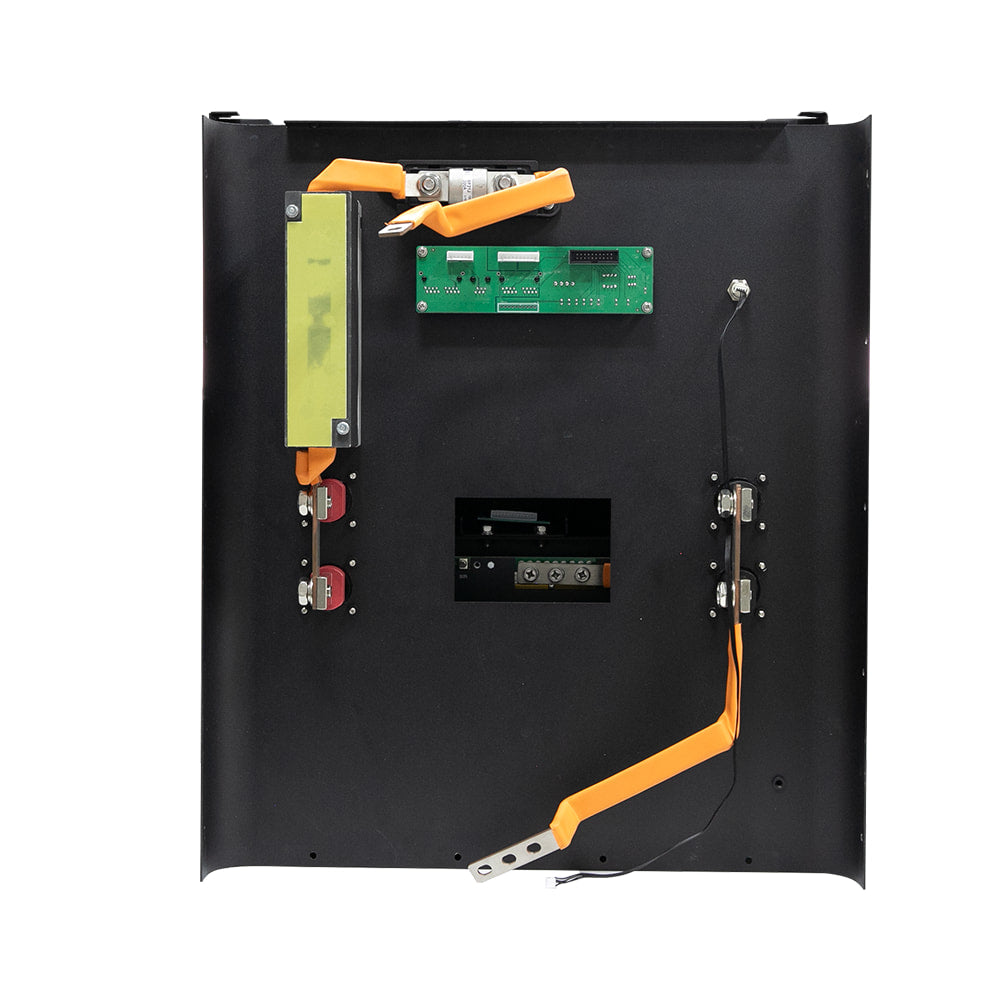

[High-quality Materials] The 1.5mm thick stainless steel casing is designed to withstand drops and protect the battery cells from damage. Flexible busbars are included to handle high currents while also protecting the battery terminals.
[Matching Inverter] JK BMS can communicate with many brands of inverters on the market, enabling the inverter to understand the battery status in real time and provide double protection for the battery.

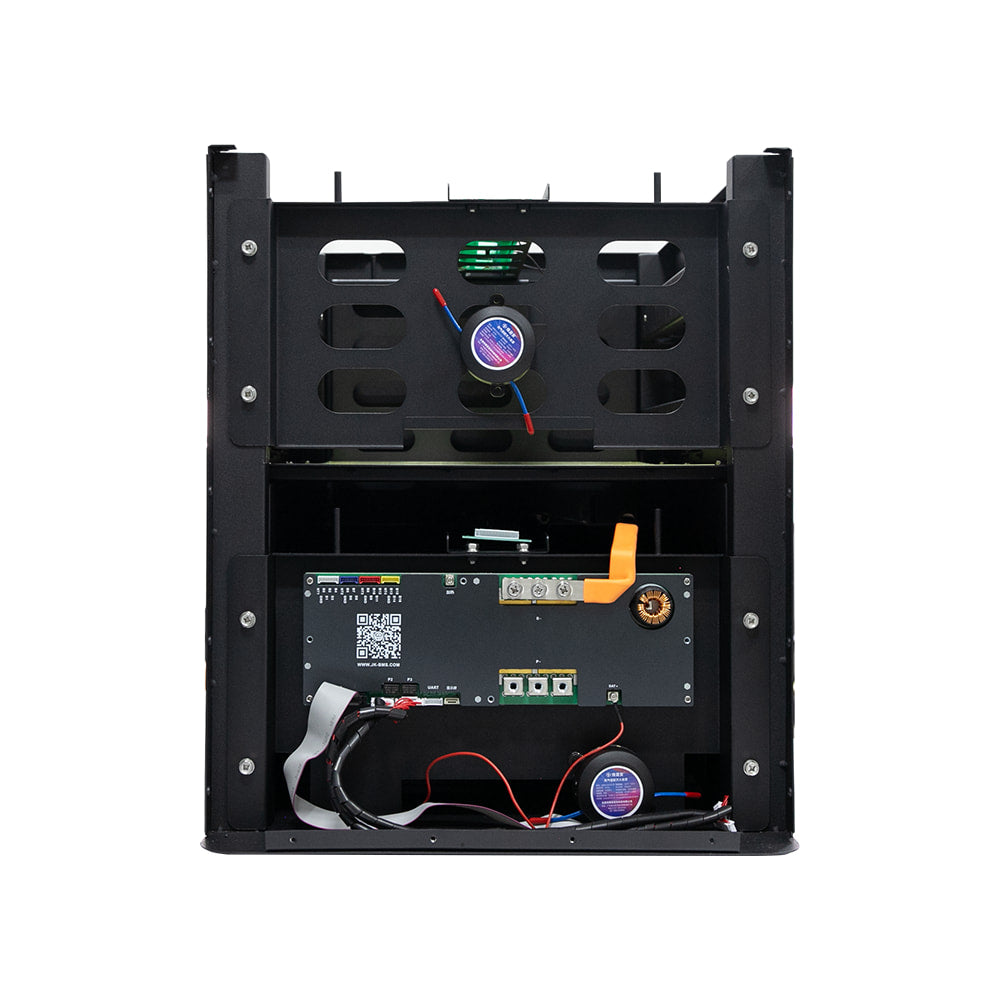

[Fire Extinguishing Equipment] The 32kWh battery box is equipped with a fire extinguishing device, allowing you to use the lifepo4 battery without worry.
51.2V 32kWh DIY Battery Box (MB56 cells not included)

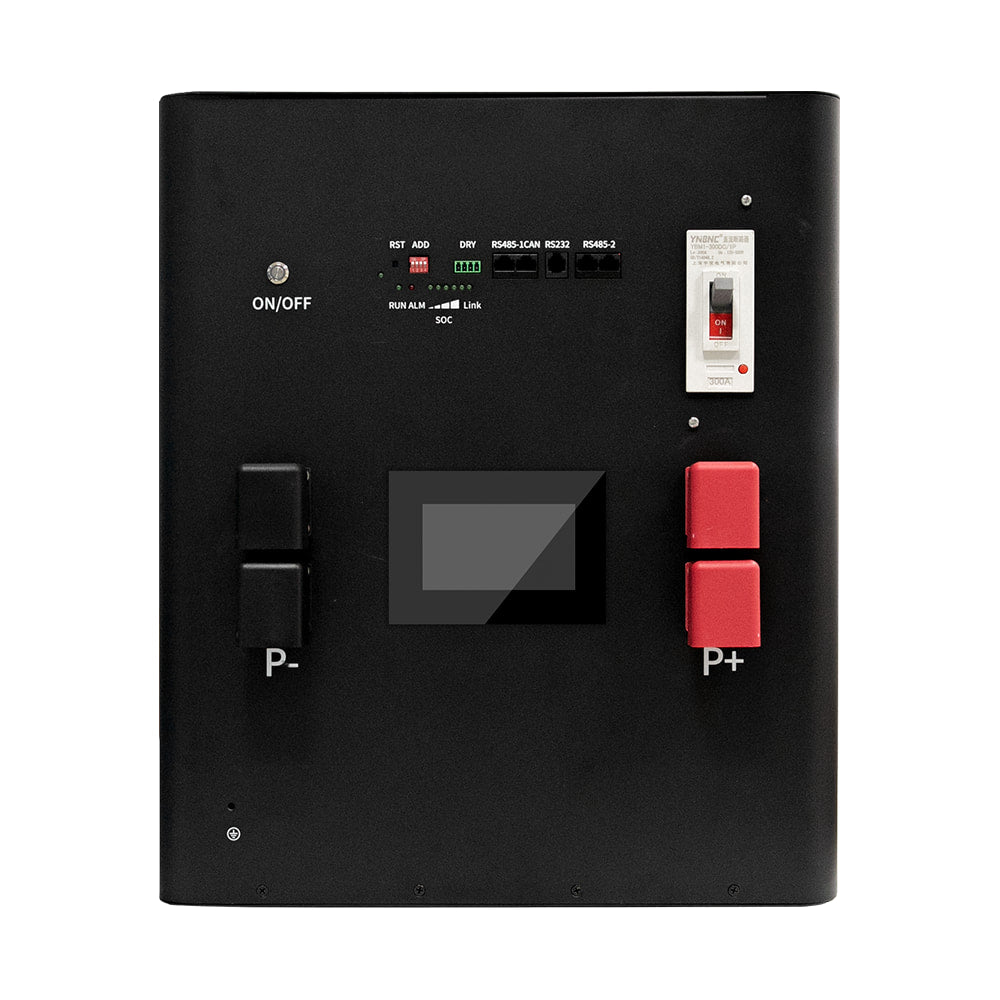

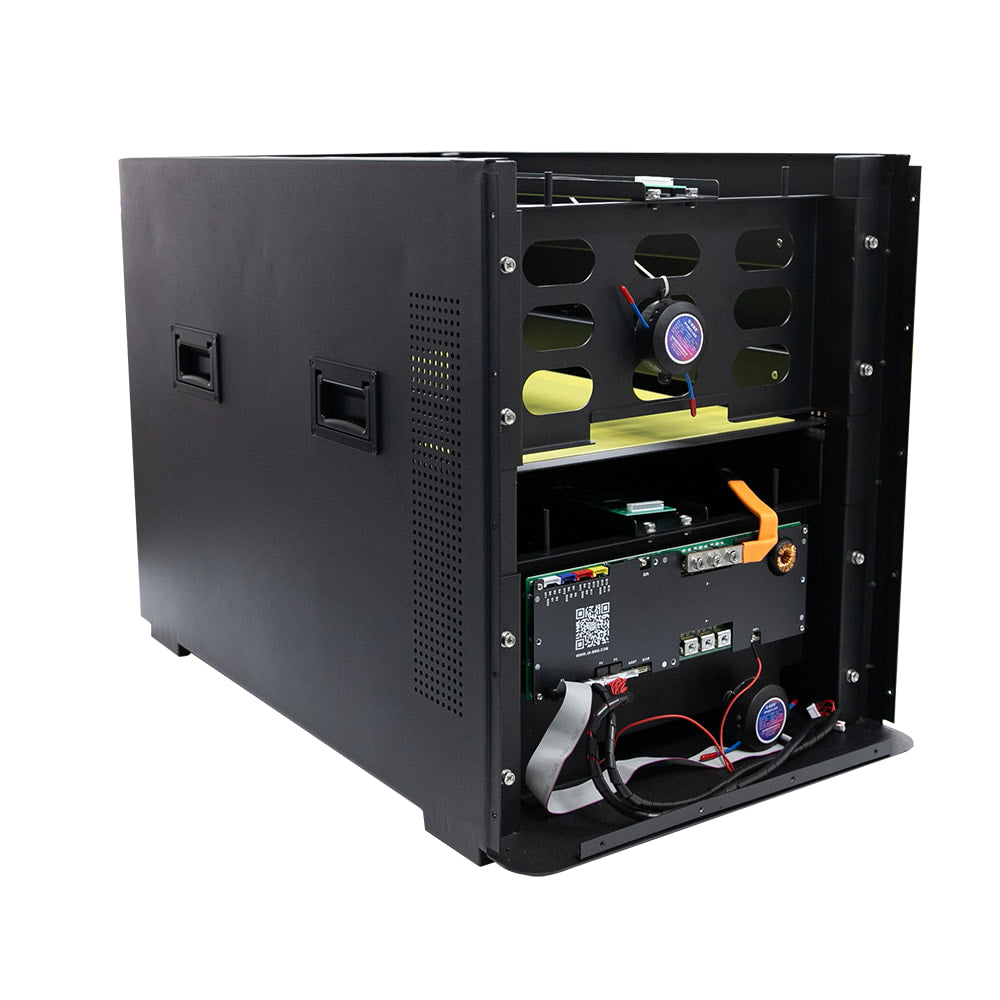

51.2V 32kWh DIY Battery Enclosure: A stainless steel housing specifically designed for 16 EVE MB56 battery cells. This enclosure features a built-in JK PB2A16S30P BMS, a 300A circuit breaker, a 300A fuse, an aerosol fire extinguisher, and flexible busbars. Capable of sustaining a continuous power output of 15kW and equipped with a three-tier safety protection system, it ensures a safer and more reliable experience for home energy storage applications.
| Parameter | Specification Details |
|---|---|
| Product Name | 51.2V 32kWh MB56 DIY Box |
| Nominal Voltage | 51.2V |
| System Energy | 32kWh (Optimized for MB56 Configuration) |
| BMS Model | JK PB2A16S30P (Bluetooth Integrated) |
| Continuous Current | 300A Charge / 300A Discharge |
| Active Balancing | 2A Balancing Current |
| Safety Components | 300A Breaker + T-Class Fuse + 2x Internal Fire Extinguishers |
| Internal Interconnects | Industrial Flexible Busbars |
