[Smart BMS] The JK PB2A16S20P BMS supports a continuous charge and discharge current of 200A and features a 2A active balancing current to extend battery lifespan. It offers real-time monitoring via a wireless Bluetooth app and incorporates a mature communication matching mechanism for seamless integration with inverters.
[250A Circuit Breaker] A 250A circuit breaker, equipped with overload, short-circuit, and undervoltage protection devices, protects the circuitry and power equipment from damage.
[250A T-type Fuse] T-type fuse—specifically the 250A T-type fuse—enables faster and more comprehensive circuit protection, while providing ample safety redundancy.
[Flexible Busbars] All current-carrying conductors utilize busbars constructed from nickel-plated oxygen-free copper. Featuring low internal resistance, this design enables the handling of high-current loads while preventing overheating—thereby eliminating the risk of fire hazards.
[Heating Pads] Equipped with a heating pad and accessories, it protects the battery in low-temperature environments.

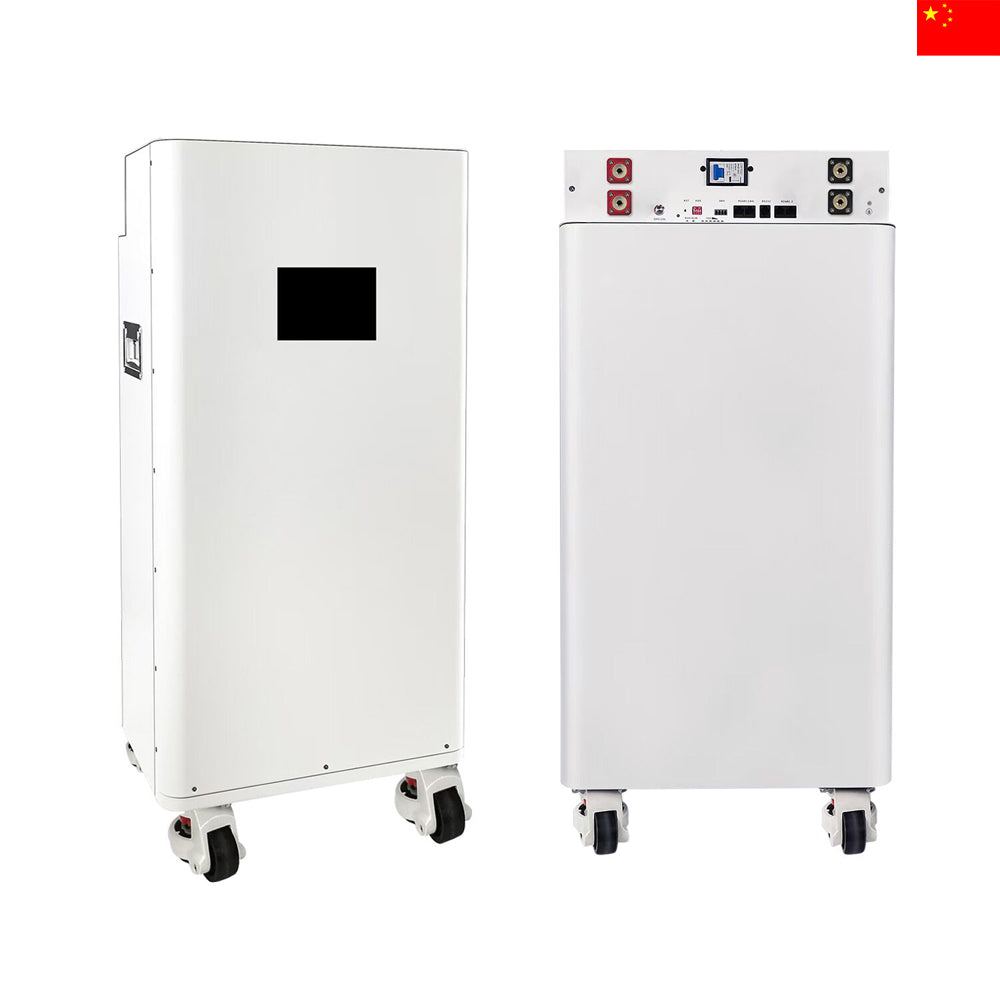

Engineered for high-performance DIY builds, the Wistek Tower Series features the integrated JK PB2A16S20P BMS, delivering a robust 200A continuous charge/discharge capacity and 2A active balancing for peak cell health. Designed with flexible busbars to minimize thermal buildup and a triple-redundant safety suite—including a T-type fuse, circuit breaker, and smart BMS protection—this unit provides professional-grade reliability and seamless Bluetooth monitoring for your home energy storage.
The Tower 15kWh DIY box is designed to accommodate 16 battery cells. It is compatible with a wide range of cell models, including
Battery Cell Dimensions (W × T × H): 173 × 72 × 207 mm.

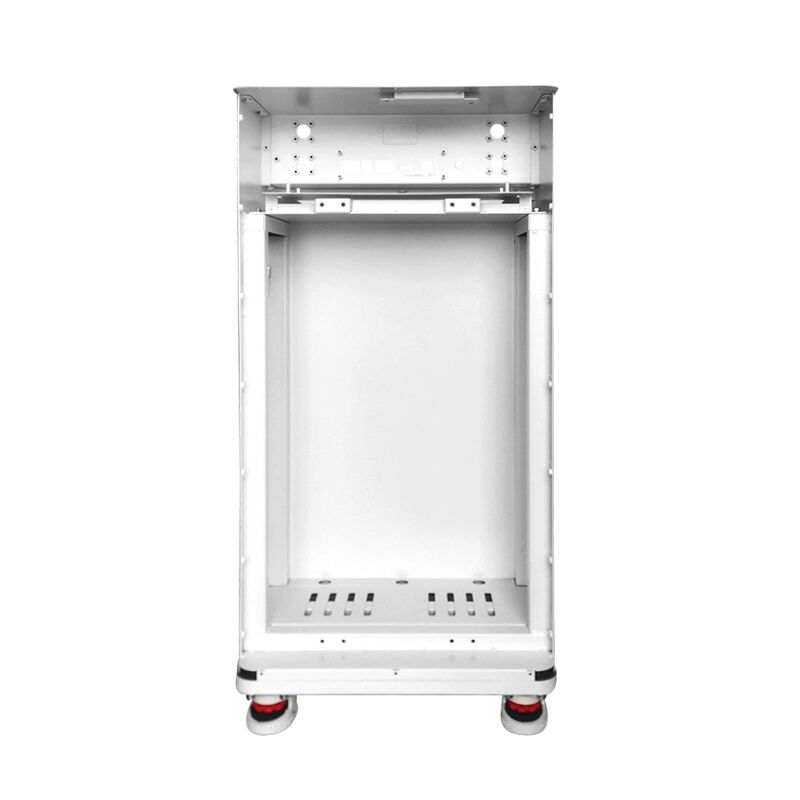

Constructed from 1.5mm-thick stainless steel. Finished in white, the enclosure features rounded corners with a rolled-edge design, making it child-friendly.
Equipped with a built-in JK V19 PB2A16S20P Battery Management System (BMS). This system enables the finished battery pack to deliver a continuous discharge rate of 200A, features a 2A active balancing current, and supports wireless monitoring via Bluetooth connectivity.

All high-current connections utilize flexible busbars. This design allows the system to effortlessly handle high current loads without causing significant heat buildup within the battery pack.
Features a 250A T-type fuse capable of promptly and completely interrupting abnormal current flows.
Includes a 250A circuit breaker, providing an additional layer of safety protection and ensuring ample safety redundancy.
| Number | Item | Quantities(Pieces) |
| 1 | Empty Battery Box | 1 |
| 2 | Epoxy Plate-1(210*180*0.5mm) | 18 |
| 3 | Epoxy Plate-2(580*200*1mm) | 6 |
| 4 | Epoxy Plate-3(580*350*1mm) | 1 |
| 5 | Battery Terminal | 4(red two,black two) |
| 6 | 250A Circuit Breaker | 1 |
| 7 | Flexible Busbars-1(Cell to Battery Terminal) | 4 |
| 8 | Flxible Busbars-2(Cell to Cell) | 15 |
| 9 | Signal PCB | 2 |
| 10 | Insulation Tape | 2 |
| 11 | Signal Line | 2 |
| 12 | JK V19 PB2A16S20P BMS with 4.3 inch Display | 1 |
| 13 | 1AWG Power Cable | 2(red one,black one) |
| 14 | Mat | 4 |
| 15 | Fire Extinguisher | 1 |
| 16 | Heating Plate | 1 |
| 17 | Battery Box Base(Optional) | 1 |
